Ubiquiti UniFi U7 Pro Wall WIFI 7 Access Point

U7-PRO-WALL | Ubiquiti
$379
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi U7 Pro Wall is a high-performance Wi-Fi 7 access point designed for seamless wall-mounted deployment, delivering ultra-fast tri-band connectivity with 2.4GHz, 5GHz, and 6GHz support. Featuring a 2.5GbE uplink, it ensures maximum throughput for high-density environments, while advanced OFDMA and MU-MIMO technology enhance efficiency and reduce latency. With a sleek, low-profile design, it integrates discreetly into any space, offering robust coverage and improved network capacity. Ideal for both residential and commercial setups, this access point supports the latest security protocols and seamless UniFi ecosystem integration for centralized management.

Features

U7 Pro Wall

Build Features

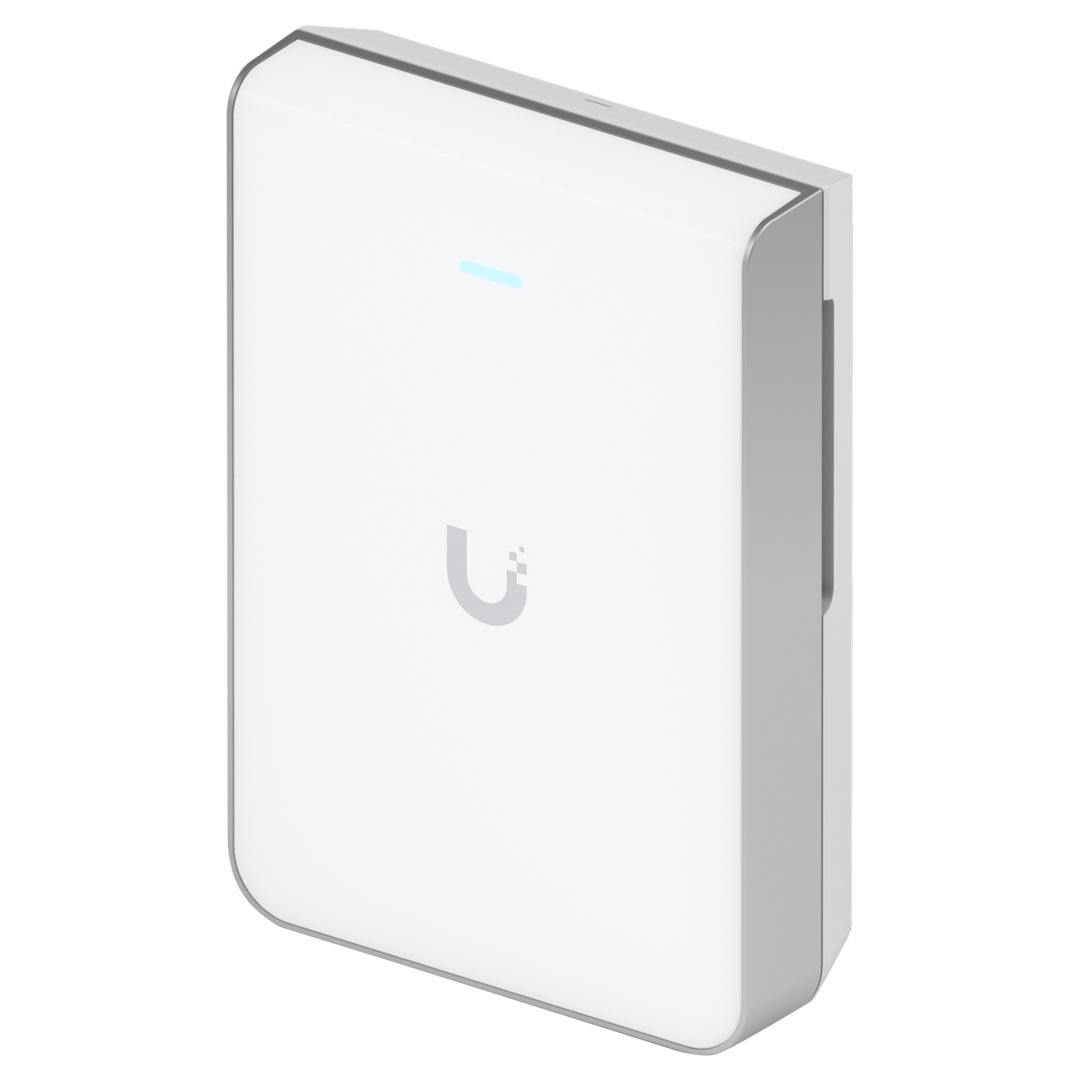

Ubiquiti UniFi U7 Pro Wall WIFI 7 Access Point Feature 1

Front

Ubiquiti UniFi U7 Pro Wall WIFI 7 Access Point Feature 2

Dimensions

Ubiquiti UniFi U7 Pro Wall WIFI 7 Access Point Feature 3

Deployment

Specifications

General Data

Model Number U7-PRO-WALL
Dimensions 150 x 103 x 36 mm
(5.9 x 4.1 x 1.4")
WiFi Standard WiFi 7
Spatial Streams 6
Coverage Area 140 m² (1,500 ft²)
Max. Client Count 300+
Uplink 2.5 GbE
Mounting Locations Wall
Mounting Plate Included mount
Power Method PoE+

Performance

MIMO

 6 GHz - 2 x 2 (DL/UL MU-MIMO)
5 GHz - 2 x 2 (DL/UL MU-MIMO)
2.4 GHz - 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

 6 GHz - 5.7 Gbps (BW320)
5 GHz - 4.3 Gbps (BW240)
2.4 GHz - 688 Mbps (BW40)

Antenna Gain

 6 GHz - 6 dBi
5 GHz - 5 dBi
2.4 GHz - 4 dBi

Max. TX Power

 6 GHz - 23 dBm
5 GHz - 26 dBm
2.4 GHz - 22 dBm

Max. BSSIDs

 8 per Radio
Supported Data Rates 802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing Yes
Band Steering Yes
802.11v BSS Transition Management Yes
802.11r Fast Roaming Yes
802.11k Radio Resource Management (RRM) Yes
Advanced Radio Management Yes
Passpoint (Hotspot 2.0) Yes
Custom Branding Landing Page Yes
Voucher Authentication Yes
Payment-Based Authentication Yes
External Portal Server Support Yes
Password Authentication Yes
Guest Network Isolation Yes
Private Pre-Shared Key (PPSK) Yes
WiFi Speed Limiting Yes
Client Device Isolation Yes
WiFi Schedules Yes
RADIUS over TLS (RadSec) Yes
Dynamic RADIUS-assigned VLAN Yes

Hardware

Max. Power Consumption 22W
Supported Voltage Range 44—57V DC
Networking Interface (1) 1/2.5 GbE RJ45 port
Weight 580 g (1.3 lb)
Management Ethernet
Enclosure Material Polycarbonate, Aluminium
Mount Material Aluminium
LEDs System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Certifications CE, FCC, IC
Operating Frequency US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz
Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
Ambient Operating Temperature -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity 5 to 95% noncondensing
Backed by 1-year Ubiquiti warranty.
