TP-Link SG3428XMPP Omada 24 Port Gigabit Managed Switch

The TP-Link Omada SG3428XMPP is a high-performance, 24-port Gigabit L2+ managed switch designed to meet the demands of modern business networks. Featuring 8 PoE++ ports delivering up to 90W each and 16 PoE+ ports providing up to 30W each, it offers a substantial 500W total PoE budget, ideal for powering devices like access points, IP cameras, and IP phones. With 4 additional 10 Gbps SFP+ slots, the SG3428XMPP ensures high-bandwidth uplink connections for seamless data transfer. Advanced Layer 2 and Layer 3 features, such as static routing, VLAN support, ACL, QoS, and IGMP snooping, enhance network efficiency and security. The switch integrates seamlessly into the Omada SDN platform, enabling centralized cloud management via the web or the Omada app, and supports standalone management through web, CLI, SNMP, and RMON interfaces. Its durable metal casing and rack-mountable design ensure reliable performance in various business environments.

Features

---

SG3428XMPP - Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

• 4 x 10 Gbps SFP+ slots
• 8 x Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
• 16 x Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
• 500 W total PoE budget (PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors. The maximum power output of every single PoE++ port is 90 W. SG3428XMPP is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.)
• Centralised cloud management via the web or the Omada app (These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.)
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design
• Ethernet Ring Protection Switching

Empowering the High-Power Devices with Gigabit PoE++ Ports

• 8 x Gigabit PoE++ RJ45 Ports
• 16 x Gigabit PoE++ RJ45 Ports
• Budget Up to 90W per PoE++ Port
• Total 500W PoE Power (PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors. The maximum power output of every single PoE++ port is 90 W. SG3428XMPP is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.)
• Access Points
• PTZ HD IP Cameras with Heaters
• Smart Building Lighting
• Audio System
• Thin Clients

Easily Build a Whole 10G Multi-Gigabit Network

• 10G Router - Ensures the fast way
• Full 10G Fibre Switch - Lightning-fast aggregation switching
• Switch with 10G Uplink
• PoE Switch with 10G Uplink
• Wi-Fi 7/6 APs with 10G/2.5G Ports

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

• Surveillance - Works with IP Cameras
• Conference Call - Works with IP Phones
• Wi-Fi Coverage - Works with Access Points
• Wired Connections - Works with Non-PoE Devices such as PCs and Printers

Build Features

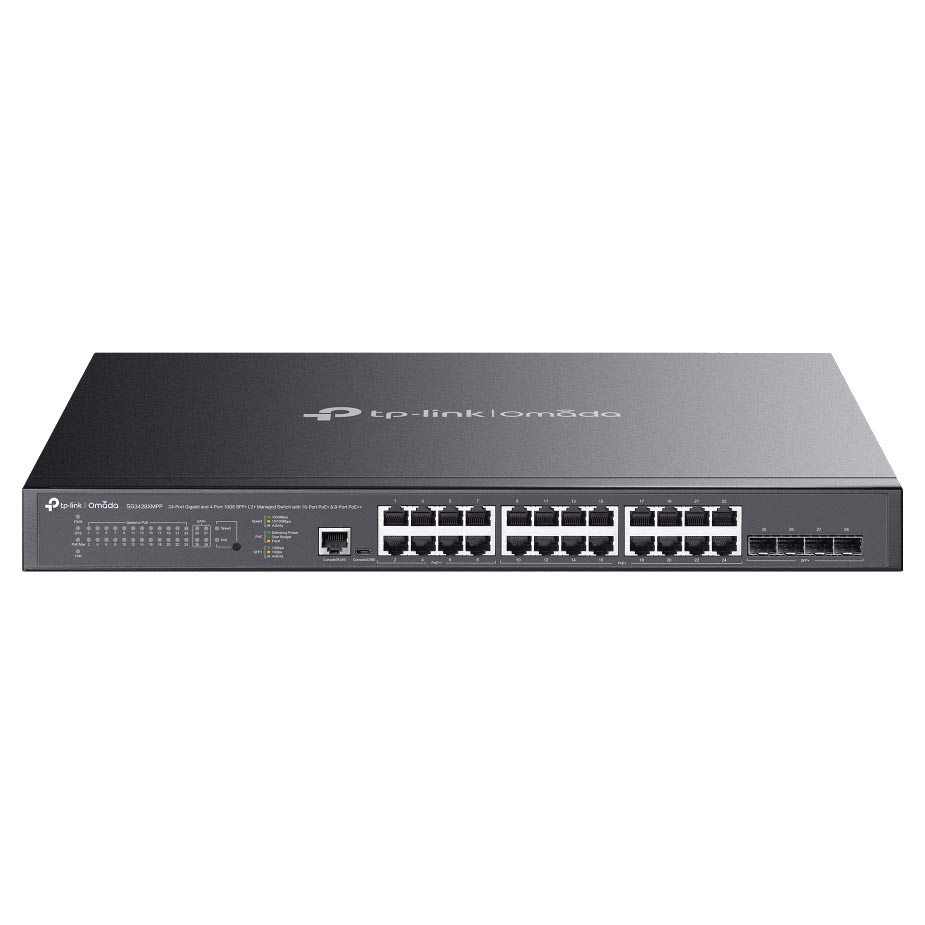

Front

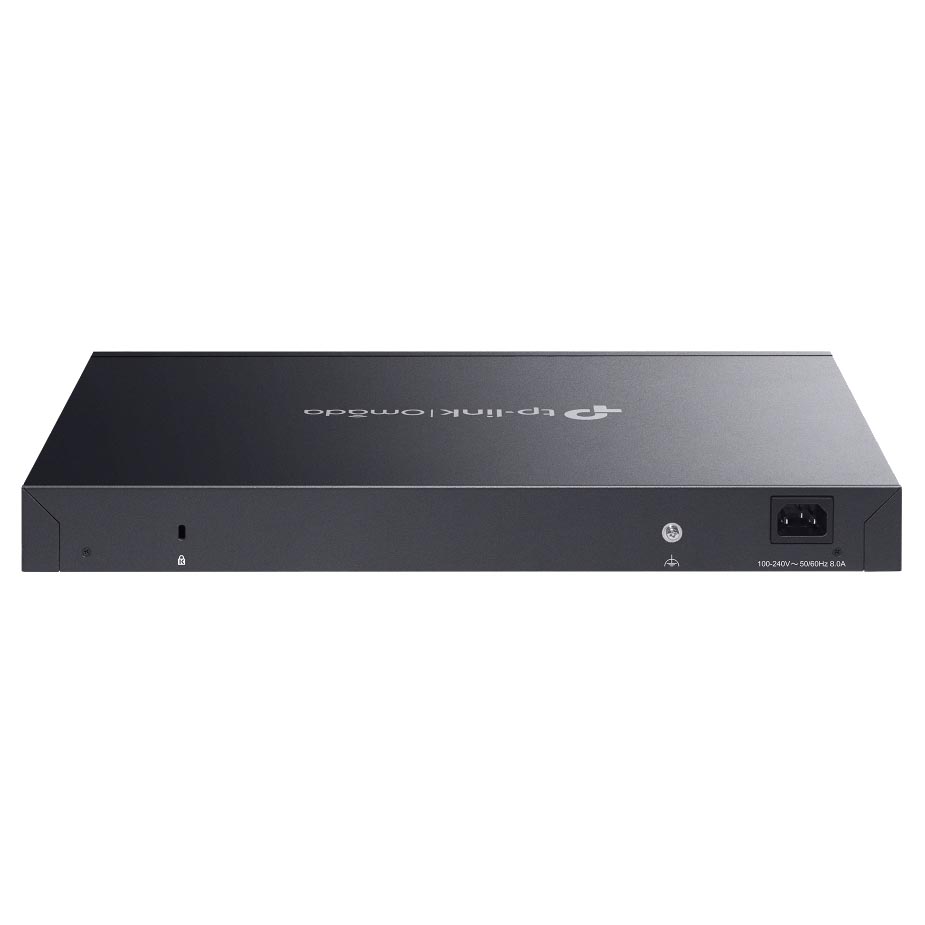

Back

Dimensions
