The TP-Link Omada SG6428XHP is a robust 24-port Gigabit L3 managed PoE+ switch, featuring 24 IEEE 802.3at/af-compliant Gigabit RJ45 PoE+ ports and 4 high-speed 10 Gbps SFP+ slots, delivering a substantial 720 W total PoE budget to efficiently power devices like wireless access points, surveillance cameras, and IP phones. Its physical stacking capability supports up to 8 units, ensuring built-in redundancy and enhanced network performance. Advanced Layer 3 features-including RIP, OSPF, ECMP, VRRP, PIM-DM, and DHCP Server/Relay-facilitate scalable and efficient network routing. Robust security strategies such as ACL, Port Security, DoS Defend, and 802.1X authentication safeguard your network integrity. The switch also offers high availability with two field-replaceable power supplies and supports centralized cloud management via Omada SDN controllers, making it an ideal solution for SMB, enterprise, and ISP networks seeking reliability and scalability.
Features
Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots
Omada SG6428XHP is a versatile L3 managed PoE+ switch, offering L3 routing, rapid 10 Gbps connectivity, stacking, and redundant power supplies, ideal for convergence layer applications. It boasts a 720 W PoE budget, (The total PoE budget varies with the power supply modules.) 24x gigabit RJ45 PoE+ ports, 4x 10 Gbps SFP+ slots, and physical stacking. With centralised management, robust security, and comprehensive management features, it is a dependable choice for SMB, enterprise, and ISP networks.
- 24x Gigabit RJ45 PoE+ ports
- 4x 10 Gbps SFP+ slots
- Up to 720 W total PoE budget (The total PoE budget varies with the power supply modules.)
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies, (Ships with one PSM500-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.) VRRP, and ERPS
- Centralised cloud management via Omada SDN controllers
- Standalone management via web, CLI, SNMP, and RMON
IEEE 802.3at/af-Compliant Power over Ethernet
24x IEEE 802.3at/af-compliant PoE ports supply up to 720 W total power to 802.3at and 802.3af devices, (The total PoE budget varies with the power supply modules.)with each port supplying up to 30 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.
High-Speed Connectivity and Powerful Stacking
24x Gigabit RJ45 ports and 4x 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 8 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM and PIM-SM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Optional field-replaceable and hot-swappable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. (Ships with one PSM500-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.) ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralised cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). (Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with the Omada Cloud-Based Controller.) The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralised cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6428XHP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Build Features

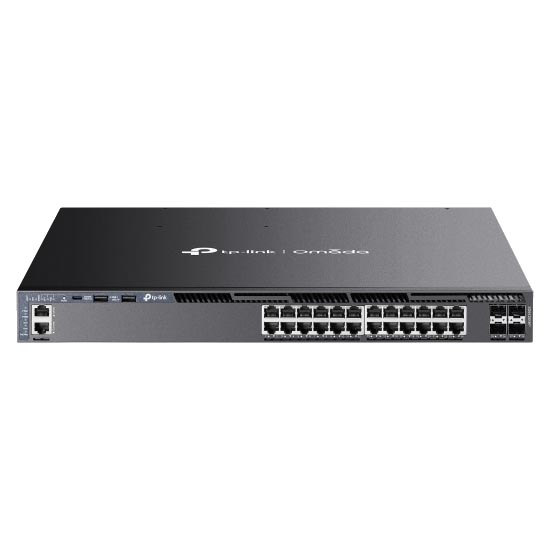

Front

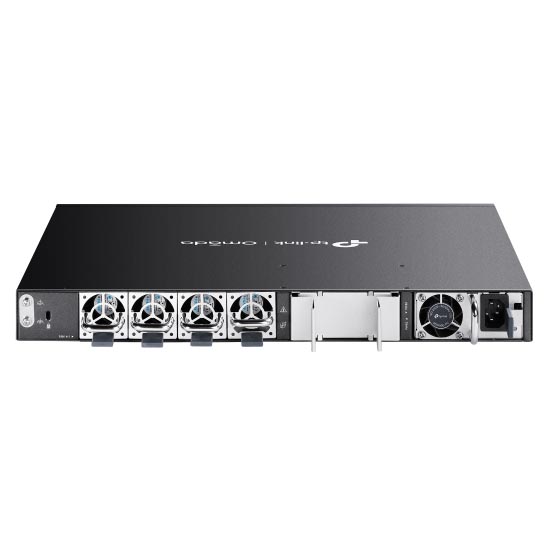

Back
Dimensions
