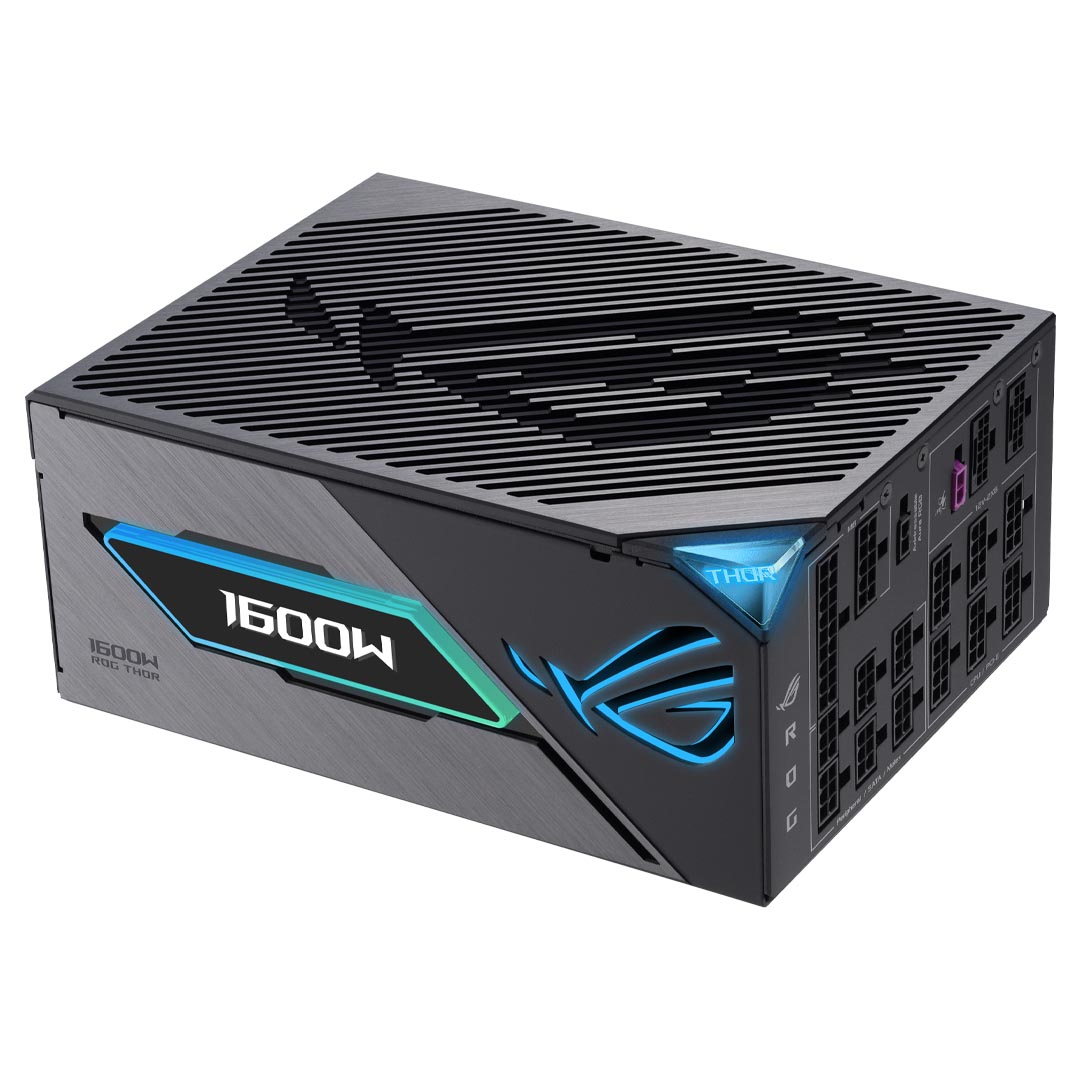

ASUS ROG Thor Titanium III 1600W Power Supply

The ASUS ROG Thor 1600W Titanium III Power Supply is engineered to deliver unparalleled performance and stability for the most demanding gaming systems. Featuring advanced GaN MOSFETs, it achieves up to 30% greater power efficiency compared to standard MOSFETs, ensuring cooler and more reliable operation. The innovative "GPU-First" voltage sensing technology, coupled with a patented intelligent voltage stabilizer, enhances voltage delivery to your graphics card by up to 45%, providing unwavering performance during intense gaming sessions. Compliant with the ATX 3.1 standard, this PSU is equipped with a 16-pin PCIe cable capable of delivering up to 600W to PCIe Gen 5.1 graphics cards, making it future-ready for next-gen hardware. The magnetic OLED display offers real-time power draw monitoring and can be positioned on either side of the unit to accommodate various PSU installations. With an 80 PLUS Titanium certification, ROG heatsinks, and a fully aluminum enclosure, the ROG Thor 1600W Titanium III ensures superior cooling and efficiency. Backed by a 10-year warranty, it's the ultimate power solution for your high-performance build.

Features

---

ROG Thor 1600W Titanium III

Ultimate Power. Unmatched Stability.

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabiliser and a magnetic OLED display, ROG Thor 1600W Titanium III delivers unmatched performance and rock-solid stability for your ultimate PC build.

The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabiliser, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

• GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organised internal layout for cooler operation.
• "GPU-First" voltage sensing with patented intelligent voltage stabiliser enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
• Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
• Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
• ROG heatsinks and a fully aluminium enclosure synergise for superior cooling, keeping your system thermals under control.
• Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
• ATX 3.1 compatible: ROG Thor Titanium III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
• Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
• Cybenetics Lambda A+ noise & Titanium certification
• 80 PLUS Titanium certified: ROG Thor III utilises low-ESR capacitors and premium components for industry-leading power efficiency.
• 10-year warranty included.

Engineering

GaN MOSFET

The ROG Thor 1600W Titanium III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organised internal layout. This optimised design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

Intelligent Voltage Stabiliser - "GPU-First" Voltage Sensing with Patented Intelligent Voltage Stabiliser (IVS)

Activate the "GPU-First" voltage sensing by connecting the IVS cable. This innovative feature enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios. If you prefer conventional CPU-focused voltage sensing, simply disconnect the IVS cable. With this advanced technology, you can experience smooth and consistent gaming.

High-Performance Copper Pins

Upgraded PCIe® connectors feature superior thermal conductivity to help ensure cooler operation and improved power delivery efficiency. This translates to a significant 29% reduction in connector temperatures (up to 12.3°C), promoting optimal performance and stability for even the most demanding graphics cards.

*Illustration for reference only.

ATX 3.1 Compatible

ATX 3.1 ushers in tighter voltage and current regulation standard for next-gen hardware - and the ROG Thor 1600W Titanium III arrives ahead of the curve with full compliance. A 16-pin PCIe cable capable of sending up to 600 watts of power to PCIe 5.0 graphics cards is bundled with this PSU, readying your build for the next gen.

Lambda A+ Certification - Quietly Deviant

On average, ROG Thor 1600W Titanium III PSU emits less than 20 dB of noise - earning a coveted Cybenetics Lambda A+ certification.

80 Plus Titanium Certification

The ROG Thor 1600W Titanium III utilises low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable 80 PLUS Titanium certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduced fan noise, and increased reliability.

Cooling

ROG Heatsinks - Cool Under Pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

*Illustration for reference only.

Dual-Ball-Fan Bearings - 2X Longer Lifespan

Dual-ball bearings boast a remarkable lifespan of up to 80,000 hours, twice as long as sleeve bearings and exceeding even fluid dynamic bearings. This helps to ensure long-lasting and reliable cooling with minimal noise for the ROG Thor 1600W Titanium III.

*Illustration for reference only.

0dB Technology - Quiet Intelligence

To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is at 30% or below.

In 0dB mode (button pressed), the fan continues to spin when transitioning from high to low loads, ensuring safe temperatures are reached before stopping.

Experience

Magnetic OLED Display

This detachable magnetic OLED display showcases real-time power draw, providing insights to your system's performance and efficiency. The magnetic attachment can be swapped to either side of the unit for fan-up or fan-down PSU installation, depending on the design of your case, so you can maintain optimal airflow without compromising monitoring.

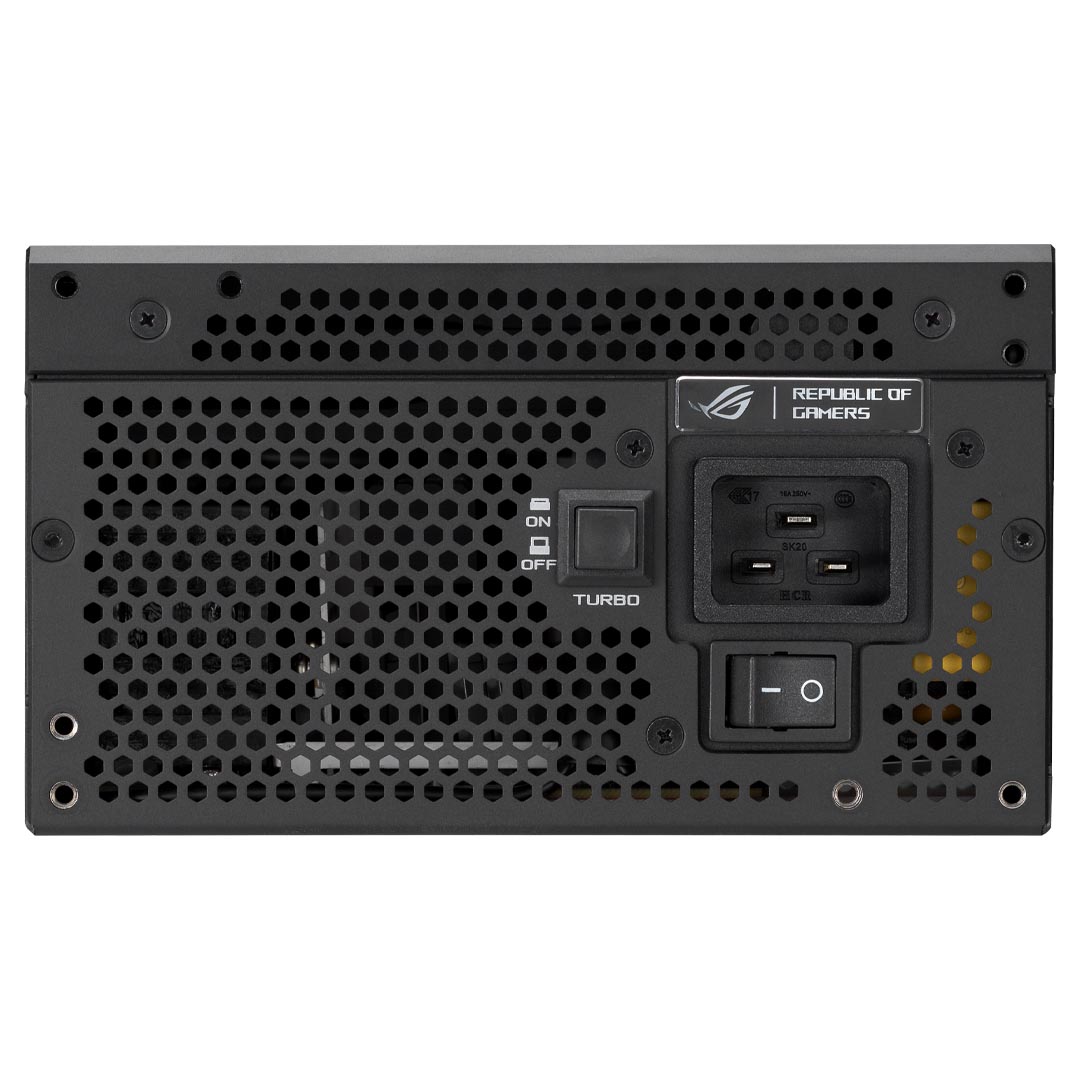

Turbo Mode

Turbo Mode unlocks support for extended power excursions, courtesy of a fine-tuned fan curve and premium components. Enjoy unwavering performance when you need it most, and switch between peak performance and ultimate silence with just a press of the Turbo Mode button on the rear of the PSU.

Etched Cables

Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

DIY-Friendly CPU Power Connector

Engineered with a distinct clip between the 4+4 pin connectors and a unique colour scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.

Aura Sync

The ROG Thor 1600W Titanium III has addressable Aura RGB LEDs built in, ready to accent an Aura-compatible rig with an array of colours and lighting effects*. Users of Aura-sync compatible ASUS and ROG graphics cards can also enjoy Smart Mode, a lighting effect that changes colour according to GPU temperature.

* If the LED connector is not used, the default colour effect is a rainbow cycle.

• Static - Always on
• Breathing - Fades in & out
• Strobing - Flashes on & off
• Colour cycle - Fades between the colours of rainbow
• Rainbow - A rolling multi-colour flow
• Starry night - A display that mimic the night-time sky
• Music - Pulses to the beat of your music
• Smart - Changes colour with CPU/ GPU load
• Adaptive Colour - Matches colour to a selected region on your screen
• Dark - Lighting is turned off

10-Year Warranty - A Decade of Power

We're so confident about the reliability of the ROG Thor 1600W Titanium III that we back it with a 10-year warranty.

*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.
