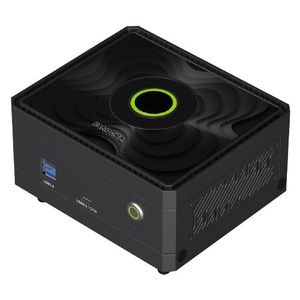

Palit PANDORA AI NVIDIA Jetson Orin NX SUPER 8GB 117/58 TOPS

A001FVP1 | Palit

$1399

In stock

Add to wishlist

Buy now, pay later!

Overview Specifications Warranty & Returns

On sale! (normally $1899) The Palit PANDORA AI NVIDIA Jetson Orin NX SUPER 8GB is a powerful AI edge computing system, featuring a 6-core Arm Cortex-A78AE CPU and a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, delivering up to 117 TOPS AI performance. Designed for high-efficiency AI inference and computer vision tasks, this compact 145mm × 123mm × 66mm device supports external NVMe storage, dual USB 3.2 Gen2, HDMI 2.0, and dual Gigabit Ethernet. Equipped with multiple M.2 expansion slots for SSDs, Wi-Fi, and 5G modules, it offers seamless integration for advanced AI applications. Optimised for Ubuntu 22.04 with JetPack 6.1.1 support, it operates within a 42W power envelope, making it ideal for AI-driven automation, robotics, and edge computing solutions.

Features

Pandora AI NVIDIA Jetson Orin NX Super 8GB 117/58 Tops

Powered by NVIDIA® Jetson Orin NX SUPER
Compact Size : 145mm x 123mm x 66mm
4 x M.2, 8 Lanes MIPI CSI-2, and I2C / UART / GPIO / CAN Bus
2 x USB3.2 Gen2, 2 x USB2.0
1 x HDMI2.0

Pandora AI NVIDIA Jetson Orin NX Super 8GB 117/58 Tops Feature 1

Dimensions

Specifications

General Data

Model Number	A001FVP1
CPU	NVIDIA Jetson Orin NX 8GB SUPER 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3
GPU	1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
AI Performance	117 / 58 TOPS (Sparse / Dense)
System Memory	8GB 128-bit LPDDR5, total 102.4 GB/s bandwidth
Dimension of Main Board	115mm x 115mm
Dimension of System	145mm x 123mm x 66mm
Weight	470g

Interface

Storage	Supports External NVMe
Display Interface	1 x HDMI2.0
Ethernet	2 x RJ45 for 10/100/1000Mbps Ethernet DHCP Client
USB	2 x USB3.2 Gen2 ( Type-A ) 1 x USB3.2 Gen2 ( Type-C ) ( OTG ) 2 x USB2.0 ( Type-A )
Expansion Slot	1×M.2 2280 M Key PCIe Gen4×2 Slot ( with Pre-Installed 128GB SSD ) 1 x M.2 2280/3080 M Key PCIe Gen4×4 Slot, Support SSD or Video Capture Cards 1 x M.2 2230 E Key PCIe Gen4×1+USB2.0 Slot, Support Wi-Fi Module 1 x M.2 3042/3052 B Key USB3.2 Gen1 Slot, Support 5G/4G Wireless Module
MIPI	8-Lane MIPI CSI-2 (D-PHY 2.1, Support MIPI Camera, Capture Card)
Audio	1 x Line In ( 3.5mm Phone Jack ) 1 x Line Out ( 3.5mm Phone Jack )
Peripheral Communication	40 Pin Header 1 x I2S 2 x I2C 2 x SPI 1 x UART 3 x GPIO 14 Pin Header 1 x CAN Bus 1 x UART with CTS/RTS 1 x UART for Debug
Misc. Features	Firmware Upgradable TPM Module ( Optional )

Video Encode/Decode

Video Encode	AV1 ( UHP ) 1 x 4K 60 \| 3 x 4K 30 \| 6 x 1080p 60 \| 12 x 1080p 30 H.265 ( UHP ) 1 x 4K 60 \| 3 x 4K 30 \| 6 x 1080p 60 \| 12 x 1080p 30 H.264 ( UHP ) 1 x 4K 60 \| 2 x 4K 30 \| 5 x 1080p 60 \| 11 x 1080p 30
Video Decode	AV1 ( Main Profile ) 1 x 8K 30 \| 2 x 4K 60 \| 4 x 4K 30 \| 10 x 1080p 60 \| 20 x 1080p 30 H.265 ( Main, Main10 ) 1 x 8K 30 \| 2 x 4K 60 \| 4 x 4K 30 \| 9 x 1080p 60 \| 18 x 1080p 30 H.264 ( Baseline, Main, High ) 1 x 4K 60 \| 2 x 4K 30 \| 5 x 1080p 60 \| 11 x 1080p 30 VP9 ( Profile 0, Profile 2 ) 1 x 4K 60 \| 3 x 4K 30 \| 7 x 1080p 60 \| 15 x 1080p 30

Environment

OS	Ubuntu: 22.04
Kernel	5.15.148-tegra or Higher
BSP	Linux for Tegra (L4T) R36.4 or Higher
SDK	JetPack 6.1.1 or Higher
Power Supply	DC input : 12~36V
Power Consumption	8GB Max: 42W / 16GB Max: 49.2W
Operating Temperature	Standard Version: 0~60°C with Airflow
Storage Temperature	-20~80°C

Backed by a 2 year Palit warranty.
