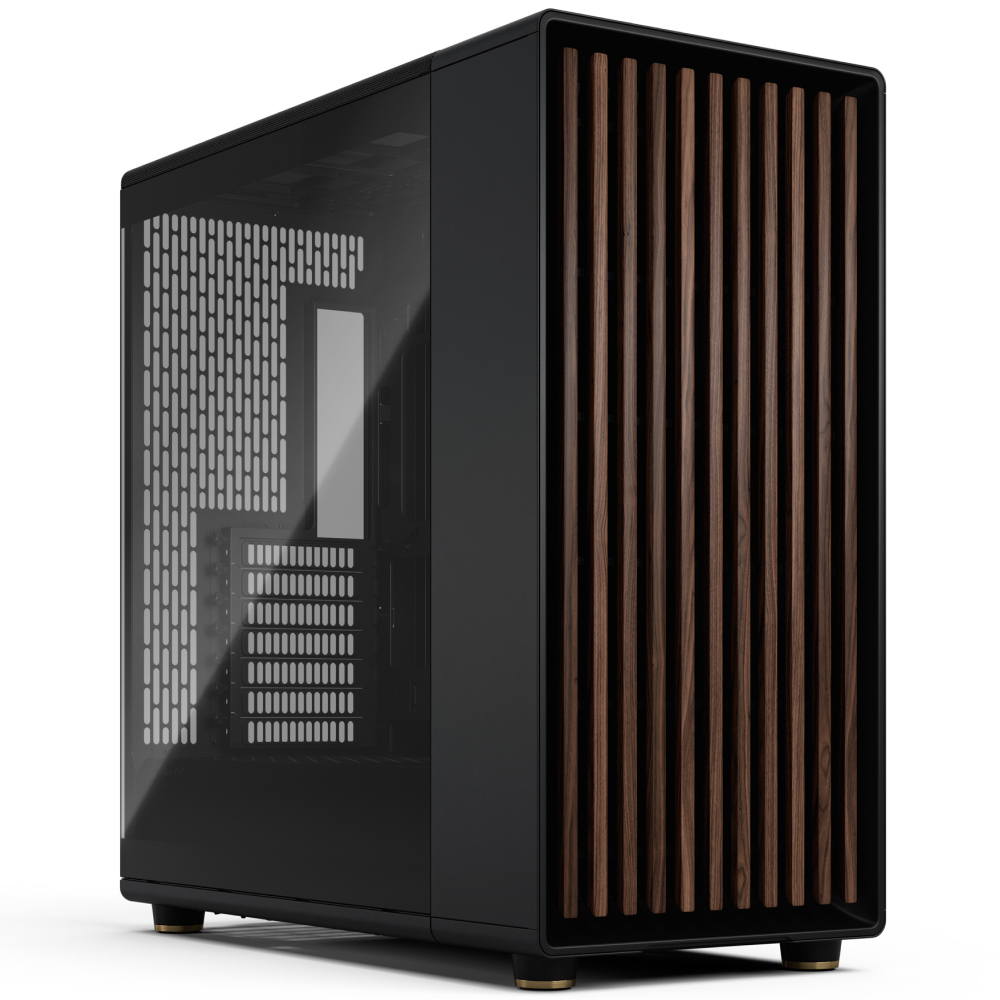

The Fractal Design North XL RC TG Case blends premium aesthetics with high-performance airflow, designed for gamers and PC enthusiasts who demand both style and functionality. Featuring a sleek design with real walnut front panel and brass detailed I/O interface and a tempered glass side panel to showcase high-end components. Optimised for cooling there is support for up to seven 120mm or five 140mm fans (front, top and rear) and includes three pre-installed Aspect PWM 140mm fans to the front, as well as radiator support to the front (up to 420mm), top (up to 360mm) and rear (up to 120mm), providing superior thermal performance. This case accommodates ATX and mATX motherboards with connectors hidden on the back, and support for graphics cards up to 413mm in length. Additional features include tool-free slide open side panels, versatile storage options and perforated top mesh panels for a seamless build experience.
Note: Compatible with Reverse Connector motherboards only.
Features
Fractal Design North XL RC TG Case
Transformative Design in a Generous Format
North XL offers a transformative take on the gaming PC case in a generous form factor. With fine-patterned mesh ventilation and an open front featuring FSC-certified walnut or oak panels, the design of North XL makes it a stylish addition to any living space while helping components stay cool. The design is complemented by sleek brass or steel details and an integrated tab for easy access to the top of the case. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building aspirations and gaming experience. The North XL RC version offers compatibility with reverse connector motherboards for an even cleaner finish.
Key Features
- Enhance the look of your gaming station with sleek wood and alloy details.
- Designed for ATX and mATX motherboards with connectors hidden on the back (North XL RC version only).
- Enjoy natural ventilation through an open front and stylishly integrated mesh.
- Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator.
- Compatible with front radiators up to 420 mm and top radiators up to 360 mm.
- Get a head start on your build with the three included 140 mm Aspect PWM fans.
- Slide open the side panels, unclip the front, and use the integrated tab to pop off the top panel.
- Enjoy a sophisticated-looking case that integrates effortlessly into your living space.
Specifications
General Data
| Model Number |
FD-C-NOR1X-05 |
| Model Name |
Fractal Design North XL RC Charcoal Black TG |
| Colour |
Charcoal Black |
| Dedicated 3.5" Drive Mounts |
0 |
| Dedicated 2.5" Drive Mounts |
2 |
| Dedicated 3.5"/2.5" Drive Mounts |
2 (Included) |
| 5.25" Drive Mounts |
0 |
| Expansion Slots |
7 |
| Motherboard Compatibility |
ATX and mATX with rear-facing connector / Mini-ITX |
| Power Supply Type |
ATX |
| Front Interface |
USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio & Mic |
| Total Fan Mounts |
7 × 120 mm or 5 × 140 mm |
| Front Fans |
3 × 120, 3 × 140 mm (3 × Aspect 140 mm PWM included) |
| Top Fans |
3 × 120, 2 × 140 or 2 × 180 mm |
| Rear Fans |
1 × 120 mm |
| Side Bracket Fans |
N/A |
| Dust Filters |
Front, PSU |
| Front Radiator |
Up to 420 / 360 mm |
| Top Radiator |
Up to 280 / 360 mm |
| Rear Radiator |
1 × 120 mm |
| Bottom Radiator |
N/A |
| PSU Max Length |
1 HDD Tray: 290 mm max
2 HDD Tray: 175 mm max |
| GPU Max Length |
413 mm with front fan mounted
380 mm with 420/360 mm front mounted radiator |
| CPU Cooler Max Height |
169 mm |
| Cable Routing Space |
45 mm |
| Cable Routing Grommets |
No |
| Fixed Cable Straps |
Yes |
| Included Brackets |
HDD Brackets, SSD Brackets, Side Panels, PSU Bracket |
| Left Side Panel |
Tempered Glass, 3 mm |
| Right Side Panel |
Steel |
| Case Dimensions (LxWxH) |
503 × 240 × 509 mm |
| Package Dimensions (LxWxH) |
604 × 355 × 608 mm |
| Net Weight |
9.7 kg |
| Gross Weight |
11.6 kg |
| What's Included |
North XL RC Case
Accessory Box
User Manual |
Backed by a 2 year Fractal Design warranty.
