Ubiquiti Mobile Router Ultra

UMR-ULTRA | Ubiquiti
$205
In stock
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti Mobile Router Ultra is an ultra-compact, managed LTE mobile router designed for IoT applications, featuring integrated LTE, wired WAN, WiFi connectivity, and automatic failover capabilities. Equipped with two Fast Ethernet RJ45 ports, it ensures reliable wired connections, while its support for site-to-site VPN and VPN client routing enhances secure communications. The device offers flexible power options, including USB Type-C and a 4-pin DC power socket, and comes with wall and DIN rail mounting options for versatile installation.

Please note that this router does not come with a USB Type-C (5 V DC / 2 A) or 4-pin ATX DC power cable

Features

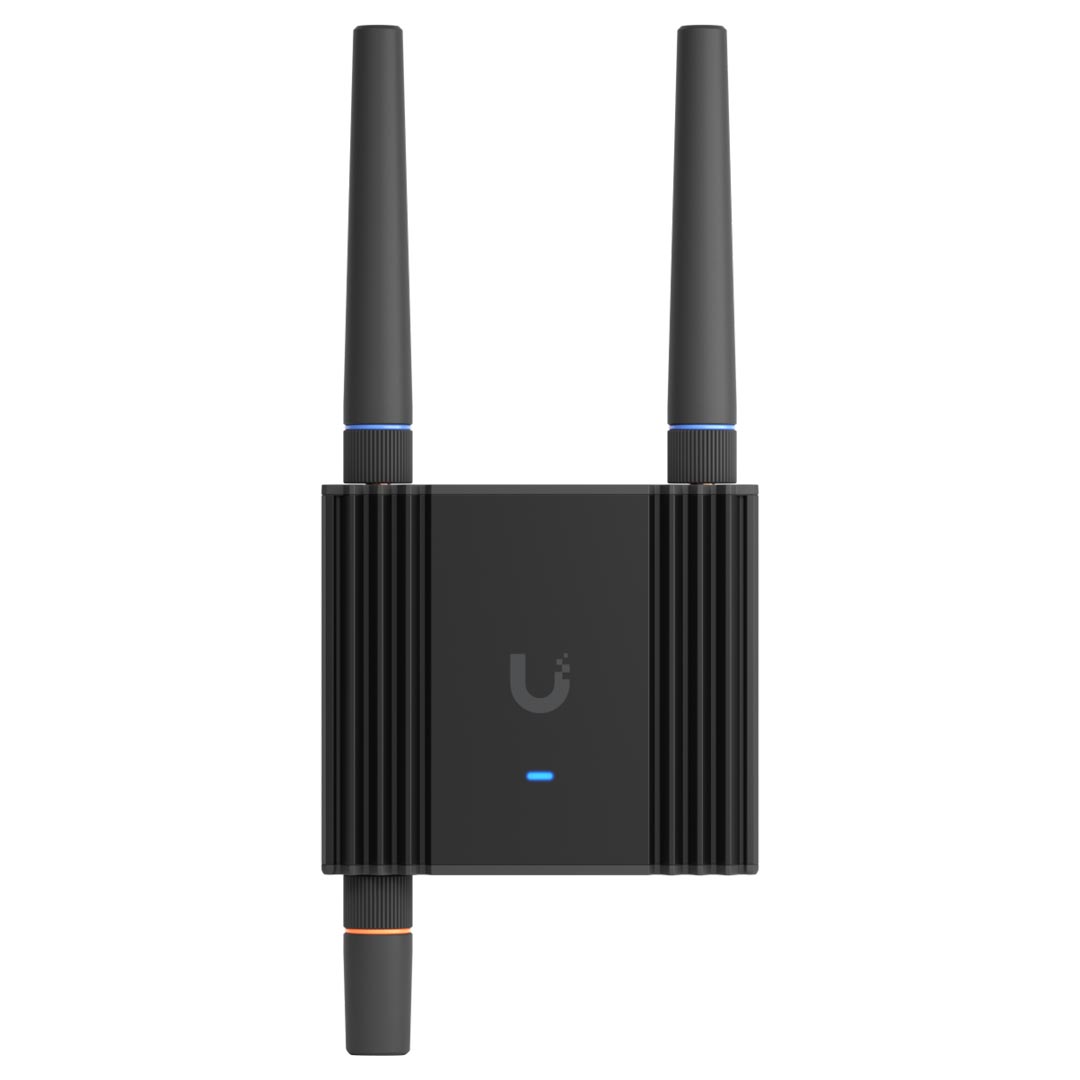

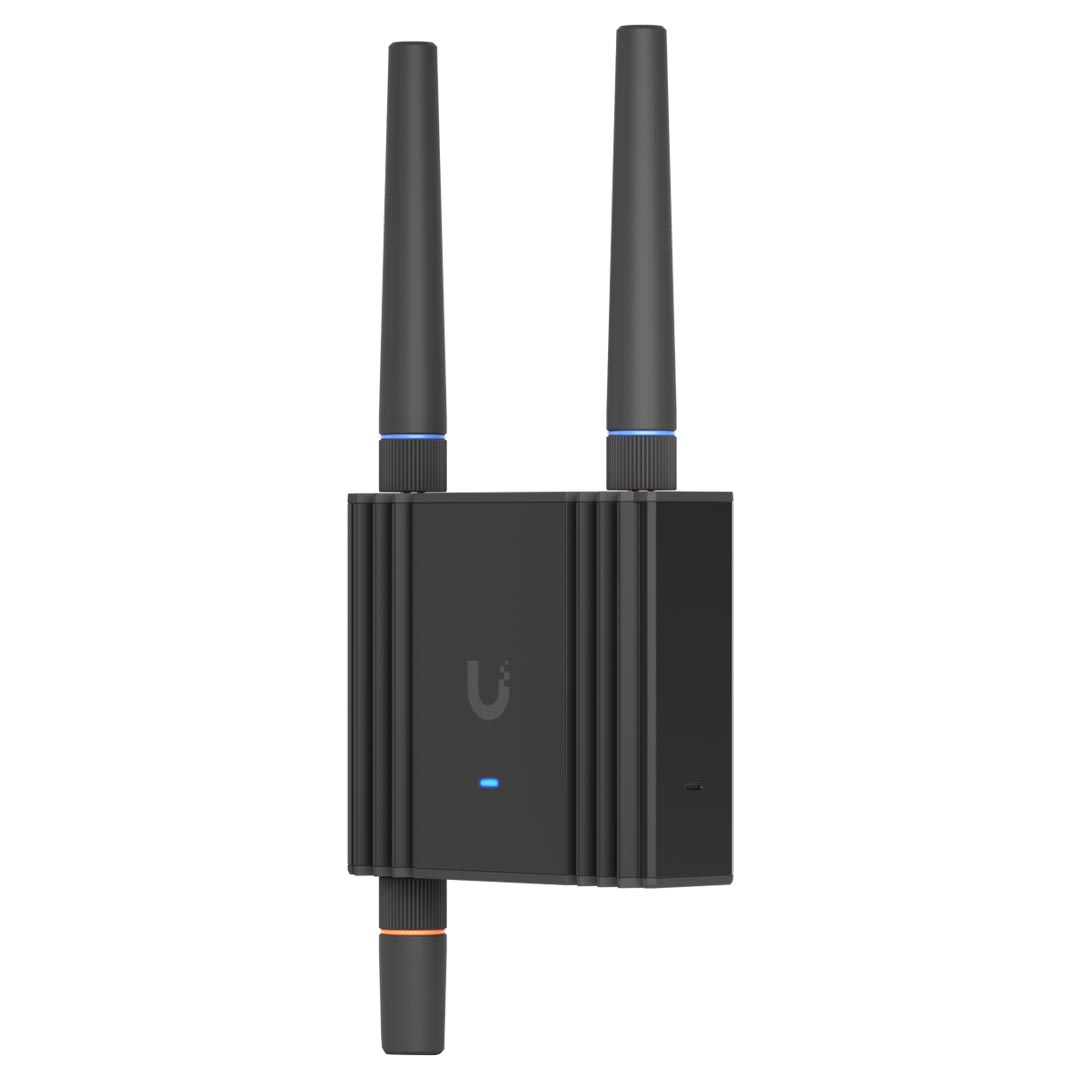

Mobile Router Ultra

Ubiquiti Mobile Router Ultra Feature 1

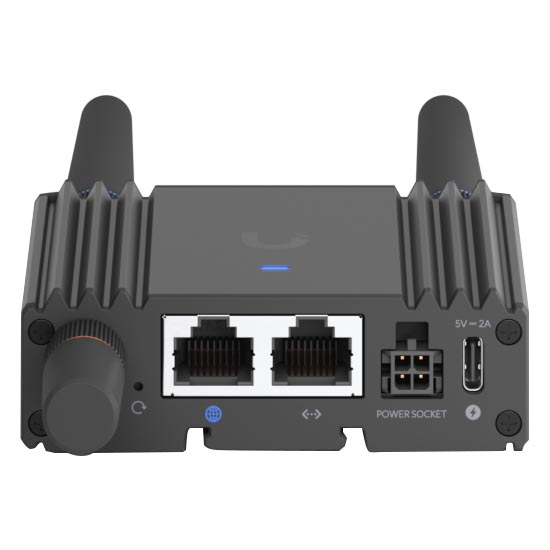

Front

Ubiquiti Mobile Router Ultra Feature 2

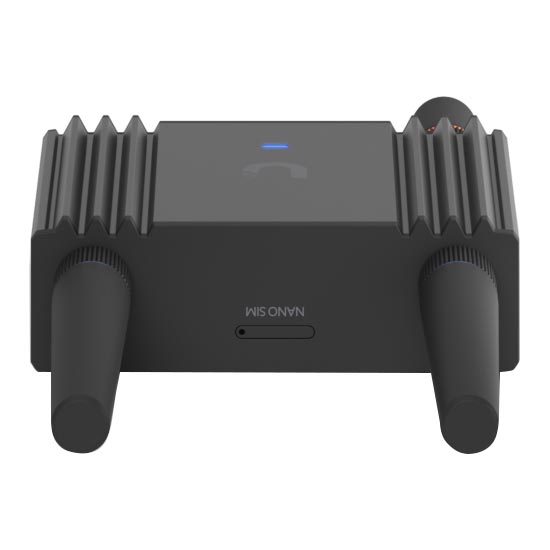

Top

Ubiquiti Mobile Router Ultra Feature 3

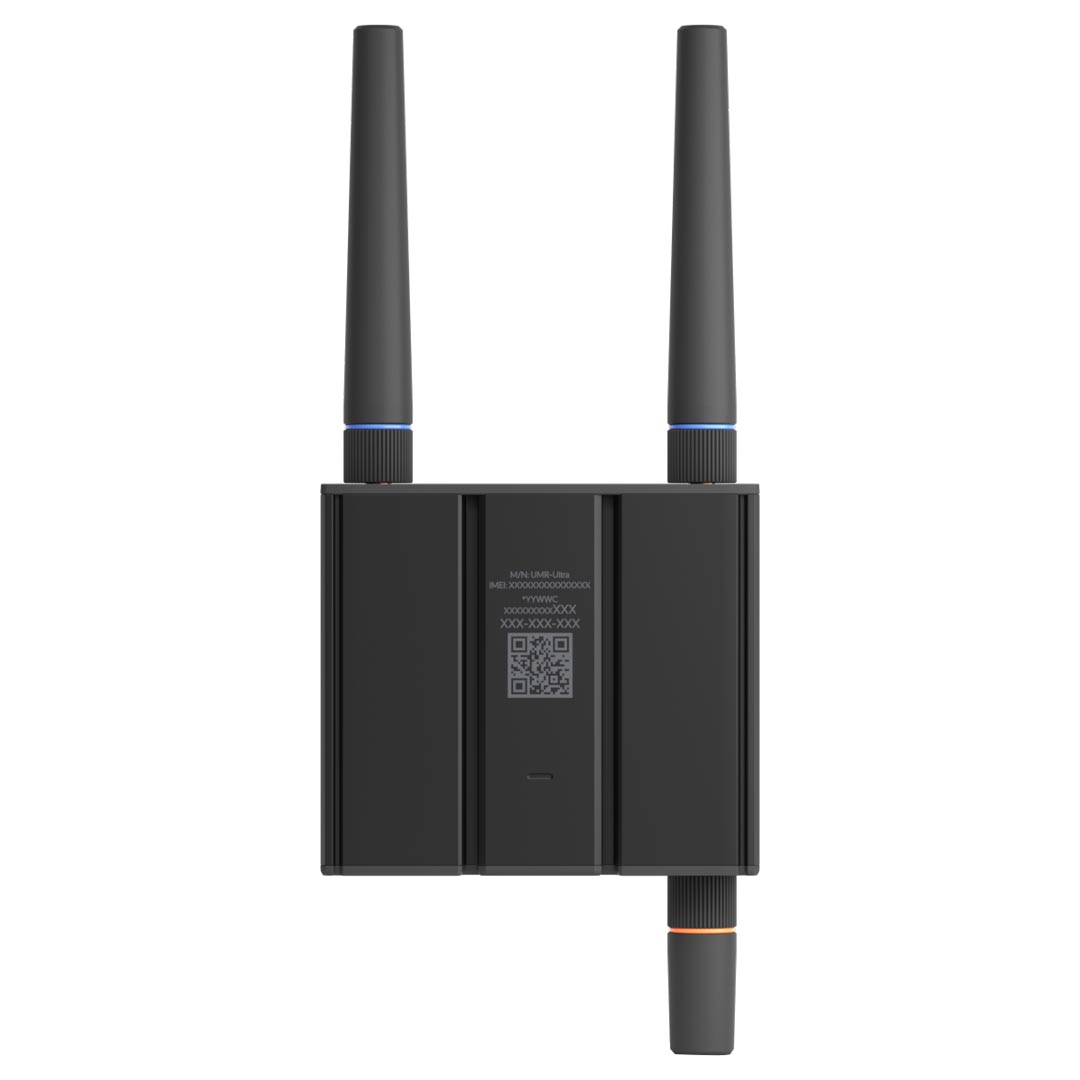

Bottom

Specifications

General Data

Model Number UMR-ULTRA

Mechanical

Dimensions Without antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1")
With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1")
Weight Device: 200 g (7.1 oz)
DIN rail / wall mounts: 20 g (0.7 oz)
Enclosure Material Polycarbonate, aluminium alloy
Mount Material Polycarbonate

Hardware

Management Interface Ethernet
WiFi
Networking Interface (2) FE RJ45 ports
LTE Category 4 radio
WiFi 4
Power Supply USB Type-C (5 V DC / 2 A)
4-pin (Please refer to the Installation Guide for detailed power socket pinout.) ATX DC power socket (9 — 30 V DC)
Max. Power Consumption 5.7 W
SIM Nano SIM
LTE Bands B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
LTE Throughput Speed Download 150 Mbps / Upload 50 Mbps (Speed depends on network coverage and performance at the device location.)
WiFi Standards WiFi 4, 2.4 GHz, 20 / 40 MHz
Max. WiFi TX Power 17 dBm
Antenna SMA Ports (1) Mobile 1: SMA female connector, supports 1Rx only
(1) Mobile 2: SMA female connector, supports 1Tx and 1Rx
(1) WiFi: RP-SMA female connector
External Antennas (2) Mobile / LTE antennas with SMA male connectors
(1) WiFi antenna with RP-SMA male connector
LED Status: blue / white
Button Factory reset

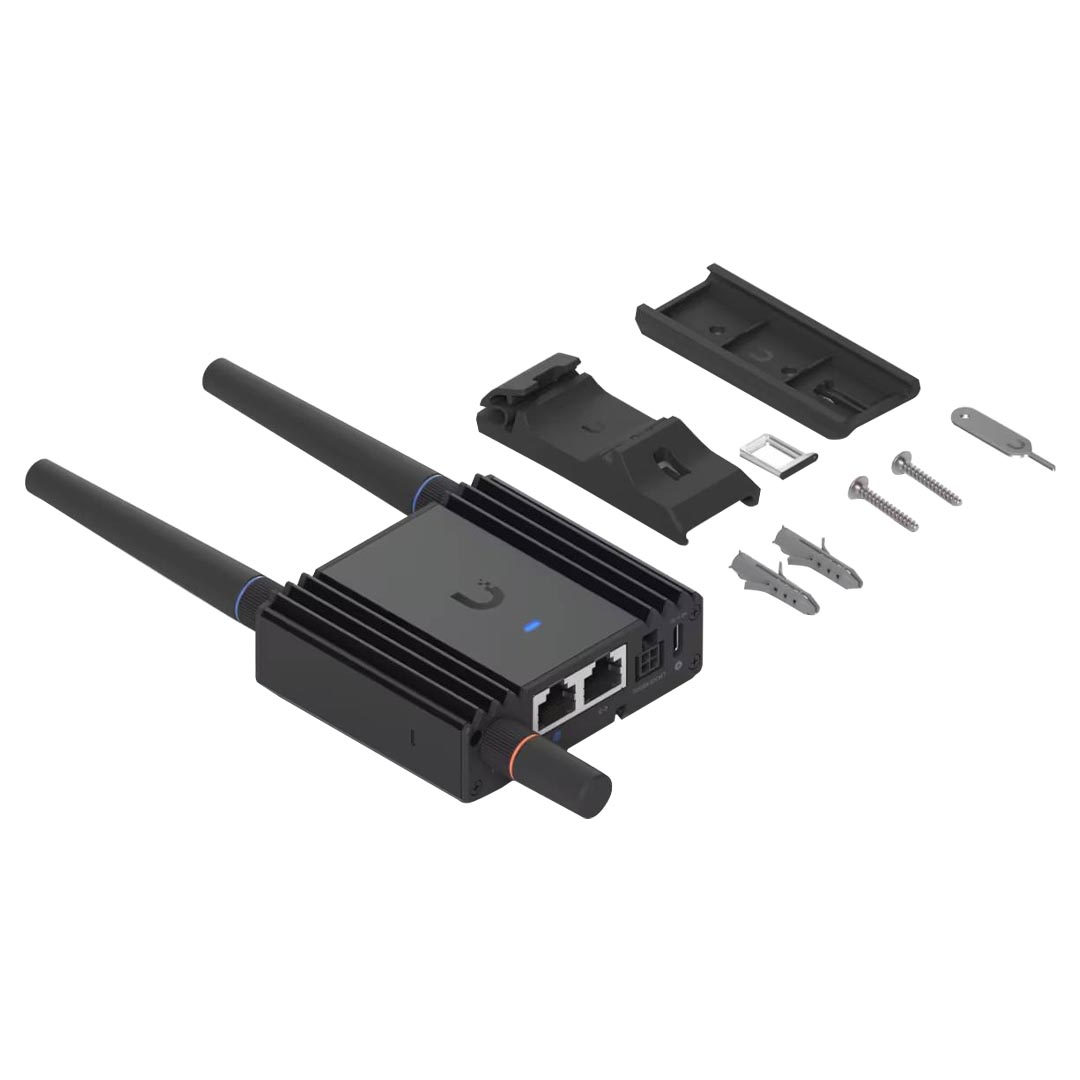

Mounting DIN rail / wall mount (Included)
Ambient Operating Temperature -30 to 70° C (-22 to 158° F)
Ambient Operating Humidity 10 to 90% noncondensing
Certifications FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®

Supported WiFi Data Rates

802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20 / 40)
Backed by a 1 year Ubiquiiti warranty.
