PNY GeForce RTX 5080 Triple Fan GDDR7 16GB
VCG508016TFXPB1 | PNYThis product has been discontinued
Features
PNY GeForce RTX™ 5080 Triple Fan GPU
Gear up for game-changing experiences with the NVIDIA GeForce RTX™ 5080 and AI-powered DLSS 4. Built with NVIDIA® Blackwell and equipped with blistering-fast GDDR7 memory, it lets you run the most graphically demanding games and creative applications with stunning fidelity and performance. With NVIDIA Studio you can bring your creative projects to life faster than ever.
- NVIDIA Blackwell Architecture
- 16GB GDDR7 Memory
- 3 x Display Port 1x HDMI
- 10,752 CUDA® Cores
- 360 W Thermal Design Power
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors - Optimised for neural shaders
- Fourth-Gen Ray Tracing Cores - Built for Mega Geometry
- AI-Enhanced Graphics and Performance - NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness - NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics - Full ray tracing with neural rendering
- Digital Humans and AI Assistants - NVIDIA ACE
- Accelerate Your Creativity - NVIDIA Studio creator tools and technology
- Enhance Any Video with AI - NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability - NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
- The Ultimate Gaming Display Technologies - NVIDIA G-SYNC
Game Changer
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of Al horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
Specifications
| Model Number | VCG508016TFXPB1 |
| Architecture | Blackwell |
| CUDA® Cores | 10,752 |
| Base Clock Speed | 2.30 GHz |
| Boost Clock Speed | 2.62 GHz |
| Memory Speed (Gbps) | 30 |
| Memory Size | 16 GB GDDR7 |
| Memory Interface | 256-bit |
| Memory Bandwidth (GB/sec) | Up to 960 GB/s |
| TDP | 360 W |
| NVLink | Not Supported |

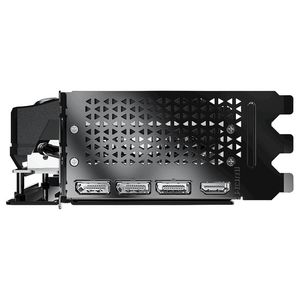

| Outputs | DisplayPort 2.1b (x 3), HDMI 2.1b |
| Multi-Screen | 4 |
| Resolution | 4K at 480 Hz or 8K at 120 Hz with DSC |
| Power Input | One 16-Pin (One 16-pin to Three 8-pin) |
| Bus Type | PCI-Express 5.0 x 16 |
| Card Dimensions | 12.94" x 5.42" x 2.35"; 3 Slot |
| System Requirements | PCI Express-compliant motherboard with one 3-width x 16 graphics slot Three 8-pin supplementary power connectors Total graphics power 360 W Required system power 850 W (Power requirements can be different depending on system configuration.) Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit Internet connection (Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.) WARNING: This product contains chemicals including lead known in the state of California to cause cancer and/or reproductive harm, and birth defects or other reproductive harm. |
| What's Included | PNY GeForce RTX™ 5080 1 x Auxiliary Power Cable |
| Warranty | 3-Year Limited Warranty |
