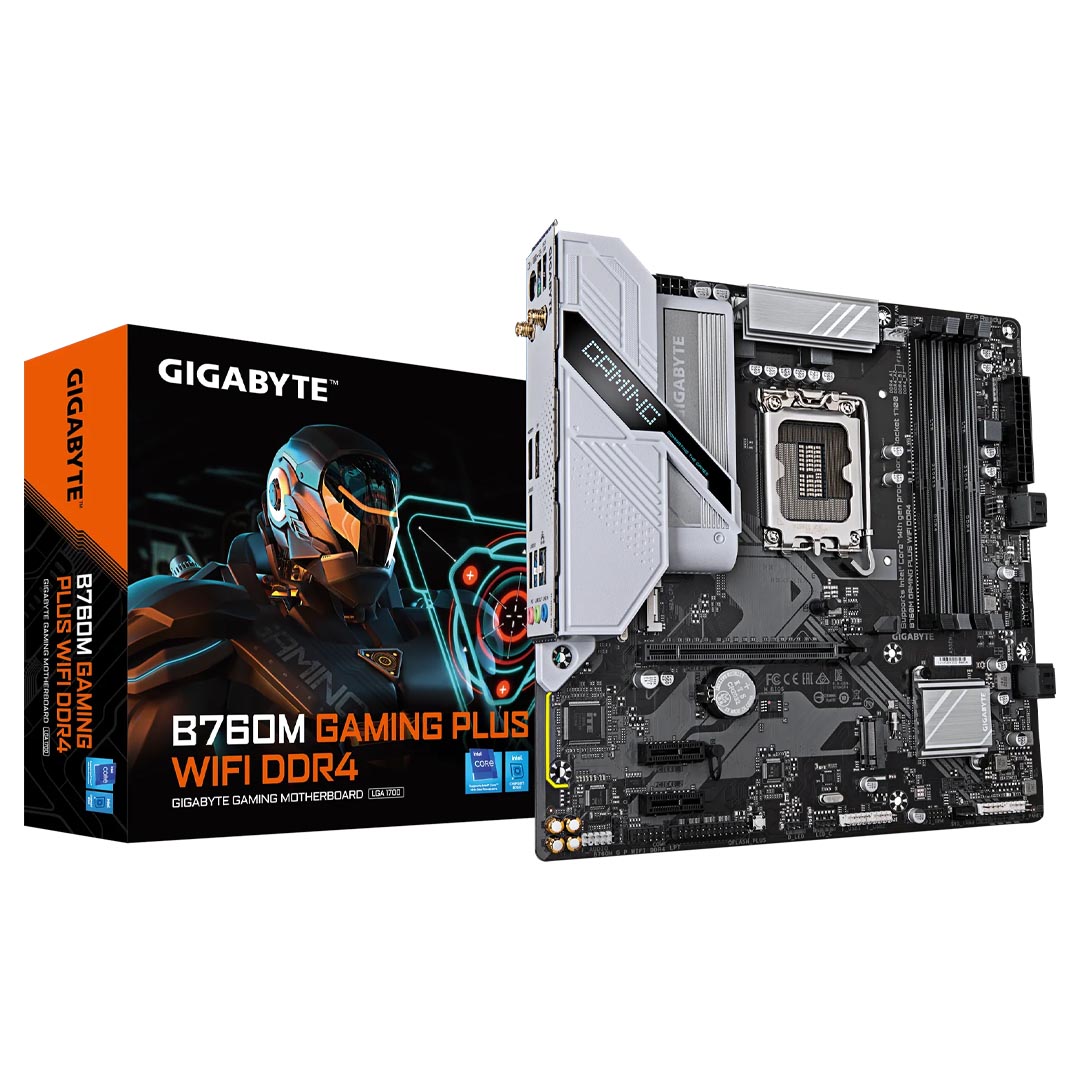

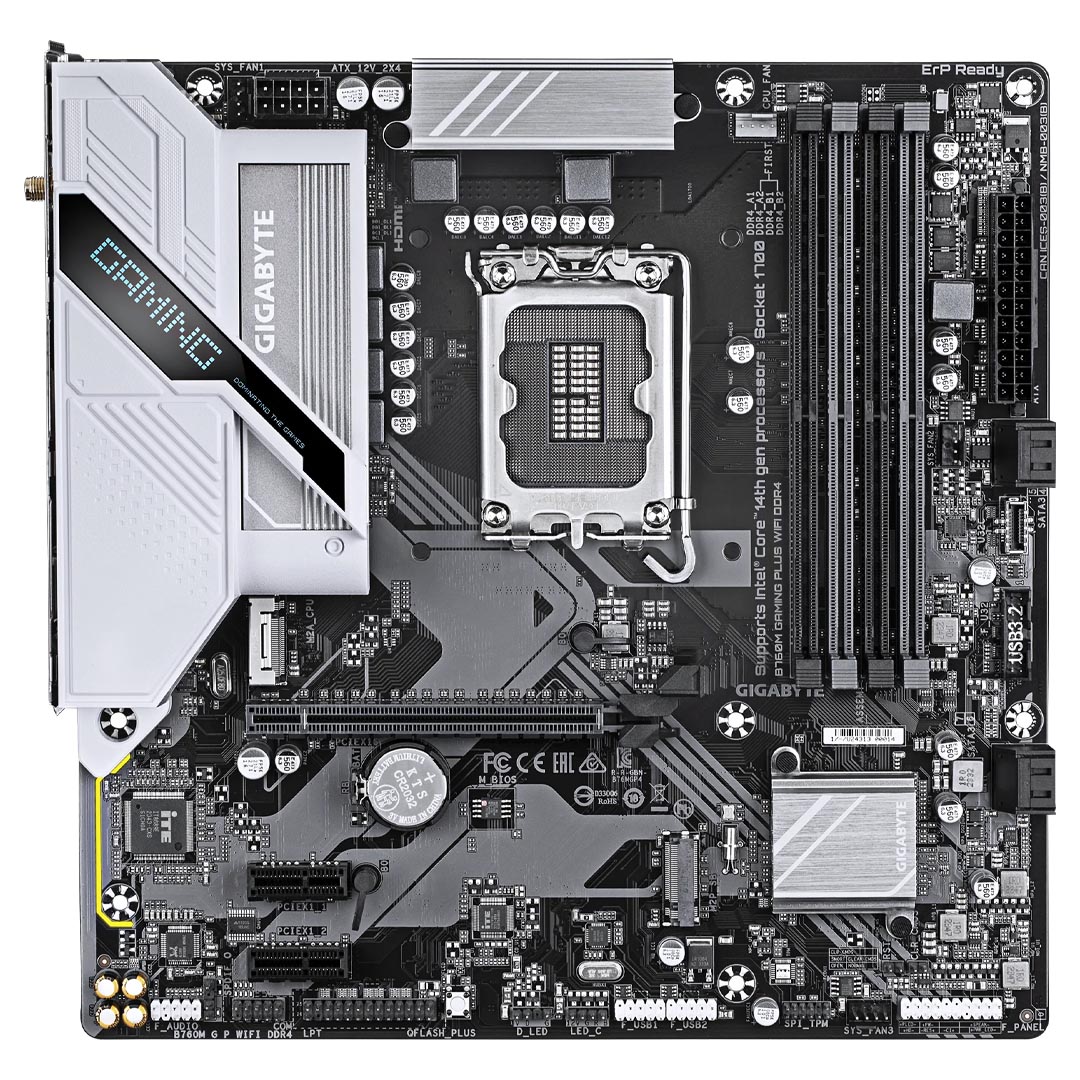

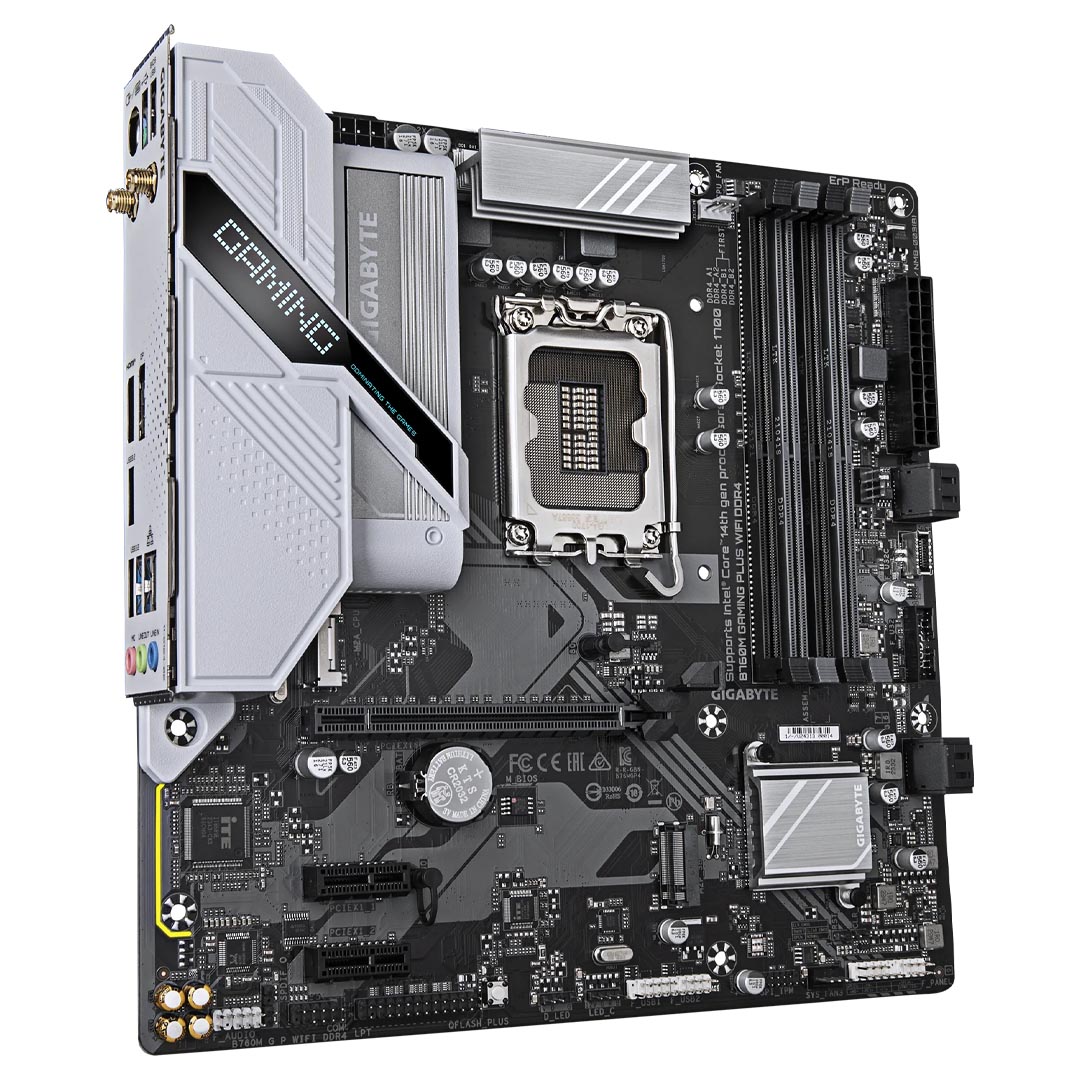

Gigabyte B760M Gaming Plus WiFi DDR4 Motherboard

B760M-GAMING-PLUS-WIFI-DDR4 | Gigabyte
$149
In stock
Order within 4h 41m 58s for next day dispatch!
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Gigabyte B760M Gaming Plus WiFi DDR4 Motherboard supports the B760 chipset on the LGA 1700 socket, with support for Intel Core 12th/13th and 14th generation processors. Featuring a 4+1+1 phase VRM, 2 PCIe 4.0 M.2 NVMe slots, Wi-Fi 6 connectivity, Bluetooth 5.3, 4 DDR4 DIMM slots, and an onboard Q-FLASH BIOS Flash button.

Features

B760M Gaming Plus WIFI DDR4

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4: 4 x DIMMs XMP Memory Module Support
  • Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors
  • Fast Networks: Wi-Fi 6 802.11ax, GbE LAN
  • Extended Connectivity: Front USB-C® 5Gb/s, DP, HDMI
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Overview

  • 8 Solid Pin CPU Power Connector
  • 802.11ax Wi-Fi
  • HDMI
  • 1 x DisplayPort
  • GbE LAN
  • 2 x M.2 Ultra Storage Performance Connectors
    2 x PCIe 4.0 x 4 M.2
  • Audio Solution
    8-ch HD Audio
    Audio Noise Guard
    High-End Audio Capacitors
  • 4 + 1 + 1 Hybrid Digital VRM Design
    PCIe 4.0 Ready PCB
    Premium Choke and Capacitor
  • Dual Channel DDR4, 4 DIMMs
  • Support 14th/13th/12th Gen.
    Intel® Core™ Processors
  • 4 x SATA 3
  • Front USB 3.2 Gen1 Type-C
  • PCIe EZ-Latch
  • Full PCIe 4.0 Design
    1 x PCIe 4.0 x 16 slot
    2 x PCIe 4.0 x 4 M.2 Connectors
  • Q-FLASH Plus Onboard Button
  • RGB FUSION
    1 x Addressable LED Header
    1 x RGB LED Header

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Gigabyte B760M Gaming Plus WiFi DDR4 Motherboard Feature 1

Digital VRM Design

The best VRM design ever built with the highest quality components.

  • 4+1+1 Phases digital PWM + Low RDS(on) MOSFETs
  • Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.

Gigabyte B760M Gaming Plus WiFi DDR4 Motherboard Feature 2

DDR4 XMP

Support for DDR4 XMP Up to 5333MHz and Beyond GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

** XMP Profile support may vary depending on memory module.

Please see the complete validated memory support list. Product features may vary by model.

Gigabyte B760M Gaming Plus WiFi DDR4 Motherboard Feature 3

Thermal

Enlarged Surface MOSFET Heatsink

Enlarged Surface Design of MOSFET Heatsink greatly improves heat dissipation.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Gigabyte B760M Gaming Plus WiFi DDR4 Motherboard Feature 4

802.11ax Wi-Fi 6E

The Wireless solution 802.11ax Wi-Fi enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Gigabyte B760M Gaming Plus WiFi DDR4 Motherboard Feature 5

GbE LAN

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Gigabyte B760M Gaming Plus WiFi DDR4 Motherboard Feature 6

PCIe 4.0 Hardware Design

Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

* The picture is for reference and may vary by mode.

Gigabyte B760M Gaming Plus WiFi DDR4 Motherboard Feature 7

Hi-Fi Audio

High-End Audio Capacitors

These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard

Essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level.

* Photo for reference only.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory, and graphics card.

  • STEP 1: Plug the 24-pin and 8-pin power supply cables into the motherboard.
  • STEP 2: Download the motherboard BIOS file and rename it to "gigabyte.bin". Save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port.
  • STEP 3: Press the Q-FLASH PLUS button, and the motherboard will start updating the BIOS automatically.

Smart Fan 6

Ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customisable settings, and intuitive temperature monitoring.

  • High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
  • Precision Control: Multiple temperature/fan speed control points for precise fan curve.
  • Dual Curve Mode: Slope/Stair dual mode for different user scenario.
  • Fan Stop: Fan can stop completely below users' specified temperature point.

Smart Fan 6 BIOS UI

  • Enhance Fan Curve UI : Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
  • Slope/Stair Dual Graph Mode : Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
  • Manual Input : For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
  • EZ Tuning : Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.
  • Fan Curve Profile : Save your customised fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

UC BIOS

Redesigned UI and UX

An intuitive operation interface with an aesthetically pleasing design.

Quick Access

9 customisable option slots for effortless access in Easy Mode.

PerfDrive

Exclusive BIOS settings that optimise the performance based on the cooling configuration.

Enhanced Intuitive UX

GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimised experience featuring an intuitive operation interface and an aesthetically pleasing design.

Quick Access Function

GIGABYTE UC BIOS' Quick Access function selects 9 practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.

GIGABYTE PerfDrive

PerfDrive technology integrates exclusive BIOS settings from GIGABYTE, enabling easy balance of performance, power consumption, and temperature with Intel® Core™ processors.

Max Turbo

Unleashes the maximum Turbo Boost speed of Intel® Core™ CPUs.

Optimisation Mode

Strikes a balance between high performance and low temperature for Intel® Core™ CPUs.

Spec Enhance Mode

Enables high-performance operation of Intel® Core™ CPUs at lower temperature settings.

E-Core™ Disable Mode

Dedicates CPU resources exclusively to the P-core, enhancing gaming performance while reducing overall power consumption.

GIGABYTE Control Center

Unified software platform for all Gigabyte-supported products.

  • Intuitive user interface
  • Modularised control
  • Auto update

Specifications

Model Number B760M-GAMING-PLUS-WIFI-DDR4
CPU LGA1700 Socket:
Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset Intel® B760 Express Chipset
Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication Module Realtek® Wi-Fi 6 RTL8851BE
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIeX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

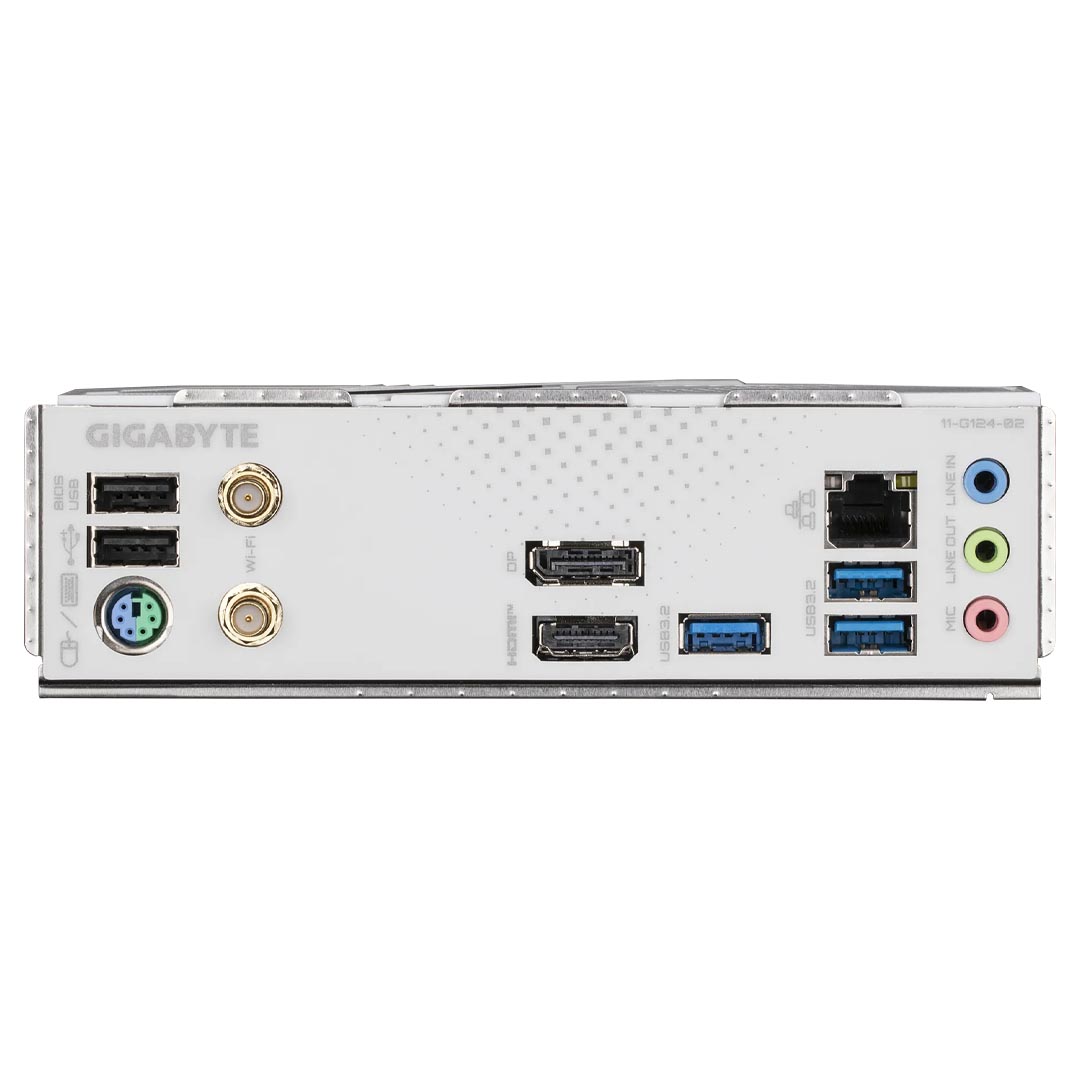

Back Panel Connectors 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Backed by a 3 year Gigabyte warranty.
