The Lian Li Edge Gold Modular 1000W Power Supply is a high-performance PSU tailored for dual-chamber cases, featuring an innovative L-shape design that enhances cable management and aesthetics. It boasts 80 PLUS Gold efficiency and Cybernetics Gold certification,, and is compliant with ATX 3.1 and PCIe 5.1 standards, ensuring reliable power delivery for demanding systems. This power supply features a magnetic dust filter and a detachable USB and PWM fan hub offering versatile connectivity, with support for up to six fans and four USB devices, and can also function independently when connected via a PCIe power interface. Built with premium German EPCOS capacitors and fully modular braided cables with preinstalled cable combs, ensuring reliability and performance when you need it.
Features
EDGE Gold
- L-shape design tailored for dual chamber cases
- 80 PLUS Gold efficiency
- PCIe 5.1 ready with in-house R&D 12V-2 x 6 alloy copper soldered terminals
- Detachable USB hub with 4 internal USB 2.0 headers and 6 PWM headers
- Removable magnetic fan dust filter
- Built with German top-end, industrial-grade EPCOS capacitors
- Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors
The "Power" for Dual Chamber Cases
The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build.
- 80 Plus Gold
- Cybenetic Platinum
- L-Shape Design
- ATX 3.1
- PCIe5.1
- Removable Dust Filter
- Modular USB/PWM Hub
- 10 Years Warranty
Available in 2 Colours and 4 Wattages
Offering versatile options, the EDGE Gold PSU is available in multiple configurations with or without a USB hub to meet different power needs and match the components’ colours.

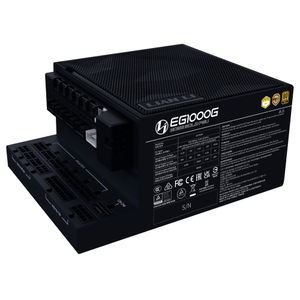

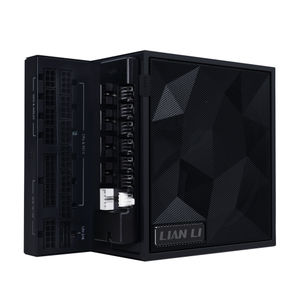

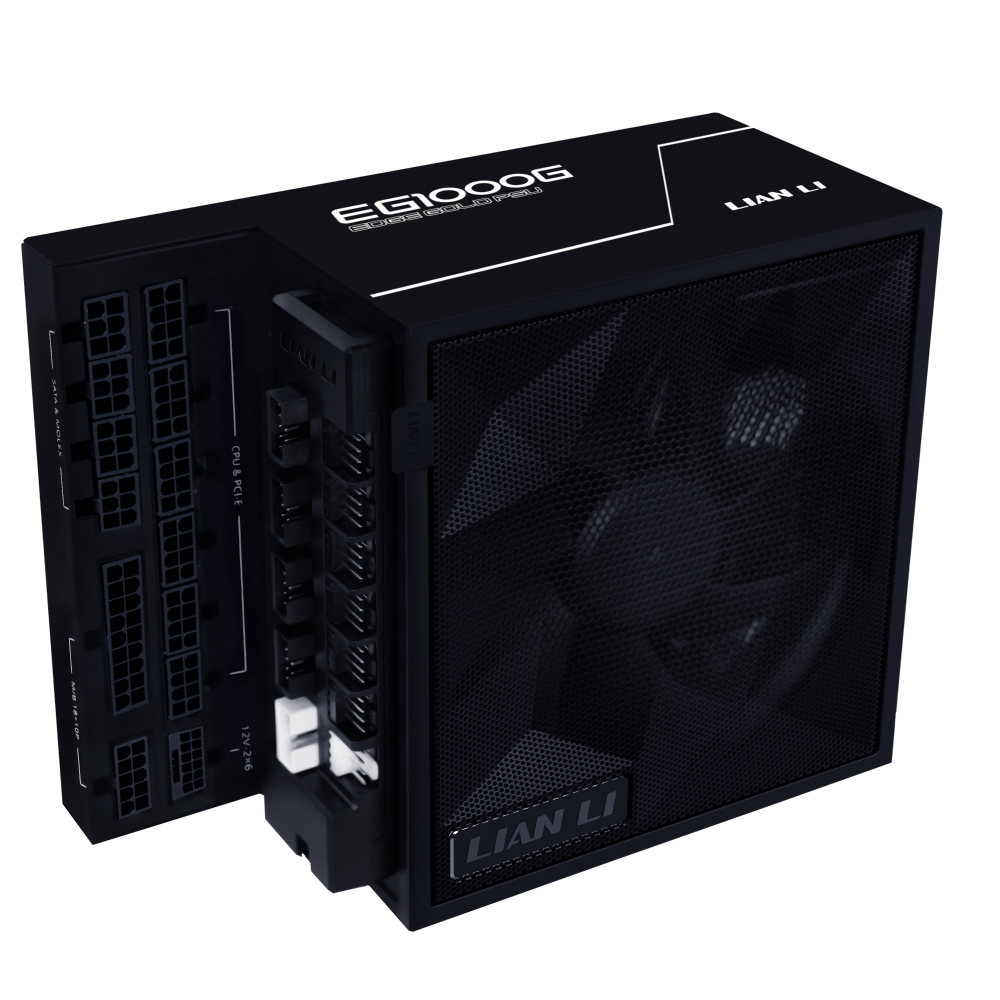

Innovative L-Shape Design
Introducing the world’s first PSU with a detachable USB and PWM fan hub that also functions independently and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organised build.

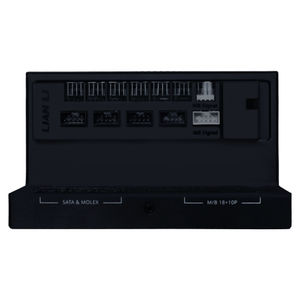

Modular USB & Fan PWM Hub – Edge Hub
The external USB and fan PWM hub module offers versatile connectivity options. It can be attached directly to the PSU or connected via a PCIe power interface inside the case.
1. Fan PWM Hub
6 extended 4-pin fan connectors, each rated at 2A, to meet the demands of multi-fan setups.
2. USB Hub
4 ports supporting up to 8 downstream connections, ideal for RGB controllers and USB devices, with a total output of 2.5A.
3. Edge PSU Connector
Remove the cap and attach the hub directly to the Edge PSU for power.
4. Magnetic Design
Integrated magnets allow easy placement and accessibility inside the case.
5. Independent Power Supply
Connect the hub to a PCIe 8-PIN cable for independent operation.
Connect Edge Hub to Edge Gold PSU
Place the Hub Inside the Case
Motherboard Signal Connection
Sync fan speed by connecting the fan 3-PIN to 3-PIN cable.
Offers two options for motherboard USB signal connection to accommodate different configurations.

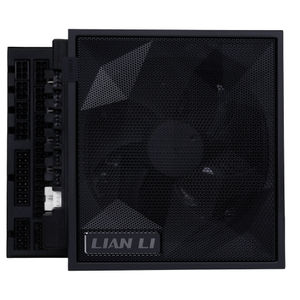

Magnetic Dust Filter
The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.
Convenient Cable Management
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU’s L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.
Longer Cable Reach for Versatile Builds
The Edge Gold PSU features new cables that are even longer, making it ideal for dual-chamber or regular tower chassis, enhancing flexibility and ensuring optimal cable management for all kinds of builds with ease.
Edge Platinum PSU features shorter cables for dual-chamber chassis, while Edge Gold PSU includes extended cables for regular tower chassis.
Efficiency Level Certified
Achieving the 80 PLUS Gold, Cybenetics Platinum and PPLP Gold certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
Cool in Silence
Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.
Note: The fan features a fanless mode, remaining at zero RPM during low loads for quiet operation.
Stable Dual Colour PCIe 5.1 Connector
LIAN LI’s in-house R&D designed a high-quality 12V-2 x 6 dual-colour connector featuring alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance.
1. Dual-colour shell for confirming secure connections
2. Added gold plating to prevent short circuits
3. Soldered wire and terminal connection for current stability
4. Increased copper thickness to 0.25mm for lower contact resistance
The terminal maintain a contact resistance below 1.5mΩ after 50 plug/pull cycles, compared to ordinary terminals at 2-3mΩ, enhancing the connector’s performance and long-term reliability.
Included in the 1200W version, an extra dual 8-pin to 12V-2 x 6 cable is ready for the future power hungry dual connection GPUs.

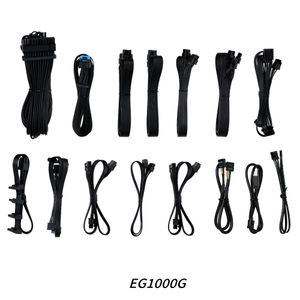

Braided-Texture Sleeved Cables for a Clean Build
The PSU comes equipped with all cables featuring a braided texture. The 20+4pin, CPU, PCIe 6+2pin, and 12V-2 x 6 cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organised dual chamber build.
- Braided-texture cable with cable comb
- Combined braided-texture cable
Industrial Grade Capacitors
The EDGE Gold PSU integrates the German EPCOS capacitors or same level Japanese capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.

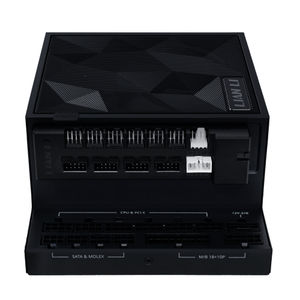

Comprehensive Connectors
The modular cables have a new longer design compared to the previous EDGE PSU, which ensures easy component reach and efficient cable management.
Sufficient Protection
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection), SIP (Surge Intensity of election flow Protection), NLO (No Load Operation), and an Inrush Current Limiter that ensures the EDGE GOLD delivers continuously stable and reliable power.
10 Year Warranty
The EDGE Gold PSU series is crafted with high-quality materials for superior performance and longevity. Enjoy peace of mind with our extensive 10-year warranty for the power supply and 2-year warranty for the Edge Hub.
Backed by a 10 year Lian Li warranty.
