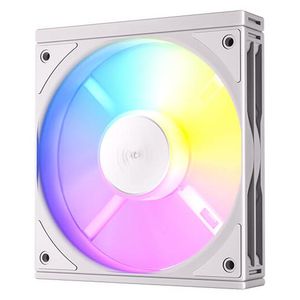

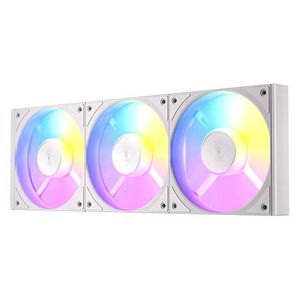

The Antec Connect 120 ARGB PWM Reverse fan is Antec's latest take on the innovative concept of interlocking fans to reduce cables. These ARGB fans allow feature an interlocking mechanism that allows for these fans to attach to each other in a chain, requiring only one cable to control both fan speed and the lighting. These fans are able to push 43.2 CFM of airflow and 1.29 mmH2O of static pressure through heatsinks and radiators.
Features

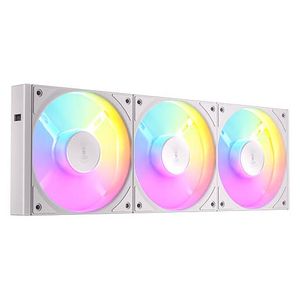

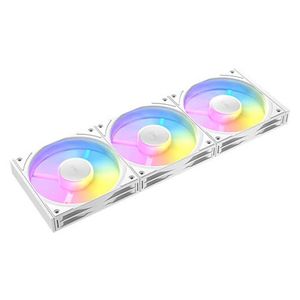

Intuitive Interlocking System
Connect the fans internally with each other to streamline the installation process.
3 Fans 4 Screws
Interlocking system helps you mount multiple fans using less screws.
Easier Installation with Less Cables
Daisy Chain design with less cables needed.
PWM ARGB Fan
Strong and stable airflow in quiet operation.
- Air Flow 43.2 CFM
- Noise Level 27.2 (d)BA
- Air Pressure 1.29 mmH₂O
Enlarged Vibration-Absorbing & Anti-Noise Pads
8 anti-vibration pads effectively reduce vibration and noise.
Fan Installation
Pay attention to the cable outlet when installing fan covers; the outlet should be positioned over the male connector.
ARGB Lighting Effect Sync
Extendable 3-Pin Daisy-Chain ARGB connector provides a much easier way to integrate lighting effect with motherboard and other components.

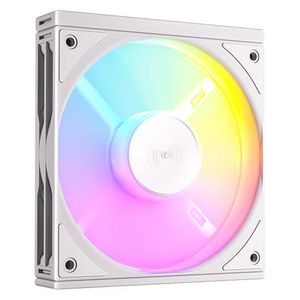

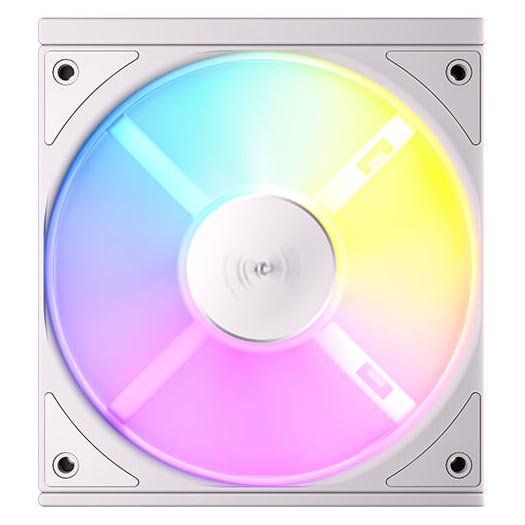

Reverse Fan
Reverse fan blade design provides smoother air intake in a cleaner look.
Specifications
| Model Number |
C120R-ARGB-WHITE-3PK |
| Colour |
White |
| Fan Type |
ARGB PWM Fan |
| Dimensions |
120 x 120 x 25 mm |
| Bearing Type |
Hydraulic Bearing |
| Fan Speed |
800 RPM ± 10％ - 1800 RPM ± 10％ |
| Airflow |
43.2 CFM |
| Air Pressure |
1.29 mmH₂O |
| Fan Noise Level |
27.2 dB(A) |
| Lifespan |
30,000 hours / 25℃ |
| Connector |
Fan: 4-pin PWM | LED: 3-pin |
| Rated Voltage |
Fan: DC 12 V | LED: DC 5 V |
| Operation Voltage |
Fan: DC 6.0 - 13.2 V | LED: DC 4.5 - 5.2 V |
| Rated Current |
Fan : ≤ 0.12 A ± 10% | LED : ≤ 0.29 A ± 10% |
| Warranty |
1 years |
Backed by a 1 year Antec warranty.
