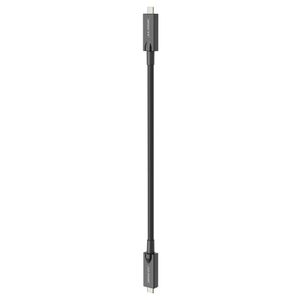

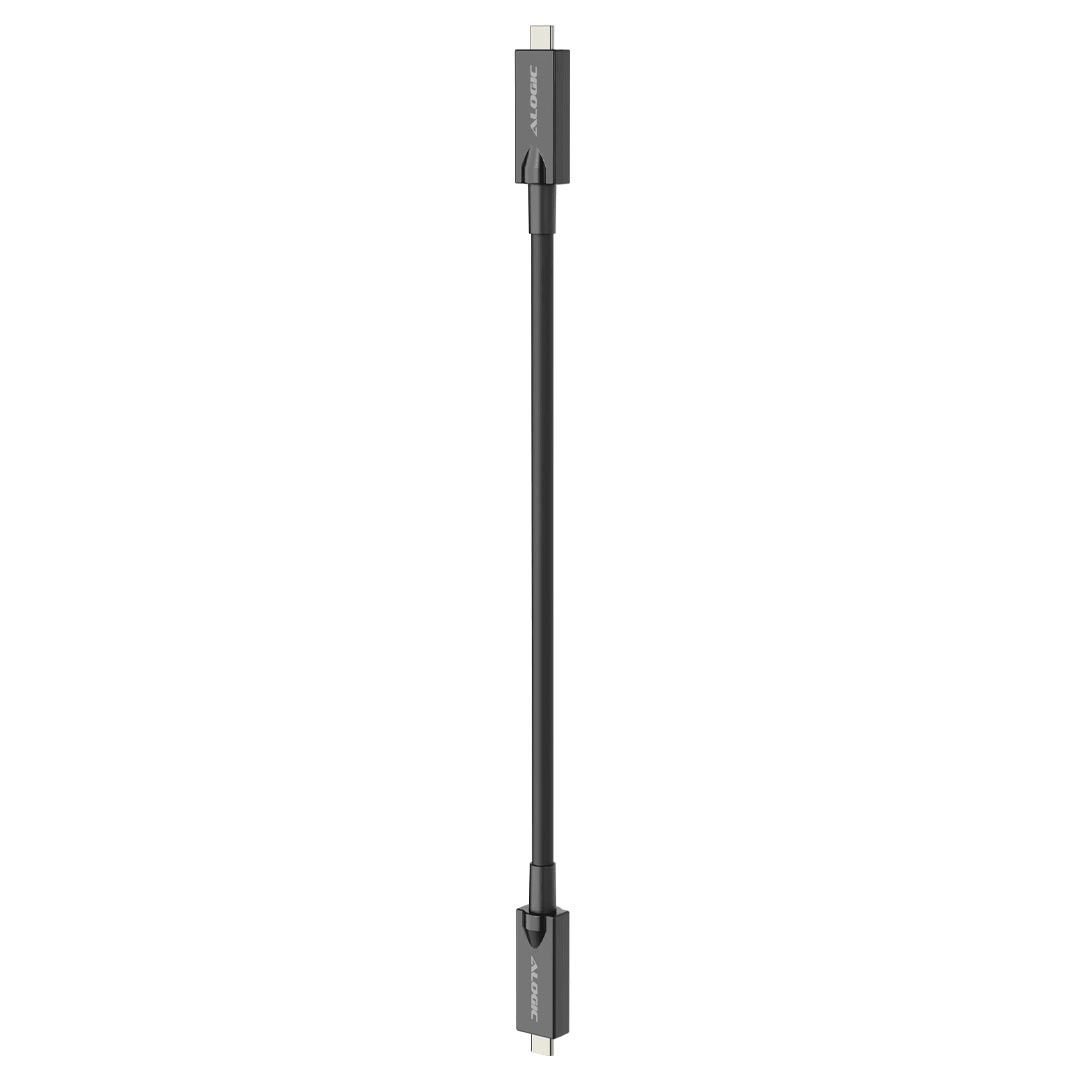

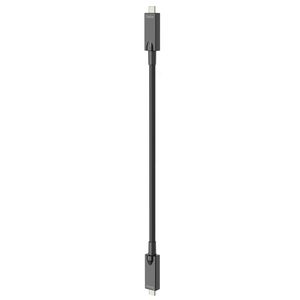

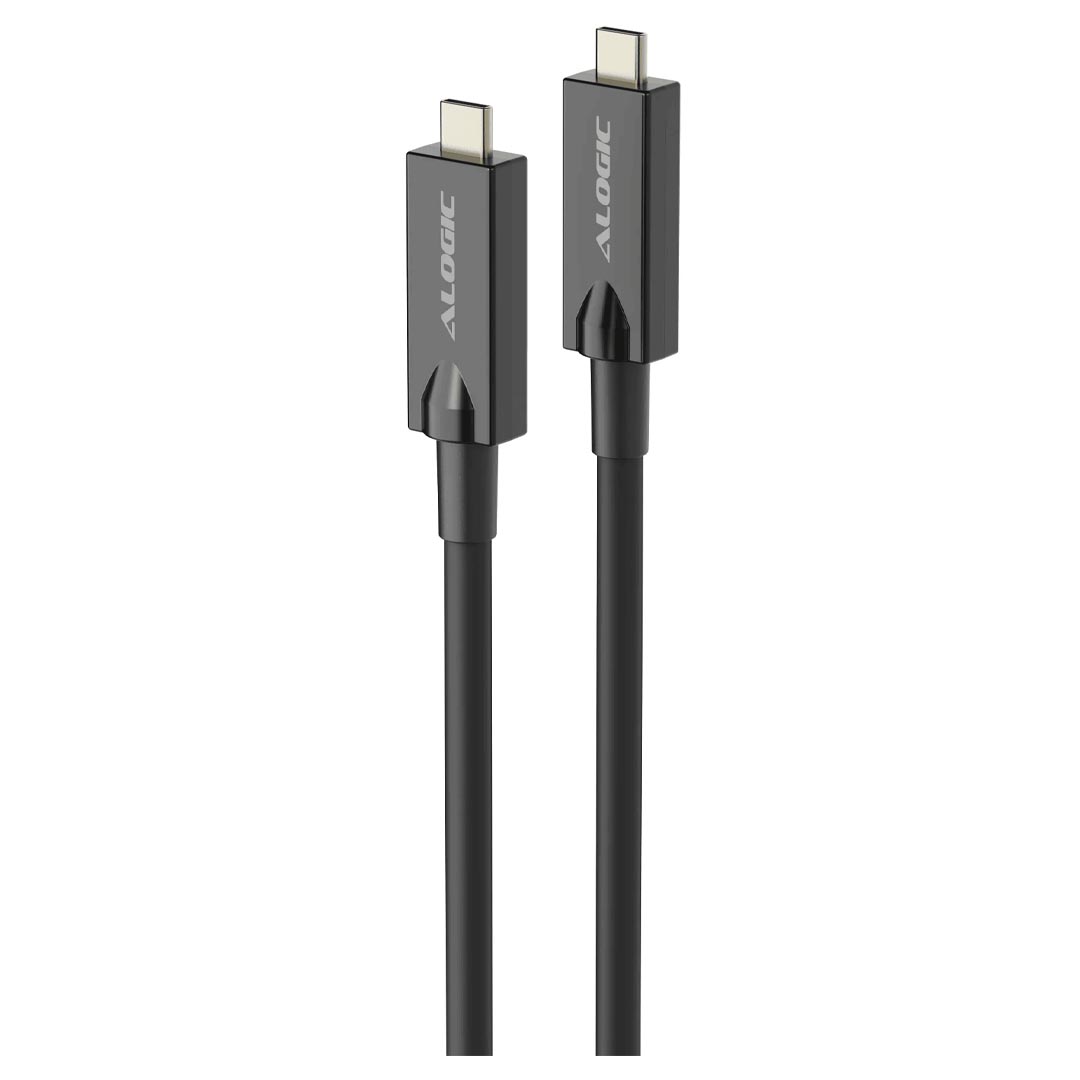

The Alogic USB-C Hybrid Active Cable (U3-TCC10-MM-H) is a hybrid active optical cable, capable of up to 4K video output with DisplayPort 1.4, 60W USB PD charging, and USB 3.2 data transfer speeds up to 10Gbps, in a 10m length.
Features
USB-C Hybrid Active Optical Cable with Data, Video and Power Support
Go beyond the boundaries of USB-C with ALOGIC hybrid active optical USB-C cables. _These cables allow you to connect peripherals, send video, transfer USB 3.2 data and even power devices at distances up to 10x further than traditional copper cables.
Full Featured Connectivity
Unlike most USB-C extension cables, we've engineered these cables to support all USB-C functionality, including data, video, and USB Power Delivery power transfer.
- Up to 4K Output
- USB 3.2 Gen 2 & USB 2.0 Compatible
- 60W USB PD Charging
- USB 3.2 Data Transfer
*Beware of imitations and other products that only support data or video and aren't full featured USB-C cables.
Stunning 4K Video
Designed for modern presentation, conferencing and creative applications, these cables support DP1.4 video signals, providing full 4K ultra high definition resolution pictures.
Designed for Permanent Installations
Designed for modern presentation, conferencing, and creative applications, these cables support DP1.4 video signals providing full 4K ultra high definition resolution pictures.
Applications
- Education and Meeting Spaces
- Digital Signage
- Interactive Touch Displays
- Video Conferencing
- Machine Vision
- Digital Photography
- Retail Automation/Point of Sale Systems
- Zero-Client Computing
- Remote Consoles
Specifications
General Data
| Model Number |
U3-TCC10-MM-H |
| Input |
1 x USB Type C Male Connector |
| Output |
1 x USB Type C Male Connector |
Signals Supported
| Data |
USB 3.2 Gen 2 x 1, 10Gbps + USB 2.0 |
| Video |
DisplayPort 1.4 (2 Lane) |
| Power |
USB Power Delivery (PD) up to 20V 3A / 60W max |
| Power Supply |
Cable power supplied by host Vconn, 1100mW typical power consumption |
| Video Resolution |
Supports resolution and refresh rate combinations supported by DisplayPort 1.4 2 lane connections up to 4K (3840 x 2160) at 60Hz |
Physical Characteristics
| Cable Length |
U3-TCC05-MM-H - 10m |
| Colour |
Space Grey and Black |
| Weight (Product) |
430/720/1260g approx. (5/10/15m) |
| Connector Material |
Zinc alloy housings |
| Cable Construction |
Copper + multimode optical fibre hybrid construction |
| Cable Shielding |
PE + Kevlar/Cotton + Aluminium Mylar triple shielding |
| Cable Sheath |
TPE |
Installation Characteristics
| Connector Dimensions |
39 x 15mm |
| Cable Outer Diameter |
6.5+/- 0.3mm |
| Minimum Bend Radius |
60mm |
| Cable Pulling/Tensile Strength |
15kg (150N absolute maximum rating) |

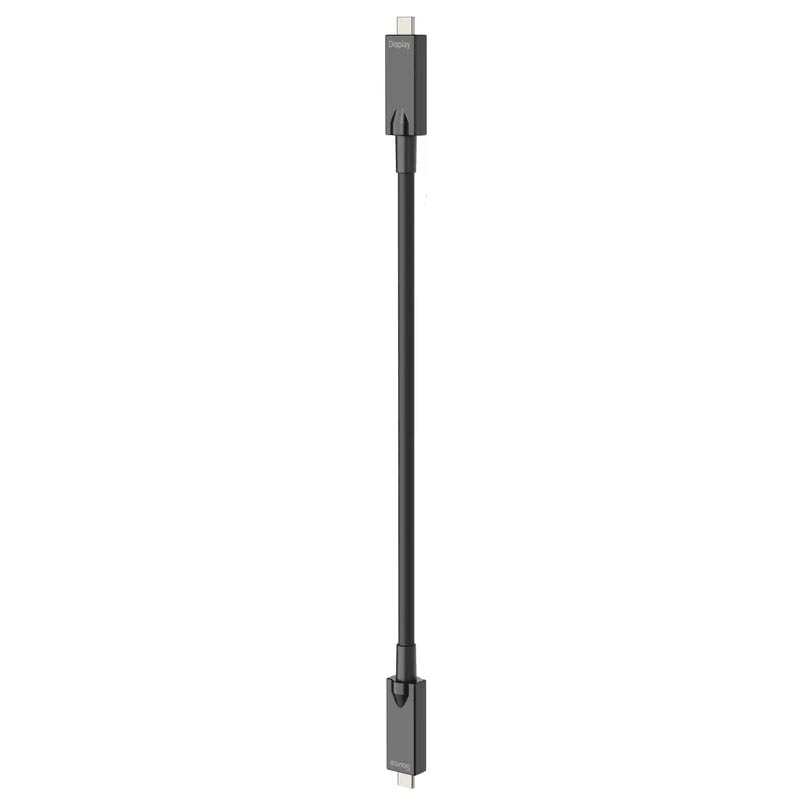

| Directional Installation |
This cable can be used for data and power transfer in both directions. The cable is designed to pass video signals in a single direction; care should be taken to install the cable in the correct orientation in applications where video transfer is required. |
| Environmental Characteristics |
Operating and Storage Temperature: -10°C to +50°C | Operating and Storage Humidity: 10% to 85% RH (no condensation) |
| Package Includes |
1 x USB-C Hybrid Optical Cable, Male to Male, 1 x User Manual |
| Device Compatibility |
USB-C port on the computer that the device is connected to must support USB Power Delivery charging up to 60W maximum for charging to work. |
| Compliance |
FCC, CE, UKCA, RoHS |
| Warranty |
2 Year warranty for electrical failure. |
Backed by a 2 year Alogic warranty.
