The PowerColor Radeon RX 9070 Hellhound OC 16GB gaming graphics card features a 2070MHz silent gaming clock, 2590MHz OC boost clock, 256-bit memory interface, 16GB GDDR6 VRAM, 20Gbps memory speed, PCIe 5.0, 1 x HDMI 2.1, 3 x DisplayPort 2.1a, OpenGL 4.6 and DirectX 12 support.
Features
Hellhound AMD Radeon™ RX 9070 16GB GDDR6 - Unleash the Gaming Power
Dual BIOS
Choosing the BIOS that fits your need: better overclocking or silent operation.
Intelligent Fan Controller
Utilising temperature detection from a smart chip, fans will start running when the GPU reaches 60°c and shut down below 50°c.
GPU Direct-Contact Copper Plate
A large copper plate provides direct contact with the GPU while covering VRAM area to increase the heat transfer threshold to the max.

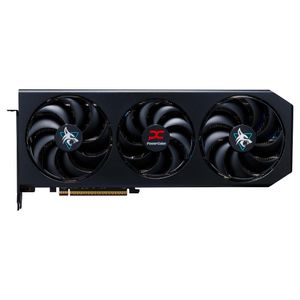

Triple Ring-Fan
The 2X 100mm and 1X 90mm Ring-fan design improves the cooling performance.

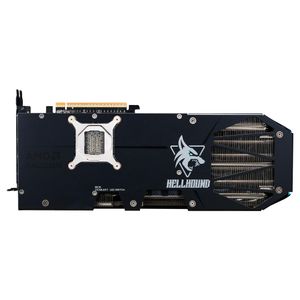

Back Plate
The metal back plate is extremely rigid to strengthen the card to prevent PCB bending.
Signature LED Colour
Showcasing a cool and elegant aesthetic, the icy blue LED lighting sets a high-class tone.
Specifications
| Model Number |
RX9070-16G-L/OC |
| Graphics Engine |
RX9070-16G-L_OC |
| Video Memory |
16GB GDDR6 |
| Stream Processor |
3584 Units |
| Engine Clock |
Game: 2120 MHz(OC)/ 2070 MHz(Silent)
Boost: 2590 MHz(OC)/ 2520 MHz(Silent) |
| Memory Speed |
20.0 Gbps |
| Memory Interface |
256-bit |
| Bus Standard |
PCIE 5.0 x 16 |
| Display Connectors |
1 x HDMI 2.1 , 3 x DisplayPort 2.1a |
| Form Factor |
ATX |
| Cooler |
2 Slot Triple Fan |
| Power Connector |
Two 8-pin PCI Express Power Connector |
| OpenGL |
4.6 |
| DirectX® Support |
12 |
| Minimum System Power |
700 W |
| Card Dimension (mm) |
327 x 128 x 41mm
340 x 142 x 42mm(w/bracket) |
| Accessories Bundle |
Gaming Gear Intro Card |
| Notes |
* 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* 'Boost Clock' is the maximum frequency achievable on the GPU running a burst workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. |
Backed by a 3 year PowerColor warranty.
