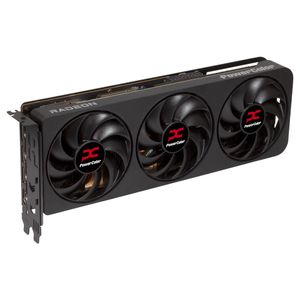

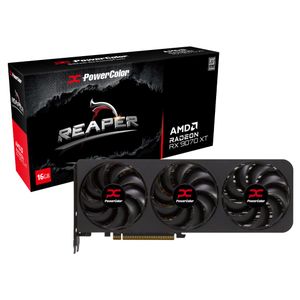

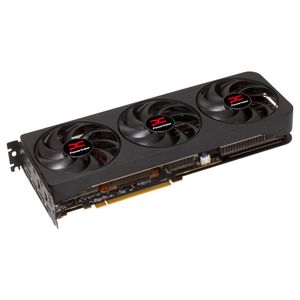

The PowerColor Radeon RX 9070 XT Reaper 16GB gaming graphics card features a 2400MHz gaming clock, 2970MHz boost clock, 256-bit memory interface, 16GB GDDR6 VRAM, 20Gbps memory speed, PCIe 5.0, AMD RDNA 4 Architecture, 1 x HDMI 2.1, 3 x DisplayPort 2.1a, OpenGL 4.6 and DirectX 12 support.
Features
Reaper AMD Radeon™ RX 9070 XT 16GB GDDR6 - Unleash the Gaming Power

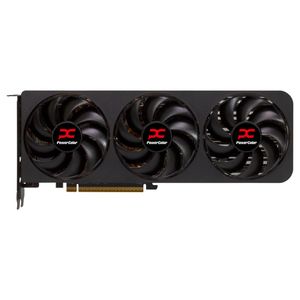

Triple Ring-Fan
The 3X90mm Ring-fan design improves the cooling performance.

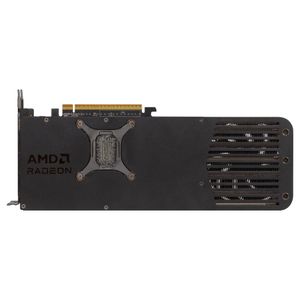

Back Plate
The metal back plate is extremely rigid to strengthen the card to prevent PCB bending.
Intelligent Fan Controller
Utilising temperature detection from a smart chip, fans will start running when the GPU reaches 60°c and shut down below 50°c.
AMD RDNA™ 4 Architecture
New AMD RDNA™ 4 architecture features 3rd Gen raytracing and 2nd Gen AI accelerators to deliver the performance you need to max out your gaming.
AMD Radeon™ Anti-Lag 2
Ultra-low-latency gaming, and when combined with AMD FSR advanced frame generation, it delivers ultra-smooth, ultra-responsive high FPS experiences.
Dual Ball Bearings
Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.
Specifications
| Model Number |
RX9070XT-16G-A |
| Graphics Engine |
RX9070XT 16G-A |
| Video Memory |
16 GB GDDR6 |
| Stream Processor |
4096 Units |
| Engine Clock |
Game: 2400 MHz
Boost: 2970 MHz |
| Memory Speed |
20.0 Gbps |
| Memory Interface |
256-bit |
| Bus Standard |
PCIE 5.0 x 16 |

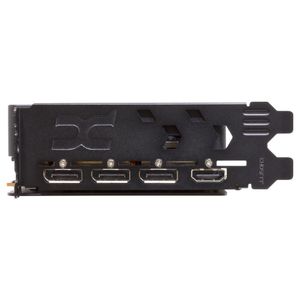

| Display Connectors |
1 x HDMI 2.1 , 3 x DisplayPort 2.1a |
| Form Factor |
ATX |
| Cooler |
2 Slot Triple Fan |
| Power Connector |
Two 8-pin PCI Express Power Connector |
| OpenGL |
4.6 |
| DirectX® Support |
12 |
| Minimum System Power |
750 W |
| Card Dimension (mm) |
289 x 111 x 41 mm
304 x 127 x 42 mm (w/bracket) |
| Accessories Bundle |
Gaming Gear Intro Card |
| Notes |
* 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* 'Boost Clock' is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. |
Backed by a 3 year PowerColor warranty.
