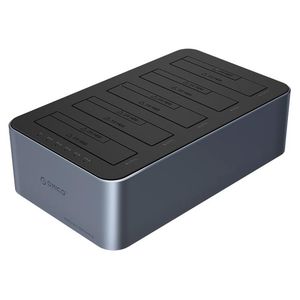

Orico 2.5/3.5in SATA Hard Drive Five-Bay Docking Station

Features

Orico 2.5"/3.5" SATA HDD/SSD Five-Bay Dock with Offline Clone Function

10Gbps Hard Drive Docking Station - Type-C

• Fast Cooling Metal Body
• Fast Speed 10Gbps
• 20TB x 1 Max Large Capacity
• 2-in-1 Cable PD60W

High Reading Efficiency

The dock supports reading multiple bays simultaneously.

Upgraded Speed

Support USB3.2 Gen2 protocol, UASP protocol and TRIM function, with transmission speed reaching up to 550MB/s.

* The data is obtained from Orico 211 Digital R&D and Manufacturing Lab.

* USB3.2 Gen2 protocol support 10Gbps theoretical transmission speed is 10Gbps and SATA protocol support 6Gbps.

Strong Core Strong Performance

* The single-bay and dual-bay models only support 10Gbps while the four-bays and five-bays models support 5Gbps.

High Heat Dissipation Efficiency

The open design and metal body provide a better heat dissipation effect.

Offline Clone Function

The offline clone function can easily copy the data between two disks without a computer.

* The disk B will be formatted when starting the offline clone, please back up the data before cloning.

1. Insert the Disks In.

disconnecting the docking station with the computer. Turn off the power and insert disk A into the Source Slot and disk B into the Target Slot.

2. Connect the Power.

Switch the button at the back of the docking station to Clone and turn the power on.

3. Clone Start.

Press the Start button at the back and the indicator light flashes when cloning. The indicator light is constantly on after the clone is finished.

Notes

• The target drive must be equal to or larger in capacity than the source drive.
• Please do not move the disk during processing, and do not connect the dock with the computer.
• The target disk needs to activate by connecting to the computer. Steps: PC Management - disk Management - Online.
• The offline clone speed is 500G/2hrs.

Strong Power Stable Connection

The 12V/3A power adapter can drive large hard drives easily.

• Over-current Protection
• Over-voltage Protection
• Short-circuit Protection
• Overheat Protection
• Leakage Protection

Note: The specifications vary from different models, please refer to details.

All SATA Hard Drive Compatible

• 2.5/3.5-inch
• HDD
• SSD

SATA Hard Disk Supported

• 2.5-inch SATA Hard disk
• Incompatible IDE Hard Drive

* Please check your hard drive's interface type before buying.

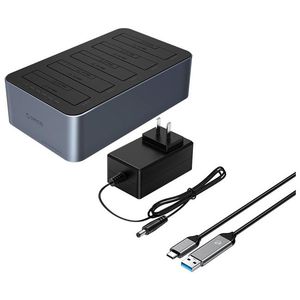

2-in-1 Data Cable

The enclosed 2-in-1 multi USB cable meets your diversified demands and supports PD 60W output.

Type-C to Type-C

*The 10Gbps transmission speed is only achieved when Type-C to Type-C is connected

• Laptop
• Phone
• Tablet PC

Type-C to USB-A

*M.2 SATA SSD enclosure only encloses a Type-C to USB-A cable

• PC
• Projector
• Router

Infinite Connectivity

• iMac Pro
• 4K TV
• Phone
• NAS/Router
• Monitor

Store What You Want

Strong power and chip create a 40TB large storage capacity for you.

Note: The capacities vary from different models, please refer to the specifications for more information.

More Details

• Dust-proof Baffles
• Aluminium Alloy Material
• Anti-slip Pads

Intelligent and Durable

The 10-minutes auto sleep mode effectively extends the hard drive's lifespan and avoids data loss and corruption.

Note: To reset the sleep mode, please contact the customer service centre.
