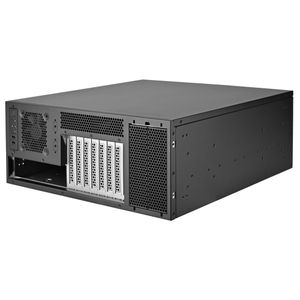

The SilverStone RM46-502-I 4U Server Case features a rackmount-friendly design, supporting up to SSI-EEB motherboards, 8 PCI expansion slots, up to 280mm radiator support, and an interchangable internal design, allowing for customisable configurations.
Features

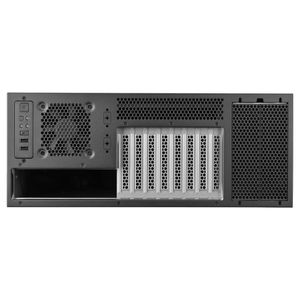

4U Interchangeable Rackmount Chassis with Front Accessible Expansion Slots
- Front-facing motherboard I/O
- Interchangeable front panel I/O, rackmount sliding rails, handlebars, 5.25” device, and PSU mounts can all be swapped between the front and back
- 8 standard height PCI expansion slots
- Support up to SSI-EEB motherboards
- Supports 280mm radiator or 2 x 160mm fans (Since 160mm fans use 140mm mounting holes for installation, two 160mm fans cannot be installed when I/O is relocated to the rear side.)
- 1 x USB Type-C interface
- Upright or horizontal placement flexibility (Vertical orientation requires an optional vertical kit – RAC-CF4-440.)
Elevated Versatility via Interchangeable Components

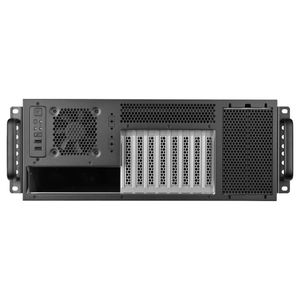

With a front-accessible expansion slot card ports and I/O components design, both the handlebars and rackmount sliding rail positions are interchangeable to facilitate this orientation. Internally, both the 5.25” drive cage and PSU mount positions offer interchangeable options between the front and rear configurations.
Multi-Expansion Card Configuration
The RM46-502-I supports motherboards of up to SSI-EEB form factor, paired with a total of 8 PCI expansion slots to effortlessly accommodate up to 4 server-grade graphics cards.
Excellent Cooling Capabilities
Aligned with SilverStone’s rackmount design philosophy, the RM46-502-I incorporates compatibility with liquid cooling radiators of up to 280mm in size, enhancing the cooling capabilities of the server chassis, allowing for efficient heat dissipation and optimal performance.
Advancing Flexibility to New Heights
RM46-502-I’s core functionality is encapsulated within its front-facing PCI expansion slots, offering specific advantages to users in scenarios where convenience and accessibility to the expansion slot area are paramount.

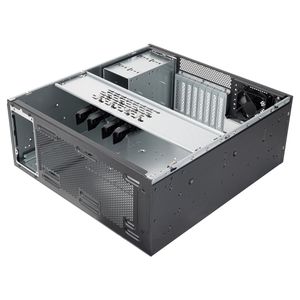

System Layout
Panel Layout
Thermal Solution
Capacity
Dimensions
Specifications
| Model Number |
SST-RM46-502-I |
| Chassis Form Factor |
4U |
| Material |
Steel |
| Motherboard |
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Drive Bay |
External: 5.25" x 2 (downwards compatible with 2.5" SSD x 4 or 3.5" HDD x 2)
Internal: 2.5" x 2 |
| Cooling System |
Front: 80 mm x 1 (80 mm x 1 fan included)
Rear: 120 mm x 2 / 140 mm x 2 / 160 mm x 2 (Since 160 mm fans use 140 mm mounting holes for installation, two 160 mm fans cannot be installed when I/O is relocated to the rear side.) |
| Radiator Support |
Rear: 120 mm x 2 / 240 mm x 1 / 280 mm x 1 |
| Limitation of CPU Cooler |
132 mm (with GPU holder)
148 mm (without GPU holder) |
| Expansion Slot |
8 |
| Limitation of Expansion Card |
Length: 437 mm (without rear fans and radiator installed)
Width: 116 mm (with expansion card retainer), 154 mm (without expansion card retainer) |
| Power Supply |
PS2 (ATX) / Mini Redundant / 2U Redundant (V2.0 or after) / 2U 1+1 CRPS |
| Limitation of PSU |
PSU + ODD / 5.25" device: 430 mm |
| Front I/O Port |
USB Type-C x 1
USB 3.0 x 2 |
| LED Indicators |
Power LED x 1
HDD Access x 1
LAN LED x 2 |
| Dimension |
440 mm (W) x 176 mm (H) x 456 mm (D), 35.3 Litres
17.32" (W) x 6.93" (H) x 17.95" (D), 35.3 Litres |
| Net Weight |
8.69 kg |
Backed by a 1 year SilverStone warranty.
