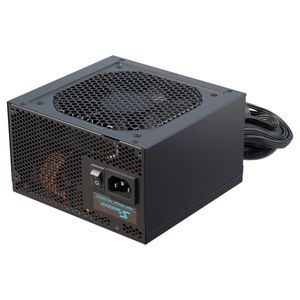

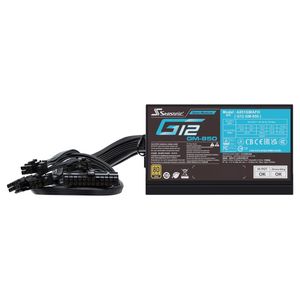

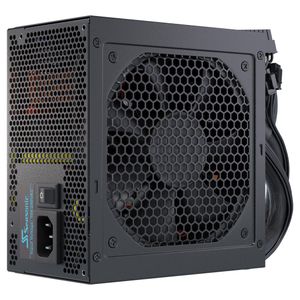

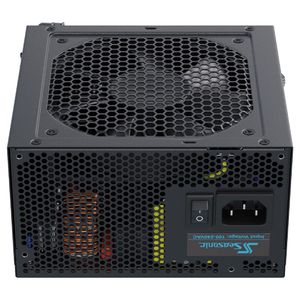

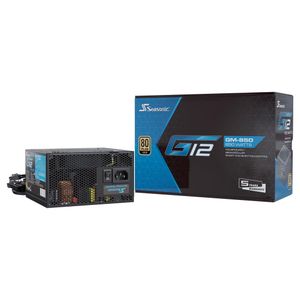

The Seasonic G12 GM GOLD 850 Watt is an 80 PLUS Gold certified power supply, featuring Smart and Silent Fan Control, semi-modular cables, and high power usage efficiency, with 90% efficiency at 50% system load.
Features
G12 GM
The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard, providing at least 87%, 90%, and 87% power usage efficiency at 20%, 50%, and 100% operating loads, respectively.
This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to reduce energy waste, resulting in savings on energy costs for users.
Additionally, the G12 GM units utilise the LLC resonant converter design and the industry’s leading Smart and Silent Fan Control (S2FC) for optimal performance and quiet operation.
S2FC - Smart and Silent Fan Control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
80 Plus® Gold Certified
The G12 GM achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

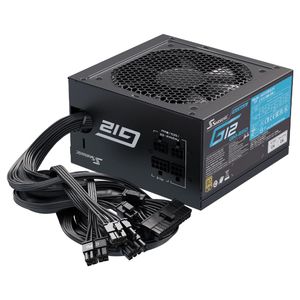

Semi-Modular Cabling
Dimensions
- 140 mm (L) x 150 mm (W) x 86 mm (H)
Specifications
General Data
| Model Number |
G12-GM-850 (2024) |
| 80Plus® |
Gold |
| Cybenetics Efficiency Level |
TBA |
| Cybenetics Noise Level |
TBA |
| Form Factor |
ATX / EPS |
| Dimensions |
140 mm (L) x 150 mm (W) x 86 mm (H) |
| Warranty |
5 Years |
Fan Information
| Fan Size |
120 mm |
| Fan Control |
Smart and Silent Fan Control |
| Fan Bearing |
Sleeve Bearing |
Cable Information
Electrical Features
| Operating Temperature |
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, Excl. Fan |
100,000 hours |
| AC Input |
Full Range |
| Protection |
OPP, OVP, OCP, SCP |
Safety and Environmental
| Safety and EMC |
cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance |
Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
Power Output
AC Input
| Voltage |
100 V - 240 V |
| Current |
10 - 6 A |
| Frequency |
50 Hz - 60 Hz |
DC Output
| Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
| Maximum Power |
20 A |
20 A |
70 A |
0.3 A |
2.5 A |
| |
100 W |
|
840 W |
3.6 W |
12.5 W |
| Total Continuous Power |
850 W |
|
|
|
|

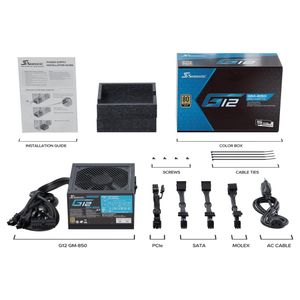

Cables
| 550 mm |
MB (24 / 20 pins)
1 connector |
1 cable attached |
| 600 mm |
CPU (8 / 4 pins)
1 connector |
2 cables attached |
| 550 mm |
PCIe (8 / 6 pins)
1 connector |
2 cables attached |
| 550 mm |
PCIe (8 / 6 pins)
1 connector |
1 cable |
| 720 mm |
SATA
3 connectors |
2 cables |
| 690 mm |
Molex
3 connectors |
1 cable |
Backed by a 5 year Seasonic warranty.
