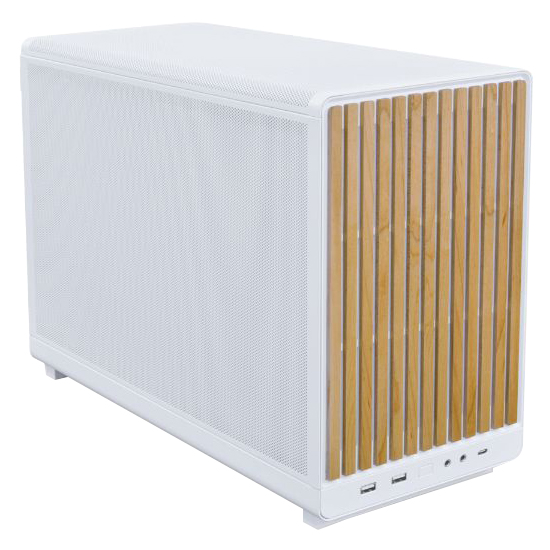

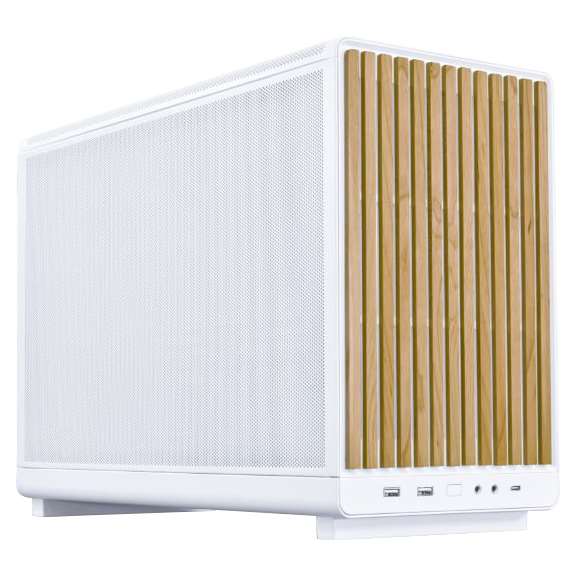

The Lian Li x Dan Cases A3-mATX Micro-ATX White Wood Edition Case is a small form factor case with an 26.2-litre capacity. It features a minimalist design with a steel exterior, vented panels for optimal airflow, white wood front panel, supports Micro-ATX and Mini-ITX motherboards, fan and radiator support at the top (up to 360mm), side (up to 360mm with SFX PSU) and bottom (up to 360mm), 3 x 2.5" SSD drive bays, 4 x expansion slots, supports SFX / SFX-L / ATX power supplies and a graphics card of up to 430mm in length.
VIDEO
VIDEO
Features
A3-mATX
The Compatibility is Strong with this One
The LIAN LI & DAN Cases A3-mATX is a versatile M-ATX mesh PC case that maintains a minimal chassis size while accommodating large components. Thanks to the relocatable PSU bracket, the A3-mATX empowers you to build a powerful and compact PC system tailored to your needs and preferences.
Minimalistic sleek design 26.3L micro form factor chassis
Enhanced Modularity
360mm AIO Layout
Side and top panels are designed with steel mesh
Accommodates M-ATX and ITX motherboard with 4 slots 415mm large GPU
Supports up to 360 radiator and 10 x 120mm fans
Supports ATX/SFX/SFX-L and LIAN LI Edge PSU that can be mounted sideways or frontways
In collaboration with DAN Cases for the case design whereas manufactured and sold by LIAN LI.
Compact Design, Massive Potential
Dive into the realm of compactness with the A3-mATX, which unlocks the potential of a small form factor PC case.
Well Ventilated, Minimalist Design
With three sides featuring minimalist mesh panels and a sleek front panel, the A3-mATX combines functionality with style, making it the perfect touch to your setup.

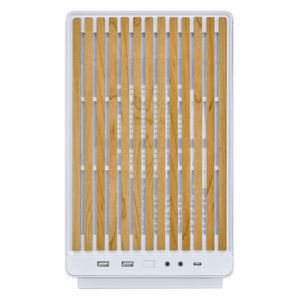

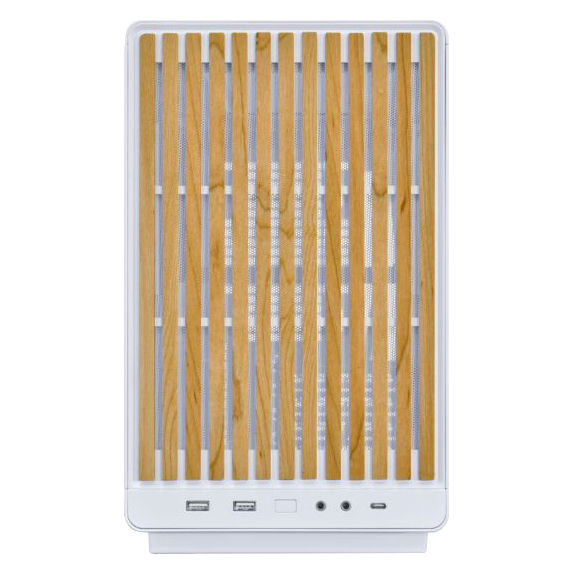

The A3-mATX Wood Edition black front panel is made of a sophisticated black walnut trim and white with beech wood, make is a perfect balance of style and functionality.
Recommend Setups
Air Cooling
PSU: Front Installation
Intake: Bottom
Exhaust: Top/Rear
AIO Cooling at the Top
PSU: Front Installation
Intake: Bottom
Exhaust: Top/Rear
AIO Cooling at the Side
PSU: Side Installation
Intake: Side/Bottom
Exhaust: Top/Rear
Effortless Modularity, Streamlined Builds
The toolless removal of all exterior panels and modular brackets provide easier access for installation and cable management. With a removable bottom dust filter, ensuring the system stays clean and efficient.
Versatile Compatibility, Ultimate Customisation
Unleash your creativity with the flexible compatibility A3-mATX without compromising on high-performance, large size components.
The A3 m-ATX case accommodates a maximum CPU cooler height of 165mm and a 4-slot thick GPU with a maximum length of 415mm. Note that with a 25mm thick fan installed at the bottom, the GPU thickness will be limited to 61mm, allowing for only a 3-slot GPU. Additionally, when installing a radiator and fan combo, there will be no space for the GPU.
Note: Compatibility are subject to change based on configuration
The anti-sag GPU bracket is included in the box to ensure the perfect alignment of the graphics card.
Space Maximised for Cooling
Maximising the cooling capacity of this 26.3 litre case, 360mm AIO can be mounted to efficiently cool high-end components.
Note: Compatibility are subject to change based on configuration
Flexible PSU Installation
Offers multiple mounting slots for a maximum of 220mm ATX/SFX/SFX-L or LIAN LI Edge PSU for ideal PSU placement to best suit your build requirements. More details can be found in LIAN LI webpage's hardware compatibility diagram.
Front View
Side View
S0.5 Installation Slot
Includes an ATX PSU offset bracket in order to allow longer GPU installation at positions F2 and F2.5
Supports front installation of ATX PSU by mounting it on the SSD bracket using the standoff tool.
The wooden edition open-space design of the front panel allows for optimal airflow, ensuring fresh air intake for the PSU when the PSU is mounted at the front with the fan facing outward, enhancing cooling efficiency.
Adaptable Storage Solutions
Provides 3 drive bays to meet storage needs in a comprehensive build.
Removable SSD Tray
Use the same mounting point as the PSU bracket, can relocate as needed. 2 x 2.5" SSD
Bottom Drive Space
Offers a mounting point at the bottom of the chassis. 1 x 2.5" SSD or 1 x 3.5" HDD
Seamless Connectivity, Stylish IO
With its front IO featuring essential ports and buttons, along with a sleek and stylish front panel design, the A3-mATX ensures seamless connectivity while showcasing on the desk.
Available in 2 Colours and Wood Version
Offering 2 colour choices that combine innovative design, flexible cooling solutions, and extensive compatibility options, making it an ideal choice for enthusiasts seeking a compact yet powerful M-ATX case.
Black
White
Wood Edition Black
Wood Edition White
A Dan Cases Collaboration
Combining the design of Daniel Hansen from DAN Cases with LIAN Li’s manufacturing prowess, the collaboration brings the A3-mATX to life.
Optional Accessories
Vertical GPU Kit (A3-1X/A3-1W)
Supports up to 3 slots thick GPU at vertical display with an 150mm PCIe4.0 riser cable.
Left Side Tempered Glass Panel (A3-2X/A3-2W)
Display of the interior components can be achieved with the accessory.
Backed by a 1 year Lian Li warranty.
