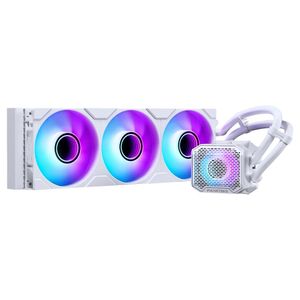

The Phanteks Glacier One 360 M25 G2 D-RGB AIO Liquid CPU Cooler White is a high-performance cooling solution that offers a smooth D-RGB lighting solution thanks to the M25 G2 fans. The M25 G2 fans can be daisy-chained and controlled through a single cable. Its large copper base and fin array makes it suitable for use with high-end CPUs, while its design allows for maximum clearance with motherboard and RAM components, and is compatible with Intel and AMD sockets.
Features
Glacier One 360M25G2
High Performance 360 Cooling
The Glacier One 360M25 G2 AIO Liquid CPU Cooler is a high-performance CPU cooling solution. Equipped with M25 G2 fans that can interconnect into a single frame, simplifying cable management, while RGB lighting and fan control are streamlined through one cable. The large copper base and fin array efficiently cool high-end CPUs, even under heavy loads.
With a design that maximises clearance for motherboard and RAM components, it also features a cap cover with an integrated fan for extra cooling to surrounding VRMs. This makes it perfect for users seeking optimal cooling and a clean, sleek setup.
Designed for Gamers & PC Enthusiasts
- AIO cap cover with integrated fan cools surrounding VRMs and other critical parts.
- A large copper base and fin array ensures efficient cooling for high-end CPUs.
- Maximum clearance design for compatibility with mainboard and RAM components.
- Compatible with Intel LGA 1700, 1200, 115x, 2011, 2011-3, 2066 and AMD AM4, AM5, sTRX4, TR34, SP3, sWRX8 sockets.
Performance M25 Gen2 D-RGB Fans
- D-RGB lighting and fan control managed through a single cable for a cleaner setup.
- Equipped with M25 G2 fans that can interconnect into a single frame for easier cable management.
VRM
- With Fan: 24.4
- Without Fan: 35.2
M.2 Storage
- With Fan: 30.5
- Without Fan: 38.3
Ready to Perform
- Compatible with all common Intel & AMD sockets.
- Toolless intuitive mounting system.
- Pre-applied thermal compound and extra Phanteks thermal compound included.
- Three tube clips included to guide the tubing and fan cables.
- Flexible tubing with durable braided sleeving.
NextLinq
Expand with more D-RGB by using our Nexlinq ecosystem, which makes both lighting and fan control a breeze with its lightweight software.
- ASUS Aura Sync Addressable
- RGB Fusion 2.0 Addressable
- RGB Rainbow
- MSI Mystic Light Sync
- ASRock Polychrome Sync
- Powered by Razer Chroma
Specifications
General Data
| Model Number |
PH-GO360M25G2_DWT02 |
| Dimensions |
360 |
| Materials |
Aluminium | ABS Plastic | Copper |
| Colour |
White |
| Intel Compatibility |
LGA 115x | 1200 | 1700 | 2011 | 2011-3 | 2066 |
| AMD Compatibility |
AM4 | AM5 |
| Radiator Dimensions (Length x Width x Height) |
397 x 120 x 27 mm | 15.62 x 4.72 x 1.06 in |
| Pump Dimensions (Length x Width x Height) |
85.5 x 80.9 x 69.17 mm | 3.36 x 3.18 x 2.72 in |
| Net Weight |
2.95 kg | 6.50 lbs |
| Warranty |
5 Years limited |
| Scope of Delivery |
1x Glacier One 360M25G2 AIO cooler
3x M25G2-120 fans pre-assembled |
| Accessory Box |
3x Tube clip
1x SATA to 2-pin pump adapter
1x Linq6 adapter cable 250 mm
1x PH-NDC thermal paste |
| Mounting Hardware |
4x AM4 | AM5 Stand-Off screws
4x LGA 1700 Stand-Off screws
4x LGA 115X | 1200 Stand-Off screws
4x LGA 2011 | 2066 Stand-Off screws
4x Thumb nuts
1x AM4 | AM5 Bracket
1x LGA 115X | 1200 | 1700 | 2011 | 2066 Bracket
1x LGA 115X | 1200 | 1700 Plastic back plate |
| Screws |
12x 30 mm 6-32 UNC radiator screws
12x 6 mm 6-32 UNC radiator screws |
| M25G2 Fan Components |
2x Screw cover L
2x Screw cover R
4x Screw cover M |
Pump
| Motor Speed |
3100 RPM ± 10% (100% Duty Cycle) |
| Power |
12V | 0.28A – 0.45A | 3.36W – 3.96W |
| Pump DC Cable |
400 + 10 mm | 15.74 + 0.39 in |
| Noise |
20.0 dBA |
| Material |
Copper | ABS |
| D-RGB Connector |
Linq6 |
| D-RGB 3-Pin Cable |
470 + 105 ± 10 mm | 18.50 + 4.13 ± 0.39 in |
Tubes
| Length |
400 mm | 15.74 in |
| Diameter |
10.5 mm OD | 0.41 in OD |
| Tube Clips |
3x |
| Material |
CIIR rubber | Braided Sleeves |
Fans 3x Included
| Fan Model |
M25G2-120 D-RGB |
| Dimensions (Length x Width x Height) |
120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in |
| Speed |
350 – 2000 ± 10% RPM |
| Air Flow |
72.72 CFM |
| Fan Static Pressure |
2.51 mm H2O | 0.09 in H2O |
| Noise |
35.13 dBA |
| MTFB |
150,000 Hours |
| Connector |
Linq 6 |
| Cable Length |
120 mm | 4.72 in Daisy-chain |
Backed by a 5 year Phanteks warranty.
