Open box, as new condition. The SilverStone Milo 10 Mini ITX Chassis features a super small form factor of only 2.8 litres, includes an interchangeable top cover that increases the capacity to 3.7 litres, modular design to accommodate various configurations, supports m-ITX motherboards, and supports 3 x 50mm fans on the right.
Features

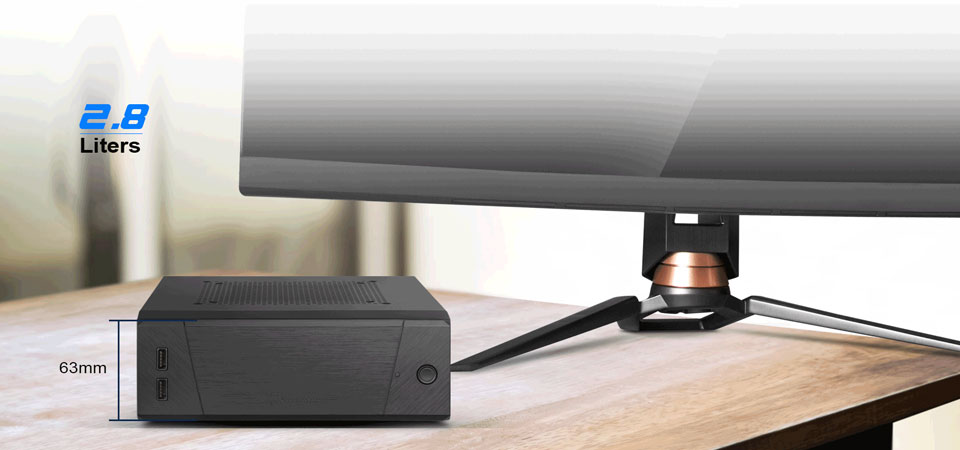

Super compact
The Milo 10 can be configured to just 2.8 liters in size or 3.7 liters if more room is needed.
Modular design
Interchangeable solid bezel and slim ODD bezel included for easily changing case size which allows different drive configurations to accommodate various storage components based on the height of your CPU coolers.

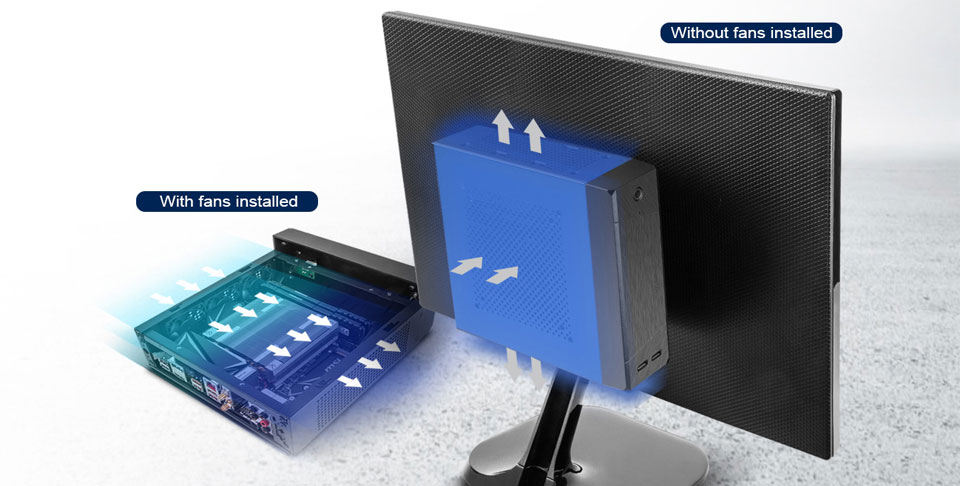

Well-ventilated
Features multiple vents around the chassis for various airflow configurations.

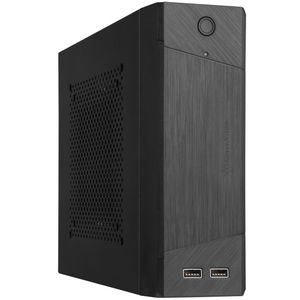

Place it anywhere & in any orientation
Milo 10 can be used horizontally or vertically so it’ll fit almost anywhere.

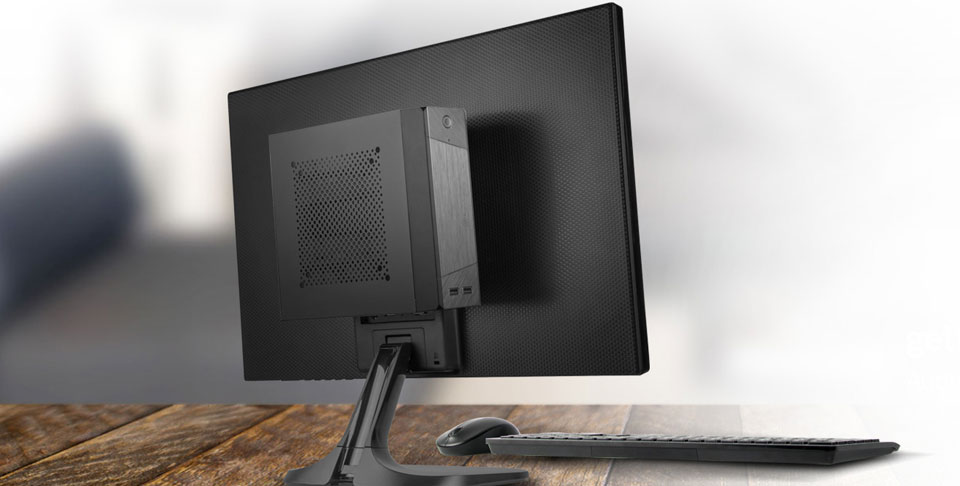

Save space with VESA
A VESA mount is also included so you can hide the Milo 10 behind a monitor to save even more desktop space.
Specifications
| Model No. |
SST-ML10B (black) |
| Material |
Plastic bezel, steel body |
| Motherboard |
Mini-ITX |
| Drive bay |
External Standard top cover: N/A
Elevated top cover: 9.5mm slim optical bay
Internal Standard top cover: 2.5" x 2
Elevated top cover: 2.5" x 2 or 3.5" x 1 |
| Cooling System |
Right side: 50 x 50 x 10mm x 3
Left side: Ventilation
Top: Standard top cover: Ventilation
Elevated top cover:120mm/140mm x 1 ( built-in M.2 , w/o SSD) |
| Front I/O port |
USB 3.0 x 2 |
| Power supply |
DC board + external AC adapter (sold separately) |
| Limitation of CPU cooler |
Standard top cover:
31mm (install 7mm height SSD inside)
43mm (w/o HDD/SSD bracket)
Elevated top cover:
(1) 29mm (install HDD inside)
(2) 31mm (install 7mm height SSD and ODD inside w/o HDD bracket standoff)
(3) 36mm (Install M.2 + 25mm thickness 120mm / 140mm fan, w/o HDD/SSD bracket)
(4) 47mm (install 7mm height SSD inside w/ HDD bracket standoff)
(5) 63mm (install M.2, and w/o SSD / HDD / top fan) |
| Net weight |
1.4 Kg |
| Dimension |
Standard top cover: 196mm (W) x 63mm (H) x 227mm (D), 2.8 liters
Elevated top cover: 196mm (W) x 84mm (H) x 227mm (D), 3.7 liters |
Backed by a 1 year PCCG warranty.
