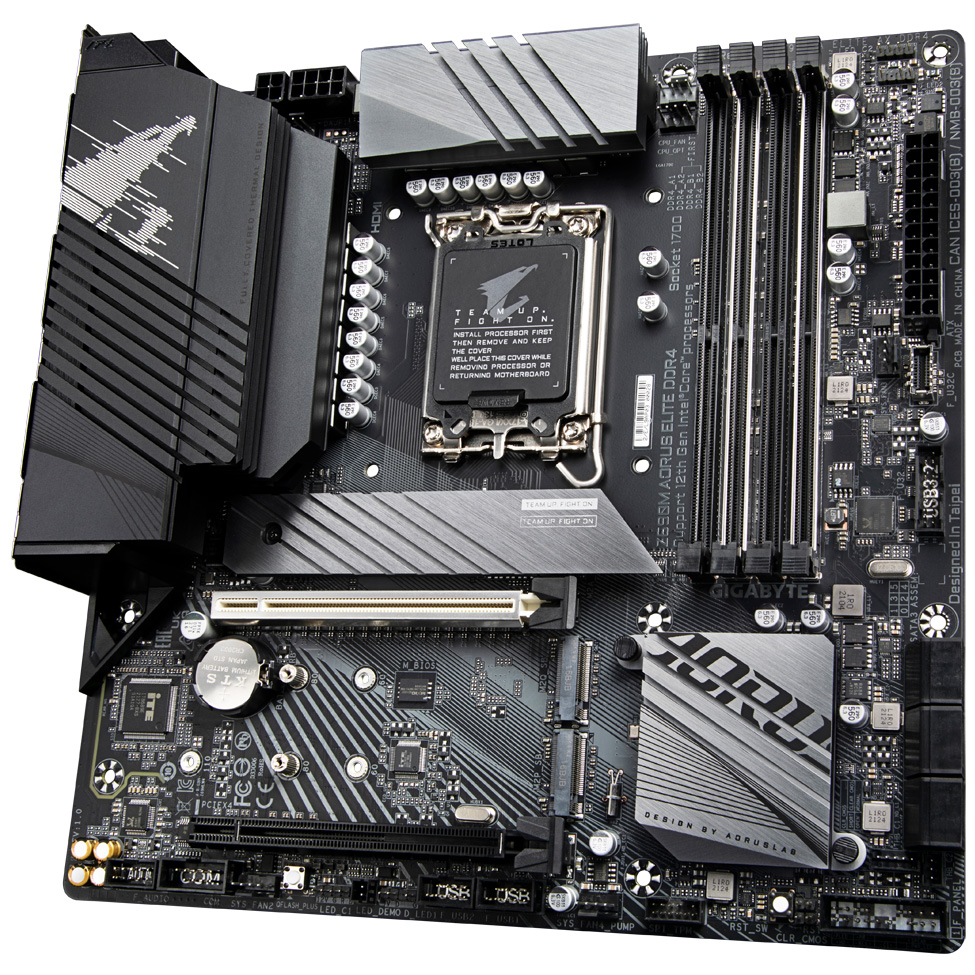

Gigabyte Z690M Aorus Elite DDR4 Motherboard

On sale! (normally $249) The Gigabyte Z690M Aorus Elite D4 Motherboard supports Intel LGA 1700 for 12th Gen Core, Pentium Gold and Celeron processors, features up to 4 x DDR4 memory slots, PCI-E 5.0, 4.0, and 3.0 compatible expansion slots, 3 x M.2 slots, 6 x SATA ports (6GB/s), 10 x rear USB ports (1 x USB Type-C with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0), 4 x front panel header USB ports (1 x USB Type-C with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers), Intel 2.5GbE LAN, Realtek HD audio codec and a micro-ATX motherboard form factor.

Warning: This product contains a button battery - If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours. - Keep batteries out of reach of children. - If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.

Features

---

The Gigabyte Z690M Aorus Elite D4 Motherboard - Build Smart. Go Elite.

Ever wonder why your system underperforms? You may be surprised how a motherboard could critically bottleneck the system performance, especially when it falls short on both the power and thermal design. With a limited budget, it is even more important to spend it wisely. Introducing AORUS ELITE motherboards, featuring the best-in-class digital power design, the best-in-class full-metal heatsink, and the best-in-class DDR4 XMP compatibility. It only takes a small step-up to be the best-in-class. Build Smart. Go ELITE.

• Supports 12th Gen Intel^®  Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 12+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor
• Shielded Memory Routing to Avoid Interference
• Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
• Fast Intel^® 2.5GbE LAN with Bandwidth Management
• 3 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
• SuperSpeed USB 3.2 Gen2x2 TYPE-C^® delivers up to 20Gb/s transfer speeds
• Pre-installed IO Shield for easy and quick installation
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Unparalleled Performance

With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

Direct Digital VRM Design

To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE Z690 series equip the best VRM design ever built with the highest quality components.

• 12 VCore Phases - 60A Power stage - To unleash full potential of multi-cores CPU performance
• 1 VCCGT Phase - 60A Power stage - For CPU integrated GPU performance
• 2 VCCAUX Phases - 70A DrMOS - Provide stable power for CPU integrated PCIe & Memory controller

The more advanced manufacturing process and the higher core count on the new generation of CPUs, requires motherboards to utilize a more sophisticated VRM design to make CPUs run at their full potential. GIGABYTE uses fully DIRECT VRM DESIGN, high quality MOSFETs and tantalum polymer capacitors to achieve higher efficiency, lower voltage ripple and lower temperature than traditional parallel VRM design.

Tantalum Polymer Capacitor

• Lower impedance than regular capacitor to reduce voltage ripple
• Stable capacitance under high temperature
• Mounted right under the CPU area to stabilize CPU voltage during heavy loading

With DIRECT VRM DESIGN and TANTALUM POLYMER CAPACITOR, Z690 motherboards transient response, voltage ripple and stability is highly improved under overclocking and heavy loading condition.

PCIe 5.0 Design

GIGABYTE get Z690 Motherboards ready to work with the upcoming PCIe 5.0 device which is expected to experience Twice bandwidth. To reach the high speed and maintain good signal integrity, Gigabyte R&D selects the low impedance PCB to make it work.

Ultra Durable™ SMD PCIe 5.0 Armor

GIGABYTE' exclusive stainless steel shielding design.

SMD Iron Claw

By means of multi-point steel pins penetrating the PCB to increase the strength of the SMD slot to improve the durability.

DDR4 XMP

Support for DDR4 XMP Up to 5333MHz and Beyond

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

Single 32GB Support

• Faster speed
• 32 GB Capacity
• Multi-tasking
• RAM Intensive
• Quick Response
• Lower usage

The maximum memory capacity on the Z690 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 128GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

RAID Storage - Triple 7 GB/s Gen4 M.2 PCIe SSDs in RAID 0

The exclusive 3 PCIe 4.0 M.2 and 2nd Generation 7000 MB/s SSD provides unparalleled Read / Write performance up to 21053 and 15499 MB/s.

Hybrid Cores Optimization

With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

Gaming:

• Deactivate all E-Core
• Zero compromise on gaming performance
• Up to 20% lower CPU package power
• Up to 5°C lower CPU temperature

Max Performance:

• Activate all P-Core and E-Core
• Maximize full multi-cores performance

Advanced Thermal Solution

Un-throttled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array, Heatpipe and Thermal Guards. The comprehensive solution delivers excellent heat dissipation. The Z690 AORUS Motherboards stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers and professional gamers.

Thermal Design

• Fully Covered Thermal Design - High coverage MOSFET and integrated moulding Heatsinks to improve thermal efficiency with better airflow and heat exchange
• 2X Copper PCB - 2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance
• M.2 Thermal Guard - The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue
• 5 W/mK Thermal Pad - By using 1.5mm thicker 5 W/mK thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time

Fully Covered MOSFET Heatsink

• 2X Large Surface - Increased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs
• Real One-Piece Build - TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design
• Multi-Cut Design - TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance

M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

2X Copper PCB

By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors

• 6 PWM/DC Fan Headers
• 6 Internal Temperature Sensors

Cooling Features

• High Current Support - Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control - 7 temperature/fan speed control points for precise fan curve
• Dual Curve Mode - Slope/Stair dual mode for different user scenario
• Fan Stop - Fan can stop completely below users' specified temperature point

Smart Fan 6 BIOS UI

• Improve fan curve UI - We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control
• Slope/Stair dual graph mode - Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval
• Manual Input - For advanced users, we provide fan speed manual input for more precise control
• EZ Tuning - Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve
• Fan curve profile - Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS

Fan Stop - Intelligent Fan Control Design

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Connectivity

GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.

Intel 2.5GbE LAN

First Adopter On 2.5GbE LAN Onboard - 2X Faster Than Ever

• Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
• Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Connecting the Future - USB 3.2 Gen 2x2 Type-C

Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.

Hi-Fi Audio

High-End Audio Capacitors

AORUS motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

AORUS motherboards feature an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level.

Personalization

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

RGB Fusion 2.0

With Z690 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colours and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

With Z690 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

• Cycle Colour
• Static
• Pulse
• Flash
• Double Flash
• Music
• Random
• Game
• Digital A
• Digital B
• Digital C

UEFI BIOS

• New User Interface - All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan
• Changelog - List all changes before saving and exiting bios. Quickly review overall settings modification
• My Favourites - Add constantly used items into the favourite menu for quick access
• Intuitive Load Line Curve - Clearly show each loadline calibration setting in an intuitive curve graph
• Storage Information - Show all kinds of storage information including SATA, PCIE and M.2 interface

Easy Tune

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behaviour; these are the possibilities of the System Information Viewer.

Ultra Durable

GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Q-Flash Plus - Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Solid Pin

Solid Pin Power Connectors

AORUS motherboards feature solid plated ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power Connector Advantages

• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan
