Deepcool Castle 240EX ARGB AIO Liquid CPU Cooler White

DP-GS-H12W-CSL240EX-AR-WH | Deepcool

This product has been discontinued

The Deepcool Castle 240EX ARGB AIO Liquid CPU Cooler White features the iconic Deepcool Castle EX infinity mirror pump design, dual-chamber pump with an optimised flow route, a strong 3-phase motor that provides higher cooling performance, 2 120mm Deepcool CF120 PWM fans with 12 RGB LEDs per fan, adjustable and customisable pump face, 240mm radiator with anti-leak technology and is compatible with Intel and AMD sockets.

Features


Deepcool DP-GS-H12W-CSL240EX-AR-WH AIO Liquid CPU Cooler - White Feature 1

CASTLE 240EX A-RGB WH

The DeepCool CASTLE 240EX A-RGB WH AIO liquid CPU cooler delivers fantastic RGB lighting with two DeepCool CF120 A-RGB PWM fans and our iconic infinity mirror in a 240mm radiator.

Deepcool DP-GS-H12W-CSL240EX-AR-WH AIO Liquid CPU Cooler - White Feature 2

Better by Design

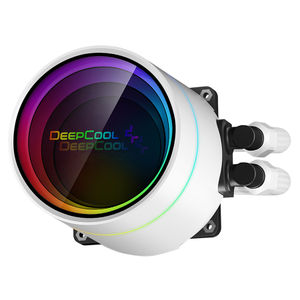

The iconic DeepCool Castle EX infinity mirror pump design with a new twist. See the new DeepCool logo on an enlarged mirror chip for a new instant classic.

Deepcool DP-GS-H12W-CSL240EX-AR-WH AIO Liquid CPU Cooler - White Feature 3

Shine On

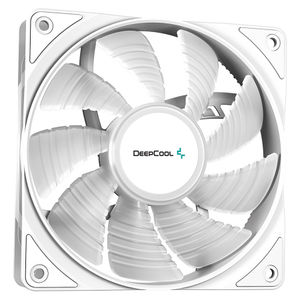

Two DeepCool CF120 series PWM fans output brilliant colour with 12 RGB LEDs per fan.

*Sync lighting with 5V A-RGB motherboard compatibility or the included controller.

Deepcool DP-GS-H12W-CSL240EX-AR-WH AIO Liquid CPU Cooler - White Feature 4

Efficient Cooling

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.

Deepcool DP-GS-H12W-CSL240EX-AR-WH AIO Liquid CPU Cooler - White Feature 5

Powerful and Quiet

A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.

Deepcool DP-GS-H12W-CSL240EX-AR-WH AIO Liquid CPU Cooler - White Feature 6

More Surface Area

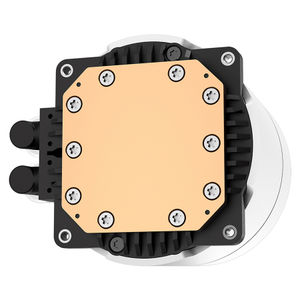

With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.

Protect What’s Yours

After 3 years of R&D, DeepCool launched a new standard for liquid cooling systems—Anti-Leak Technology. This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage.

Customize Your Look

Easily change orientation by twisting off the pump face to adjust the logo.

Specifications


Model Number DP-GS-H12W-CSL240EX-AR-WH
Net Weight 1380 g
Radiator Dimensions 282 x 120 x 27 mm
Radiator Material Aluminium
Tube Length 380 mm
Pump Dimensions 86 x 75 x 71 mm
Pump Speed 2550 RPM±10 %
Pump Noise 17.8 dB(A)
Pump Connector 3 - Pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.2 A
Pump Power Consumption 2.4 W
Fan Dimensions 120 x 120 x 25 mm
Fan Speed 500 ~ 1800 RPM±10 %
Fan Airflow 69.34 CFM
Fan Air Pressure 2.42 mmAq
Fan Noise ≤30 dB(A)
Fan Connector 4 - Pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.17 A
Fan Power Consumption 2.04 W
LED Type Addressable RGB LED
LED Connector 3 - Pin (+5V - D - G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.25 W (Pump) / 4.4 W (Fan x 2)
Application For Intel: LGA2066 / 2011 - v3 / 2011 /1200 / 1151 / 1150 / 1155 / 1366
AMD: TRX4 / TR4 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
Backed by a 3 year Deepcool warranty.
