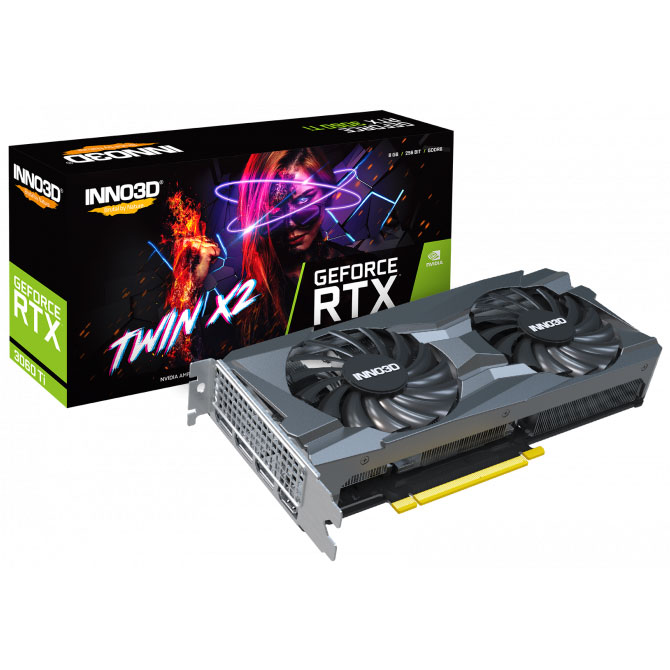

Inno3D GeForce RTX 3060 Ti Twin X2 LHR 8GB
N306T2-08D6-119032DH | Inno3DThis product has been discontinued
Limit 1 per household. The Inno3D GeForce RTX 3060 Ti Twin X2 LHR 8GB graphics card features a 1410MHz base clock, 1665MHz boost clock, 8GB GDDR6 256-bit memory interface, PCI-E 4.0, 1 x HDMI 2.1, 3 x DisplayPort 1.4a, HDCP 2.3 support, OpenGL 4.6 and DirectX 12 Ultimate support.
Features
Powerful dual fan
The Twin X2 boasts dual 9cm fans and high quality bearings that allow for 24/7 operation to keep the cooling at an optimal level. It also has scythe fan blades to maximise airflow and is optimised to operate in low fan speed conditions.

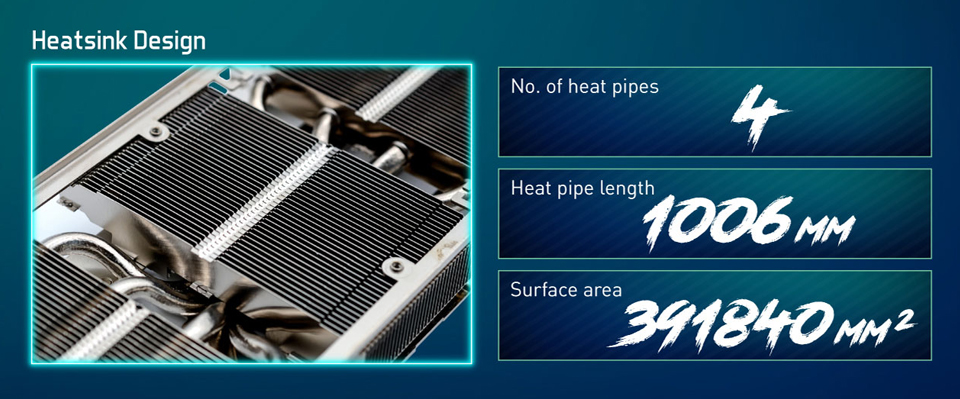

Heatsink design
Back plate design
The Twin X2's backplate reinforces the graphics card and prevents it from unintentional bending.
Specifications
| CUDA Cores | 4864 |
| Boost Clock (MHz) | 1665 |
| Base Clock(MHz) | 1410 |
| Minimum System Power Requirement (W) | 650 |
| Supplementary Power Connectors | 8-pin |
| Memory Clock | 14Gbps |
| Standard Memory Config | 8GB |
| Memory Interface | GDDR6 |
| Memory Interface Width | 256-bit |
| Memory Bandwidth (GB/sec) | 448 |
| Real-Time Ray Tracing | Yes |
| Ray Tracing Cores | 2nd Generation |
| Tensor Cores | 3rd Generation |
| NVIDIA Architecture | Ampere |
| Microsoft DirectX | 12 Ultimate |
| NVIDIA DLSS | Yes |
| PCI Express Gen 4 | Yes |
| NVIDIA GeForce Experience | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA FreeStyle | Yes |
| Bus Support | PCI-E 4.0 X16 |
| NVIDIA ShadowPlay | Yes |
| NVIDIA Highlights | Yes |
| OS Certification | Windows 10, Linux, FreeBSDx86 |
| NVIDIA G-SYNC™-Ready | Yes |
| Lighting module | White LED logo (No RGB Control) |
| Game Ready Drivers | Yes |
| NVIDIA Studio Drivers | Yes |
| NVIDIA GPU Boost™ | Yes |
| Vulkan API | Yes |
| OpenGL | 4.6 |
| HDMI 2.1 | Yes |
| DisplayPort 1.4a | Yes |
| NVIDIA Encoder | 7th Generation |
| NVIDIA Decoder | 5th Generation |
| LHR | This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.). |
| Installation Guide | Yes |
| Power Guide | Yes |
| Graphics Card Dimensions | Length: 240mm Height: 120mm |
| Width | 2-slot |
| Multi Monitor | Yes |
| Maxmium Digital Resolution | 7680x4320 |
| HDCP | 2.3 |
| Standard Display Connectors | HDMI 2.1, 3x DisplayPort 1.4a |
Backed by a 3 year Inno3D warranty.
