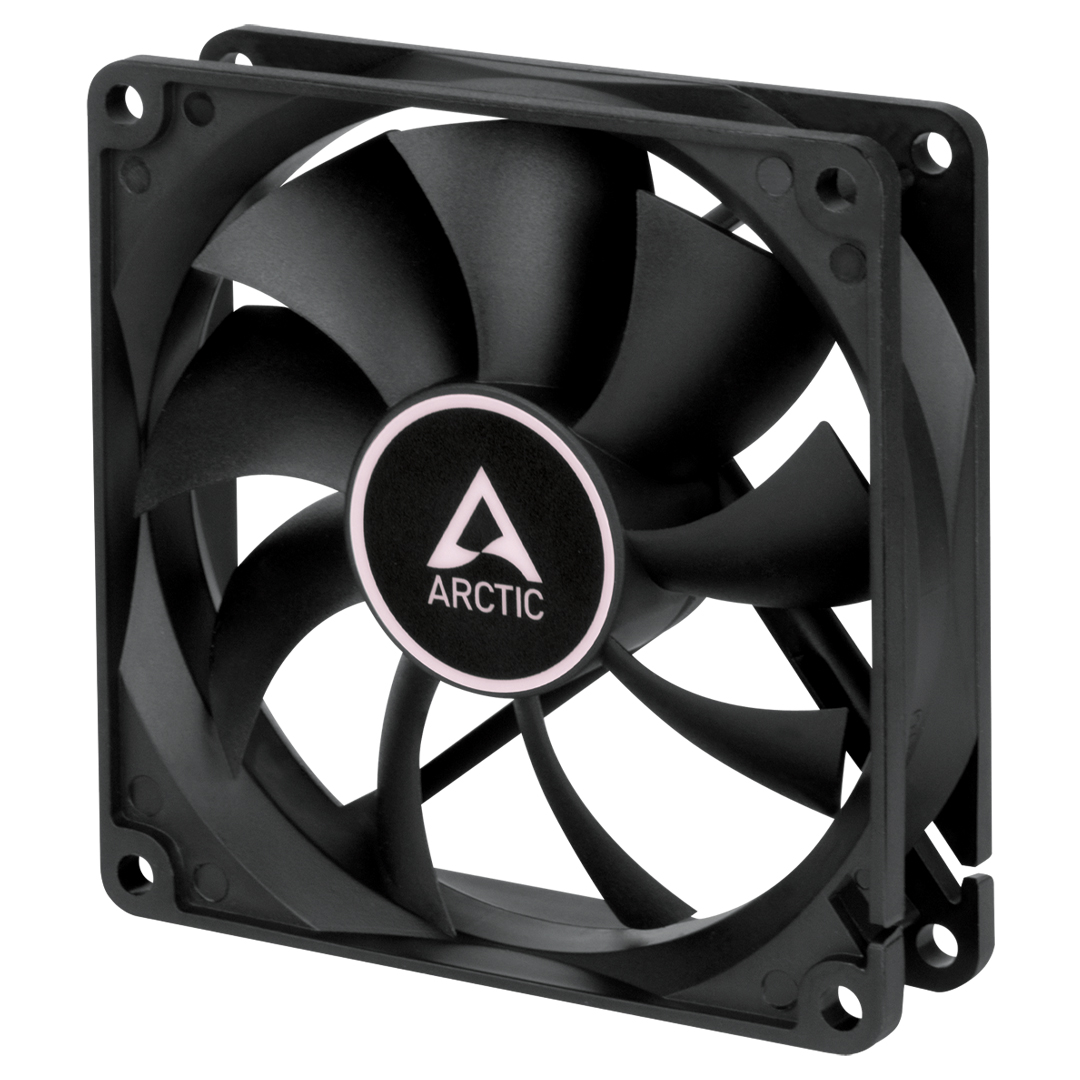

Arctic F9 PWM 92mm PST Fan Black

ACFAN00214A | Arctic

This product has been discontinued

The Arctic F9 PWM 92mm PST Fan Black features a fluid dynamic bearing, PWM compatible, PWM sharing technology (PST), innovative design for quiet and efficient ventilation, and a max fan speed of 1800 RPM.

Features


Long Service Life

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.

Arctic ACFAN00214A 92 mm PWM PST Case Fan - Black Feature 2

Perfect Case Fan Regulation with PWM

The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

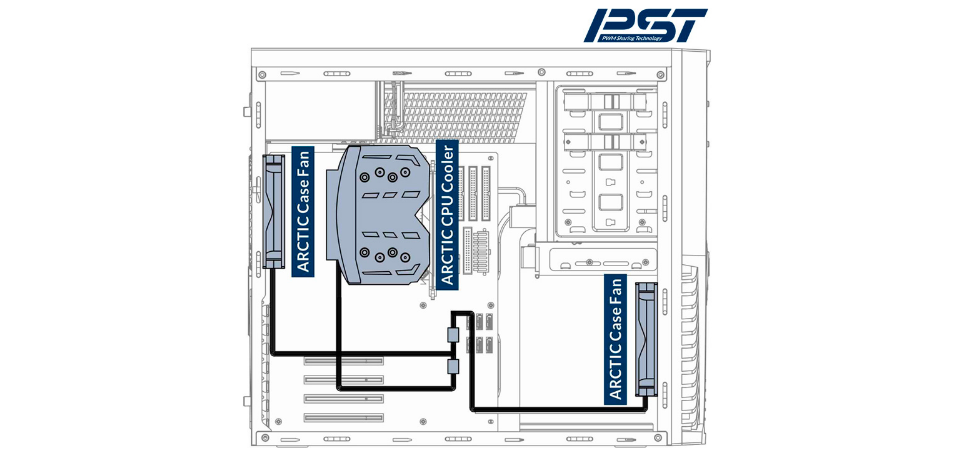

Arctic ACFAN00214A 92 mm PWM PST Case Fan - Black Feature 3

PWM Sharing Technology (PST) Lowers Noise

If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.

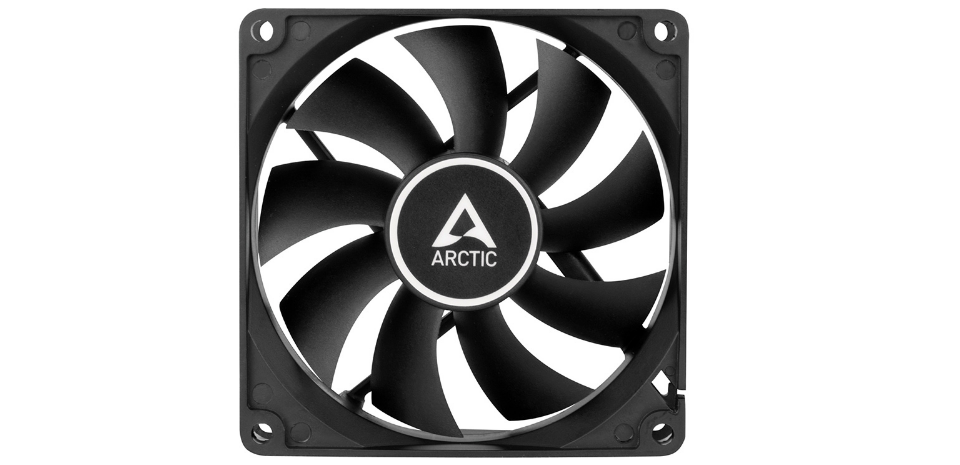

Arctic ACFAN00214A 92 mm PWM PST Case Fan - Black Feature 4

Innovative Design Enables Quiet and Efficient Ventilation

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimizing the noise level yet delivering the desired airflow and pressure.

Arctic ACFAN00214A 92 mm PWM PST Case Fan - Black Feature 5

Two Way Installation

  • Blow warm air out of the case
  • Draw cool air into your case

Specifications


Performance

Fan Speed 150 - 1800 rpm
Airflow 43 CFM/ 73.1 m³/h
Static Pressure 1,35 (mm/H2O)
Noise Level 0.4 Sone

Fan

Fan Frame Standard
Control Type PST
Connector 4-Pin Connector + 4 Pin Socket
Fan Bearing Fluid Dynamic Bearing

Electric Characteristics

Typical Voltage 12 V DC
Starting Voltage 8.5 V
Current 0.15 A
Cable Length 400 mm

Size & Weight

Length 92 mm
Width 92 mm
Height 25 mm
Weight 85 g
Backed by a 6 year Arctic warranty.
