EKWB AIO Liquid CPU Cooler 240mm
3831109832493 | EK WaterblocksThis product has been discontinued
Features

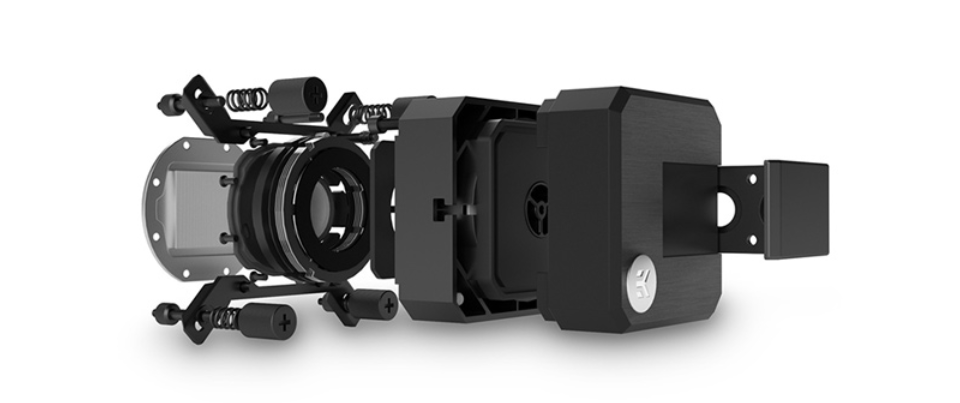

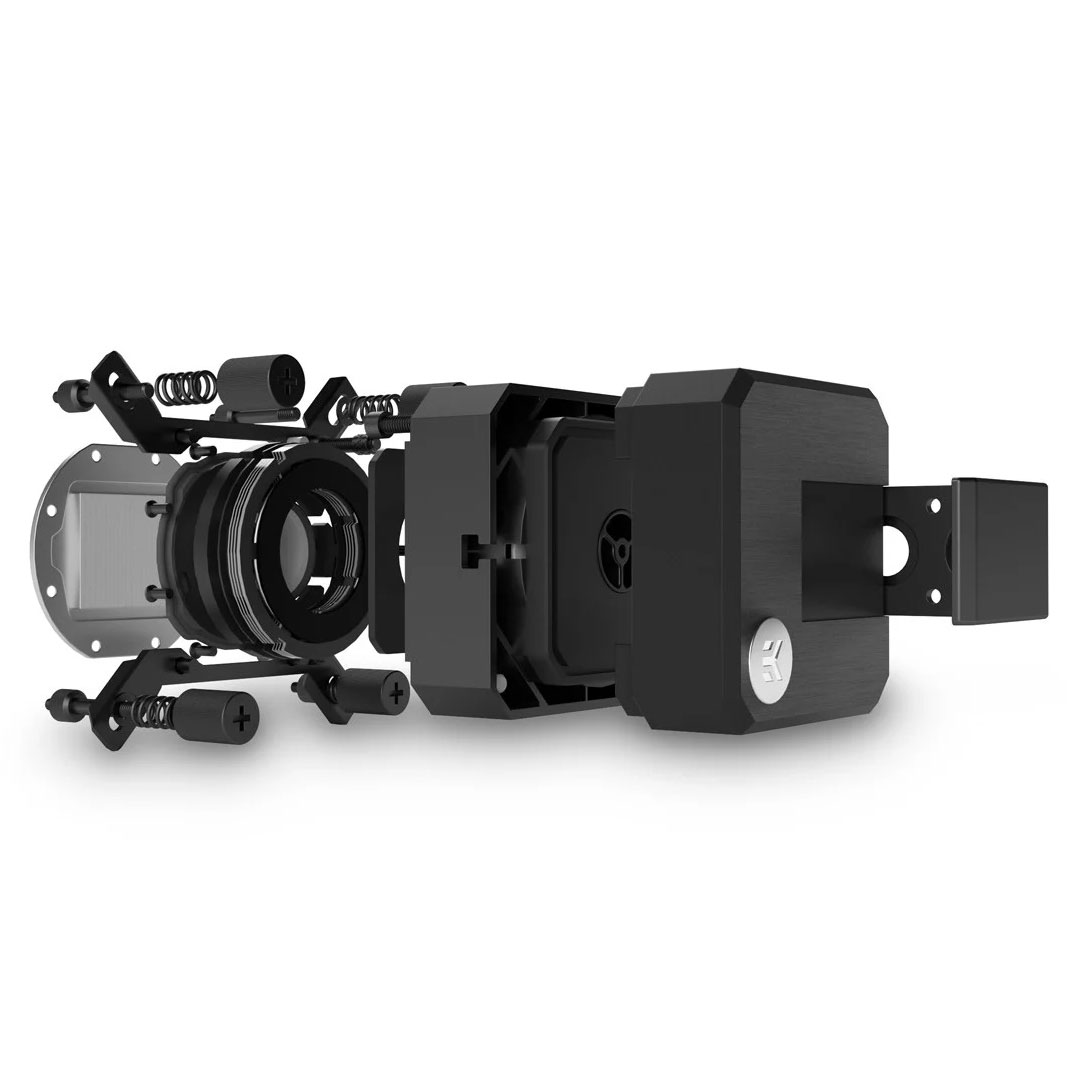

Easy Installation with Universal Compatibility
The EK AIO Basic comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO offers compatibility with almost all modern case designs.
Ultra-Durable Design with Diamond-Cut Rotary Fittings
The EK AIO Basic comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces.

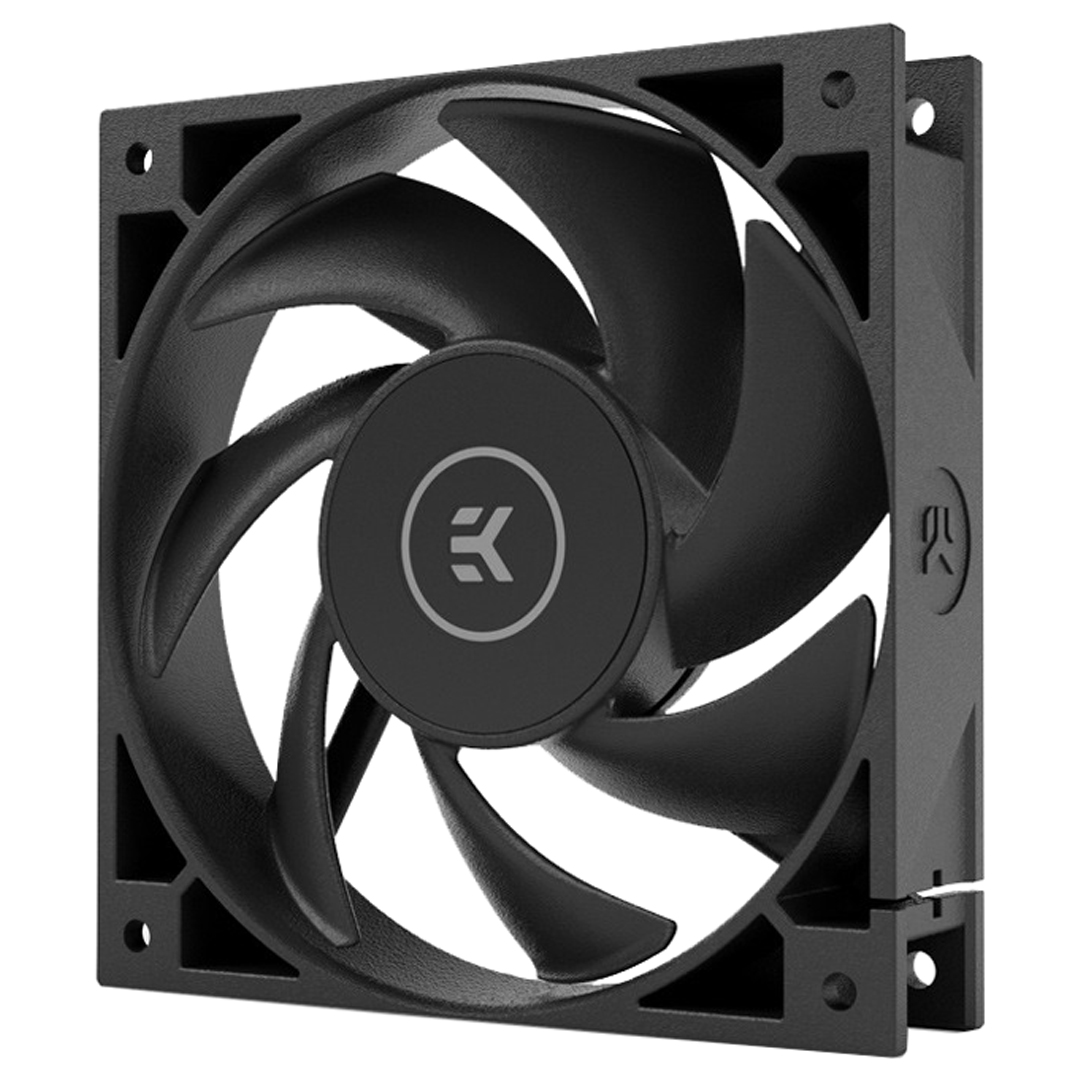

EK-Vardar High-Performance Fans
Two EK-Vardar S Black Edition fans included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 550 - 2200RPM for either high airflow or silent running.
Dimensions


Specifications

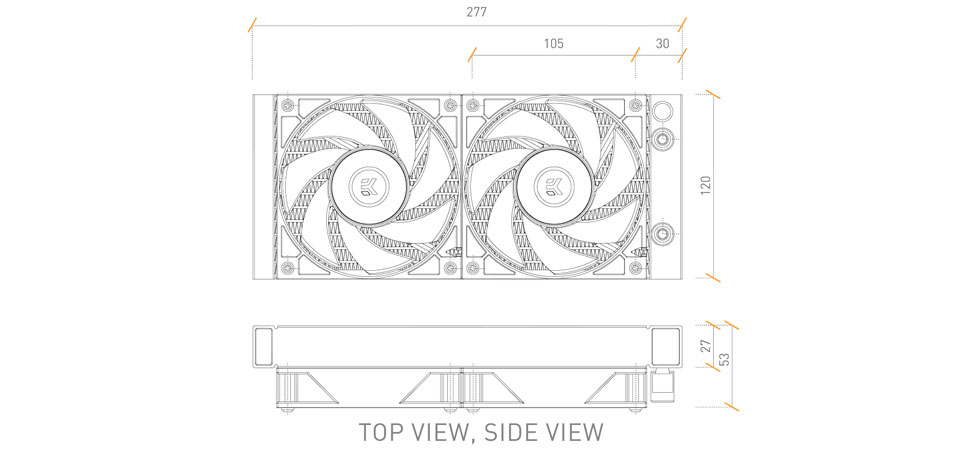

| Radiator Dimensions | 275 x 120 x 27 mm |
| Radiator Material | Aluminum |
| Fan Compatibility | 120 mm |

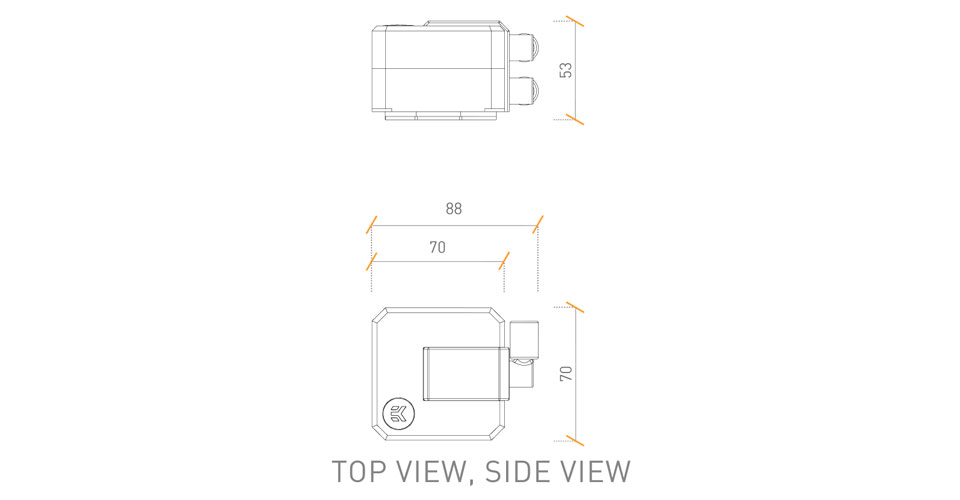

| Pump Unit Dimensions | 88 x 70 x 53 mm |
| Pump Unit Material | PETG and ABS Housing / Copper Cold Plate / Steel Mounting Pump |
| Pump Speed Range | 850 - 2600 RPM ± 10% |
| Pump PWM Range | 20 - 100% |
| Pump Cable Length | 50 mm |
| Tubing Material | Ultra-Low Evaporation Rubber with Nylon Braided Sleeve |
| Tubing Length | 350 mm |
| Fan Dimensions | 120 x 120 x 25 mm |
| Fan Speed Range | 550 - 2200 ± 10% |
| Fan Noise Level | 33,5dBA (at maximum speed) |
| Fan Static Pressure | 2,89 mm H20 = 28,9 Pa (at maximum speed) |
| Fan Air Flow | 77 CFM = 131 m³/h (at maximum speed) |
| Fan Cable Length | 500 mm |
| System Requirements | 4-Pin PWM Header for pump and fan operation |
| Enclosed | EK-AIO Basic 240 unit 2x EK-Vardar S 120 Dark Edition Tube of Thermal Paste Mounting Kit User Manual |
| Mounting Kit | Zip Bag 1: 8x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length) 8x Phillips Head Screw UNC 6-32 x 6mm 8x Phillips Head Screw UNC 6-32 x 34mm Zip Bag 2: 4x Thumb nut (Intel /AMD) 4x Spring Zip Bag 3: 4x Mounting screws (Intel 1150,1151,1155,1156,1200/AMD) Zip Bag 4: 4x Mounting screws (Intel 2011,2011-3,2066) Zip Bag 5: 2x Intel Mounting Bracket Zip Bag 6: 2x AMD Mounting Bracket Zip Bag 7: 5x Mounting screws for Brackets M4x6mm |
| CPU Socket Support | Intel Sockets LGA: 1150 / 1151 / 1155 / 1156 / 1200 / 2011 / 2011-3 / 2066 AMD Sockets: AM4 |
| Warranty | 5 Years International Limited Warranty |
| Number of Fans | 2 |
