SilverStone 120W DC to DC Board and 120W AC to DC Adapter Kit
SST-AD120-DC | SilverStoneThis product has been discontinued
The SilverStone 120W DC to DC board and 120W AC to DC Adapter Combo Kit allows users to power their SSF PC while maximizing space. It features a maximum output of 120W, mylar insulation design, built-in protection circuitry, black cables, and is easy to install.
Features
Overview
- Maximum Output of 120W
- 120W DC-DC power board with 120W 12V efficiency level VI AC-DC Power Adapter & power cord
- Mylar insulation design, easy to install
- Black wire design
- Built-in multiple protection circuitry for maximum protection during operation
- Power Your SFF PC While Maximizing Space

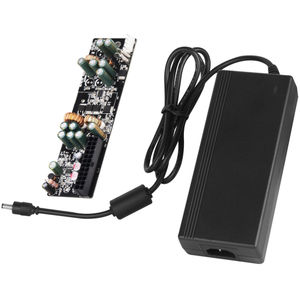

120W DC to DC board and 120W AC to DC adapter combo kit

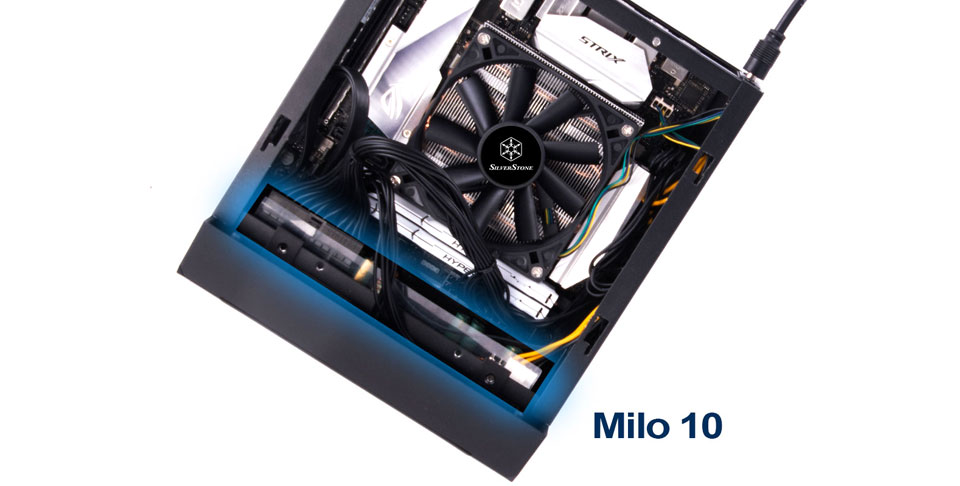

Power your SFF PC while maximizing space

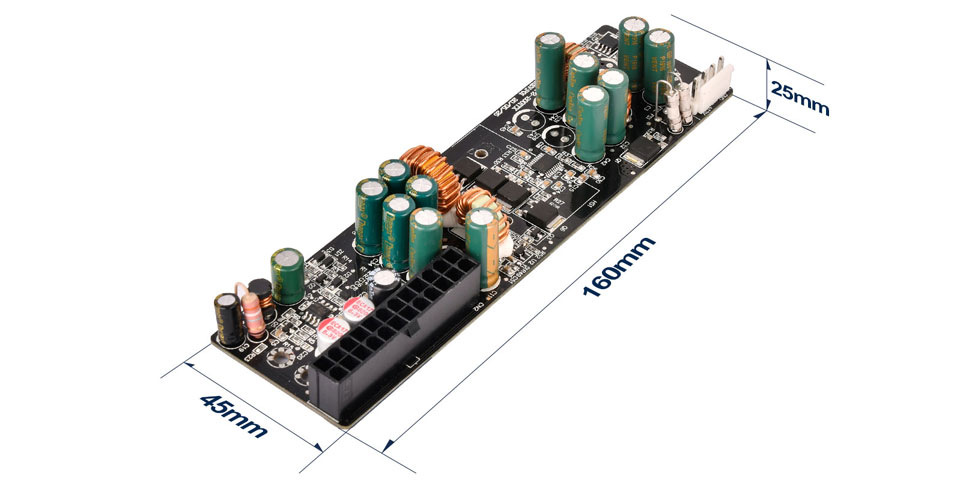

DC board dimensions
Specifications
General Data
| Model Number | SST-AD120-DC |

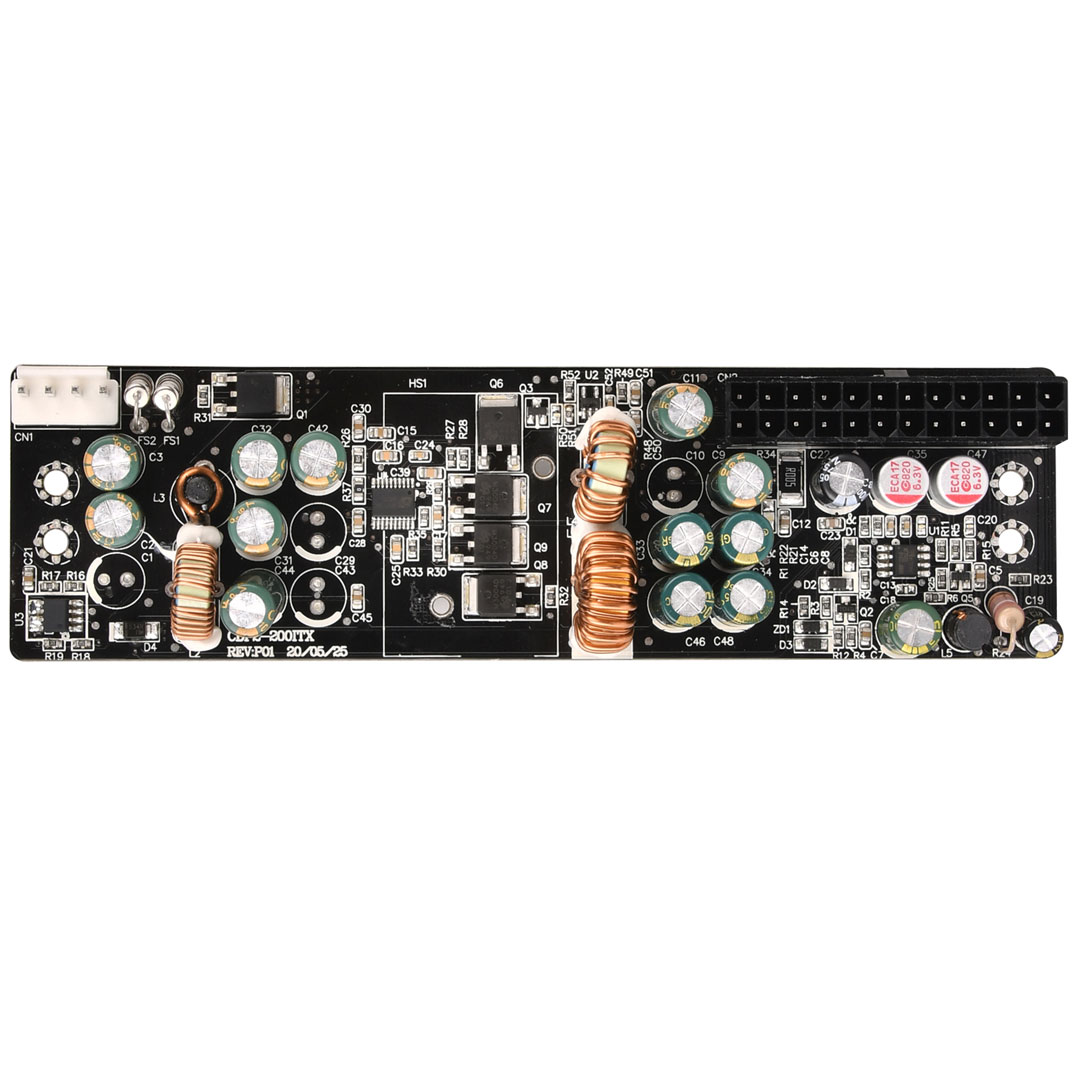

DC to DC Board
| Max. DC Output | 120W |
| Colour | Black |
| Voltage | +3.3V / +5V / +12V / +5VSB / -12V |
| Max.(Amps) | 12A / 12A / 10A / 3.0A / 0.15A |
| Range (%) | ±5% / ±5% / ±5% / ±5% / ±10% |
| Line Reg.(%) | ±1% / ±1% / ±1% / ±1% / ±1% |
| Ripple(mVp-p) | 50mA / 50mA / 120mV / 50mV / 120mV |
| Combined +3.3V & +5V | 95W |
| Combined +12V | 120W |
| Operating Temperature | 0°C ~ 40°C |
| Protection | Over Voltage Protection Over Current Protection Under Voltage Protection Short Circuit Protection |

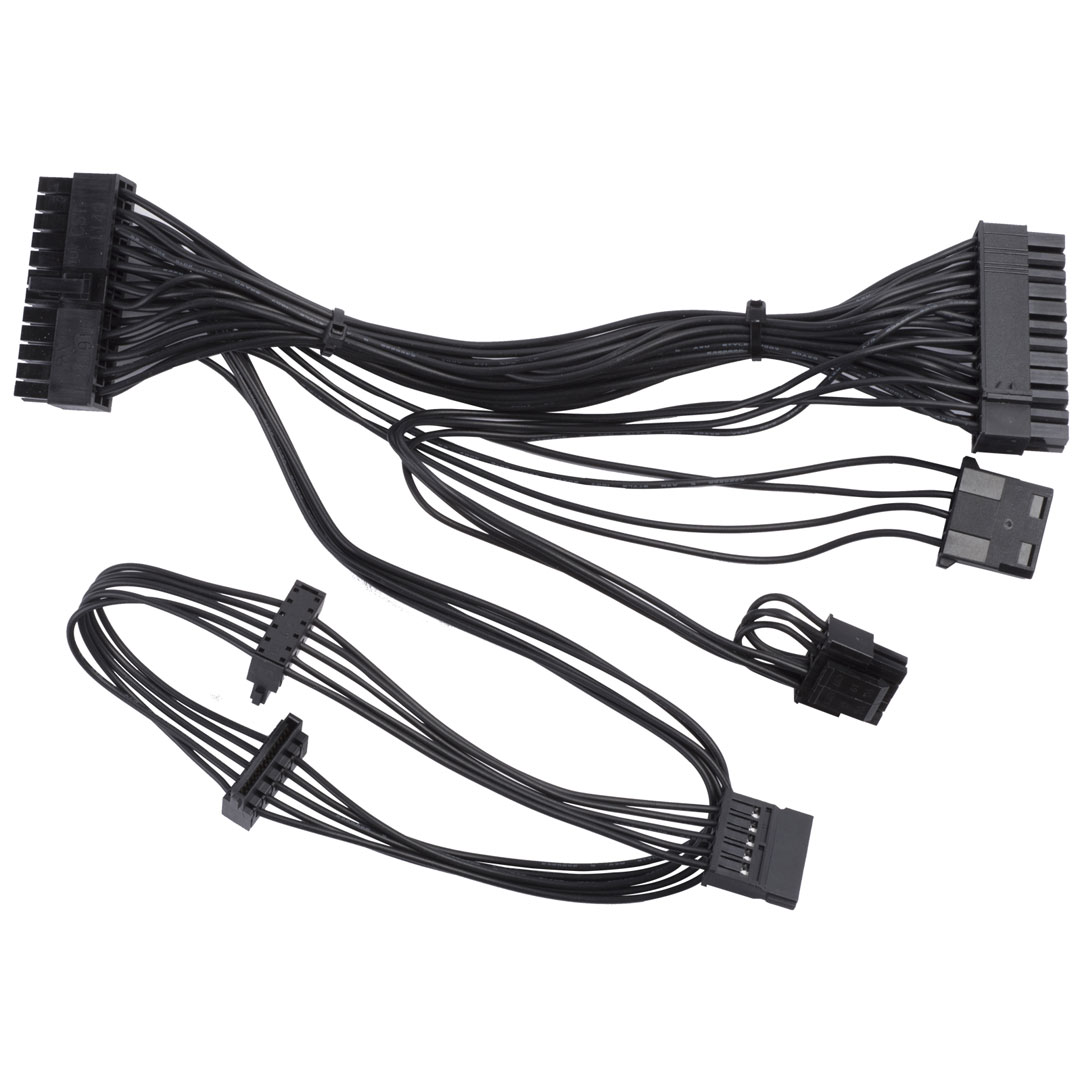

| Connectors | 1 x 24-Pin Motherboard Connector (200mm) 1 x 8 / 4-Pin EPS / ATX 12V Connector (250mm) 3 x SATA Connector (300mm / 100mm / 100mm） 1 x 4-Pin Peripheral Connector (200mm) |
| Dimension | 160mm (W) x 25mm (H) x 45mm (D) 6.3" (W) x 0.98" (H) x 1.77" (D) |
AC Adapter
| Wattage | 120W |
| Output | 12V DC |
| Input Voltage | 100 ~ 240V |
| Input Frequency Range | 47 ~ 63Hz |
| Max. Output Current | 10A |
| Operating Temperature | 0°C ~ 40°C |
| Protection | Over Voltage Protection Over Current Protection Short Circuit Protection |
| Dimension | 168mm (W) x 71mm (H) x 37.5mm (D) 6.61" (W) x 2.8" (H) x 1.48" (D) |
Backed by a 1-year SilverStone warranty.
