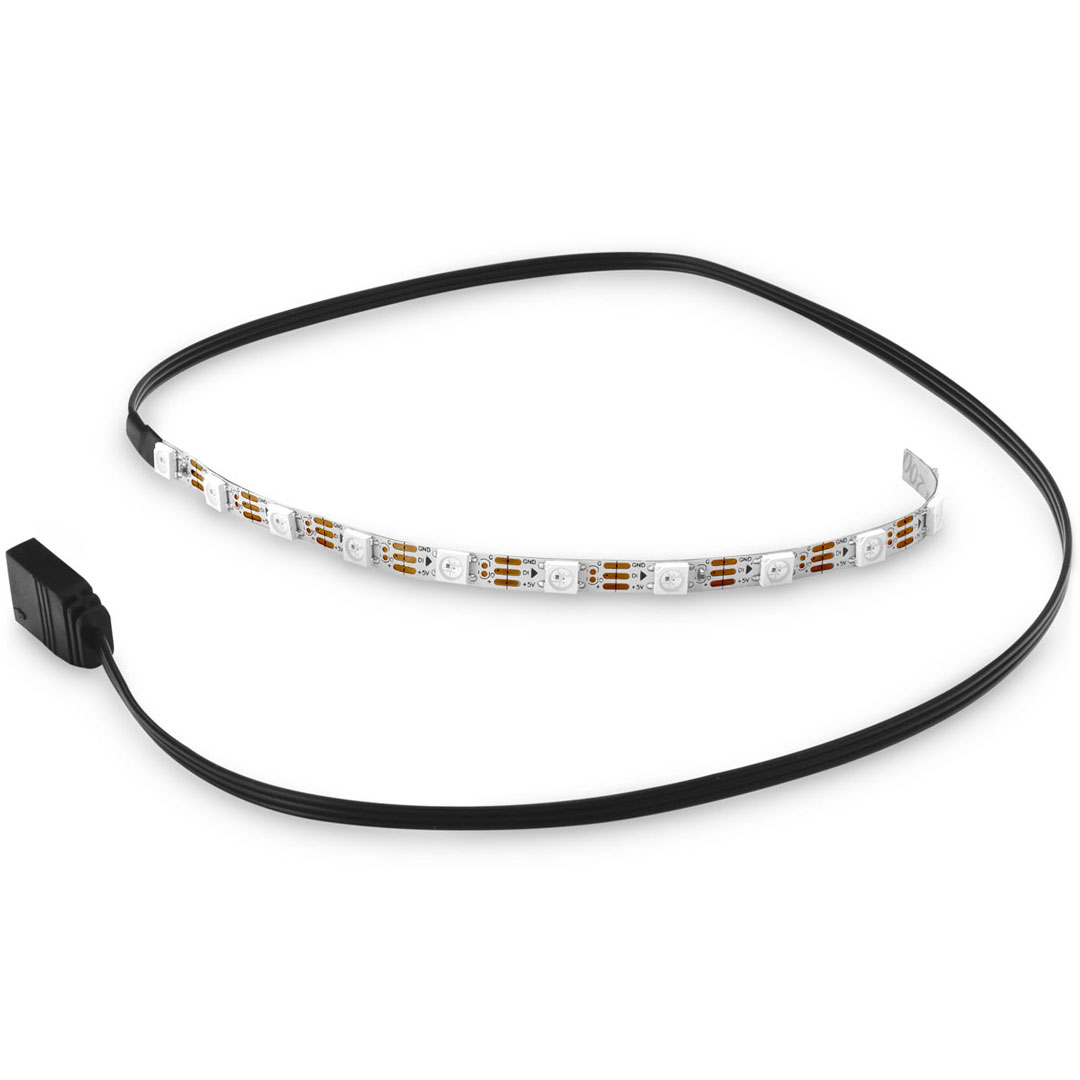

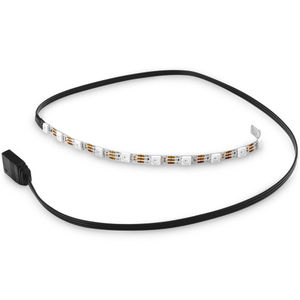

The EK Loop D-RGB LED Strip 180mm is a replacement individually addressable D-RGB strip with densely packed LEDs that is used for upgrading existing EK products. It replaces the standard RGB strips in CPU blocks, monoblocks, reservoirs, and pump combos, and connects via a 3-pin connector to supported 5V headers.
Features
Replacement individually addressable D-RGB strip for upgrading existing EK products. The strip is 180mm long and can replace standard RGB strips in CPU blocks, monoblocks, reservoirs, and pump-combos. The strip is connected via a 3-pin connector to supported 5V headers that are present on most modern motherboards.
Specifications
| Connection type |
3-pin (+5V, D, Blocked, Ground) |
| Rated voltage |
5V DC |
| Number of LEDs |
11 (60LED/m density) |
| Strip length |
180mm |
| Strip width |
4mm |
| Cable length |
500mm |
| Compatible EK-Quantum Kinetic Tubular pump-reservoir combo units |
EK-Quantum Kinetic TBE 200 D5 PWM D-RGB - Acetal
EK-Quantum Kinetic TBE 200 D5 PWM D-RGB - Plexi
EK-Quantum Kinetic TBE 300 D5 PWM D-RGB - Acetal
EK-Quantum Kinetic TBE 300 D5 PWM D-RGB - Plexi
EK-Quantum Kinetic TBE 160 DDC PWM D-RGB - Acetal
EK-Quantum Kinetic TBE 160 DDC PWM D-RGB - Plexi
EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal
EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Plexi
EK-Quantum Kinetic TBE 200 D5 Body D-RGB - Acetal
EK-Quantum Kinetic TBE 200 D5 Body D-RGB - Plexi
EK-Quantum Kinetic TBE 160 DDC Body D-RGB - Plexi
EK-Quantum Kinetic TBE 160 DDC Body D-RGB - Acetal
EK-Quantum Kinetic TBE 120 VTX PWM D-RGB - Plexi
EK-Quantum Kinetic TBE 120 VTX PWM D-RGB - Acetal
EK-Quantum Kinetic TBE 160 VTX PWM D-RGB - Plexi
EK-Quantum Kinetic TBE 160 VTX PWM D-RGB - Acetal |
| Compatible EK-Quantum Momentum Monoblocks |
EK-Quantum Momentum Aorus X570 Master D-RGB - Plexi
EK-Quantum Momentum ROG Crosshair VIII Hero D-RGB - Plexi
EK-Quantum Momentum ROG Strix X570-E D-RGB - Plexi
EK-Quantum Momentum ROG Strix X299-E Gaming II D-RGB - Plexi
EK-Quantum Momentum ROG Rampage VI Encore D-RGB - Plexi
EK-Quantum Momentum Aorus X570 Elite D-RGB - Plexi
EK-Quantum Momentum ROG Zenith II Extreme D-RGB - Plexi
EK-Quantum Momentum TRX40 Aorus Master D-RGB - Plexi
EK-Quantum Momentum MSI Z490 Pro Carbon D-RGB - Plexi
EK-Quantum Momentum ROG Maximus XII Extreme D-RGB - Plexi
EK-Quantum Momentum Aorus Z490 Master D-RGB - Plexi |
| Note |
Should not be used with 12V headers as that will damage the diodes, they should be powered exclusively by 5V header. |
Backed by a 2 year EK warranty.
