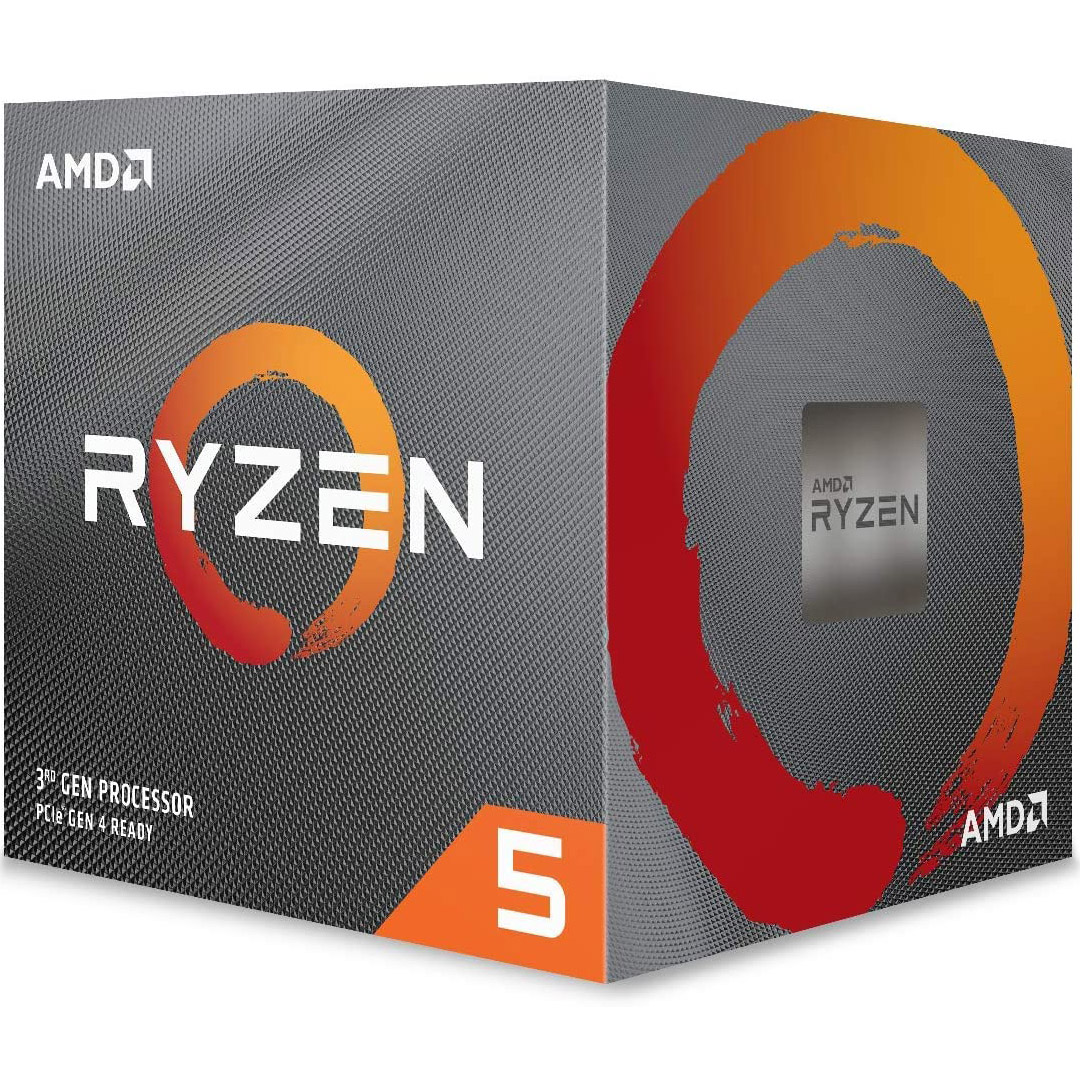

AMD Ryzen 5 3600XT Processor
100-100000281BOX | AMDThis product has been discontinued
AMD Ryzen 5 3600X 6 Core 12 Thread CPU, 3.8GHz Base Clock, 4.5GHz Boost, 95W TDP, 32MB L3 cache. Includes Wraith Spire cooler.
Please note: 1st and 2nd Gen chipsets may require BIOS updates to support 3rd Gen processors, if you plan to install a 3rd Gen Ryzen into previous generation chipset, make sure to check if your BIOS will support it or whether your intended board supports BIOS Flashback without the need for a compatible CPU. If you would like us to update the BIOS for you, you can add this service to your cart here.
Please note: 1st and 2nd Gen chipsets may require BIOS updates to support 3rd Gen processors, if you plan to install a 3rd Gen Ryzen into previous generation chipset, make sure to check if your BIOS will support it or whether your intended board supports BIOS Flashback without the need for a compatible CPU. If you would like us to update the BIOS for you, you can add this service to your cart here.
Features
Specifications
General Specifications
| Number of CPU Cores | 6 |
| Number of Threads | 12 |
| Base Clock | 3.8GHz |
| Max Boost Clock | Up to 4.5GHz |
| Total L2 Cache | 3MB |
| Total L3 Cache | 32MB |
| Unlocked | Yes |
| CMOS | TSMC 7nm FinFET |
| Package | AM4 |
| PCI Express® Version | PCIe 4.0 |
| Default TDP / TDP | 95W |
System Memory|
| System Memory Specification | 3200MHz |
| System Memory Type | DDR4 |
Key Features
| Supported Technologies | AMD StoreMI Technology AMD Zen Core Architecture AMD Ryzen™ Master Utility |
Foundation
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 5 Desktop Processors |
Backed by an AMD 3 year limited warranty.
