StarTech DisplayPort 1.4 Male to Male 2m

DP14MM2M
The StarTech DisplayPort cable connects your DisplayPort laptop or desktop computer to a “super ultra-high definition” 8K monitor, TV or projector. It supports resolutions up to 8K (7680x4320) @ 60Hz. This cable is VESA cetified to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability. Backed by a 1 year StarTech warranty.

Features


The Superior Performance of DisplayPort 1.4

This 8K DisplayPort cable supports all DP 1.4 features:

  • High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
  • High Dynamic Range (HDR) for higher contrast ratio and vivid colors
  • Multi-Stream Transport (MST) for daisy-chaining multiple monitors
  • Display Stream Compression 1.2 (DSC) for maximum resolution output
  • Forward Error Correction to manage data transmission errors
  • High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
  • 32 Uncompressed Digital Audio Channels

Flexible Cable with Reliable Latched Connectors

The cable has a slim professional grade 34 AWG construction that allows for flexible installation while offering superior reliability for a clean quality installation. Each connector features latches that provide secure connections between your devices.

8K: Enabling Business Continuity

8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start future proofing your cabling infrastructure.


Specifications


Cable Jacket Type PVC - Polyvinyl Chloride
Cable Shield Type Aluminum-Mylar Foil with Braid
Connector Plating Gold
Fire Rating VW-1 Rated
Number of Conductors 19
Connector A 1 - DisplayPort (20 pin) Male
Connector B 1 - DisplayPort (20 pin) Male
Colour Black
Connector Style Latching
Product Height 0.4 in (1 cm)
Product Length 6.6 ft (2 m)
Product Width 0.5 in (12 mm)
Weight of Product 8.9 oz (252 g)
Wire Gauge 34 AWG
Included in Package 1 - DisplayPort Cable


Product Images

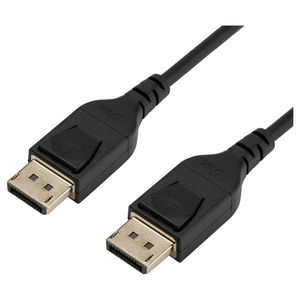

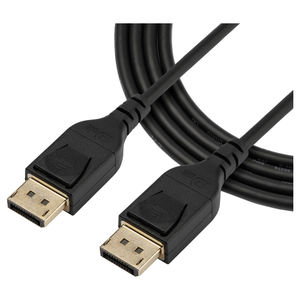

StarTech Displayport Male to Male 2m product
