The UniFi Gen2 16 Port Managed Gigabit Switch USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports. It features a 1.3" touch LCM to display status information, eight auto-sensing 802.3at PoE+ ports, two SFP ports and can be managed and configured with the UniFi mobile app.
VIDEO
Features
Standard 16 PoE (42W)
A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.
(8) GbE PoE+, (8) GbE ports
(2) 1G SFP ports
42W total PoE availability
Fanless, silent cooling
Build Features
Front
Back
Dimension
Deployment|

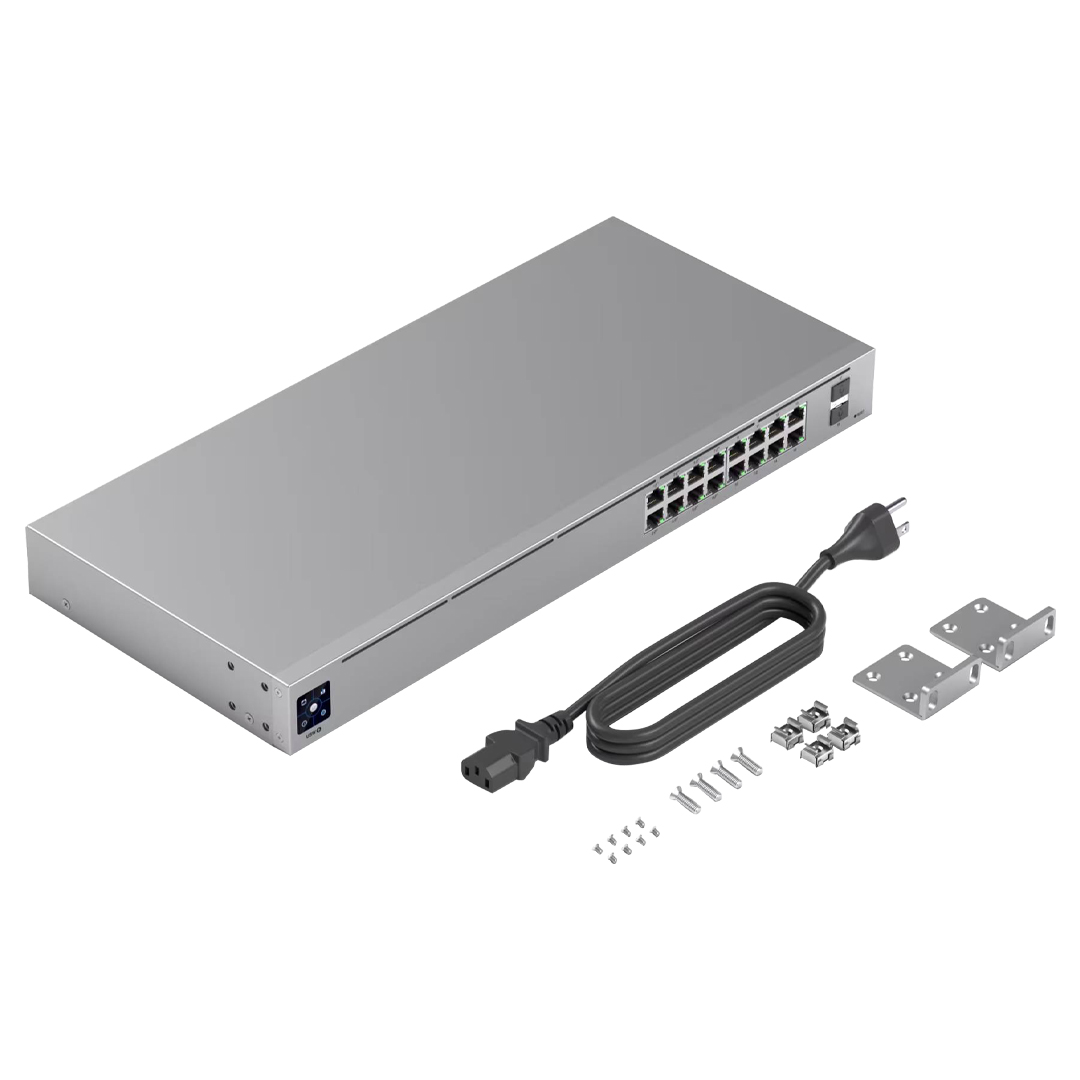

<img src="/images/USW-16-POE-add1x.jpg" alt="Ubiquiti UniFi Gen2 16-Port Managed Switch add1" title="Ubiquiti UniFi Gen2 16-Port Managed Switch" /><br /> General Data
Model Number
USW-16-POE
Dimensions
442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
Weight
Without mounting brackets: 2.8 kg (6.2 lb)
Enclosure Material
SGCC steel
LEDs
System
Status
Ethernet
PoE
SFP
Link/activity
Application Requirements
UniFi Network
Version 7.2.94 and later
Switching Features
Layer 2 Features
IGMP snooping
Hardware
Management Interface
Ethernet In-Band
Networking Interface
(16) GbE RJ45 ports
PoE interface
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total Non-Blocking Throughput
18 Gbps
Switching Capacity
36 Gbps
Forwarding Rate
26.78 Mpps
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100—240V AC
Max. Power Consumption
18W (Excluding PoE output)
Total Available PoE
42W
Max. PoE wattage per port by PSE
PoE+: 32W
Voltage Range PoE Mode
PoE: 44—57V
ESD/EMP Protection
Air: ± 16kV, contact: ± 12kV
LCM display
(1) 1.3" touchscreen
Button
Factory reset
Shock and Vibration
ETSI300-019-1.4 Standard
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Backed by a 1 year Ubiquiti warranty.
