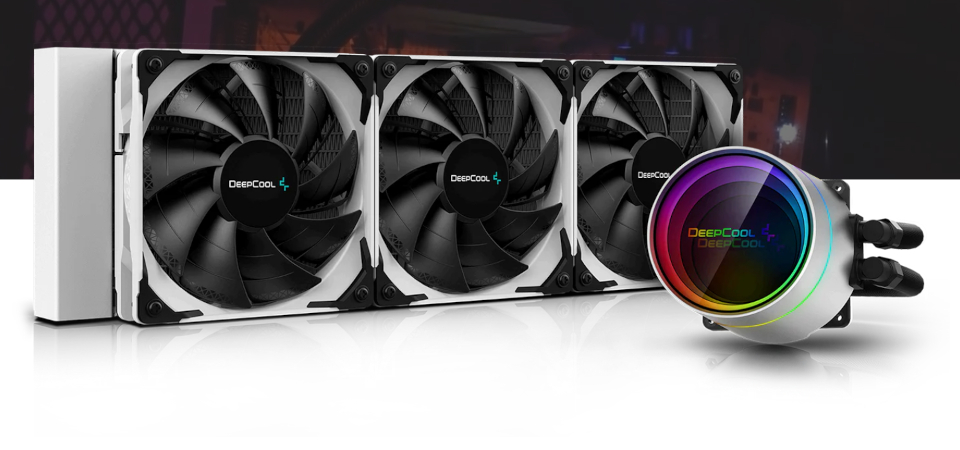

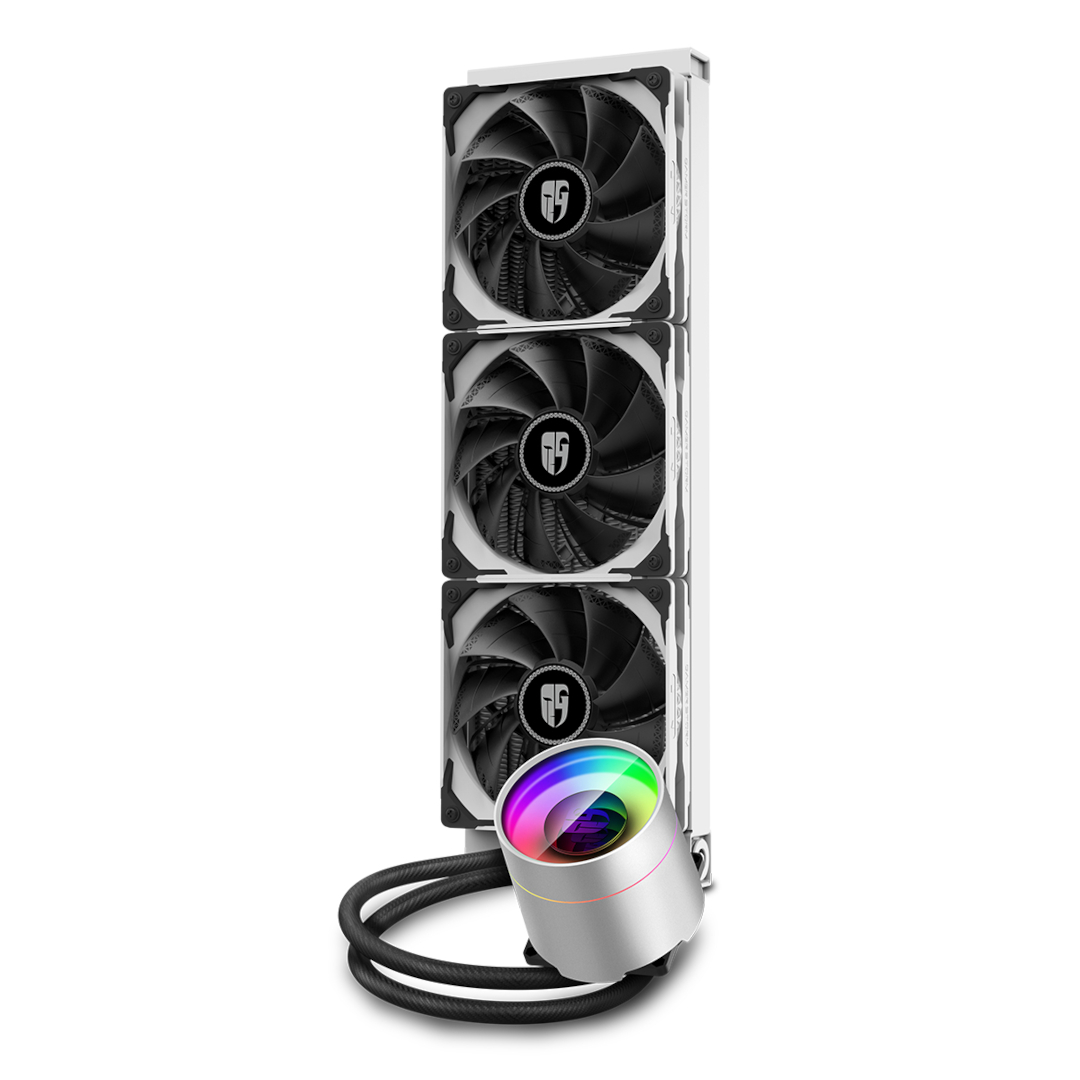

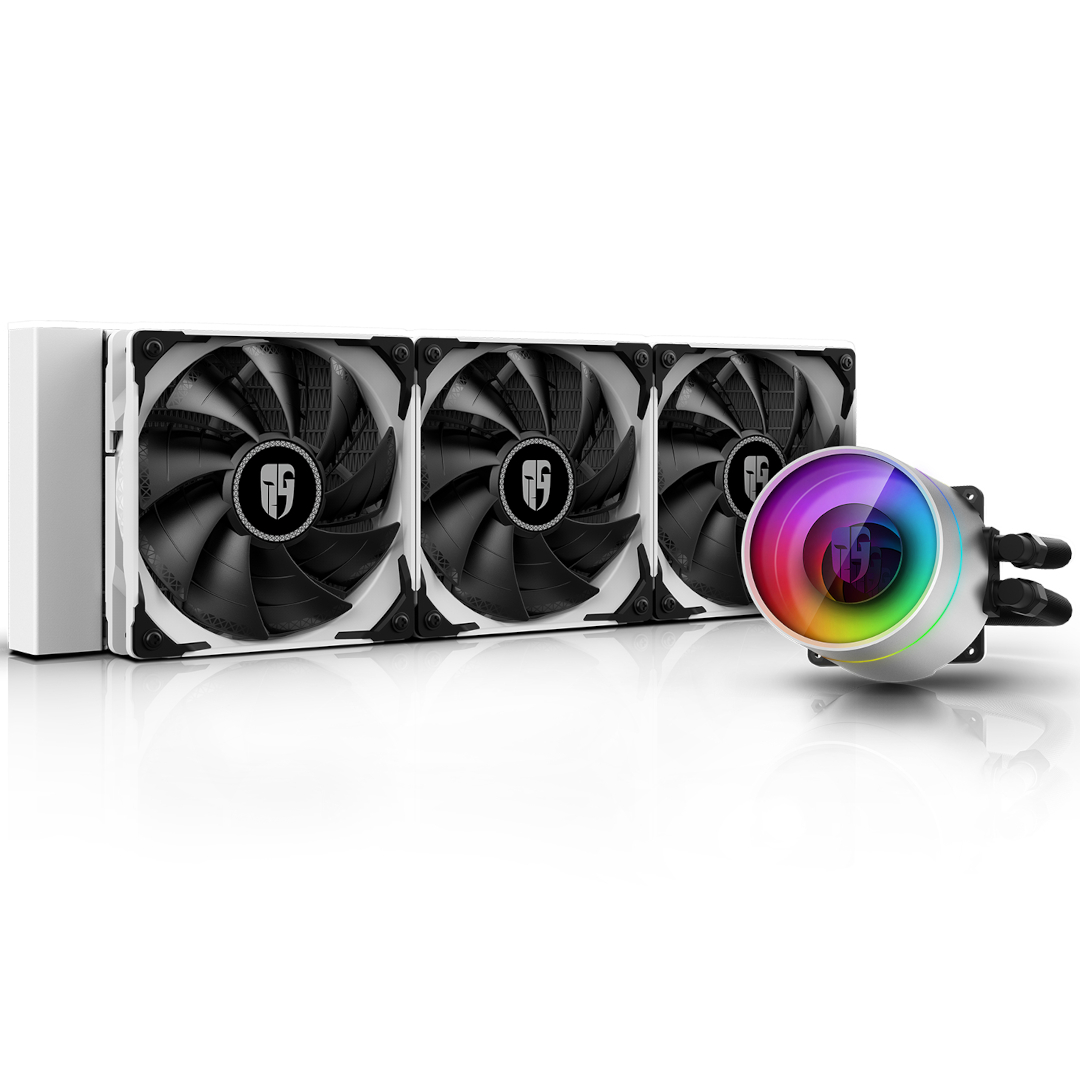

Deepcool Castle 360EX AIO Liquid CPU Cooler White

DP-GS-H12W-CSL360EXWH | Deepcool

This product has been discontinued

The Deepcool Castle 360EX AIO liquid CPU cooler features anti-leak technology, 25% more skived fins on the back side of the copper base, increasing heat absorption area, flow route optimisation to reduce operation noise and energy loss, three specially tuned TF120 S fans, customizable logo, ultra large copper base with extensive compatibility (including TR4) and a 5V Addressable RGB that's adjustable through via the motherboard or controller.

Features


EXCLUSIVELY SAFE

CASTLE 360EX WHITE is equipped with Deepcool’s exclusive Anti-leak Technology. The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, Deepcool is setting a new standard for liquid cooling systems.

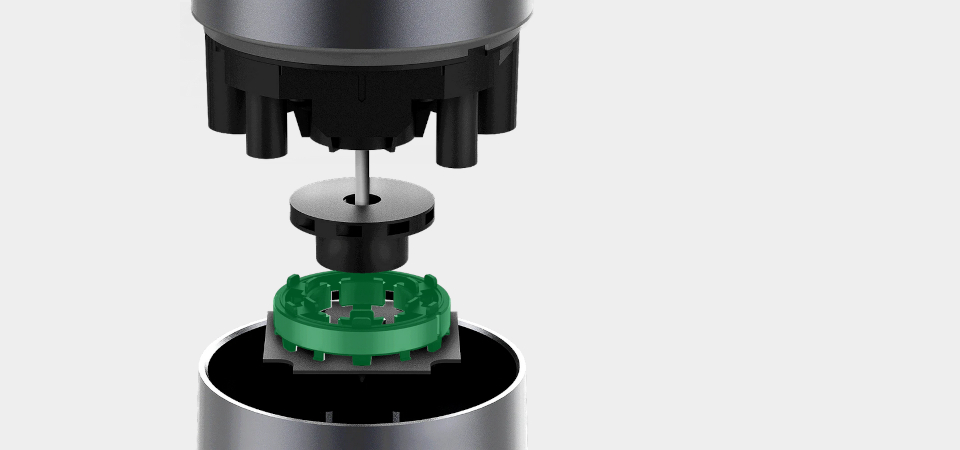

STRONGER MOTOR

Driven by a 3-phase, x-life motor, and a pressure charging impeller, CASTLE 360EX WHITE’s pump is more powerful yet more quiet.

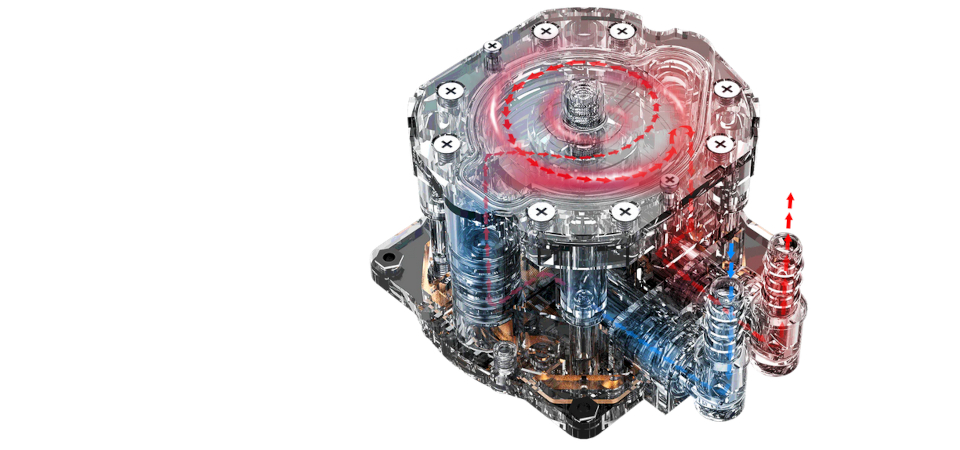

MORE EFFICIENT FLOW

With more rounded corners and optimised flow route, the upgraded double chamber design increases the heat exchange efficiency, and decreases the operation noise and energy loss.
With 25% more skived fins on backside of the copper base, the heat absorption area is extensively increased.

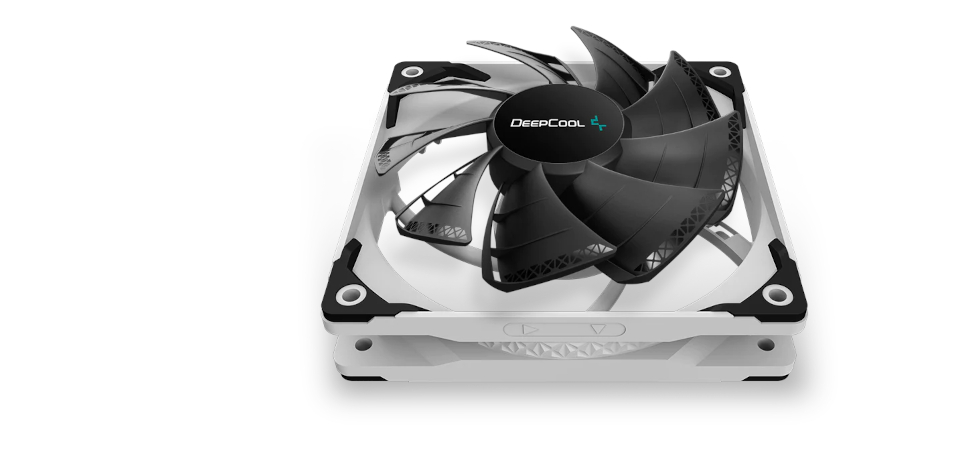

BEST MATCHING FANS

3 specially tuned TF120 S fans are included (in matching the radiator’s properties). The fans are also equipped with patented two-layer fan blades and flow-amplifying & noise-canceling frames.

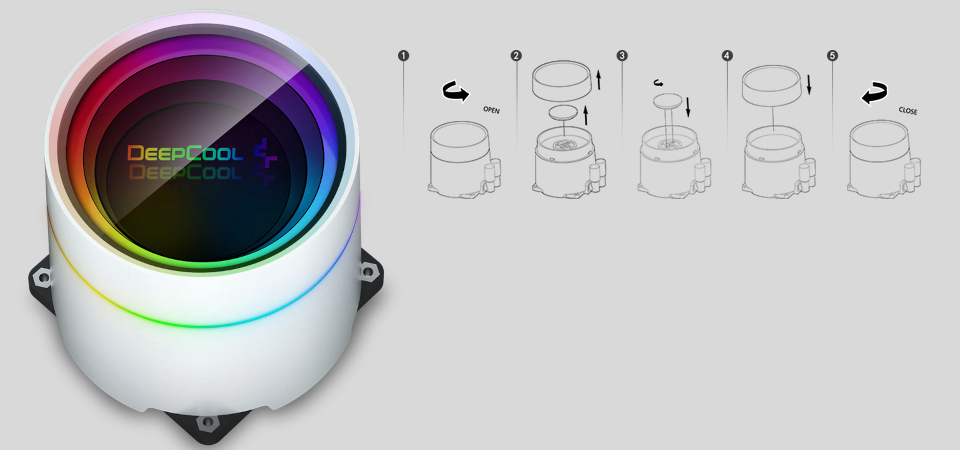

CUSTOMISABLE LOGO

Is the logo upside down? Twist off the cap, adjust (4 directions in total), and twist back on. Easy!

Want to change the logo? An extra logo chip is included. Buy or make your favourite logo and stick on. Fun!

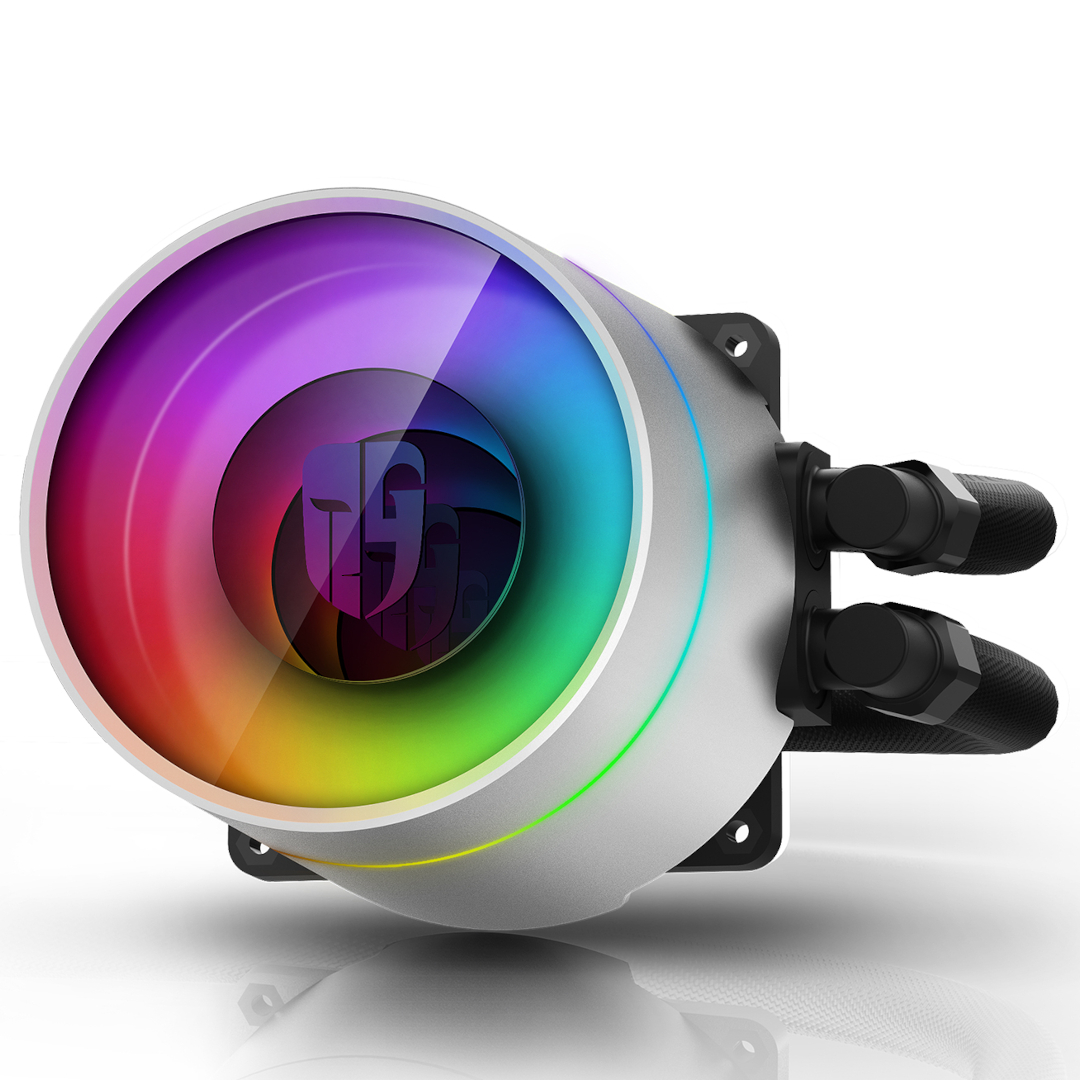

ADDRESSABLE RGB

Equipped with a mirror finish, immersive lighting and infinitive visual effects, Castle 360EX White inherited its familial fabulous appearance. Its Addressable RGB lighting is adjustable through the 5V motherboard SYNC function and through an included controller.

Specifications


Supported Sockets LGA2066/2011-v3/2011/1200/1151/1150/1155
sTRX4/sTR4/AM4
Radiator Dimensions 402×120×27 mm
Radiator Material Aluminium
Net Weight 1706 g
Tube length 465 mm
Pump Dimensions 86×75×71 mm
Pump Speed 2550 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.2 A
Pump Power Consumption 2.4 W
Fan Dimensions 120×120×25 mm
Fan Speed 500~1800 RPM±10%
Fan Airflow 64.4 CFM
Fan Air Pressure 2.33 mmAq
Fan Noise ≤32.1 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.15 A
Fan Power Consumption 1.8 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.25 W (PUMP)
Backed by a Deepcool 3 year warranty.
