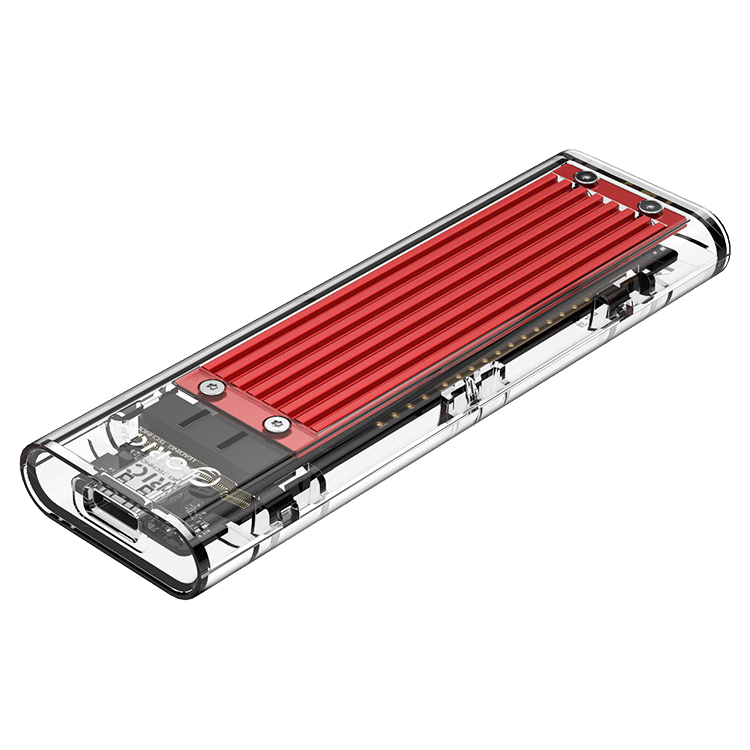

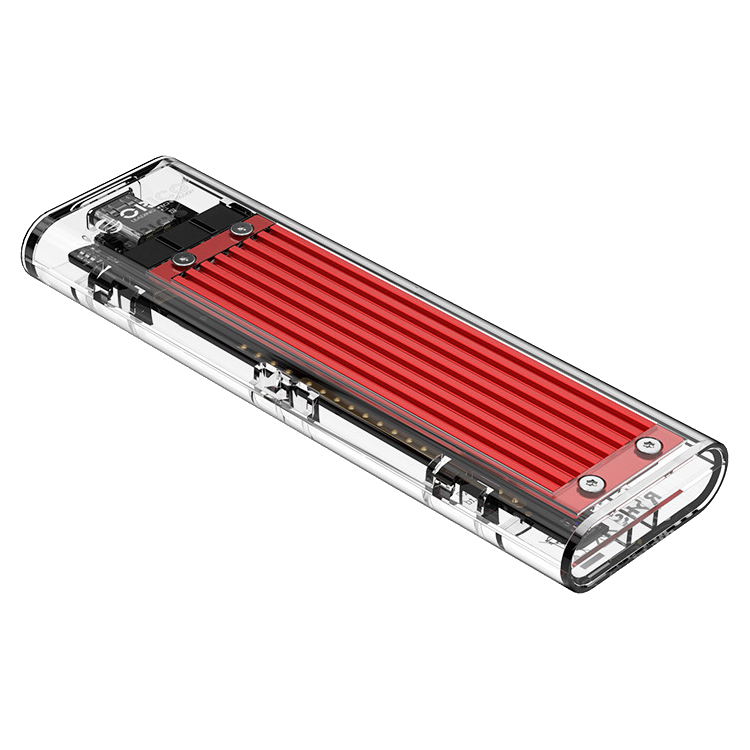

The Orico USB 3.1 Type C Gen 2 M.2 Enclosure makes it easy to identify the hard drive inside. The other side of the aluminum alloy plate reduces overheating. The tool-free design allows quick and easy installation of your M.2 NVMe SSDs with less than 3 minutes to install ssd and plug in. Adopting UASP and Trim supported JMS583 master controller and latest USB 3.1 Gen 2 Type-C port, it supports up to 10 Gbps data transfer speed, and can read & write up to 950+ Mb/s for compatible SSDs. Only for NVME M-Key M.2 SSD (PCI-E-based). Supports Windows / Linux /Mac OS. SSD sizes include 2230, 2242, 2260, 2280 and fits storage up to 2TB. Backed by an Orico one year warranty.
Features
Transparent Series - Crystal Clear and High-Speed
NVMe M.2 SSD Enclosure (10Gbps)
- Sliding Closure Tool-Free
- M.2 Interface
- 8TB Large Capacity
- High-Speed Transmission
- Transparent + Aluminium Alloy Design
4 Steps Slide-Cover Installation
Step 1 - Press the back cover and slide it open
Step 2 - Align the slot and insert the hard disk
Step 3 - Lock the screw on the back, fix the hard disk
Step 4 - Insert into the enclosure and close the back cover
Details
- Inductance
- JMS583 chip
- Heat-dissipation copper bar
- Ultrathin oscillator
- Large capacity ROM, support online upgrade of FW
- Integrated high power inductance
- DC High power module
Applicable PC/Phone
PC
- Apple: 12inch MacBook/MacBook pro/MacBook air
- Huawei: Mate book/Mate book X/Mate- book E
- Mi: 12.5inch Mi AIR/Mi gaming note- book
- ASUS: ZenBook series/ROG series
- Lenovo I: Yoga5/ThinkPad XI
- Dell: XPS series
- Razer: Razer blade
- Software: Surface 2
Phone
- Huawei: mate 10 series/mate20 series/P20 series
- Honor: V20/Note 10/magic
- Samsung: 58 series/59 series/NOTE8/9
- Mi: Mi 9/Mi 8 etc
Brand-New Design Fully Transparent + Polychrome Aluminium Alloy
Technological aesthetics and heat dissipation uniformly present.
High-Speed Inner Core- JMS583 High-Level Control Scheme
USB3.1 GEN2 transmission scheme, supports UASP + Trim protocol, fast and furious.
- UASP protocol
- Trim instruction
High Speed Transmission - 1G in Seconds
Real 10Gbps transmission rate, the measured reading and writing speed can reach up to 992MB/S
The tested devices are 13inch MacBook Pro notebook+SMI2263 256G M.2 SSD enclosure.
Multi-Standard SSD Supported
Support M.2 NVMe protocol SSD enclosure
* Please confirmed the interface of hard drive is match to our product before purchasing, do not inverted insert.
Triple Heat Dissipation, Outstanding Operation
Quick cooling, less damage to hard-drive.
- Double-sided copper bar porous heat dissipation remain steady running
- Aluminium alloy + fin line design increase the area of heat conduction
- Built-in silicone heat dissipating fast
Considerate Design, Care Your Thought
- PC transparent craft visible high quality
- 10 mins intelligently sleep promoted heat dissipation prolong SSD lifespan
- Built-in LED indicator monitor working status clearly

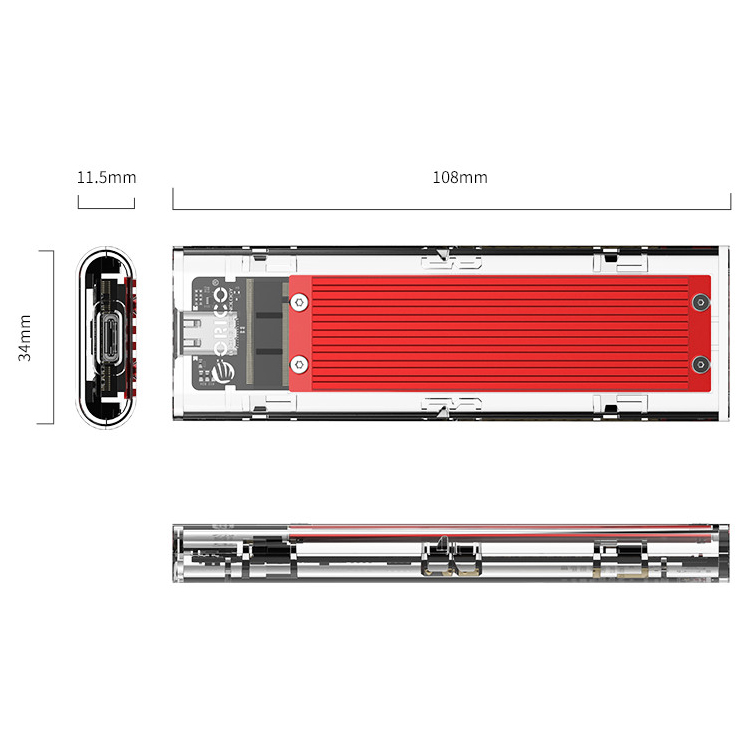

Large Capacity, Tiny Size
8TB Capacity, Hassle-Free Carrying
- Length 108mm
- Width 34mm
- Weight 39g
* Internal NVMe M.2 SSD is not included to Weight count
Two Type Cables, Wide Compatibility
- Faster Large File Transfer - C to C interface (10Gbps) applicable for laptop and Type-C phone
- Enjoy Game Anytime - C to A interface (5Gbps) applicable for PC
Specifications
| Model Number |
ORICO-TCM2-C3-RD |
| Material |
Transparent PC + Aluminium Alloy |
| Colour |
Red (Aluminium alloy plate) |
| Output Interface |
USB3.1 Type-C |
| Chip |
JMS583 (10Gbps) |
| Speed |
USB3.1 GEN2 10Gbps |
| Dimension |
108mm(L) x 34mm(W) x 11.5mm(H) |
| Supported Capacity |
8TB max |
| Supported System |
Windows/Mac/Linux |
| Product List |
OSSD Enclosure
Screwdriver
C to A Cable
C to C Cable
Silicone
Screws |
Backed by a 1 year Orico warranty.
