Super Flower Leadex Titanium 750W Power Supply

SF-750F14HT | Super Flower

This product has been discontinued

FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
The Leadex Titanium series are 80 Plus Titanium certified and come with a fully modular cable design. This power supply provides highly efficient, stable power output and comes with a 14cm two-way thermal control cooling fan to ensure cool, quiet performance under even the toughest load from your system. It comes fully NVIDIA SLI and ATI CrossFireX certified.

Features


Features of the Super Flower Leadex Titanium 750W Power Supply at a glance:

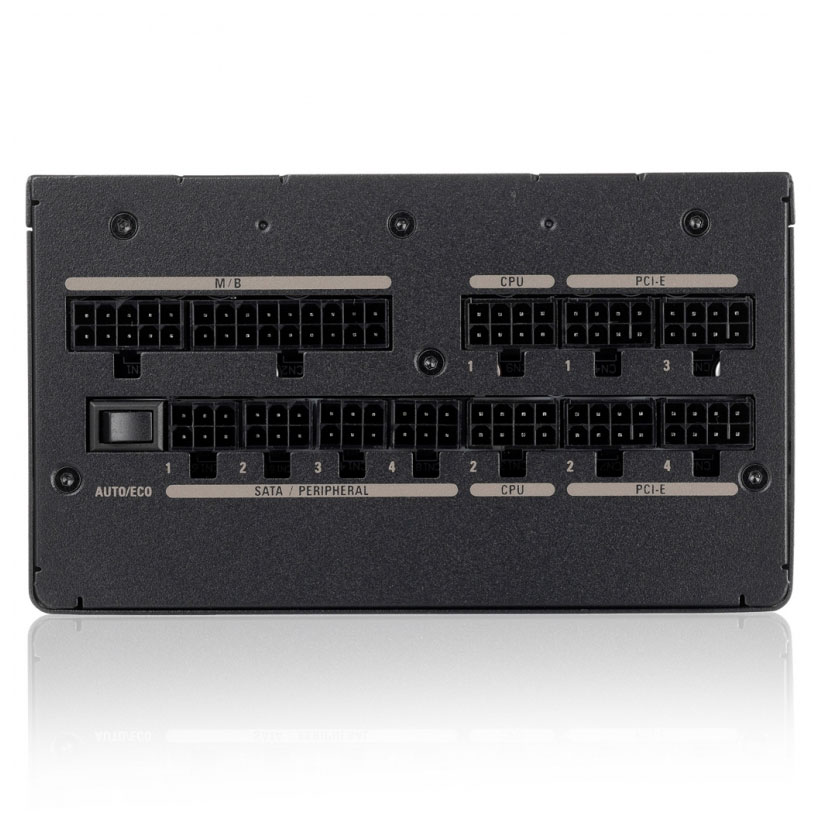

  • 100% fully modular design for easy cable management and improved airflow
  • 80 PLUS Titanium certified, 90% 92% 94% 90% efficiency at 10% 20% 50% 100% Rated Load
  • Full range auto voltage detection design 100V~240V (Active PFC)
  • Comply with ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 specification
  • Comply with Energy Star standard & EuP (Energy Using Products) regulation
  • Protections for over voltage, over current, over power, short circuit, under voltage and over temperature
  • Supports NVIDIA SLI & ATI CrossFireX graphics card configurations
  • More than 2,000 times On/Off test
  • Unleaded green materials with RoHS/WEEE compliance
  • Perfect for professional workstations and high end gaming systems



Cables

  • 1 x 20+4-Pin ATX12V/EPS12V
  • 2 x 4+4-Pin ATX12V/EPS12V
  • 4 x 6+2-Pin-PCIe
  • 2 x 6-Pin-PCIe
  • 10 x SATA
  • 4 x 4-Pin-Molex
  • 1 x Floppy

Specifications


Power Supply

Wattage 750W
80+ Efficiency 10%: 90%; 20%: 92% ; 50% : 94% ; 100% : 90% (115V Internal Titanium)
Intel Power Design Guide V2.92
AC Input : Frequency 100-240V : 60 / 50Hz
Fan Size 140mm Two-Ball Bearing Fan
Dimension 180mm(L) x 150mm(W) x 86mm(H)
Protection OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP
Safety cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / KCC
Temperature Passed 50℃ Hot Testing

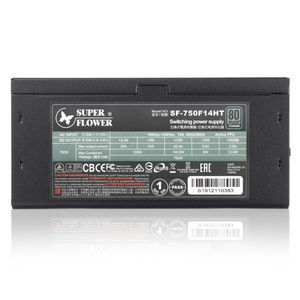

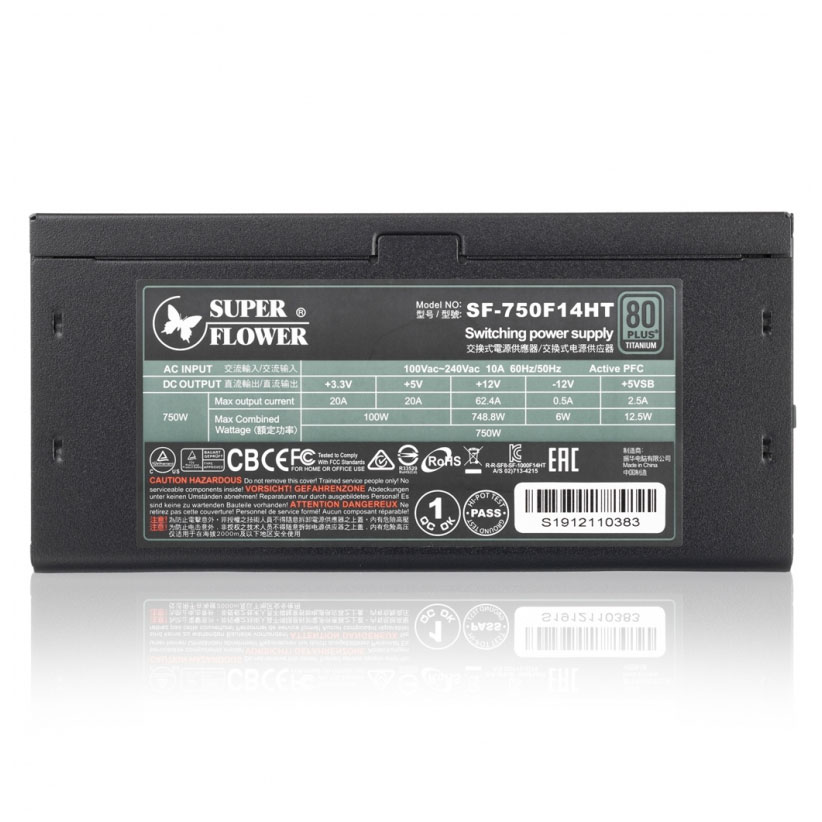

AC Input 100-240Vac 10A 60Hz/50Hz
DC Output +3.3V +5V +12V -12V +5VSB
Max output Current 20A 20A 62.4A 0.5A 2.5A
Max combined Wattage 100W 748.8W 6W 12.5W

750W

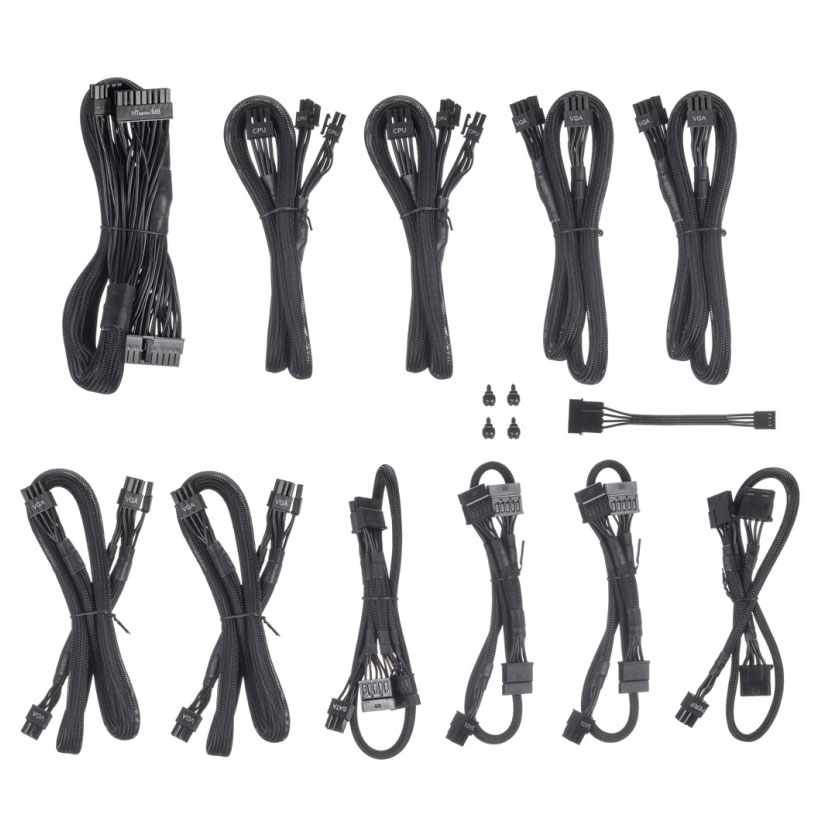

Cable Specifications

20+4Pin One cable (600mm)
(4+4Pin) CPU Two cables (700mm)
PCI-E 6+2Pin Two cables (700mm)
SLI (PCI 6+2Pin & PCI 6Pin) Two cables (700+150mm)
4SATA One cable (550+100+100+100mm)
3SATA Two cables (550+100+100mm)
4Molex One cable (550+100+100+100mm)
Molex to FDD Adapter One cable (100mm)
Backed by a 5 year Super Flower warranty.
