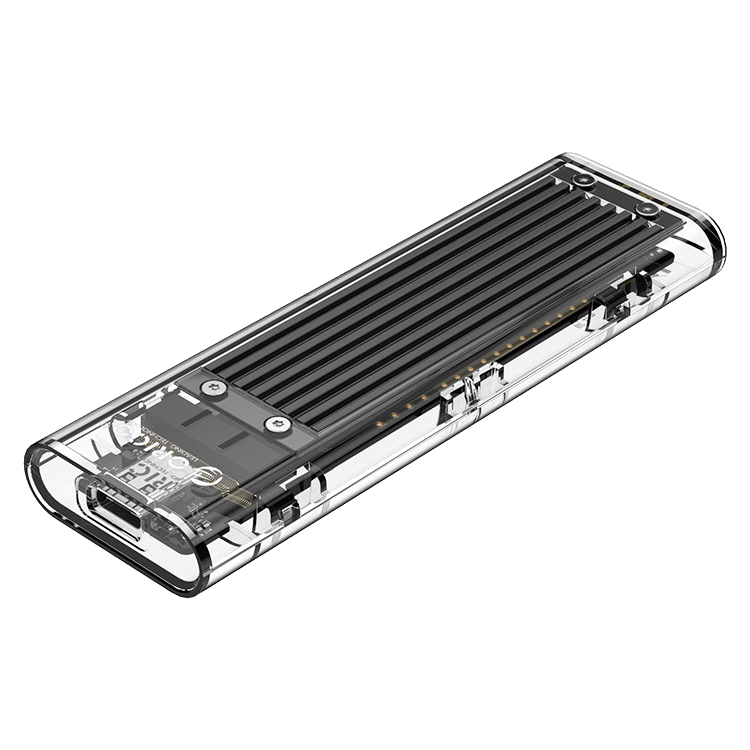

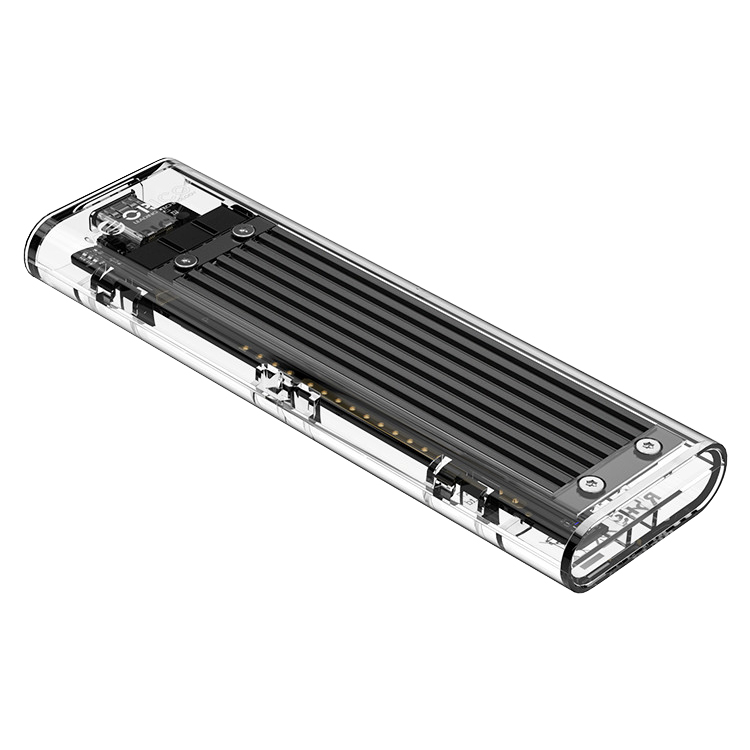

The Orico USB 3.1 Type C Gen 2 M.2 Enclosure makes it easy to identify the hard drive inside. The other side of the aluminum alloy plate reduces overheating. The tool-free design allows quick and easy installation of your M.2 NVMe SSDs with less than 3 minutes to install ssd and plug in. Adopting UASP and Trim supported RTL9210 master controller and latest USB 3.1 Gen 2 Type-C port, it supports up to 10 Gbps data transfer speed, and can read & write up to 950+ Mb/s for compatible SSDs. Only for NVME M-Key M.2 SSD (PCI-E-based). Supports Windows / Linux /Mac OS. SSD sizes include 2230, 2242, 2260, 2280 and fits storage up to 2TB. Backed by an Orico one year warranty.
Only M.2 NVME SSDs compatible with this model of enclosure.
Features
Transparent Series - Crystal Clear and High-Speed
NVMe M.2 SSD Enclosure (10Gbps)
- Sliding Closure Tool-Free
- M.2 Interface
- 8TB Large Capacity
- High-Speed Transmission
- Transparent + Aluminium Alloy Design
4 Steps Slide-Cover Installation
Step 1 - Press the back cover and slide it open
Step 2 - Align the slot and insert the hard disk
Step 3 - Lock the screw on the back, fix the hard disk
Step 4 - Insert into the enclosure and close the back cover
Details
- Inductance
- JMS583 chip
- Heat-dissipation copper bar
- Ultrathin oscillator
- Large capacity ROM, support online upgrade of FW
- Integrated high power inductance
- DC High power module
Applicable PC/Phone
PC
- Apple: 12inch MacBook/MacBook pro/MacBook air
- Huawei: Mate book/Mate book X/Mate- book E
- Mi: 12.5inch Mi AIR/Mi gaming note- book
- ASUS: ZenBook series/ROG series
- Lenovo I: Yoga5/ThinkPad XI
- Dell: XPS series
- Razer: Razer blade
- Software: Surface 2
Phone
- Huawei: mate 10 series/mate20 series/P20 series
- Honor: V20/Note 10/magic
- Samsung: 58 series/59 series/NOTE8/9
- Mi: Mi 9/Mi 8 etc
Brand-New Design Fully Transparent + Polychrome Aluminium Alloy
Technological aesthetics and heat dissipation uniformly present.
High-Speed Inner Core- JMS583 High-Level Control Scheme
USB3.1 GEN2 transmission scheme, supports UASP + Trim protocol, fast and furious.
- UASP protocol
- Trim instruction
High Speed Transmission - 1G in Seconds
Real 10Gbps transmission rate, the measured reading and writing speed can reach up to 992MB/S
The tested devices are 13inch MacBook Pro notebook+SMI2263 256G M.2 SSD enclosure.
Multi-Standard SSD Supported
Support M.2 NVMe protocol SSD enclosure
* Please confirmed the interface of hard drive is match to our product before purchasing, do not inverted insert.
Triple Heat Dissipation, Outstanding Operation
Quick cooling, less damage to hard-drive.
- Double-sided copper bar porous heat dissipation remain steady running
- Aluminium alloy + fin line design increase the area of heat conduction
- Built-in silicone heat dissipating fast
Considerate Design, Care Your Thought
- PC transparent craft visible high quality
- 10 mins intelligently sleep promoted heat dissipation prolong SSD lifespan
- Built-in LED indicator monitor working status clearly

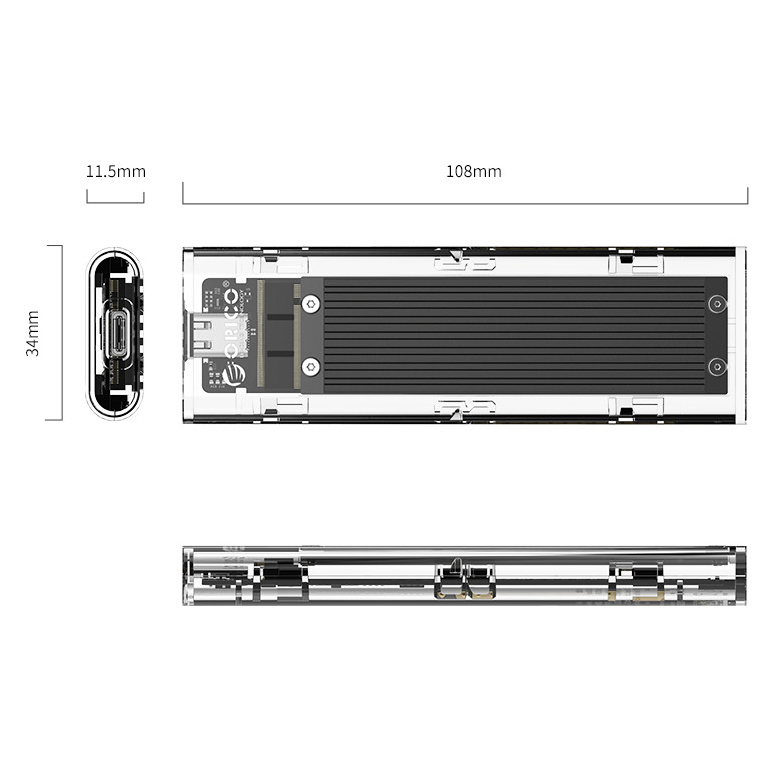

Large Capacity, Tiny Size
8TB Capacity, Hassle-Free Carrying
- Length 108mm
- Width 34mm
- Weight 39g
* Internal NVMe M.2 SSD is not included to Weight count
Two Type Cables, Wide Compatibility
- Faster Large File Transfer - C to C interface (10Gbps) applicable for laptop and Type-C phone
- Enjoy Game Anytime - C to A interface (5Gbps) applicable for PC
Specifications
| Model Number |
ORICO-TCM2-C3-BK |
| Material |
Transparent PC + Aluminium Alloy |
| Colour |
Black (Aluminium alloy plate) |
| Output Interface |
USB3.1 Type-C |
| Chip |
JMS583 (10Gbps) |
| Speed |
USB3.1 GEN2 10Gbps |
| Dimension |
108mm(L) x 34mm(W) x 11.5mm(H) |
| Supported Capacity |
8TB max |
| Supported System |
Windows/Mac/Linux |
| Product List |
OSSD Enclosure
Screwdriver
C to A Cable
C to C Cable
Silicone
Screws |
Backed by a 1 year Orico warranty.
