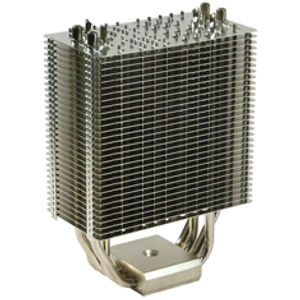

Thermalright HR-01 Heatsink
TR-HR01This product has been discontinued
Features:
- Fanless design for low-noise operation
- Proprietary through holes on fins for excellent ventilation
- Multiple heatpipes for well spread heat around aluminum fins
- Soldered fins to copper base (nickel plated) to make effective contact
- Light weight and easy installation
Technical Spec.:
Dimension: L110 x W60 x H159.5(mm) Heat sink only
Weight: 525g (heat sink only)
Motherboard Compatibility:
AMD: Athlon64 FX 3200+ (socket 939/940) /Athlon64 3200+ (socket 754) and above
Proper operational conditions for HR-01:
As is the case with any passive cooler, the normal operating range should be from low to mid CPU frequency. Premium condition for HR-01 is when your power supply unit has a 12cm fan placed at the bottom facing the CPU heatsink. An example would be the Antec PSU. As for chassis ventilation, a proper setup would have an intake fan (8cm or 12cm) in the front and a 12cm exhaust fan in the rear as in the case of the Antec Performance series or the Lian Li V1000 series.
If you plan to operate at high CPU frequency, a 12cm fan is definitely recommended for the heatsink. For tips on how to install one, you can refer to this link* for instruction.
* Specs subject to change without notice
|
|
|
|
