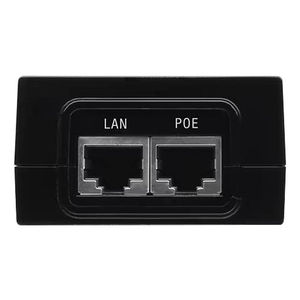

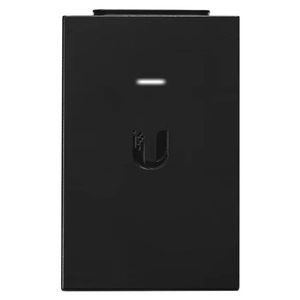

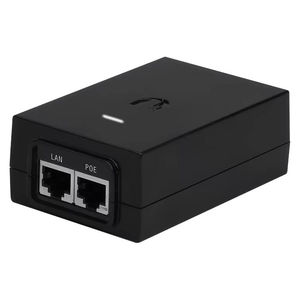

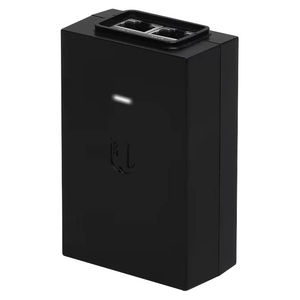

Ubiquiti 24VDC 24W Power Over Ethernet Injector

POE-24-24W | Ubiquiti
$24
In stock
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti POE-24 (POE-24-24W) features earth grounding/ESD protection, a power LED, remote reset capability and works with Ubiquiti products that support passive PoE.

Specifications

Model Number POE-24-24W
Dimensions 88 x 57 x 33 mm (3.5 x 2.2 x 1.3")
Weight 159 g (5.6 oz)
Output voltage 24V DC @ 1.0A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability Yes
Reset button Yes
Rated voltage 100-240V AC @ 50/60Hz
Input current 0.6A @ 120V AC, 0.4A @ 240V AC
Inrush current <60A peak @ 120V AC, <120A peak @ 230V AC
Efficiency 80+%
Output ripple 1% Max.
Switching frequency 65 kHz
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering Pins 4, 5 (+) and pins 7, 8 (-)
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 35 to 95% noncondensing
AC connector IEC-320 C6
Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Certifications CE, FCC, IC, UL
Backed by a 1 year Ubiquiti warranty.
