Fractal Design Node 804 Mini Case

FD-CA-NODE-804-BL-W | Fractal Design
$199
Check back later!
Buy now, pay later!
The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum configurability, all packed in an interesting new form factor with a Scandinavian elegant design. The dual chamber layout separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card. The Node 804 comes with three 120mm fans but can be upgraded with several additional fans if needed. Featuring plenty of options for placing water cooling components, tall heat sinks and hard drives, the flexibility of this case really gives the users the possibility to create their optimal system build.

HeXus Review
"The Node 804 is a micro-ATX chassis that makes clever use of space. Served up in a cube form factor, this sleek-looking box is dwarfed by traditional enthusiast towers yet, with the right components, will more than hold its own in regards to performance." Full review

Hardware Heaven Review
"Starting with the build quality of the Node 804 we have a chassis which feels very sturdy. There were no issues with ill-fitting sections and the flashier items such as brushed aluminium front panel and plastic side window were defect free. Design wise there is a lot to like about the Node 804 and Fractal Design have created a case which is hugely flexible for its dimensions (344x307x389mm)." Full review



Features


Overview

This micro ATX chassis focuses on cooling performance and maximum configurability, all packed in an interesting form factor with elegant Scandinavian design.



Fractal Design Node 804 Mini Case Feature 1

The dual chamber layout in the Node 804 separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card.

  • Highly effective dual chamber case layout for best possible cooling with excellent water cooling compatibility, supporting up to four radiators simultaneously
  • Minimalistic design with an elegant brushed aluminium front panel
  • Unique hard drive mounting system, fitting up to 8x 3.5″, 4x 2.5” or up to 10x 3.5”, 2x 2.5″ drives HDD/SSD
  • Three Fractal Design Silent Series R2 fans included with the case and space for an additional seven fans, fan controller included
  • Featuring a window side panel to show off your set up in style
  • Additional space in the front to mount a slim slot-in ODD, optical bay drive, and 2x 2.5″ drives
  • Five expansion slots that allows for multiple GPU setups

Fractal Design Node 804 Mini Case Feature 2

Water-Cooling Ready

Excellent water cooling support with space for up to four radiators simultaneously.

Fractal Design Node 804 Mini Case Feature 3

Showcase Your Hardware

Featuring a window side panel to show off your set up in style

Fractal Design Node 804 Mini Case Feature 4

3x Silent Fans Included

Three Fractal Design Silent Series R2 fans included with the case and space for an additional seven fans

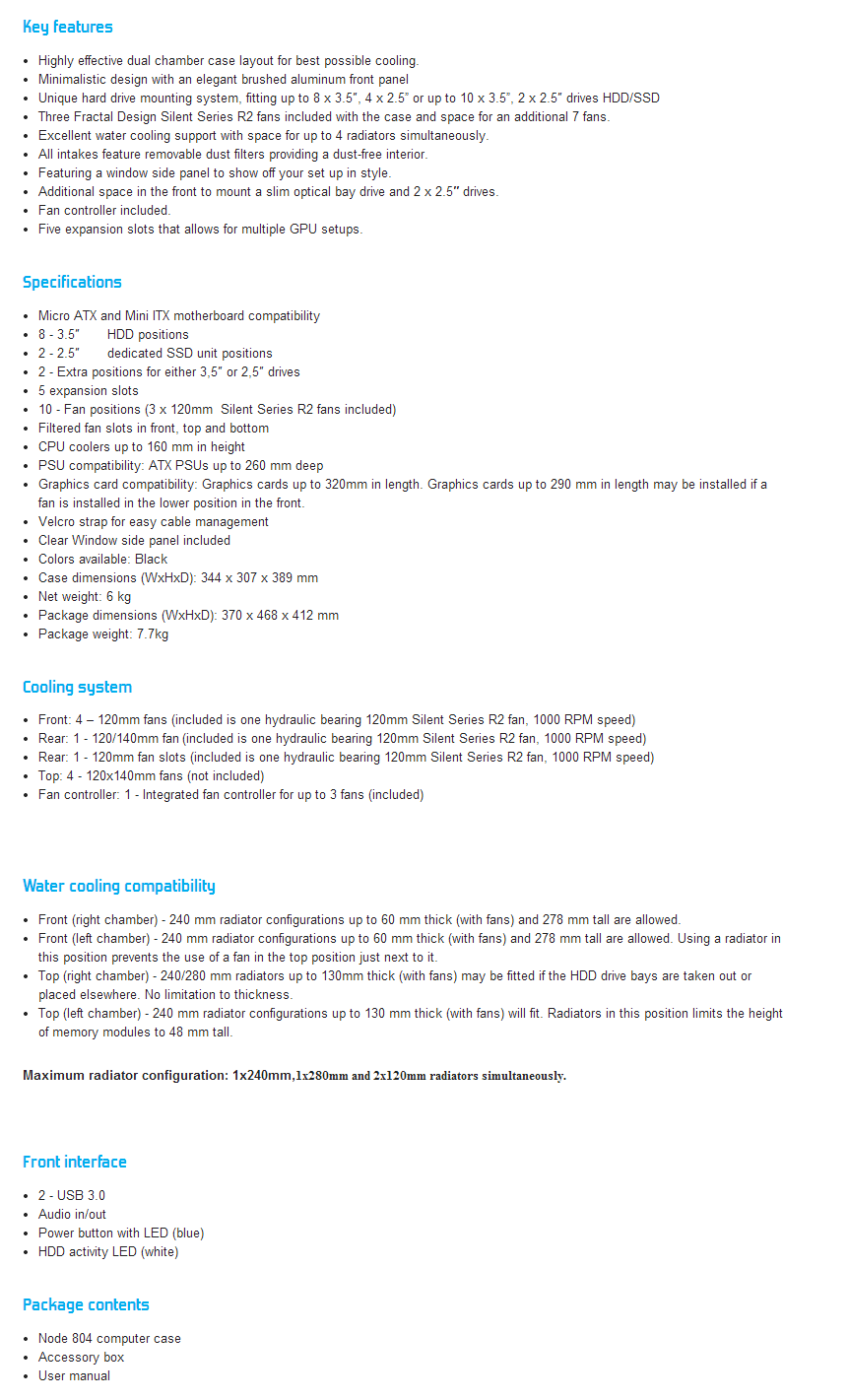

Specifications


Model Number FD-CA-NODE-804-BL-W
3,5" HDD Positions 8
2,5" SSD Positions 2
Extra Positions for Either 3,5″ or 2,5″ Drives 2
Expansion Slots 5
Front Ports 2 x USB 3.0, Audio in/out, Power button with LED (blue), HDD activity LED (white)
Total Fan Mounts 10
Front Fan 4 x 120 mm
Top Fan 4 x 120 / 140 mm
Rear Fan 1 1 x 120 / 140 mm (included is 1 hydraulic bearing 120 mm Silent Series R2 fan @ 1000 RPM)
Rear Fan 2 1 x 120 mm (included is 1 hydraulic bearing 120 mm Silent Series R2 fan @ 1000 RPM)
Dust Filters Front fans, Top fans, Bottom
Fixed Velcro Straps Yes
Left Side Panel Clear window
Right Side Panel Steel

Compatibility

Power Supply Type ATX
Motherboard Compatibility Micro ATX, Mini ITX
Front Radiator (Left Chamber) 240 mm (up to 60 mm thick (with fans) and 278 mm tall; using a radiator in this position prevents the use of a fan in the top position just next to it)
Front Radiator (Right Chamber) 240 mm (up to 60 mm thick (with fans) and 278 mm tall)
Top Radiator (Left Chamber) 240 mm (up to 130 mm thick (with fans); radiators in this position limits the height of memory modules to 48 mm tall)
Top Radiator (Right Chamber) 240 / 280 mm (up to 130 mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere)
PSU Max Length 260 mm
GPU Max Length 320 mm, 290 mm (if a fan is installed in the lower position in the front)
CPU Cooler Max Height 160 mm

Dimensions

Case Dimensions (W x H x D) 344 x 307 x 389 mm
Volume 40.3 litres
Net Weight 6 kg

Other

Warranty 2 Years
Package Content Node 804 computer case, accessory box & user manual
Additional Information Available for System Integrators
Backed by a 2 year Fractal Design warranty.
