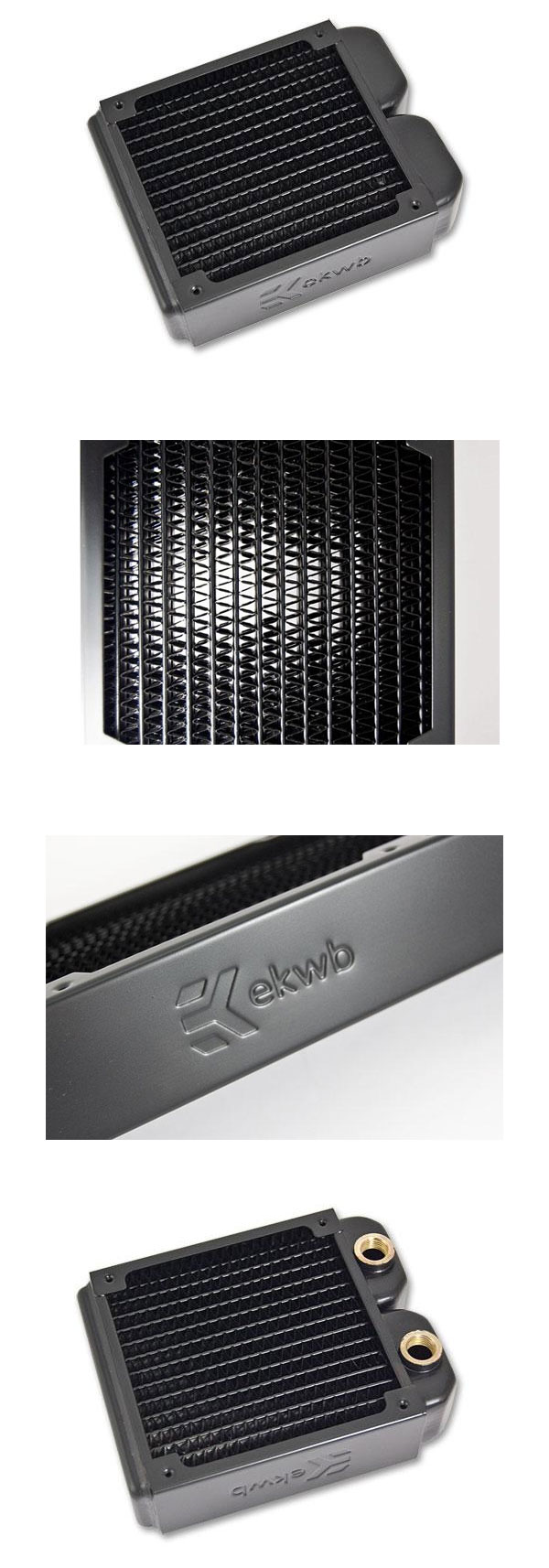

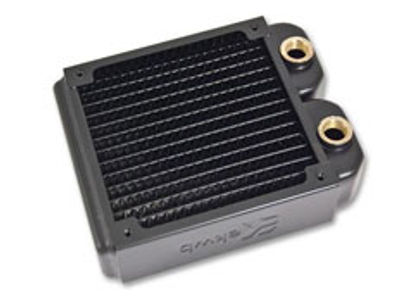

EK-CoolStream RAD XT 120

The copper fins are specially designed for Ultra-silent fans (with low Airflow). The parallel coolant channels reduce flow resistance to a minimum. On both sides of the radiator the M3 threads are integrated to allow fan installation on both sides and radiator mounting.

The radiator has integrated G1/4" threads, allowing installation of virtually all common fittings.

Please note: Over-tightening of the screws may damage the radiator. Always take care that the screws do not damage the radiator. Damage due to improper use is not covered by the warranty!

Technical details:
Material:
- Copper fins
- Brass chambers
Dimensions (LxWxH): 154x119x47mm
Connection threads: G1/4"
Weight: Approx. 630g
Fan installation: 4 x M3 threads on both sides each (for 1x120mm fan each)
Pressure tested: 8bar

Enclosed:
1x EK-CoolStream RAD XT (120) radiator
4x M3 x 30mm screws
4x M3 x 35mm screws

Important: The included screws may be too long for some applications. Always be sure to screw them in only so far that the radiator is not damaged.
