The PNY GeForce RTX 5080 Slim OC GDDR7 16GB graphics card features a 2295MHz base clock, 2730MHz boost clock, 16GB GDDR7 256-bit memory interface, memory bandwidth up to 960Gbps, PCIe 5.0, 1 x HDMI 2.1b, 3 x DisplayPort 2.1b.
Features
PNY GeForce RTX 5080 Slim Models

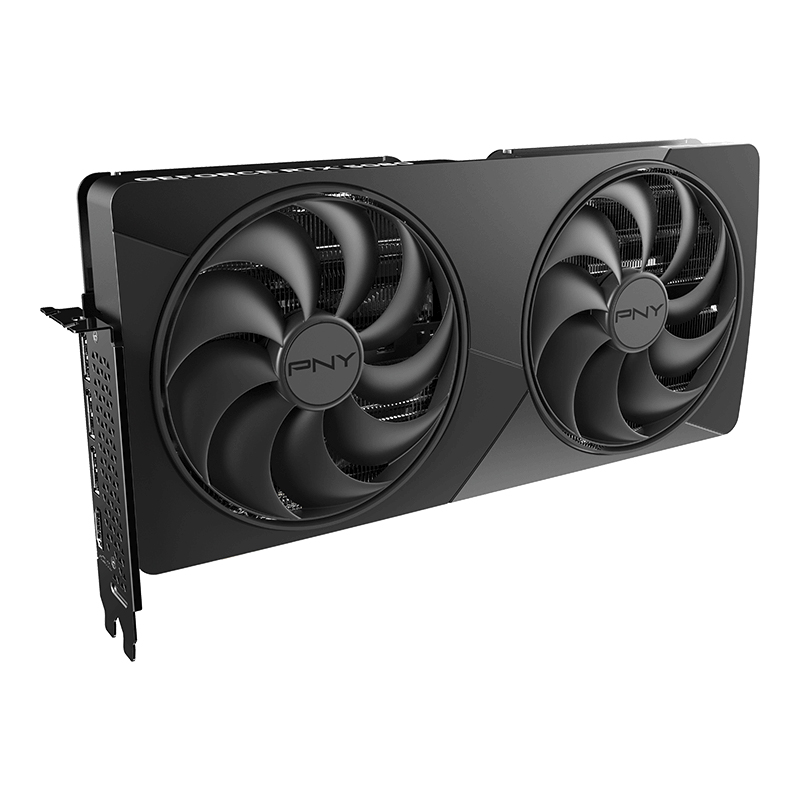

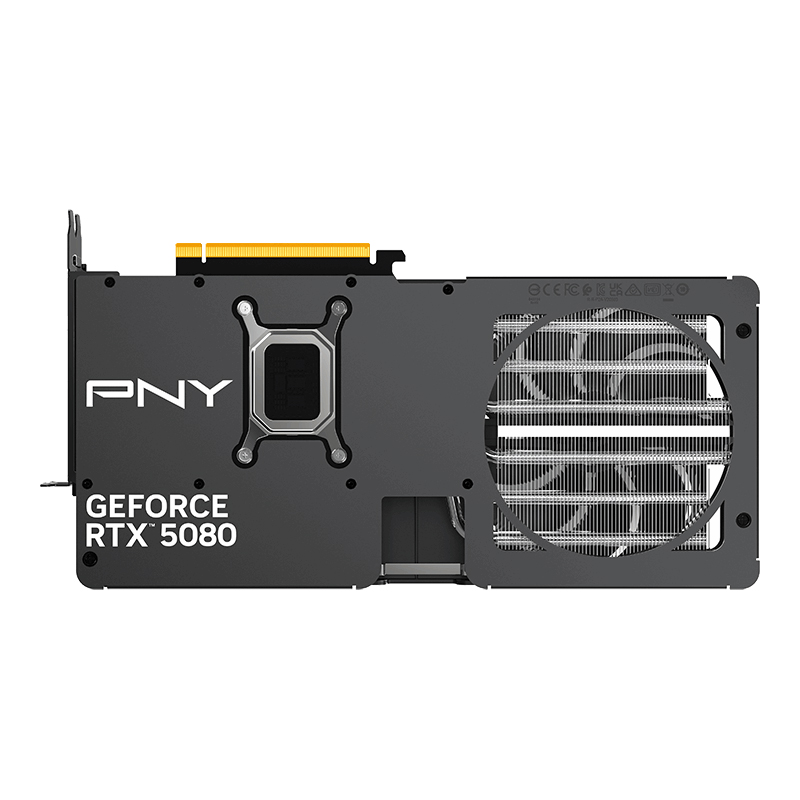

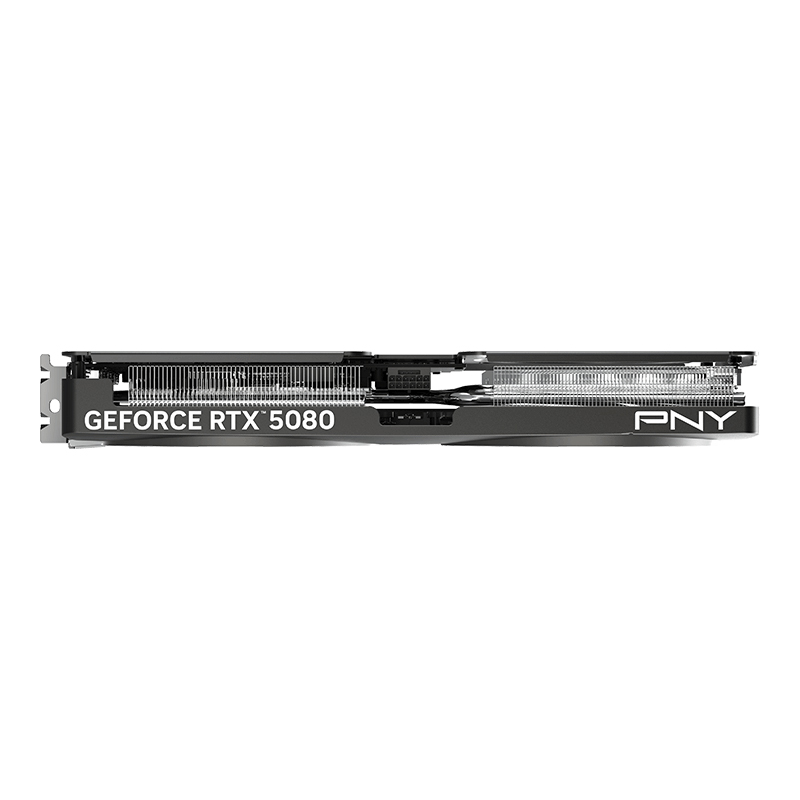

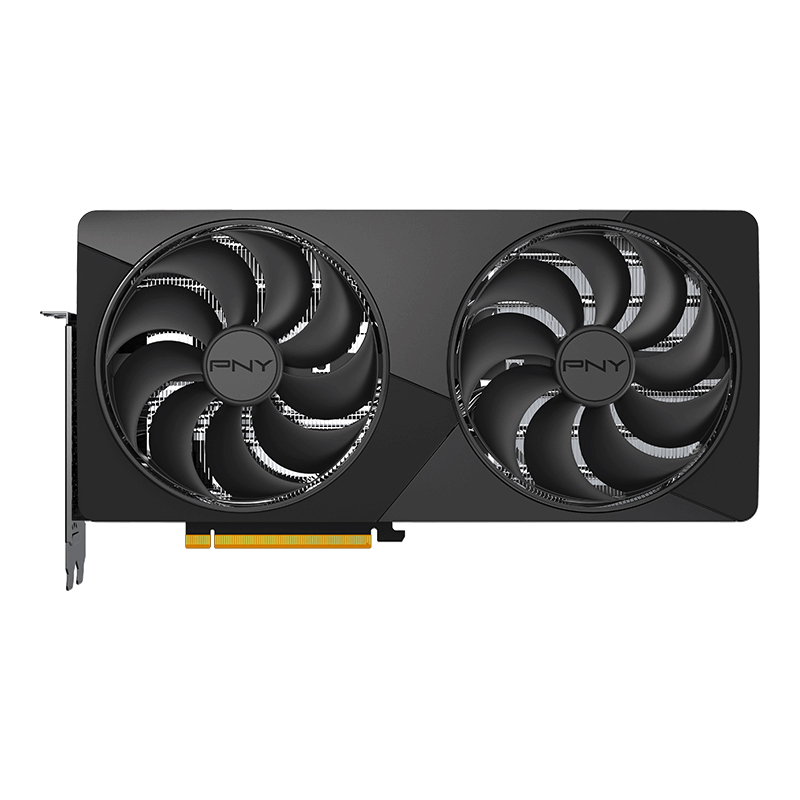

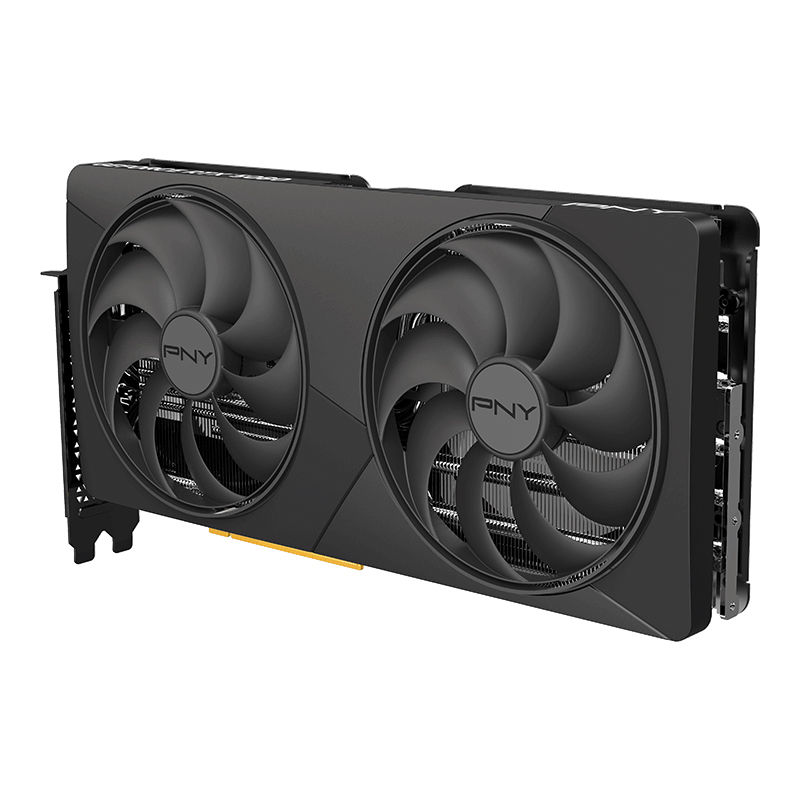

PNY GeForce RTX™ 5080 Dual-Fan Slim Overclocked Graphics Card
A powerful, slim design packed with masterfully crafted cooling. The PNY GeForce RTX™ 5080 is available in a compact dual-slot form factor for greater compatibility with PC builds. Get game-changing performance powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI; all in a compact design to fit tight spaces.
- NVIDIA Blackwell Architecture
- 16GB GDDR7 Memory
- 3 x Display Port 1x HDMI®
- 10752 CUDA® Cores
- 360 W Thermal Design Power
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors - Optimised for neural shaders
- Fourth-Gen Ray Tracing Cores - Built for Mega Geometry
- AI-Enhanced Graphics and Performance - NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness - NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics - Full ray tracing with neural rendering
- Digital Humans and AI Assistants - NVIDIA ACE
- Accelerate Your Creativity - NVIDIA Studio creator tools and Technology
- Enhance Any Video with AI - NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability - NVIDIA app with Game Ready and Studio Drivers
- The Ultimate Gaming Display Technologies - NVIDIA G-SYNC
Game Changer
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of Al horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
Specifications
| Model Number |
VCG508016DFSXPB1-O |
| Model |
5080 Slim OC |
| Architecture |
Blackwell |
| CUDA® Cores |
10752 |
| Clock Speed |
2295 MHz |
| Boost Speed |
2730 MHz |
| Memory Speed (Gbps) |
30 |
| Memory Size |
16 GB GDDR7 |
| Memory Interface |
256-bit |
| Memory Bandwidth (GB/sec) |
Up to 960 |
| TDP |
360 W |
| NVLink |
Not Supported |

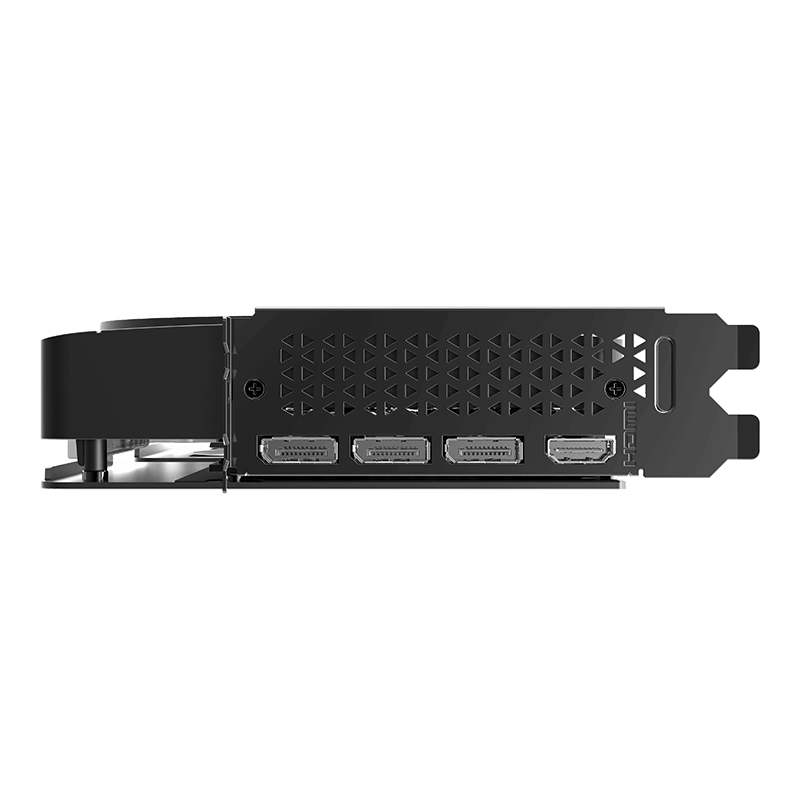

| Outputs |
DisplayPort 2.1b (x3), HDMI® 2.1b |
| Multi-Screen |
4 |
| Resolution |
4K at 480Hz or 8K at 165Hz with DSC (Up to 4K 12-bit HDR at 240Hz with DP 1.4b + DSC or HDMI® 2.1b + DSC. Up to 8K 12-bit HDR at 60Hz with DP 1.4a + DSC or HDMI® 2.1a + DSC) |
| Power Input |
16-pin |
| Bus Type |
PCI-Express 5.0 x16 |
| Card Dimensions |
300 x 150 x 40mm
11.8" x 5.9" x 1.6"; 2 Slot |
| System Requirements |
PCI Express-compliant motherboard with one 2-width x16 graphics slot
One 16-pin supplementary power connectors
Total graphics power 360 W
Required system power 850W (Power requirements can be different depending on system configuration.)
Microsoft Windows® 11 64-bit, Linux 64-bit
Internet connection (Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.) |

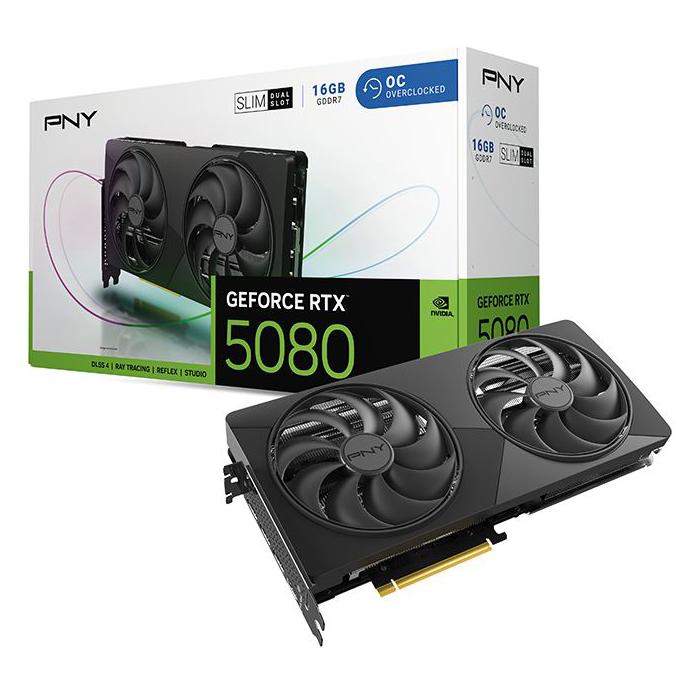

| What's Included |
PNY GeForce RTX™ 5080 Slim Dual Fan Graphics Card
1x Auxiliary Power Cable |
Backed by a 3 year PNY warranty.
