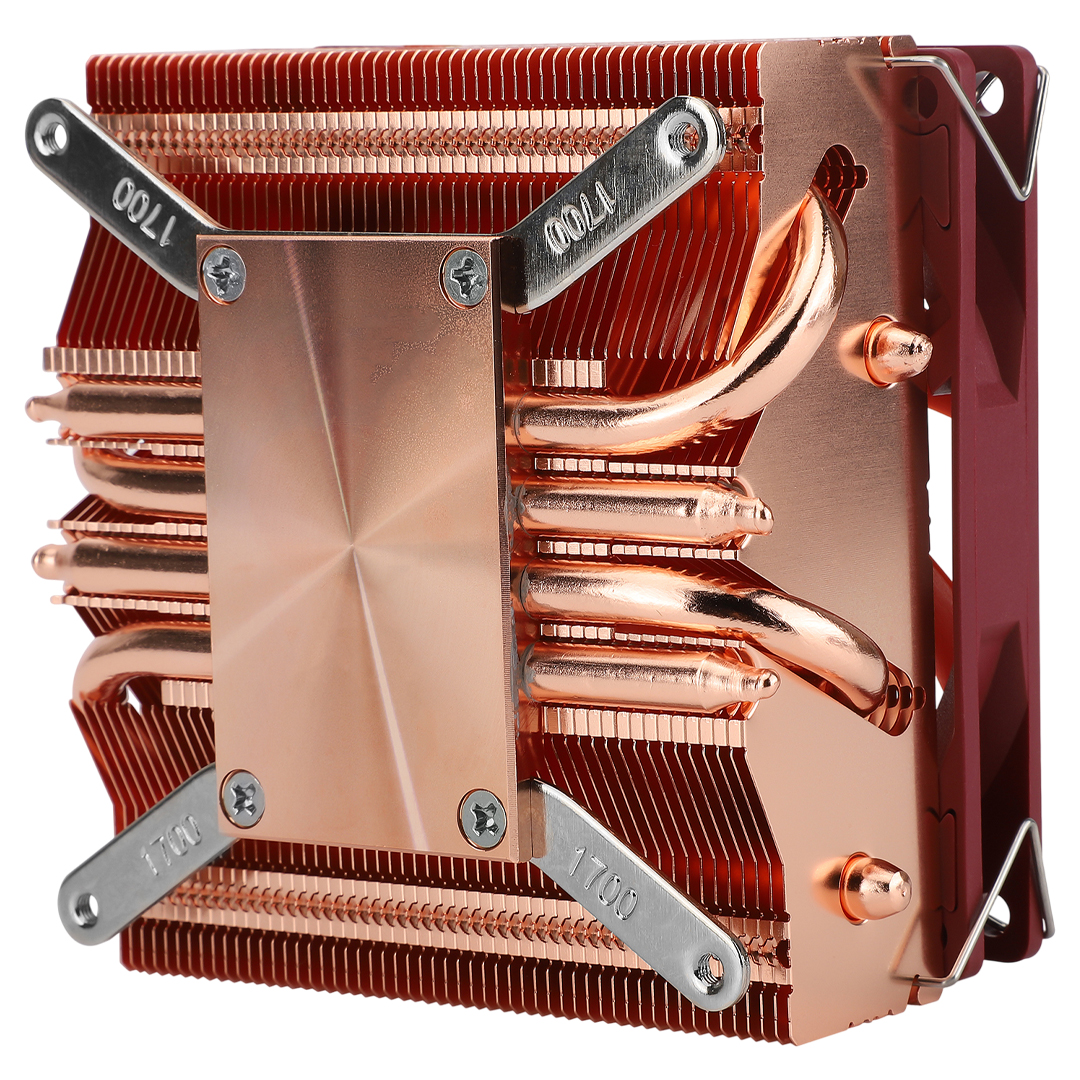

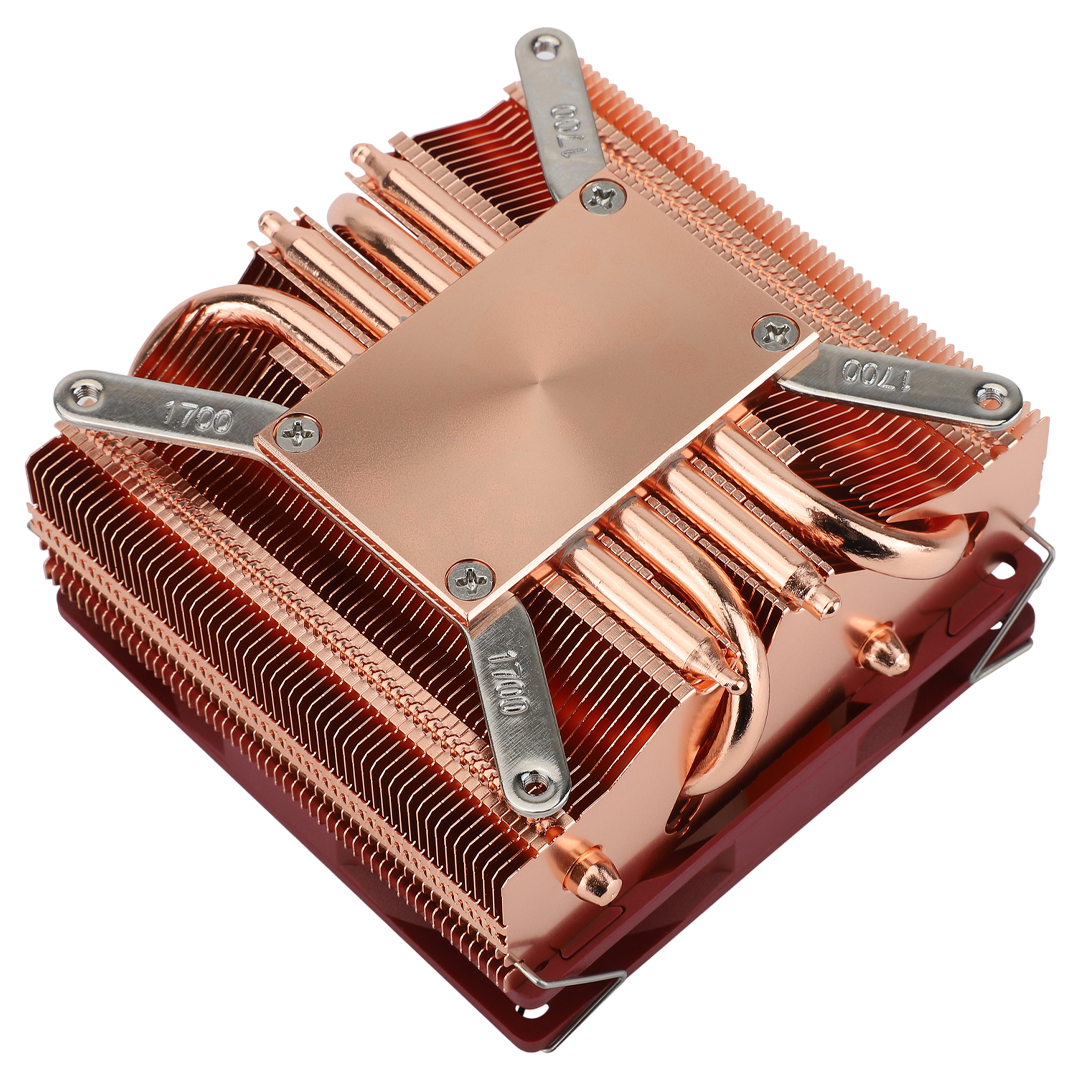

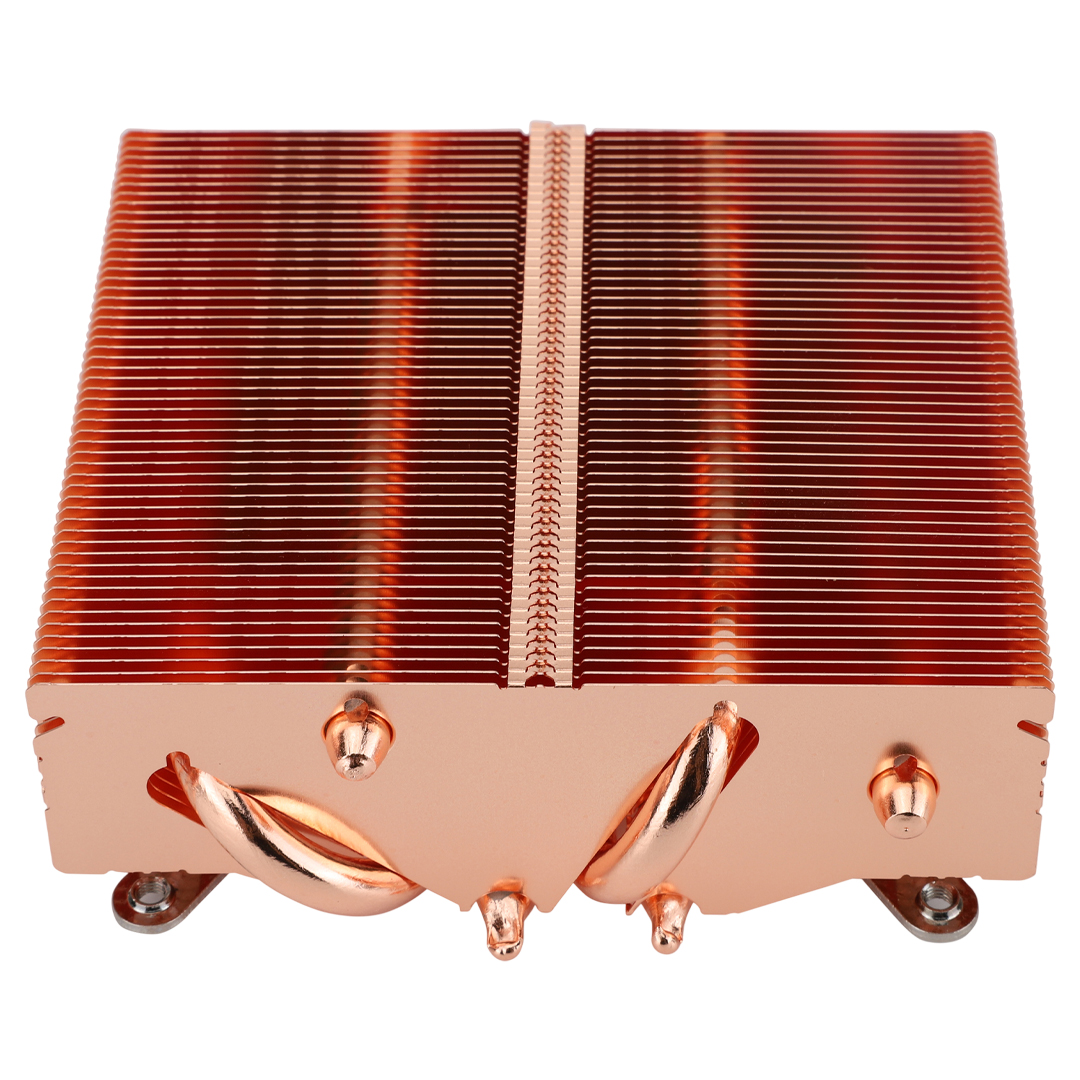

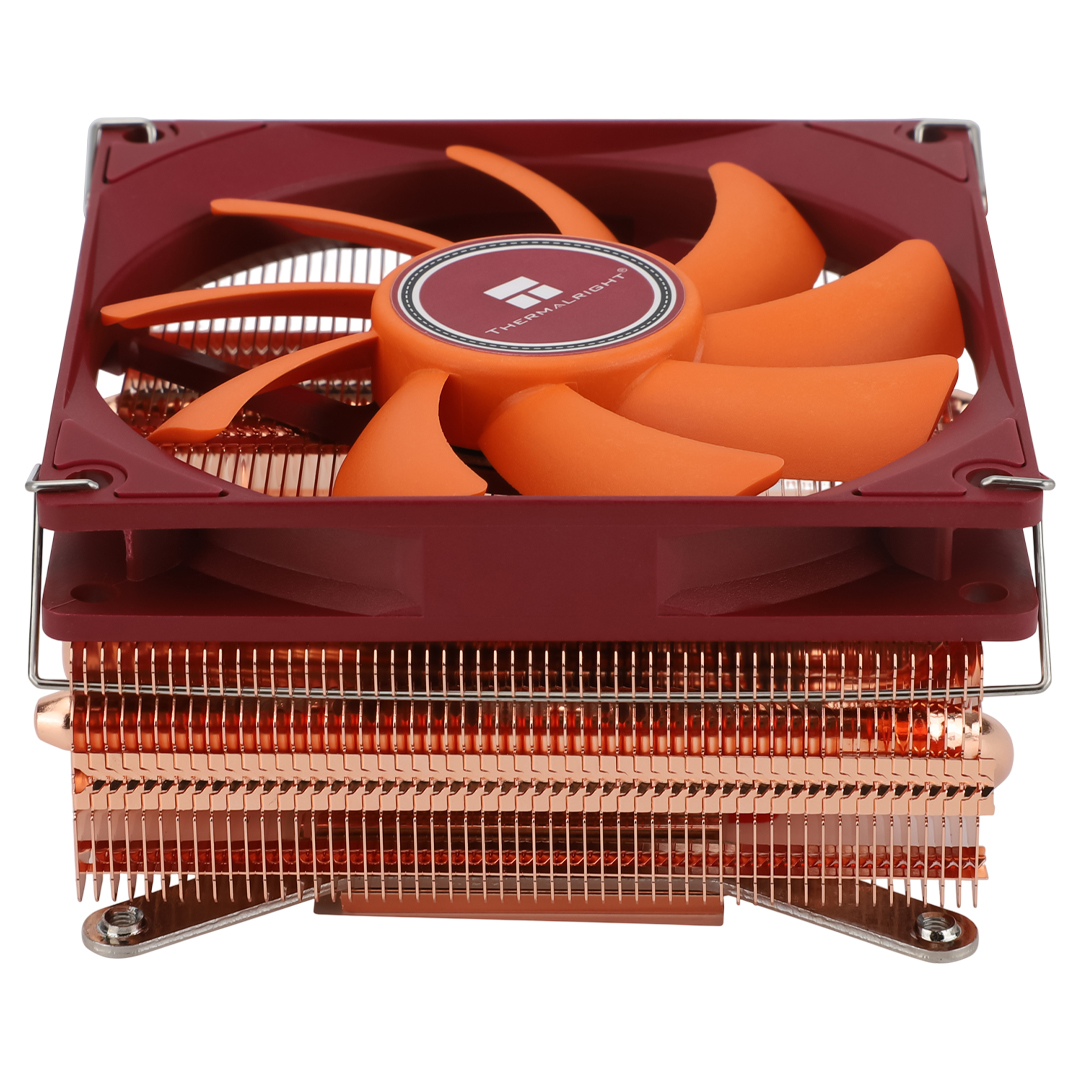

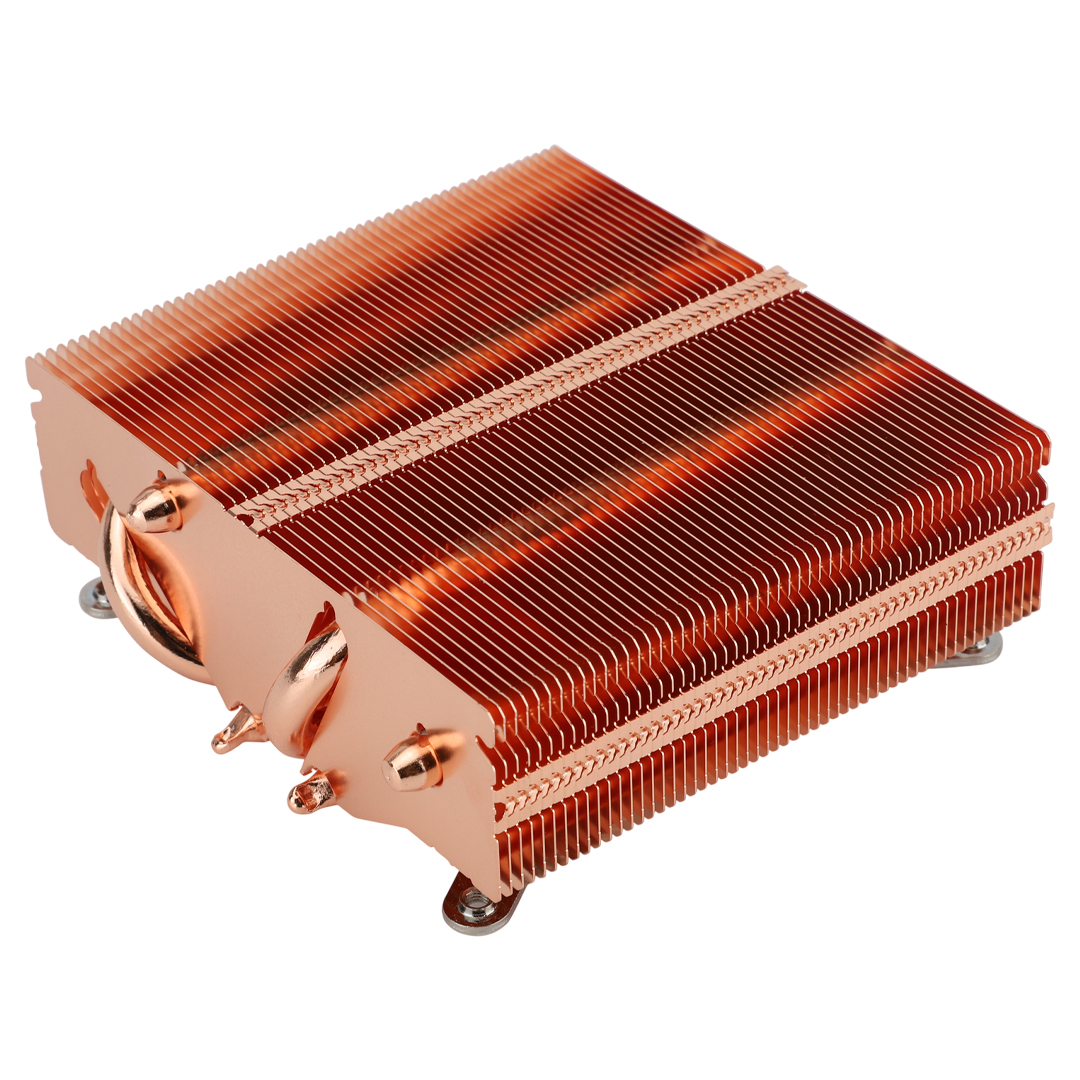

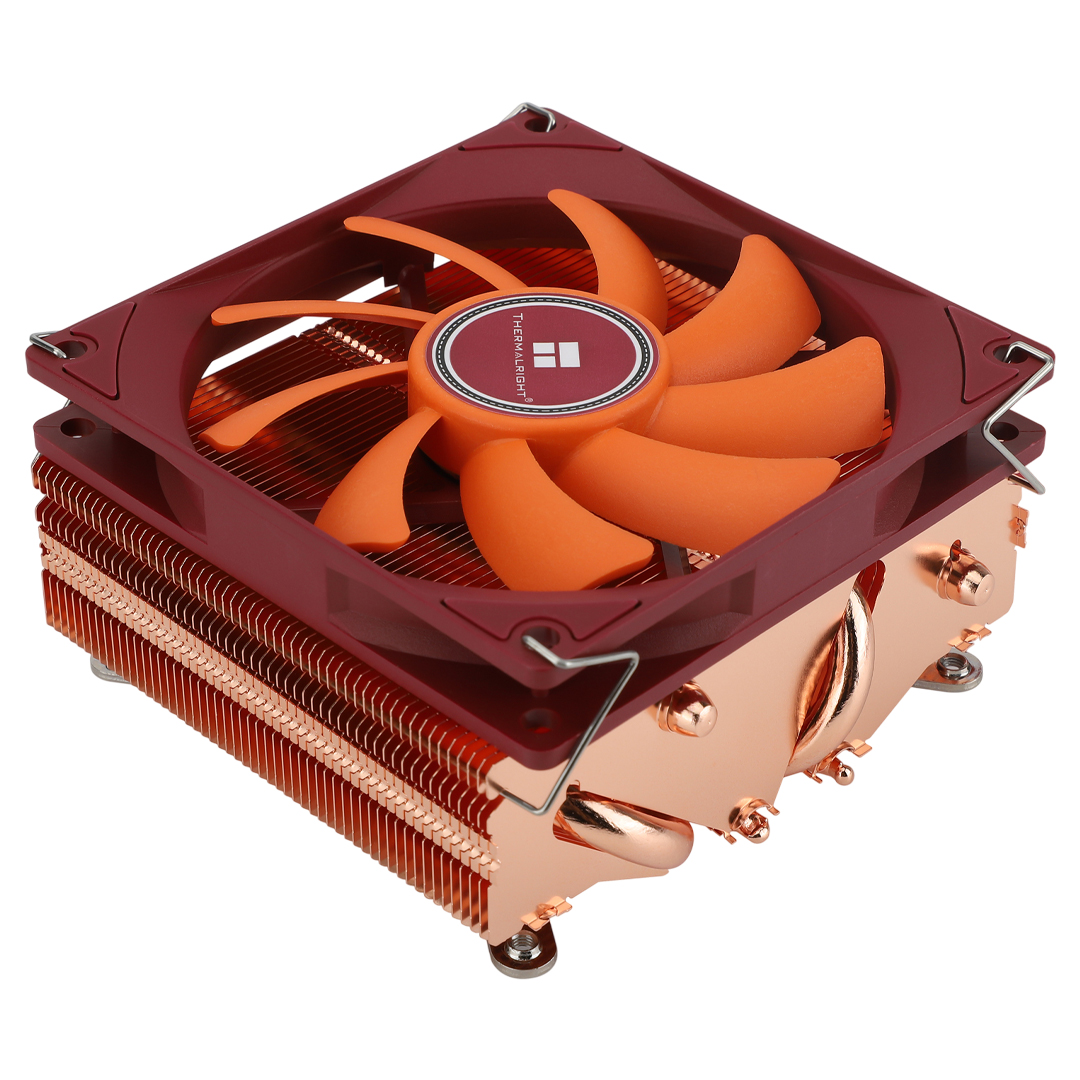

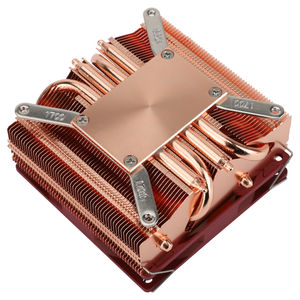

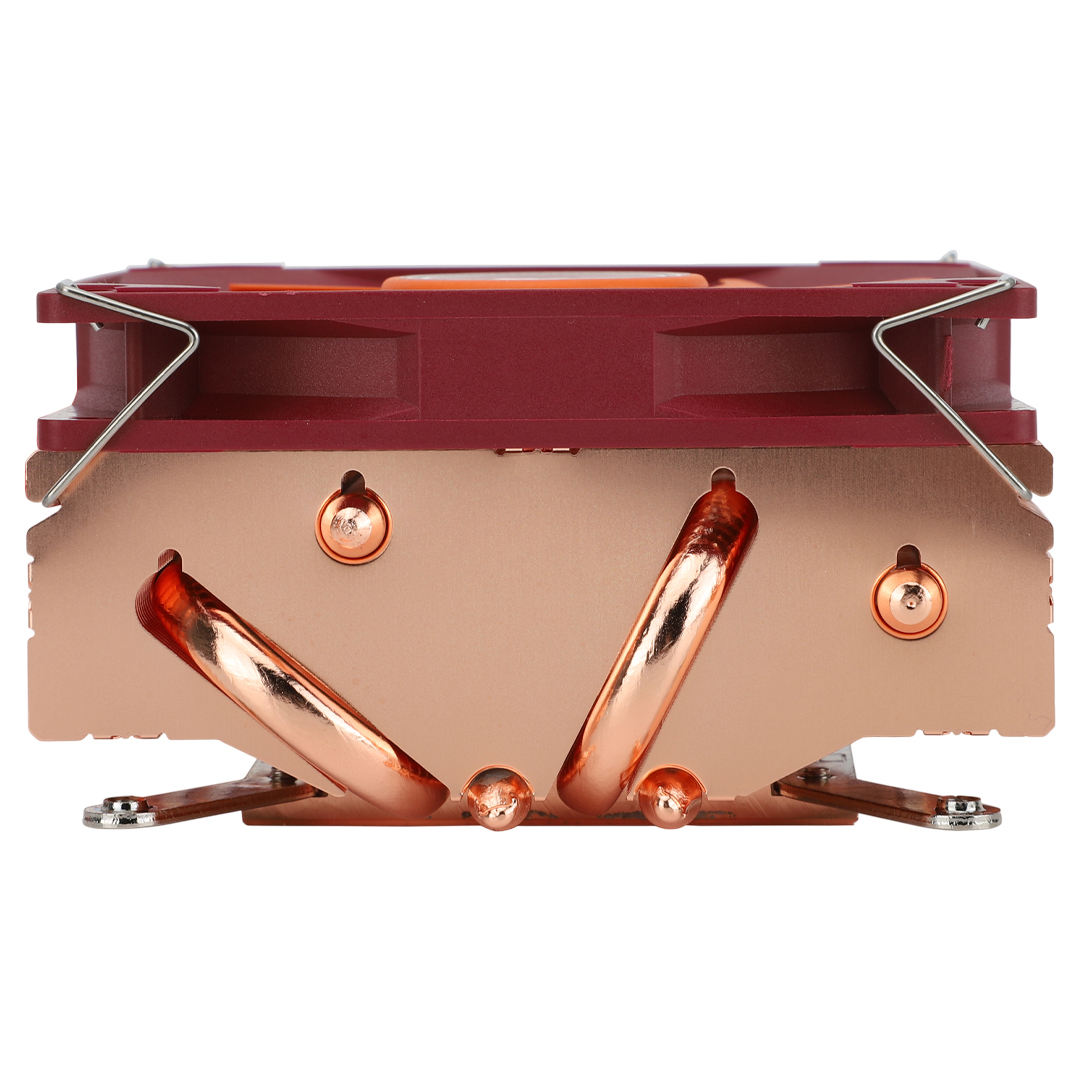

Thermalright AXP-90-X53-FULL Low Profile CPU Air Cooler

The AXP-90-X53-FULL is a low-profile CPU air cooler featuring four 6 mm heatpipes, a C1100 nickel-plated copper base, and a compact single-fan design for efficient thermal performance in space-constrained systems. A high-speed PWM fan delivers strong airflow and static pressure while maintaining low noise output, with broad Intel and AMD socket support ensuring wide system compatibility.

Features

---

AXP90-X53 FULL

Low-Profile Cooling Design

• Ultra-compact form factor designed for small form factor and tight clearance builds
• Low height profile enables compatibility with compact cases

Four 6 mm Heatpipes

• Four high-efficiency 6 mm heatpipes rapidly transfer heat from CPU to heatsink
• Direct thermal routing supports stable performance in constrained layouts

C1100 Nickel-Plated Copper Base

• Pure copper base improves thermal conductivity between CPU and cooler
• Nickel plating enhances durability and long-term corrosion resistance

High-Speed PWM Fan

• TL-9015R 92 mm slim PWM fan operates up to 2700 RPM±10% for strong cooling output
• S-FDB V2 bearing ensures smooth operation and extended service life

High Airflow in Compact Form

• Delivers up to 42.58 CFM airflow despite low-profile design constraints
• Balanced static pressure supports effective heat dissipation through dense fins

Low Noise Operation

• Rated noise level of 22.4 dBA maintains quiet system operation under load
• Optimised blade design reduces turbulence and acoustic output

Broad Platform Compatibility

• Supports Intel 115X, 1200, 1700, and 1851 platforms
• Supports AMD AM4 and AM5 platforms
