The ASUS ProArt B850-Creator WIFI Neo is a sophisticated AMD B850 chipset motherboard engineered to provide an elite, stable foundation for Ryzen 9000 series processors and professional AM5 socket workstations. This creator-centric powerhouse features a robust 14+2+1 power stage (80A) delivery system and an eight-layer server-grade PCB, optimised to handle intensive 3D rendering and AI-driven workflows like local LLM acceleration via AI Cache Boost. Built for maximum productivity, it offers ultra-fast networking with dual 5G ethernet ports and integrated WiFi 7, alongside expansive storage options including two PCIe 5.0 M.2 slots for blistering 128Gbps data transfers. To streamline the creative process, the board includes a dedicated Thunderbolt 4 USB4 header, a front-panel 20Gbps USB-C port with 30W power delivery, and DIY-friendly innovations such as the M.2 Q-Release and PCIe Slot Q-Release for effortless component swapping. Finished in a professional, minimalist aesthetic and backed by 24/7 reliability testing, the ProArt B850-Creator WIFI NEO is the definitive choice for digital artists and engineers seeking a high-bandwidth, future-proof platform for high-performance content creation.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
ProArt B850-Creator WiFi Neo
The ProArt B850-Creator WiFi Neo is designed to empower creators at every level, delivering optimised performance for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, as well as AMD EPYC™ 4005 Series CPUs. Featuring a robust 14+2+1 power stage design, DDR5 support, PCIe® 5.0 expansion, and ultrafast connectivity—including dual 5G Ethernet and WiFi 7—it provides a reliable foundation for demanding creative workloads.
With a refined aesthetic that reflects a professional and elegant design philosophy, the motherboard showcases layered black tones accented with metallic gold details. This platform seamlessly combines performance, connectivity, and design, delivering the power required for today's advanced AI PC applications.
Spec Overview

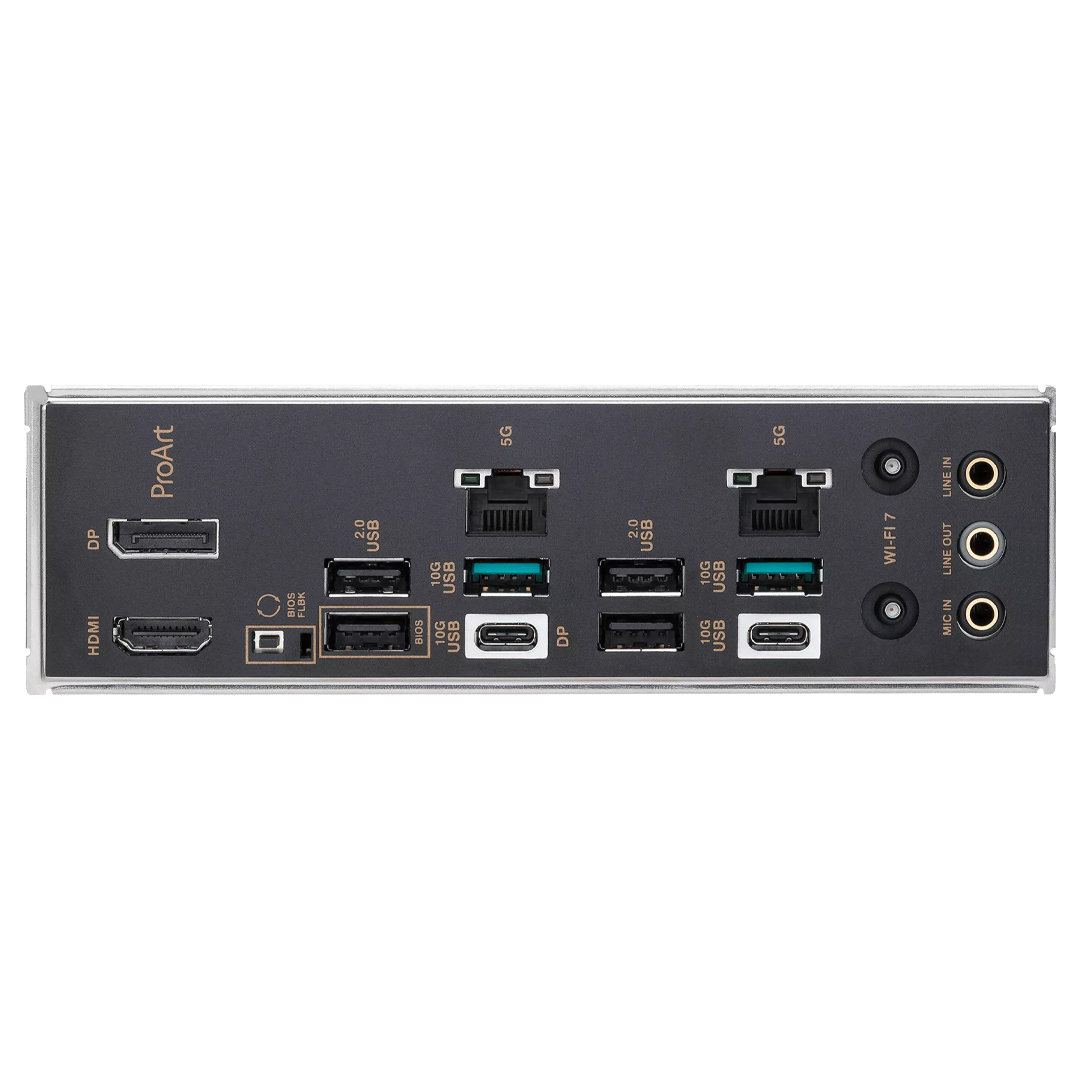

Connectivity
- 1 x HDMI® port (4K@60Hz )
- 1 x DisplayPort™ (8K@30Hz)
- BIOS FlashBack™ button
- 4 x USB 2.0 ports
- 1 x USB 10Gbps Type-C® port with DisplayPort Alt mode
- 2 x USB 10Gbps Type-A ports
- 2 x Realtek 5Gb Ethernet
- 1 x USB 10Gbps Type-C® port
- WiFi 7
- 3 x Audio jacks
- 3 x Aura addressable Gen 2 RGB headers
- 1 x USB 20Gbps Type-C® front-panel connector with 30-watt PD, QC 4+
- 1 x USB 5Gbps header (Supports 2 x USB 5Gbps ports)
- 4 x SATA 6Gb/s ports
Performance
- ProCool power connectors
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series and AMD EPYC™ 4005 Series Processors
- Expansion slots
2 x PCIe® 5.0 x16 SafeSlots(x16 single or x8/x8 dual)
1 x PCIe 4.0 x16 slot (Max. x4 )
- Realtek® ALC1220P codec
- De-pop circuit
- Audio shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- 14(80A)+2(80A)+1(80A) Power Stages
- 4 x DDR5 DIMM slots
Dual channels
- 3 x M.2 Slots
2 x M.2 2280 (PCIe 5.0 x4)
1 x M.2 2280 (PCIe 4.0 x4)
- AMD B850 chipset
Cooling
- VRM heatsinks
- M.2 heatsinks
- 4-pin PWM/DC fan headers: Every onboard header supports auto-detection of PWM or DC fans
- Multiple temperature sources: Each header can be set to monitor and react to multiple user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI
- Chipset heatsink
DIY-Friendly
- Q-Antenna: Attach a WiFi antenna in a snap
- M.2 Q-Release: A convenient switch helps to quickly remove the heatsink
- M.2 Q-Latch: A simple locking mechanism secures an M.2 SSD without the need for specific tools
- M.2 Q-Slide: The sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation
- SafeSlot: This slot provides stronger PCIe device retention and greater shearing resistance
- Q-DIMM: One-sided clips deliver simple and secure handling of memory modules
- Q-LED: This diagnostic display indicates CPU, memory, graphics card or boot device issues for quick diagnosis
- SafeDIMM: A fortified metal divider adds support and damage prevention
- PCIe Slot Q-Release: A physical lever unlocks the first PCIe slot with a single tap for easy PCIe card removal
All You Need for Maximum Productivity
Ultrafast Networking
Two 5G Ethernet Ports
Two 5G Ethernet connectivity provides flexible network configuration for professional environments, enabling creators to allocate dedicated bandwidth for online connectivity and local storage systems to enhance workflow efficiency, data integrity, and system reliability.
WiFi 7
The revolutionary WiFi 7 is faster than standard WiFi 6 (WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features.), thanks to tech like 160 MHz channels (Specifications vary by model.) on the 6GHz band and 4K QAM (WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features.). Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
MLO Wizard
MLO Wizard assesses your environment for Multi-Link Operation support across your device, router and operating system, while also visualising the current traffic capacity on each of your router's frequency bands.
PCIe 5.0 Support
Fully embracing the latest standard, the ProArt B850-Creator WiFi Neo offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
PCIe® Lane Optimisation
Content Creation & Streaming
Fully utilises native PCIe 5.0 lanes supported by AMD Ryzen™ 9000 & 7000 CPUs, delivering optimised bandwidth for maximum performance.
Advanced Creation & AI
Cater to professional creators and demanding AI workloads, including dual GPU support for intensive AI and rendering tasks.
PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via PCIe Slot Q-Release.
Three Onboard M.2 Slots
ProArt B850-Creator WiFi Neo features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps (Actual transmission speed will be lower than theoretical maximum speed.), and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
Comprehensive Connectivity
USB Type-C® DisplayPort (DP Alt Mode)
This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 30 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display.
Quick Charging Your USB Devices
USB 20Gbps Type-C Front-Panel Connector with Quick Charge 4+
This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.
USB4® Support
ProArt B850-Creator WiFi Neo features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card (ASUS add-on card is sold separately.), ProArt motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.
The Core of Your Powerful Workstation
Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt B850-Creator WiFi Neo features 14(80A)+2(80A)+1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
- 14 Vcore Power (80A, DrMOS)
- 2 SOC Power (80A, DrMOS)
- 1 Misc Power (80A, DrMOS)
Eight-Layer Server-Grade Design
Built on an eight-layer server-grade stack for precise signals and stable performance.
ProCool Connectors
These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
Superior Chokes & Capacitors
These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
Digi+ VRM Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
Intelligent AI Solutions
AI Cache Boost
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimises CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
- Increase AI LLM performance up to 29% with AI Cache Boost
Tokens Per Second
With an ASUS AMD 600 or 800 series motherboard and a Ryzen™ 9000 series CPU, you can enable the AI Cache Boost setting in the BIOS. This feature applies comprehensive optimisations to CPU cache and memory pathways, greatly reducing the typical performance drop that can happen when VRAM is used up.
Internal testing determined that enabling AI Cache Boost delivered up to a 15% performance uplift when running large language models that exceeded graphics card memory. With high-speed DDR5 memory and additional Infinity Fabric clock (FLCK) speed tuning, this performance uplift nearly doubled.
For enthusiasts, creators or anyone who wants a powerful AI model capable of deep reasoning and natural conversation running on their own hardware, they can enjoy these uplifts today with AI Cache Boost.
AMD Ryzen 7 9800X3D - RX9070XT-16GB - ROG Crosshair X870E Hero
- Default: 6.35
- AI Cache Boost: 7.31 (+15.12%)
- AI Cache Boost: 8.2 (EXPO8000 + FCLK 2200MHz) (+29.13%)
AMD Ryzen 7 9800X3D - RTX5080-16GB - ROG Crosshair X870E Hero
- Default: 6.01
- AI Cache Boost: 6.96 (+15.81%)
- AI Cache Boost: 7.64 (EXPO8000 + FCLK 2200MHz) (+27.12%)
Benchmark
- Run AI applications on your PC more smoothly with AI Cache Boost
AMD Ryzen 9 9950X3D - RTX 4090 - ROG Crosshair X870E Hero
Geekbench AI (Higher is Better)
- Default: 51786
- AI Cache Boost: 54392 (+5.03%)
- AI Cache Boost & Turbo Game Mode: 56757 (+9.60%)
UL Procyon - AI Computer Vision Benchmark (Higher is Better)
- Default: 1426
- AI Cache Boost: 1485 (+4.14%)
- AI Cache Boost & Turbo Game Mode: 1702 (+19.0%)
Topaz Video AI (Lower is Better)
- Default: 153 sec
- AI Cache Boost: 148 sec (+3.27%)
- AI Cache Boost & Turbo Game Mode: 145 sec (+5.23%)
AMD Ryzen 7 9800X3D - RTX 4090 - ROG Crosshair X870E Hero
UL Procyon - AI Computer Vision Benchmark (Higher is Better)
- Default: 1490
- AI Cache Boost: 1680 (+12.75%)
ASUS AI Advisor
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimisation features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
* Availability of ASUS AI Advisor may vary by region.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Performance Boost
PBO Enhancement
By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Memory
The ProArt B850-Creator WiFi Neo enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.
Server-Grade DRAM Enhancement
Thanks to an upgraded memory slot layout and PCB design, now enthusiast-grade kits can achieve 9 GT/s on the ProArt B850-Creator WiFi Neo (Achievable with advanced BIOS configuration and potentially specialised hardware. Results may vary according to system components.).
DDR5 Strength
For those who want to fly past stock DDR5 speeds, the ProArt B850-Creator WiFi Neo is ready for enthusiast-grade kits, courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
Server Grade PCB Design
Eight-Layer Server-Grade Design
Built on a server-grade eight-layer blueprint, the motherboard's core is engineered for precision. High-speed bus signals for PCIe 5.0 and DDR5 are clean and stable via controlled impedance and dedicated power/ground layers, while the stiffer structure enhances durability. The result is quieter signal behaviour and steadier performance under pressure.
ASUS Enhanced Memory Profile (AEMP)
This exclusive firmware feature for PMIC-restricted memory modules automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
Easy PC DIY
PCIe® Slot Q-Release
A physical lever unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new graphics card or other compatible device.
M.2 Q-Release
The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
M.2 Q-Slide
A new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.
Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
The Power of Minimalist Design
A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.
Everything You Need to Optimise Workflow
Customise Your Personal Settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalise settings or optimise your workflow. It features an intuitive overview dashboard, with quickly switchable fan profiles and performance modes.
WorkSmart
To streamline your workflow, you can select up to 8 apps to be launched at the same time with a single desktop shortcut.
Security Control and Remote Management
Advanced security management functions from ASUS Control Center Express protect the PCs and confidential data in your creative studio.
USB Port Management
Enable or disable the USB port, or set it to Read Only to prevent data leaks.
Software Blacklist
For added security, a software blacklist is available to help prevent the use of high-risk applications.
Registry Editor On/Off
Remotely disable the Registry Editor on client devices to prevent unauthorised changes to system configurations.
Upgraded UEFI BIOS
BIOS Q-Dashboard simplifies system setup with a clear, visual interface, while expanding the capacity to 64MB enables a more powerful experience and extended compatibility with current and future AM5 processors.
64MB BIOS
A larger BIOS chip enables a more powerful interface and extended CPU compatibility with the latest and future AM5 processors, ensuring a smooth, seamless user experience.
Pre-Installed WiFi Driver
A pre-installed WiFi driver enables users to connect to the internet when installing Windows on their PC; no USB flash drive is needed for driver installation, making the setup process faster and more convenient (Currently available on ROG Glacial, Dark Hero and select Neo motherboards. Future BIOS updates may prioritise support for new CPUs, potentially affecting WiFi driver integration.).
Q-Dashboard
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
Advanced Mode
When you're ready for a deeper dive, delve into the UEFI's Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.
My Favourites
Quickly locate tuning options and add preferred tools to your favourites list.
EZ Flash
Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Essential Mode
Essential OC Control, Simplified
Essential Mode provides quick access to commonly used overclocking settings and key system information, making performance tuning easy without diving into menus that require deeper expertise.
EZ System Tuning
Quickly apply pre-configured profiles for improved system performance or energy savings.
Boost Pro
Enhance system performance by optimising GPU Boost, AI Cache Boost, and Turbo Game Mode for different usage scenarios.
ASUS MB Manager
ASUS MB Manager delivers fast, fluid, and intuitive control over essential features, offering a smooth experience for monitoring system stats, accessing fan cooling controls, and fine-tuning advanced WiFi settings. It also works seamlessly with Armoury Crate to provide an even more comprehensive system management experience.
ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.
ASUS GlideX
A cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. It is compatible with Windows, macOS, Android and iOS.
- Mirror
- Extend(PC to Mobile)
- Extend(PC to PC)
- Unify Control
Trusted Stability
ProArt B850-Creator WiFi Neo is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
- 24/7 Reliability
- Up to 45°C Ambient heat
- 168-hour Durability test
- Up to 80% Relative humidity
In Search of Sustainable Solution
ASUS is on a mission to create a sustainable future where all can flourish on the planet we call home.
Every step counts, and as part of ASUS's commitment to creating a more sustainable future, ASUS has begun to utilise post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council® (FSC®) in the packaging of motherboards.
Join us on our journey as we make the world a better place.
Backed by a 3 year ASUS warranty.
