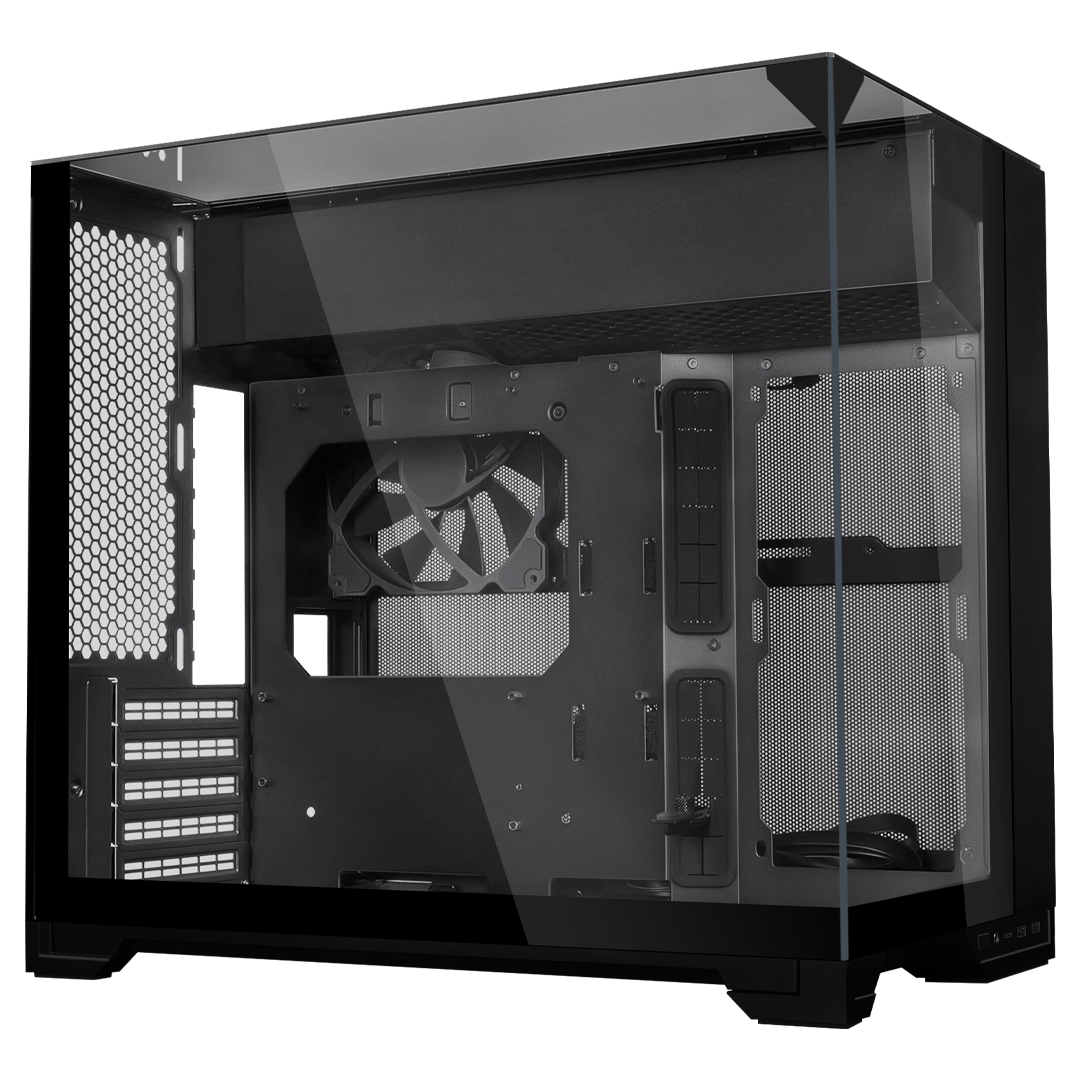

The Lian Li O11 Vision-M is an elite-tier hybrid chassis optimised to deliver an unobstructed 270 degree aesthetic through its signature three-sided panoramic glass panels. To resolve common thermal challenges in glass-heavy enclosures, this dual-chamber Micro-ATX/Mini-ITX frame integrates a precision-vented upper glass aperture that aligns with the radiator to significantly optimise exhaust and mitigate internal heat buildup. The interior is built for next-gen performance, featuring a modular, removable divider that allows specialists to choose between a strictly separated look or a more open, high-bandwidth presentation of AIO components. Supporting massive GPUs up to 410mm and 360mm top-mounted radiators, the case remains perfectly stabilised via an included adjustable anti-sag bracket and benefits from a pre-installed 140mm AIO assist fan in the secondary chamber for dedicated CPU cooling, with further support for up to twelve 120mm fans (top, side, secondary chamber, bottom and rear). With professional grade considerations like dedicated tube-routing channels and the option for a 9.2-inch integrated LCD dashboard, the O11 Vision-M serves as a durable, future-proof command centre for any sophisticated compact workstation.
Features
O11 Vision-M
Balance Compatibility. Boost Cooling.
- 3 Sides of Glass
- Columnless Design
- Enhanced Modularity
- Modular Divider
- Concealed Radiator Design
- Glass Panel
- Mesh Cutout
- Up to mATX
- Cable Management Friendly
Two Colour Options for Any Build Style
Available in black and white colour, each colour is designed to match modern components while showcasing the signature three-sided tempered glass design.
Compact Form, Dual-Chamber Efficiency
The O11 Vision-M series delivers a space-efficient dual chamber design with a reduced footprint, while preserving the three-side tempered glass showcase and efficient dual-chamber layout.
O11 Vision-M vs O11 Vision Compact
Compared to the O11 Vision Compact, the 011 Vision-M reduces overall volume by approximately 20%, while retaining the signature 011 VISION showcase design.

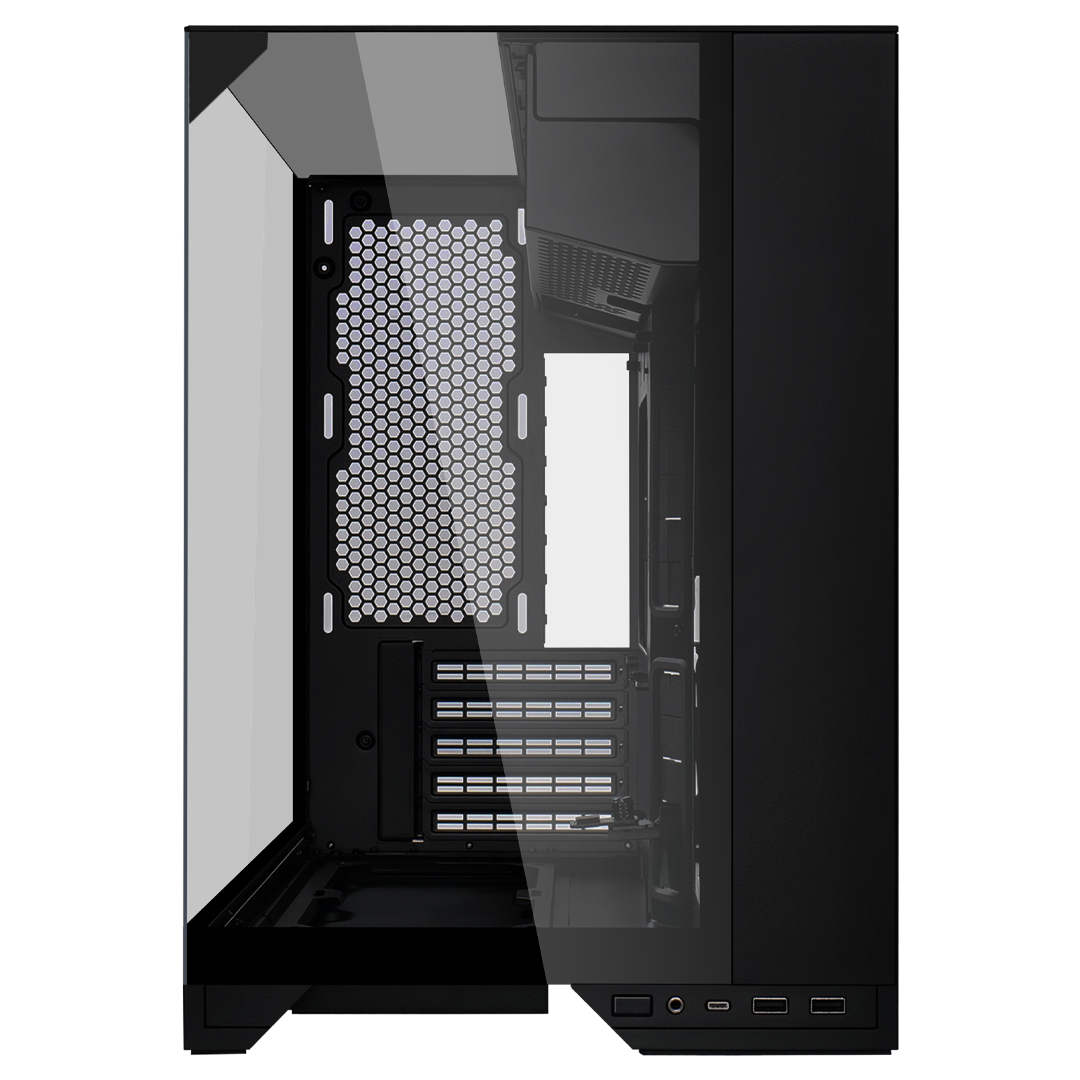

Panoramic Design with Three-Sided Glass
Tempered glass on the front, side, and top panels delivers a clear panoramic view of the system, placing internal components and lighting at the centre of the design.
Modular Divider for a Refined Interior View
A removable centre divider lets builders control interior visibility through the three-sided glass. When installed, it conceals the AIO components for a cleaner presentation and supports the LIAN LI 8.8" Universal Screen and other compatible LCD displays for system monitoring or custom visuals.
Optional 9.2" LCD Kit
Beyond the LIAN LI 8.8" LCD screen, the Vision M supports an optional 9.2" LCD kit mounted at the upper front section of the case for a more personalised look. It creates a dedicated display area for system stats, custom graphics, or themed content.
Note: This kit is sold separately.
High Brightness, Clear Display
The 9.2" display delivers sharp visuals with a 1920x462 resolution, 60Hz refresh rate, and 500 nits brightness, ensuring clear and vivid presentation of animations, hardware information, or custom videos/images.
Smart Control via L-Connect 3
Take full control of your display with L-Connect 3. Choose from built-in templates, create your own themes, or upload content in MP4, GIF, JPG, or PNG formats. Your setup, your signature style.
- Built-in Templates
- Customised Theme
- Secondary Screen
- Offline Mode
Personalised Themes for Setups
Choose from built-in templates or customise the layout to match any setup. Display real-time hardware information, system temperatures, animations, or personal visuals for a more personalised desktop experience.
USB-Powered Secondary Screen
Easily extend the desktop with plug-and-play convenience. In L-Connect 3, a single click switches the display to secondary screen mode, allowing it to function as an external monitor for Windows desktop content.
- Clicking the on/off switching function will make the screen an external display screen for the computer.
Offline Mode Clock
The display supports an offline mode that activates when the PC is turned off but power is still connected, keeping the time visible. This feature can be easily toggled on or off in L-Connect 3 with just a click.
- When you slide the switch to "ON," the screen will display the current time and date even when turned off.
Clean, Minimalist Build with Hidden Liquid Cooling
With a dual-chamber design, a dedicated tube-routing space in the second chamber neatly hides all liquid cooling lines. Enjoy a clean, organised interior visible through tempered glass, showcasing a sleek, minimalist, and premium build.
3D Printable Fill Cover
Remove the divider for a more open layout and a clearer view of the fan side-lighting. For those who prefer a cleaner finish around the gap between the AIO and motherboard area, an optional 3D-printable fill cover can also be added.
Note: The 3D print file will be provided online for self-printing and will not be sold separately.
High-Capacity AIO Cooling Support
Supports up to a 360mm top-mounted radiator with three 120mm fans, delivering strong AIO cooling performance while maintaining a clean showcase layout.
Note: For HydroShift II installation, the plastic cover must be removed. It is also recommended to remove the radiator's side aluminium trim and the nearby tubing support bracket to ensure adequate tubing clearance.
Extensive Fan Support for Advanced Airflow
Supports up to twelve 120mm fans and one 140mm fan, creating a high-airflow layout for powerful cooling performance.
- 360mm Radiator x1
- 120mm Fan x12
- 140mm Fan x1

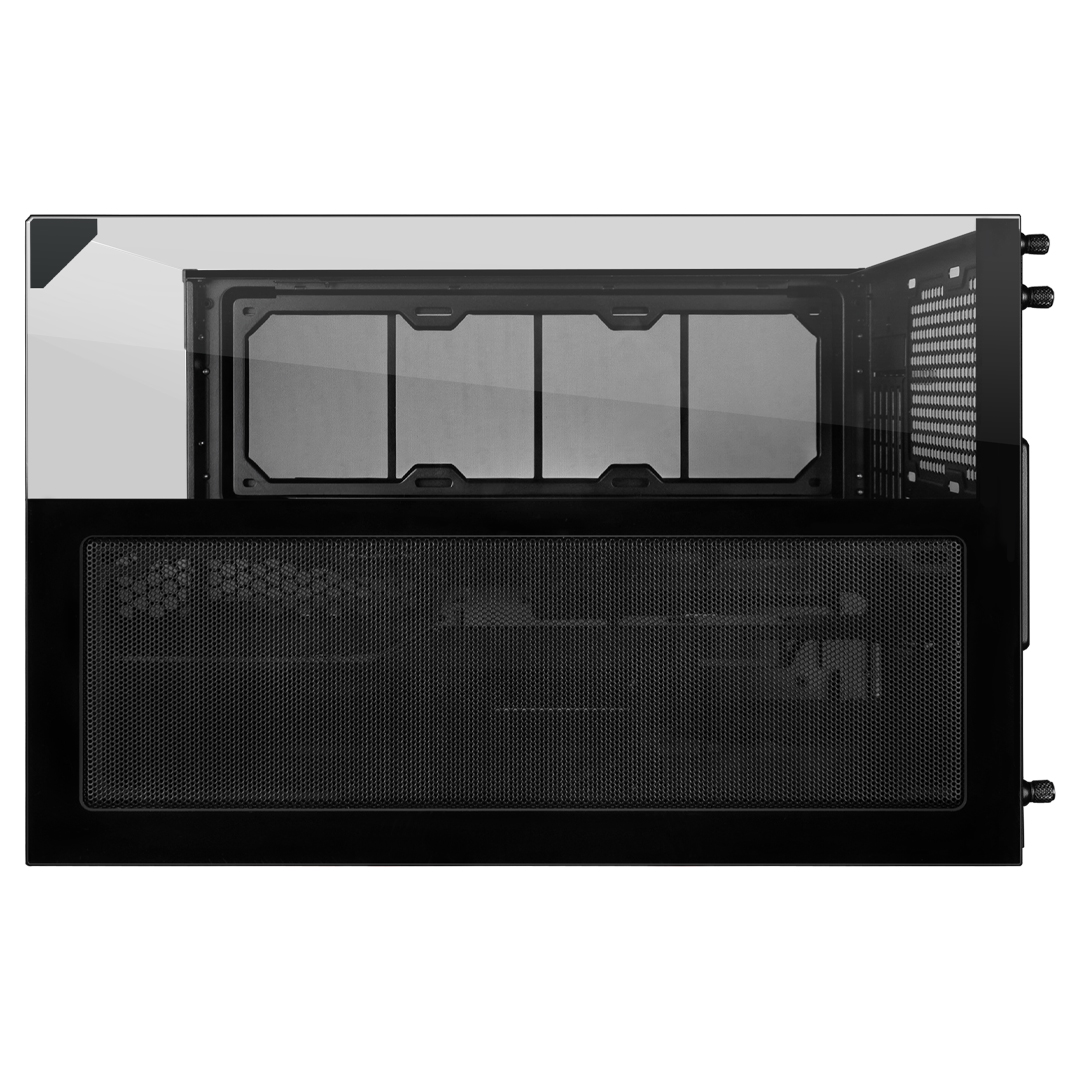

Glass Cutout for Improved Airflow
The top tempered glass panel features a precision glass cutout design, allowing airflow to pass through while maintaining the clean panoramic look.

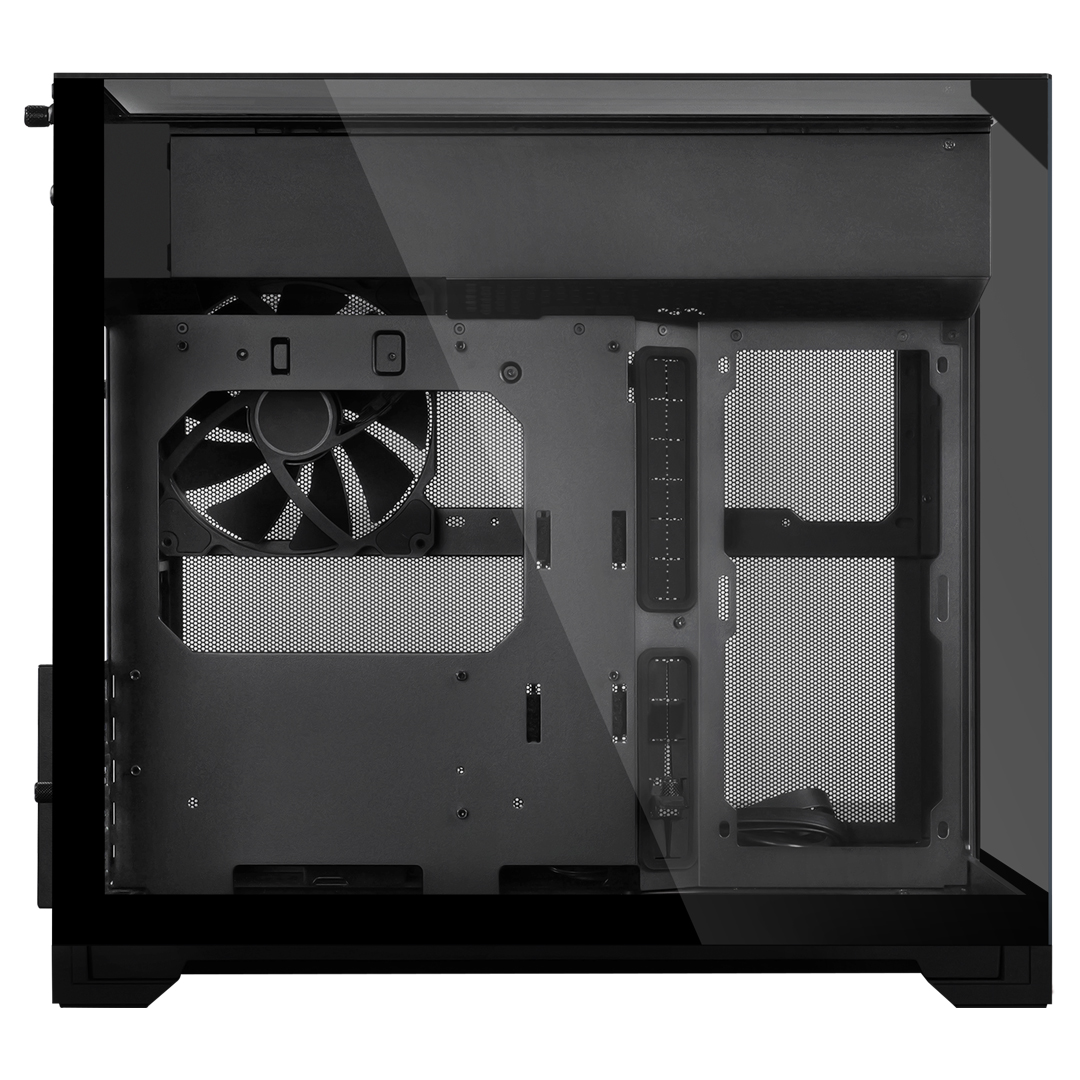

Pre-Installed 140mm Fan for Enhanced Cooling Performance
The pre-installed 140mm fan is specifically designed to provide additional airflow to the AIO radiator, improving radiator heat dissipation and overall liquid cooling efficiency.
Tested under identical conditions with a 360mm AIO and full fan configuration, the O11 VISION-M achieves up to 4°C lower CPU temperatures than both the O11D MINI V2 and 011 VISION Compact. GPU temperatures are also reduced by up to 2.6°C, highlighting stronger airflow efficiency in a compact chassis.
System Configuration
- CPU: Intel® Core™ i9-14900K
- Cooler: GA II Lite 360P
- MB: MSI B760 EDGE TI WIFI
- GPU: iGame GeForce RTX 5080 Vulcan
- System Fan: UNI FAN, Full Speed
| Case |
CPU Temp (Max) |
GPU Temp (Max) |
| 011 VISION-M |
92°C↓ |
60°C↓ |
| O11D MINI V2 |
96°C |
62.6°C |
| 011 VISION Compact |
96°C |
60.9°C |
Built for M-ATX and Mini-ITX Systems
The O11 VISION-M supports both M-ATX and Mini-ITX motherboards, making it suitable for compact yet high-performance system builds. This flexibility allows builders to choose a smaller platform without sacrificing layout efficiency or cooling potential.
Full-Length GPU Clearance Up to 410mm
Despite its compact size, the O11 VISION-M supports graphics cards up to 410mm in length. This generous clearance allows flagship GPUs to fit comfortably, even with front-mounted cooling components installed.
Note: On M-ATX builds, installing a triple-slot GPU will prevent bottom fan installation. When bottom fans are installed, the GPU power cable should be routed above the graphics card.
Reliable GPU Support with Anti-Sag Design
A dedicated anti-sag bracket is included to support horizontally mounted GPUs. The bracket can be height-adjusted from the second chamber using the included tool, and its swivelling support platform ensures stability without interfering with GPU fan airflow.
Note: For easier access to the adjustment GPU bracket screw when the build is complete, a specialised screw driver is included to loosen/tighten it.
Full-Size Power Supply Support
The dual-chamber layout accommodates ATX power supplies up to 182mm in length. By isolating the PSU in the second chamber, the design maintains clean cable routing while supporting full-size, high-wattage power supplies.
Flexible Storage, Hidden from View
The second-chamber fan bracket also functions as a storage mount, supporting up to three 2.5-inch SSDs or a combination of one 3.5-inch HDD and one 2.5-inch SSD. This design preserves storage flexibility while keeping the main chamber focused purely on presentation.
Backed by a 1 year Lian Li warranty.
