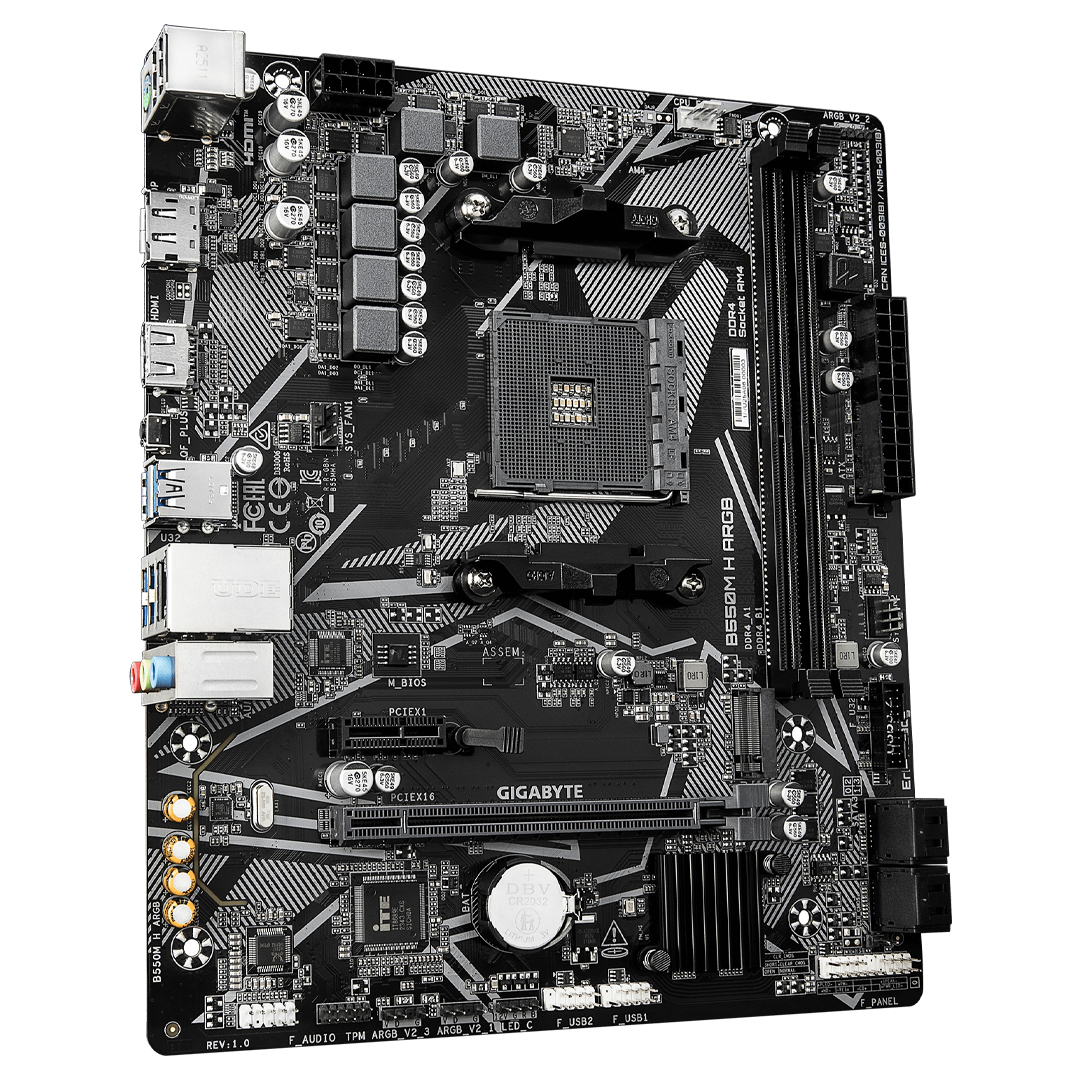

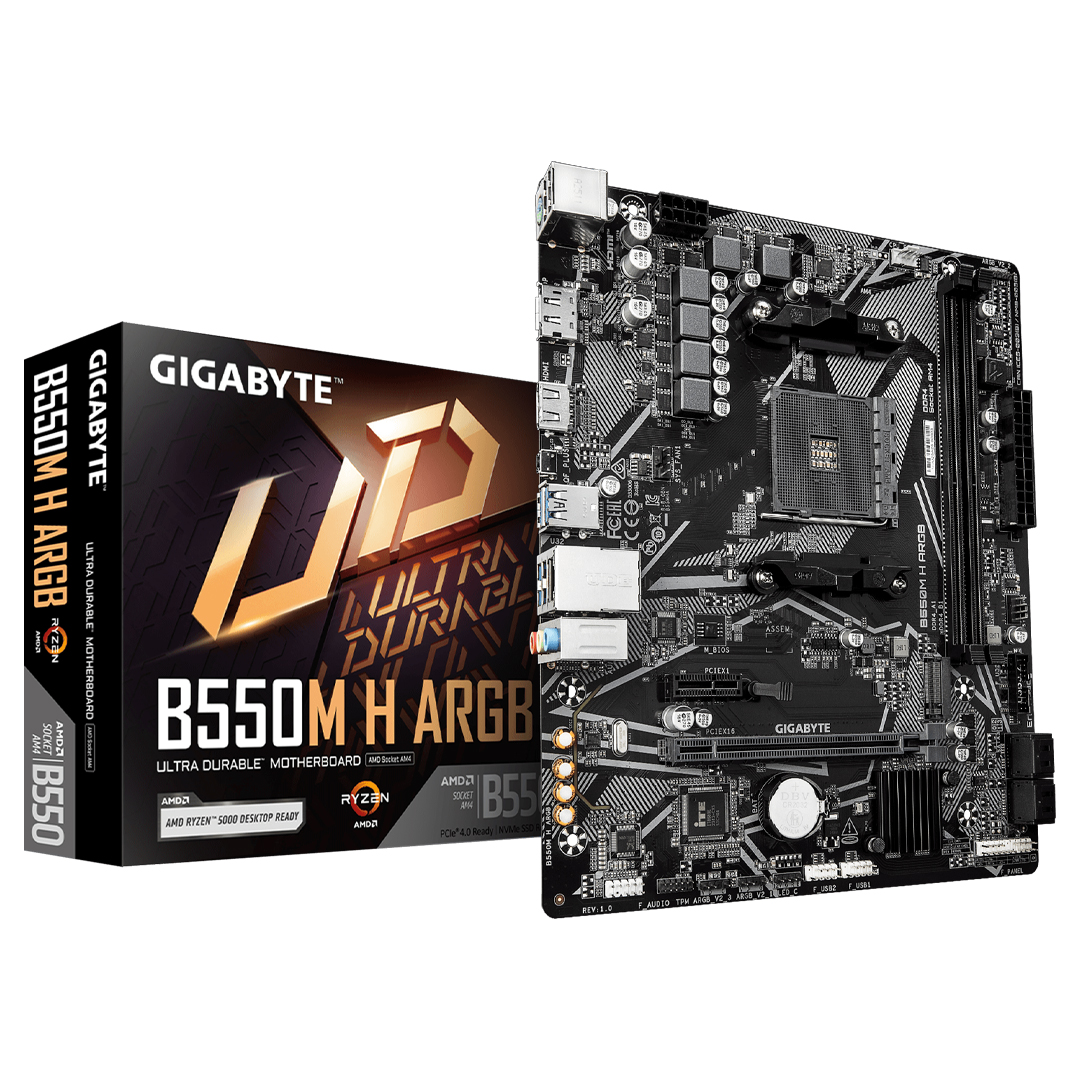

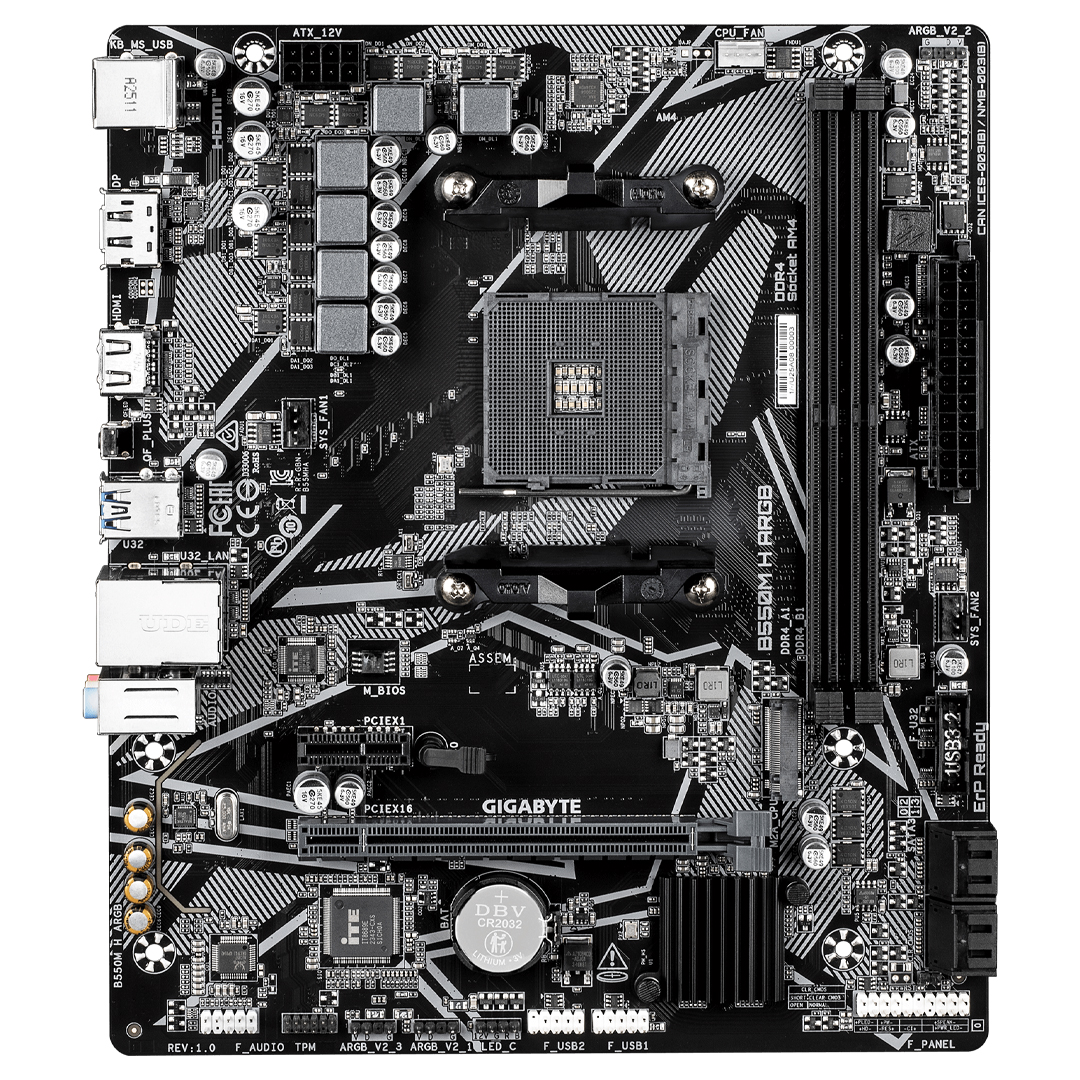

The Gigabyte B550M H ARGB DDR4 Motherboard features the AMD B550 chipset with support for AMD Ryzen 5000, 5000 G-Series, 4000 G-Series and 3000, 3000 G-Series processors, dual channel DDR4 memory, PCIe Gen4.0 x4 M.2 slot for high speed NVMe storage. The Gigabyte B550M H ARGB also includes Gigabit LAN, Smart Fan 6 cooling control, HDMI and DisplayPort outputs, high quality audio capacitors with 8-channel HD audio, and integrated RGB and ARGB headers for custom lighting and is in a Micro ATX form factor.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
B550M H ARGB
AMD B550 Ultra Durable Motherboard with GbE LAN, ARGB header, Q-Flash Plus, PCIe 4.0 x4 M.2, Smart Fan 6, Anti-Sulfur Resistors Design
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Integrated ARGB header and Q-Flash Plus button
- PCIe Gen4.0 x4 M.2 with PCIe NVMe & SATA mode support
- Fast Network: GbE LAN
- 8-Channel HD Audio with High Quality Audio Capacitors
- Rear HDMI and DisplayPort for Multi-display Support
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use

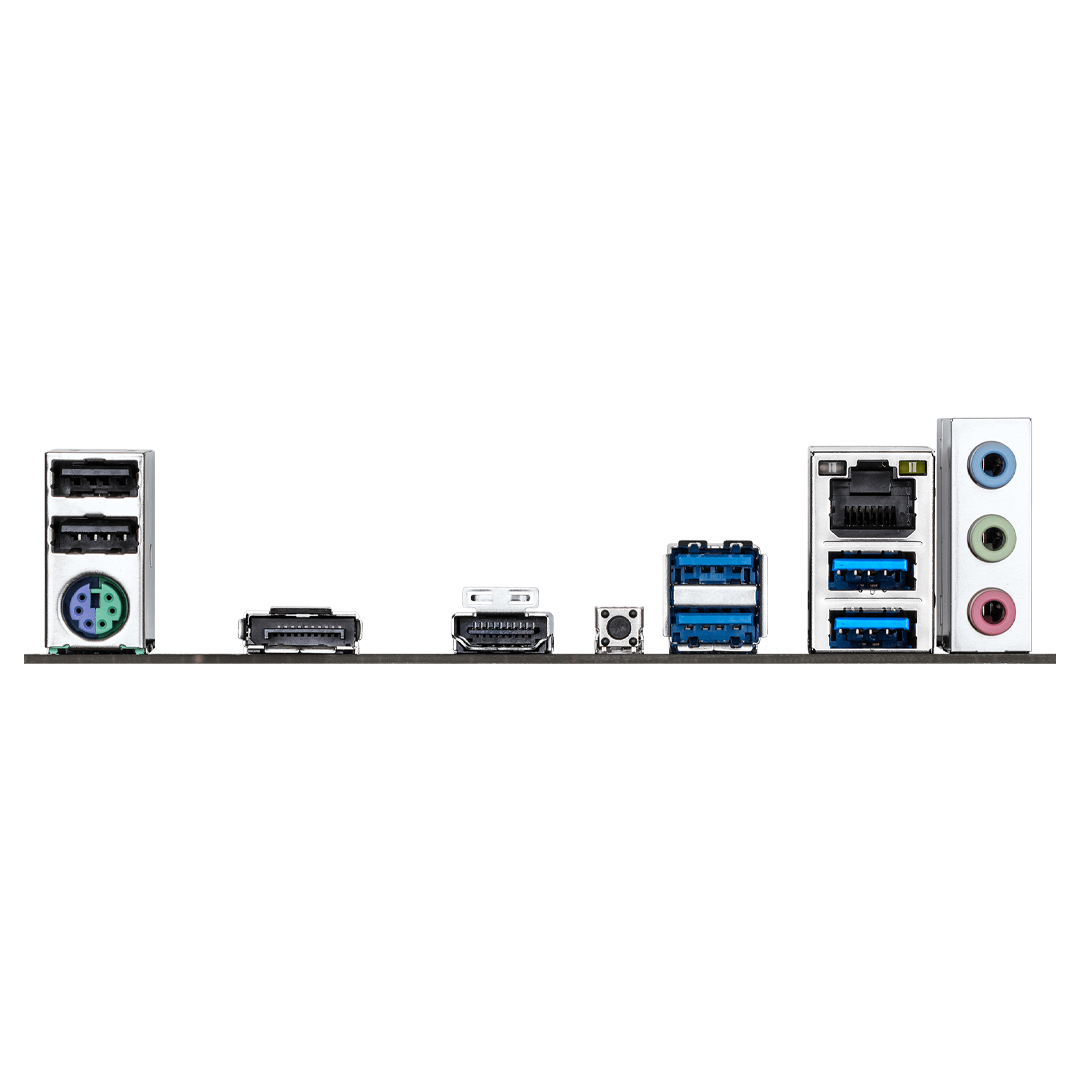

Spec Overview
- USB 2.0* 2
- DisplayPort
- HDMI
- Q-Flash Plus button
- USB 3.1 Gen1* 4
- GbE LAN
- High-End Audio Capacitors
- 8-Channel HD Audio CODEC
- Supports AMD Ryzen™ Series Processors
- Dual Channel DDR4, 2 DIMMs
- M.2 Connector for SSD
- All Solid Capacitors
- SATA3
- 1 x RGB LED Header
- 3 x ARGB LED Headers
Connectivity
NVMe PCIe 4.0*/3.0 M.2 Connector
With NVMe PCIe 4.0*/3.0 x4 M.2 connector onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity with delivering up to 64 Gb/s data transfer speed.
- PCIe 4.0 x4 M.2 - Up to 64 Gb/s* (NVMe)
- PCIe 3.0 x4 M.2 - Up to 32 Gb/s* (NVMe)
*Theoretical Bandwidth
*Actual support may vary by CPIL
PCIe 4.0* Hardware Design
* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
Slot Signal Stability*
- PCIe 4.0 Slot - 3.3x Higher
- PCIe 3.0 Slot - Differential Impedance
*Based on PCIe 4.0 differential impedance specification
PCIe Bandwidth*
- PCIe 4.0 x16 (Up to 31.5GB/s*) - 2x Bandwidth
- PCIe 3.0 x16 (Up to 15.8GB/s*) - Transfer speed
*Theoretical bandwidth based on PCI Express specification
1. PCIe 4.0 Slot: PCIe 4.0 x16 slot with faster bandwidth and lower impedance.
2. M.2 PCIe 4.0 Slot: M.2 PCIe 4.0 x4 slot with Lower impedance.
GbE LAN
Gigabit Ethernet (GbE) LAN provides significantly faster data transfer speeds of up to 1 Gbps, which is ten times faster than traditional 100 Mbps Fast Ethernet, enabling smoother streaming, faster file transfers, and more responsive network applications.
Cooling
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
- Fan Connectors
- Internal Temperature Sensors
Different models have different number of fan pin headers and temperature sensors. Smart Fan 6 function may vary by model.
- High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode: Slope/Stair dual mode for different user scenario
- Fan Stop: Fan can stop completely below users' specified temperature point
Smart Fan 6 BIOS UI
- Improve fan curve UI: Increased control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
- Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
- Manual Input: For advanced users, fan speed manual input control is provided.
- EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
- Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
Audio
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level.
Ultra Durable
GIGABYTE Patented Double Locking Bracket
Photos are for reference only.
Start Sulfurization Protection
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilising approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon® Graphics via HDMI.
*4K display support is dependent on CPU
HDMI™ - The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analogue interfaces and their digital-to-analogue conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
Backed by a 3 year Gigabyte warranty.
