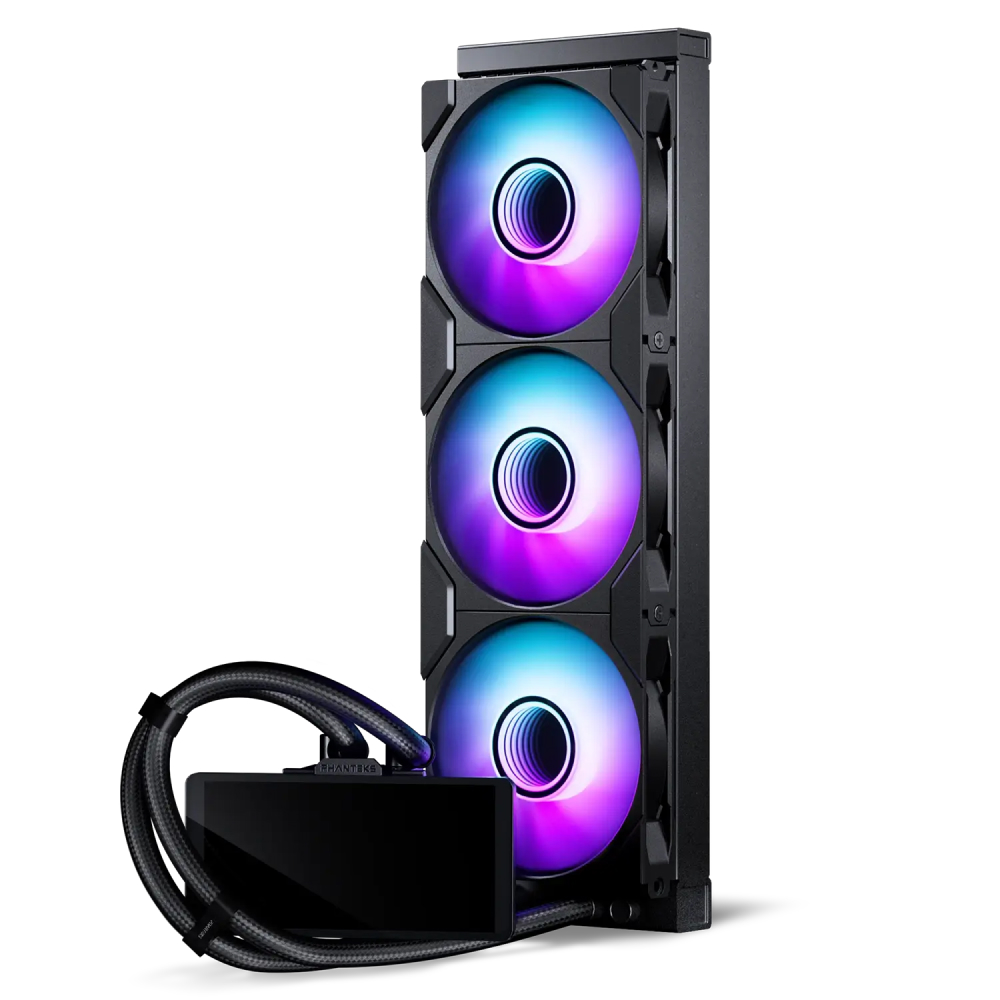

The Phanteks Glacier One 360M25-LCD is a high-performance 360mm AIO liquid CPU cooler designed for enthusiasts who demand elite thermal management and limitless customisation. This premium all-in-one cooler features a massive 6 inch high-resolution IPS LCD display that transforms your build into a personalised command center, capable of displaying real-time system telemetry, media, and custom animations via the NexLinq App for Windows. Engineered with a high-density radiator and three pre-installed M25 Gen2 daisy-chain fans, the Glacier One delivers an impressive 72.72 CFM of airflow and 2.51 mm H2O of static pressure while remaining whisper-quiet at just 35.13 dBA. The pump unit is built with a pure copper baseplate and a robust 3100 RPM motor to efficiently cool the latest high-wattage CPUs from Intel and AMD. With a flexible 59mm RAM clearance and support for multiple display orientations, the Glacier One 360M25-LCD is the ultimate future-proof cooling solution for any high-end workstation or gaming rig.
Features
Phanteks Glacier One 360M25 LCD AIO

360 Cooling With 6” Display
The Phanteks Glacier One 360M25-LCD brings customisation to a whole new level with a crisp, super large LCD-IPS display. Built on top of a powerful and reliable liquid CPU cooler and three powerful M25 Gen2 fans, it keeps the most powerful CPUs cool and stays whisper quiet.
Its large 6” LCD-IPS display is installed effortlessly and provides ample clearance for mainboard components and even RGB Ram modules. Customisation is at the core with numerous orientations possible and endless possibilities in the Nexlinq App for Windows. Transform the 6” display into a personalised command center with real-time system telemetry, thermals, speeds, time and media – all while running on the hardware itself, saving your precious CPU resources.
- Uncompromising quality using glass fiber reinforced LCP (Liquid Crystal Polymer) for the fan blades and fan frame.
- Easy and accessible switch to change fan profiles for silent, balanced or extreme performance operation: Hybrid Mode (1200RPM), Performance Mode (2000RPM), Advanced Mode (2500/3000RPM).
- Smooth and powerful 3-Phase motor (6 poles) operates with a lower frequency response for excellent sound quality.
- Increased frame thickness of 30mm results in 25% thicker fan blades from the standard 16mm to 20mm for much higher airflow performance.
- Designed for PC cooling with aerodynamic optimalisations for uncompromised performance in dust filter equipped chassis and dense radiators.
High-Efficiency Cooling
Reliable liquid CPU cooler featuring a large pure copper baseplate and fin array designed for high-end CPUs.

Interlocking Fan Frame
M25 Gen2 fans connect into a single frame for simpler cable management.

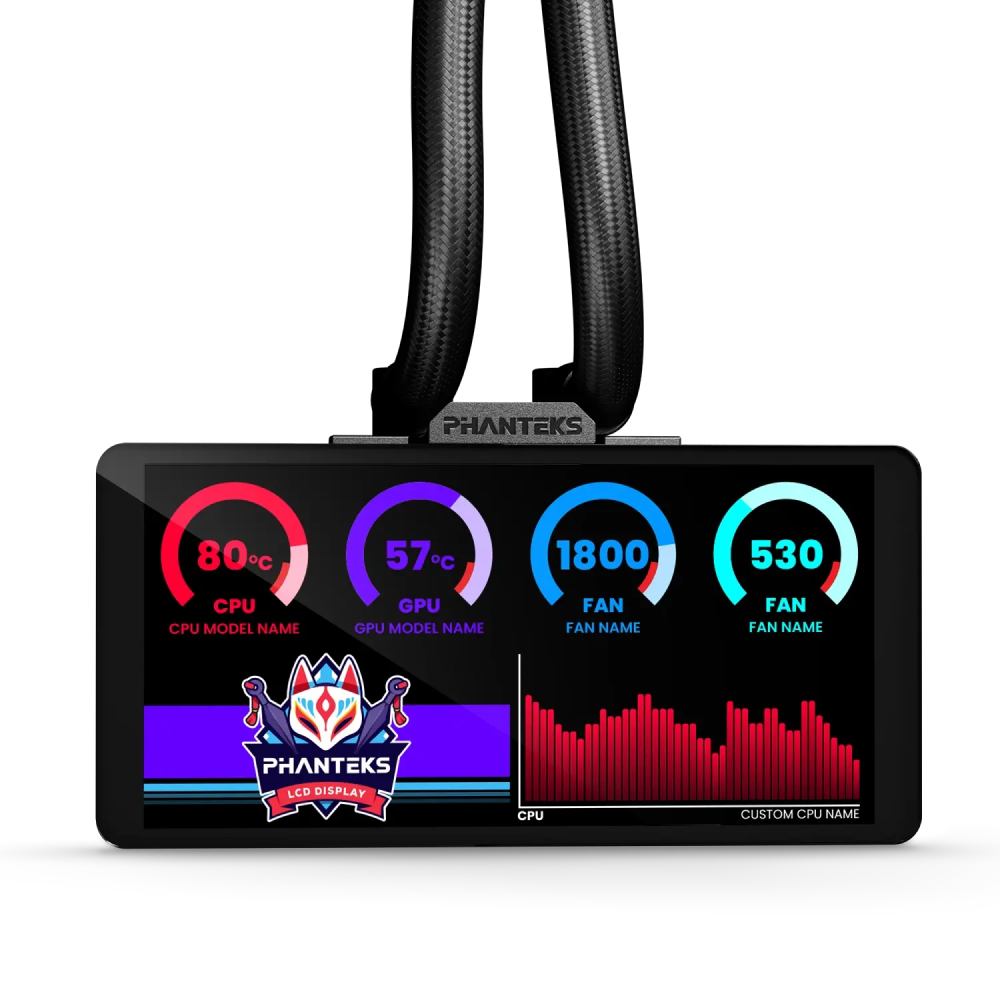

6" High-Resolution IPS LCD
Features a crisp, high-resolution panel for clear system monitoring. Easily personalise the LCD screen with system stats, telemetry, and media within the Nexlinq App for Windows

Dual Orientation Support
The unit can be mounted vertically or horizontally based on the specific pump setup, allowing users to showcase RAM or specific motherboard components.
Maximum Clearance
Specifically designed to ensure compatibility with motherboards and RAM modules.
Single Cable
Streamlined setup with fan and D-RGB data handled via a single LINQ6 connector
Hassle-Free Compatibility
Highly compatible and easy to install with support for Intel 14th Generation and AMD Ryzen AM5 sockets.
Specifications
General
| Model Number |
PH-GO360M25G2LCD_DBK01 |
| Product Type |
AIO Liquid CPU cooler |
| Socket Compatibility |
Intel Socket LGA 115x, 1200, 1700, 1851
AMD Socket AM4, AM5 |
| Colour |
Black |
| Warranty |
5 years limited |
Pump Unit
| Dimension |
68 x 75 x 51 mm |
| Material |
ABS, Steel, Copper |
| Motor Speed |
3100 RPM ± 10% (100% Duty Cycle) |
| Power |
12V | 0.28A - 0.33A | 3.36W - 3.96W |
| Pump DC Cable |
400 mm |
| Noise |
20 dBA |
| MTTF |
100.000 hours at 50°C |
Display
| LCD Type |
IPS Panel |
| Dimension |
145.2 x 70.5 x 2.1 mm |
| Screen Resolution |
1480 x 720 pixels |
| Refresh Rate |
60 Hz |
| Luminance |
250 nits |
Clearances
Tubes
| Tubing length |
400 mm |
| Tubing outside diameter |
10.5 mm |
| Material |
CIIR rubber with black braided sleeves |
| Tube clips |
3x |
| Fittings |
Rotary type |
M25-120 Gen2 DRGB Fan
| Fan Dimension |
120 x 120 x 25 mm |
| Frame Material |
PBT (Polybutylene Teraphthalate) |
| Blade Material |
PC (Polycarbonate) |
| Fan Connector |
6-Pin Linq6 |
| Fan Cable Length |
120 mm Daisy-chain |
| Bearing Type |
Hydraulic Bearing |
| Max. Airflow |
72.72 CFM |
| Max. Static Pressure |
2.51 mm H2O |
| Max. Sound Level |
35.13 dBA |
| Motor Type |
PWM, 2-Fase/4-poles |
| Speed Range |
350-2000 ±10% RPM |
| Motor Voltage |
DC 12V, 7-13.2V |
| Motor Max Current |
0.23A |
| Motor Power |
2.76W |
| Motor Safety Protection |
Polarity Protection |
| MTTF |
40.000 hours at 50°C |
360 Radiator
| Dimension (WxHxD) |
397 x 120 x 27 mm |
| Material |
Aluminium |
What's Included
| Glacier One 360 M25 Gen2 LCD |
1x Glacier One 360M25 LCD
1x 6” LCD Module
1x Mounting kit
3x Fan PH-F120M25_G2_01 (pre-assembly)
2x Right corner Screw Cover
2x Left corner Screw Cover
4x Middle Screw Cover
1x 4 pin extension cable 500mm
1x 6 pin adapter cable 500mm
1x 9 pin USB to type-c cable 600mm
3x Tube Clip
12x 30 mm 6-32 UNC Radiator Screws
12x 6 mm 6-32 UNC Radiator Screws
1x Installation Guide |
Backed by a 5 year Phanteks warranty.
