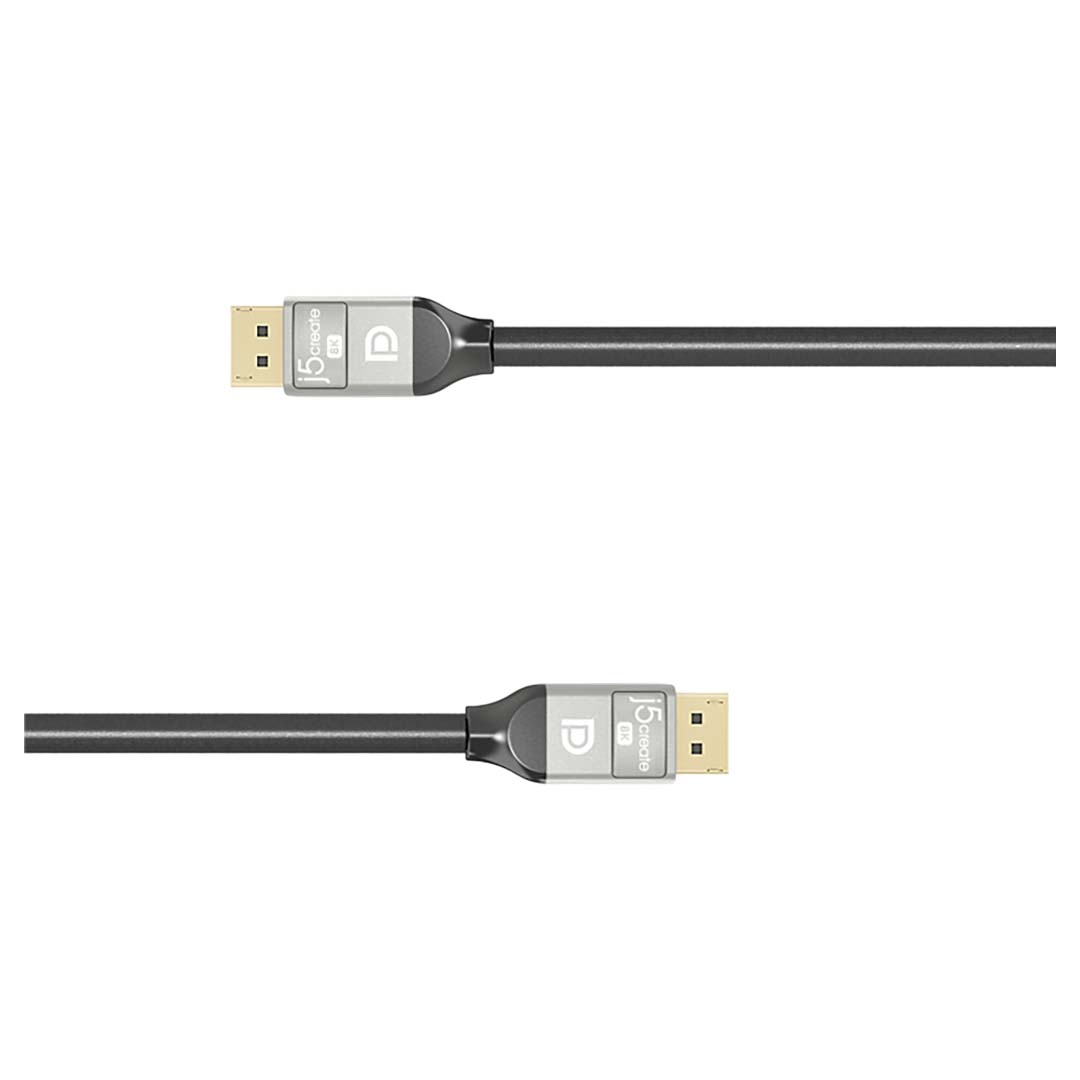

j5create 8K DisplayPort Cable 2m

JDC43 | j5create
$35
In stock
Buy now, pay later!
The j5create 8K DisplayPort Cable features a DisplayPort 1.4 specification designed to support high bandwidth data transfer rates of 32.4 Gbps. The cable enables resolutions up to 8K at 60Hz and 4K at 144Hz, providing support for HDR and high refresh rate gaming monitors. It utilises latched connectors to prevent accidental disconnections and gold plated contacts for reliable signal transmission. The 2m cable is triple shielded to protect against electromagnetic interference in complex setups.

Features


JDC43 8K DisplayPort™ Cable

Designed to Work with All Devices with DisplayPort™ Source

The JDC43/ JDC43L10 / JDC43L30 is an 8K DisplayPort™ cables is allow you to connect a DisplayPort™ from a laptop, desktop, or set-top box to a high-resolution monitor, HDTV or projector with DisplayPort™ input.

The JDC43 /JDC43L10 / JDC43L30 features a tinned copper conductor and aluminium + braided shielding, giving you a stable picture without distortion. Its gold-plated connectors allow for a seamless connection & reliable transmission. Latched connectors give the 8K DisplayPort™ cable a more secure connection.

The cable transmits both audio and video. DisplayPort™ v1.4 supports 8K UHD (7680 × 4320) at 60 Hz with 30 bit/px RGB colour and HDR, and 4K UHD (4096 × 2160) at 120 Hz. The theoretical bandwidth is up to 32.4 Gbps, enough bandwidth to support high-end gaming displays and video cards.

  • DisplayPort™ v1.4 HBR3 certified
  • Supports resolutions up to 7680 x 4320 @ 60 Hz/ 4096 x 2160p @ 120 Hz
  • Supports data rates/bandwidth up to 32.4 Gbps
  • Backward compatible with DisplayPort™ v1.0/v1.1/v1.2
  • Triple shielded, tinned copper conductors and gold-plated metal ensures maximum protection and insulation
  • Latched connectors prevent accidental disconnections
  • Length: 6.6 ft (2m) / 3.3 ft (1m) / 9.8 ft (3m)

J5 Create 8K DisplayPort™ Cable Feature 1

Enjoy Your Premium Audio Environment

J5 Create 8K DisplayPort™ Cable Feature 2

DisplayPortTM Certification

J5 Create 8K DisplayPort™ Cable Feature 3

Supports 8K Video Resolution

The 8K DisplayPortTM Cable provides higher performance support for high resolutions of up to 4K x 2K. Supports resolutions up to 7680 x 4320 / 4096 x 2160p / 1080p 3D. Supports data rates/bandwidth up to 32.4 Gbps. Perfect for gaming or streaming movies on a TV or monitor.

Increase Efficiency

The easiest way to add a second display.

  • Mirror Mode
  • Extended Mode

Universal Compatibility

Easily connects your TV, monitor, computer notebook or set-top box. Backward compatible with DisplayPortTM 1.2/1.1/1.0.

J5 Create 8K DisplayPort™ Cable Feature 4

Transmission Stability

Multiple shields to protect against outside interference ensures the purity of the digital signal, and provides a clearer sound and picture. PVC jacket with durable, long-lasting construction.

J5 Create 8K DisplayPort™ Cable Feature 5

Reliable Triple Shielding

The DisplayPortTM connectors are each protected by a metal shield. This ensures the connectors are easy to plug into and unplug from your system.

J5 Create 8K DisplayPort™ Cable Feature 6

Gold-Plated Connectors

The gold-plated connectors insulate against outside interference. They also provide superior cable performance and guarantee exceptional picture quality and sound.

J5 Create 8K DisplayPort™ Cable Feature 7

Excellent Durability with Latched Connector Design

The latched connector design prevents accidental disconnections and won't loosen or fall out of your devices. For outstanding durability with your laptop or streaming device, gently press down on the latch and then unplug the connector.

Specifications


General Data

Model Number JDC43
Cable Length JDC43: 6.6 ft. (200 cm)
JDC43L10: 3.3 ft (100 cm) / JDC43L30: 9.8 ft (300 cm)
Colour Black
Connector Type DisplayPort™ Male
Enclosure Type Plastic
Operating Humidity < 85% non-condensing
Operating Temperature 32 to 98°F (0 to 37°C)
Product Depth 0.39 in. (10 mm)
Product Height 1.57 in. (40 mm)
Product Weight JDC43: 0.35 lbs. (160g)
JDC43L10: 0.16 lbs. (72.5g)
JDC43L30: 0.51 lbs. (230g)
Product Width 0.74 in. (19 mm)
Storage Humidity < 85% non-condensing
Storage Temperature 14 to 140°F (-10 to 65°C)
What's Included  1 – 8K DisplayPort™ Cable (JDC43 / JDC43L10 / JDC43L30)
System Requirements DisplayPort™ -enabled devices
Special Notes A 8K-capable display and host device is required for obtaining the 7680 x 4320 resolution
The cable can be used with all DisplayPort™-enabled devices, but 8K @ 60 Hz resolution can only be supported on compatible devices

Hardware

Cable Jacket Type PVC
Cable Shield Type Foil/Braid Tinned Copper + Al tape
Connector A Gold-plated DisplayPort™ Male
Connector B Gold-plated DisplayPort™ Male
Warranty 1 Year Limited

Performance

Audio Channel DisplayPort™ v1.4
Displays Supported 1
Max Data Transfer Rate 32.4 Gbps
Max Display Refresh Rate 7680 x 4320 @ 60 Hz
4096 x 2160 @ 120Hz
Max Display Resolution 7680 x 4320
Backed by a 1 year j5create warranty.
