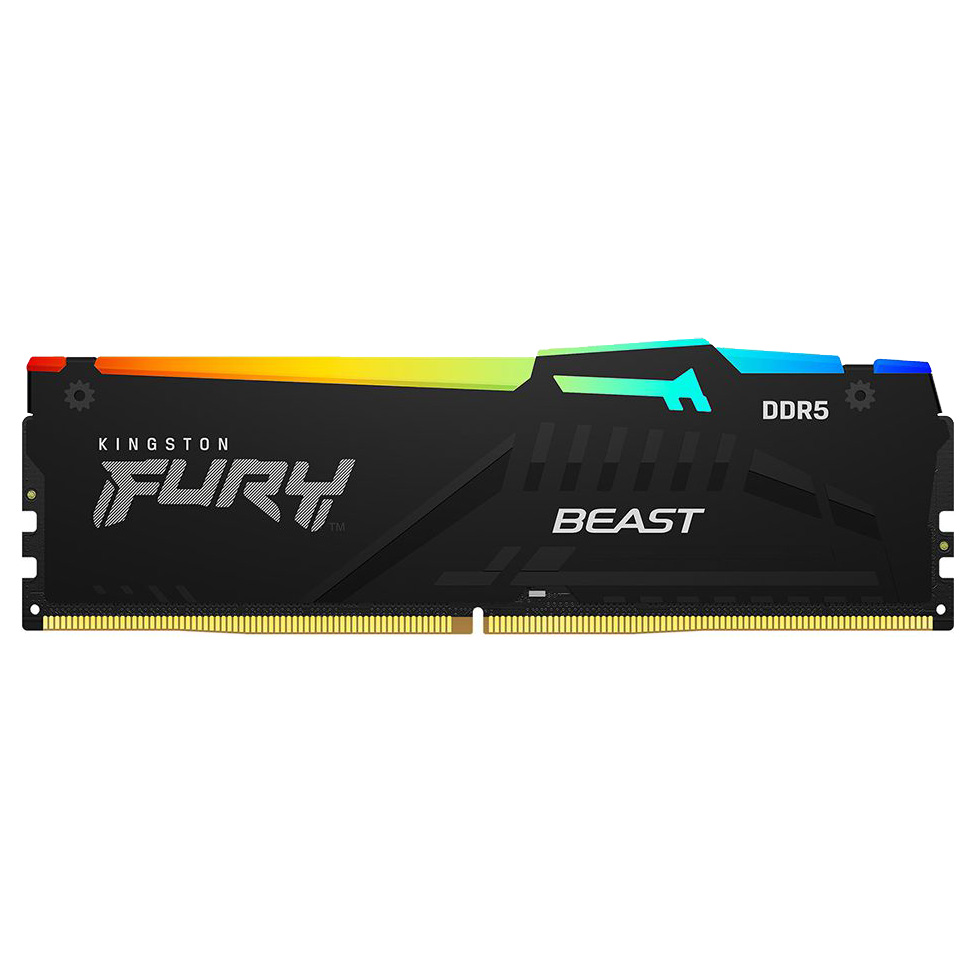

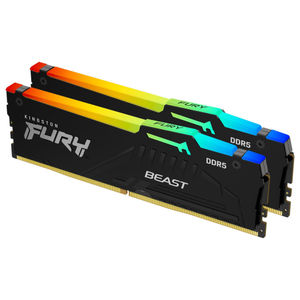

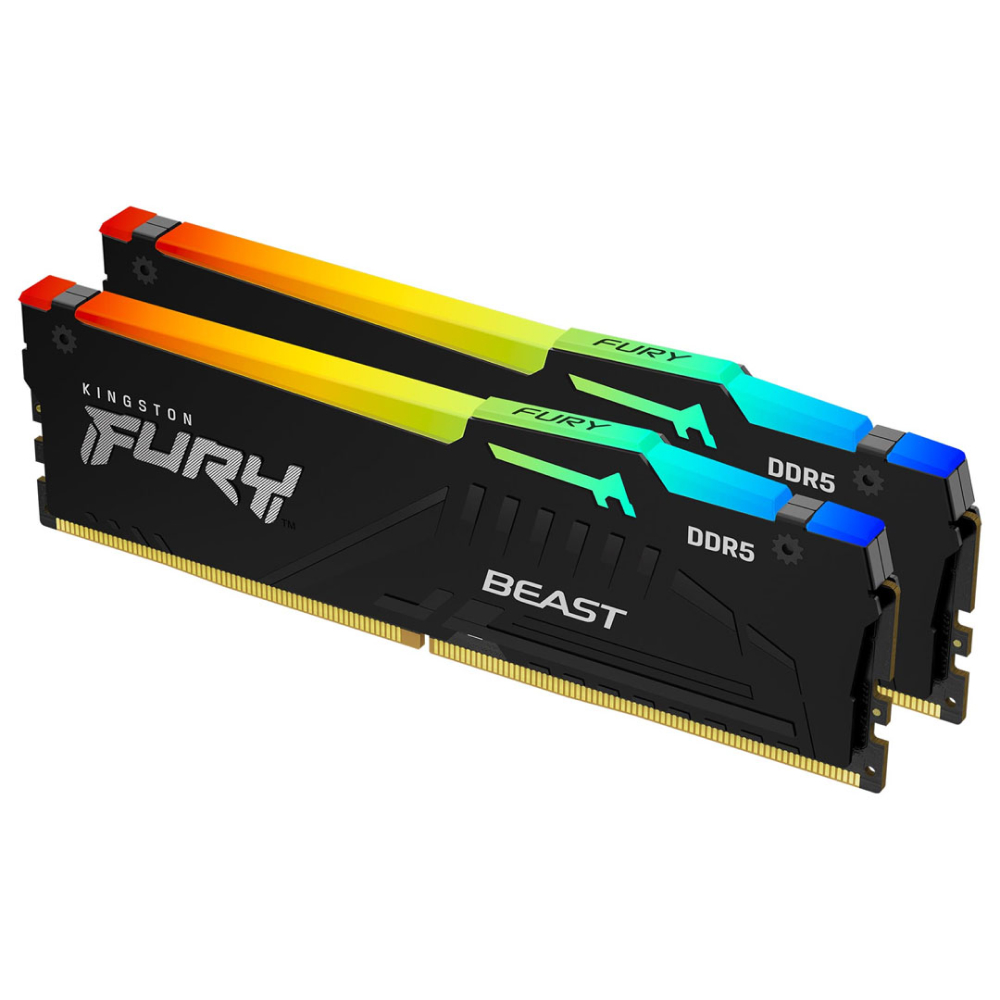

The Kingston Fury Beast RGB 64GB (2x32GB) memory kit features 6000MHz CL36 DDR5 memory, with a tested latency of 36-44-44, 1.35V, with both Intel XMP and AMD EXPO support and features a low-profile heatsink and a sleek design.
Features
64GB (32GB 4G x 64-Bit x 2 pcs.)
DDR5-6000 CL36 288-Pin DIMM Kit
Kingston FURY KF560C36BBE2AK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 4G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-44-44 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
Factory Timing Parameters
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6000 CL36-44-44 @1.35V
- EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V
- XMP Profile #1: DDR5-6000 CL36-44-44 @1.35V
- XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
Specifications
| Model Number |
KF560C36BBE2AK2-64 |
| CL(IDD) |
40 cycles |
| Row Cycle Time (tRCmin) |
48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) |
410ns(min.) |
| Row Active Time (tRASmin) |
32ns(min.) |
| UL Rating |
94 V - 0 |
| Operating Temperature |
0° C to +85° C |
| Storage Temperature |
-55° C to +100° C |
| Power Supply |
VDD = 1.1V Typical |
| VDDQ |
1.1V Typical |
| VPP |
1.8V Typical |
| VDDSPD |
1.8V to 2.0V |
| On-Die ECC |
Yes |
| Height |
1.66” (42.23mm), w/heatsink |
Backed by a limited lifetime Kingston warranty.
