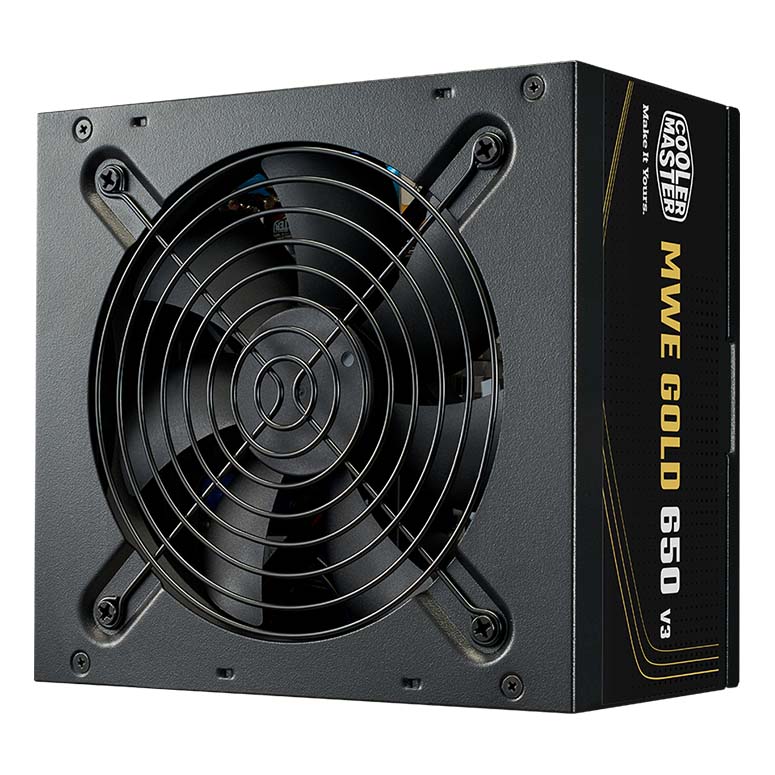

Cooler Master MWE Gold V3 650W 80+ Gold ATX 3.1 Power Supply features 650 W of continuous power with 80 Plus Gold efficiency and full ATX 3.1 support for modern PC builds including current and upcoming GPUs. It’s a non‑modular design with 120mm HDB fan for quiet cooling and durable operation plus braided EPS/PCIe cables and ample SATA/Molex outputs for storage and peripherals. The unit includes multiple PCIe 6 + 2 pin and EPS connectors, active PFC and comprehensive protections for stable power delivery.
Features
MWE Gold V3 ATX 3.1 Non-Modular Series
Level Up Your Power
Cooler Master presents the MWE Gold V3 ATX 3.1 Ready featuring high power, ultra-silent performance with exceptional efficiency and reliability.
- Available in 850, 750, 650, 550 Models
- ATX 3.1 support
- A durable 12V-2x6 native cable (750 / 850W only)
- High temperature resilience
- DC-to-DC technology
- 2 EPS Connectors
- 5-year warranty
Certified Efficiency
The MWE Gold V3 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.
Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
Premium Braided EPS Connectors
Two 4-pin EPS connectors are included for universal compatibility with current-gen motherboards. The cables feature premium braided sleeving for enhanced durability, flexibility, and a clean, professional look.
DC-to-DC Technology
High conversion efficiency and independent voltage regulation for stable power delivery.
Specifications
| Model Number |
MPE-6502-ACAAG-3BAU |
| ATX Version |
ATX 12V Ver. 3.1 |
| PFC |
Active PFC |
| Input Voltage |
100-240V |
| Input Current |
10-5A |
| Input Frequency |
50-60Hz |
| Dimensions (L x W x H) |
140 x 150 x 86 mm |
| Fan Size |
120mm |
| Fan Bearing |
HDB |
| Fan Speed |
2400 RPM |
| Efficiency |
≥90% @ Typical Load |
| 80 PLUS Rating |
80 PLUS Gold |
| ErP 2014 Lot 3 |
Yes |
| Operating Temperature |
0-40°C |
| Power Good Signal |
100 - 150 ms |
| Hold Up Time |
≥16ms at 80% Load |
| MTBF |
>100,000 Hours @ 25℃ ambient |
| Protections |
UVP / OVP / OPP / OTP / SCP / OCP |
| Regulatory |
cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
| ATX 24 Pin Connectors |
1 |
| EPS 8 Pin / 4+4 Pin Connectors |
2 |
| PCI-e 6+2 Pin Connectors |
4 |
| SATA Connectors |
6 |
| Peripheral 4 Pin Connectors |
3 |
| Series |
MWE Gold Series |
| Modular |
Non Modular |
| Form Factor |
ATX |
| 80 Plus Efficiency |
Gold |
Backed by a 5 year Cooler Master warranty.
