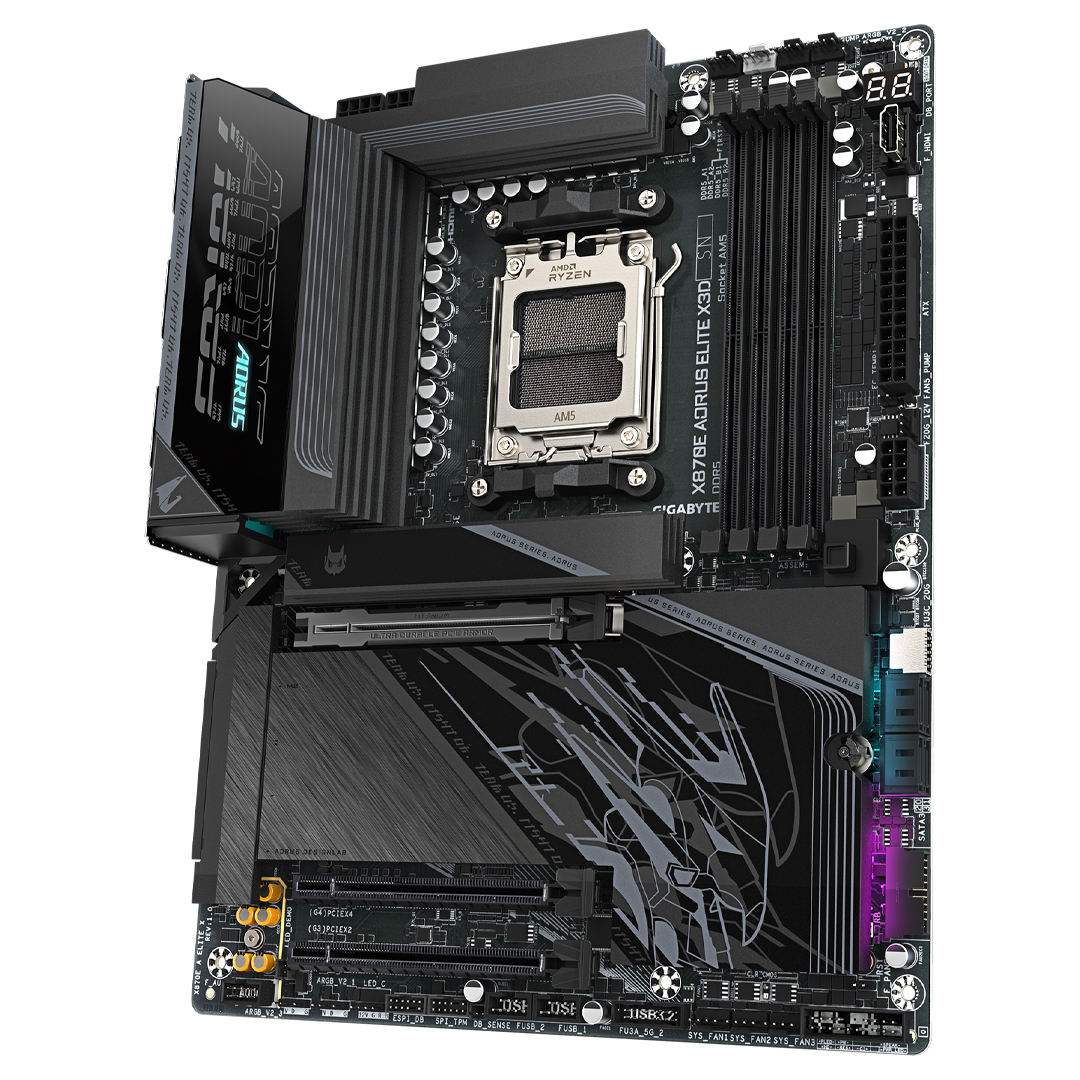

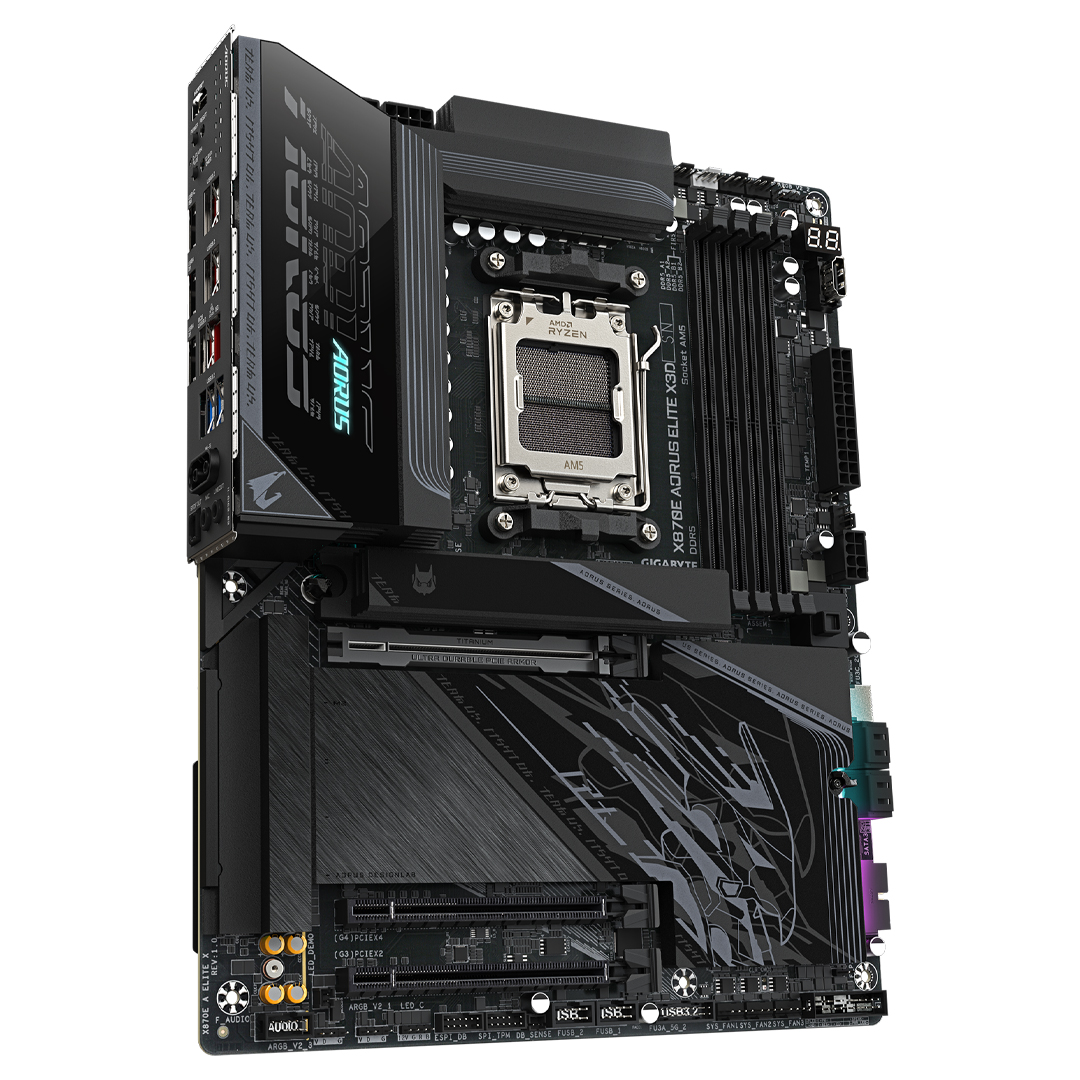

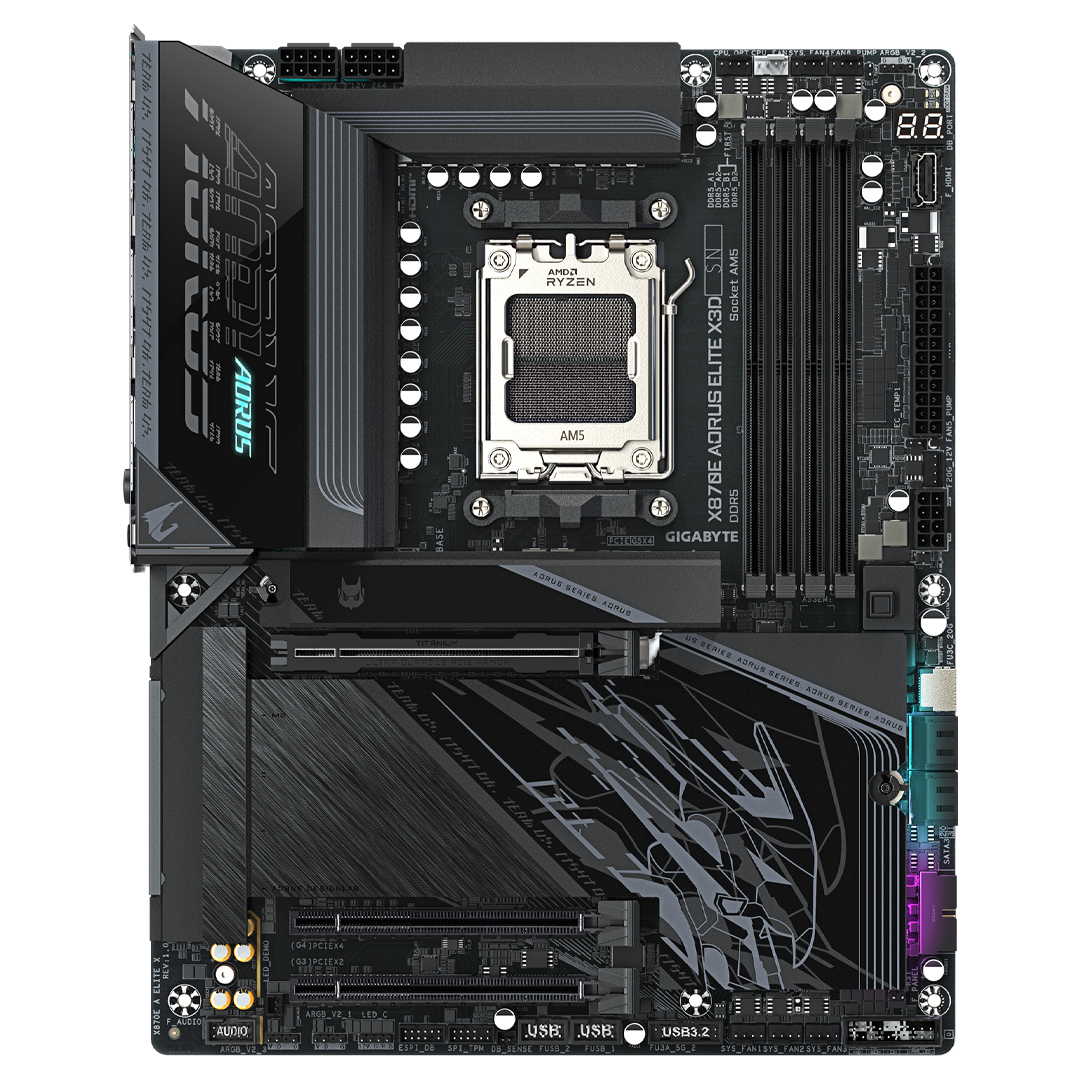

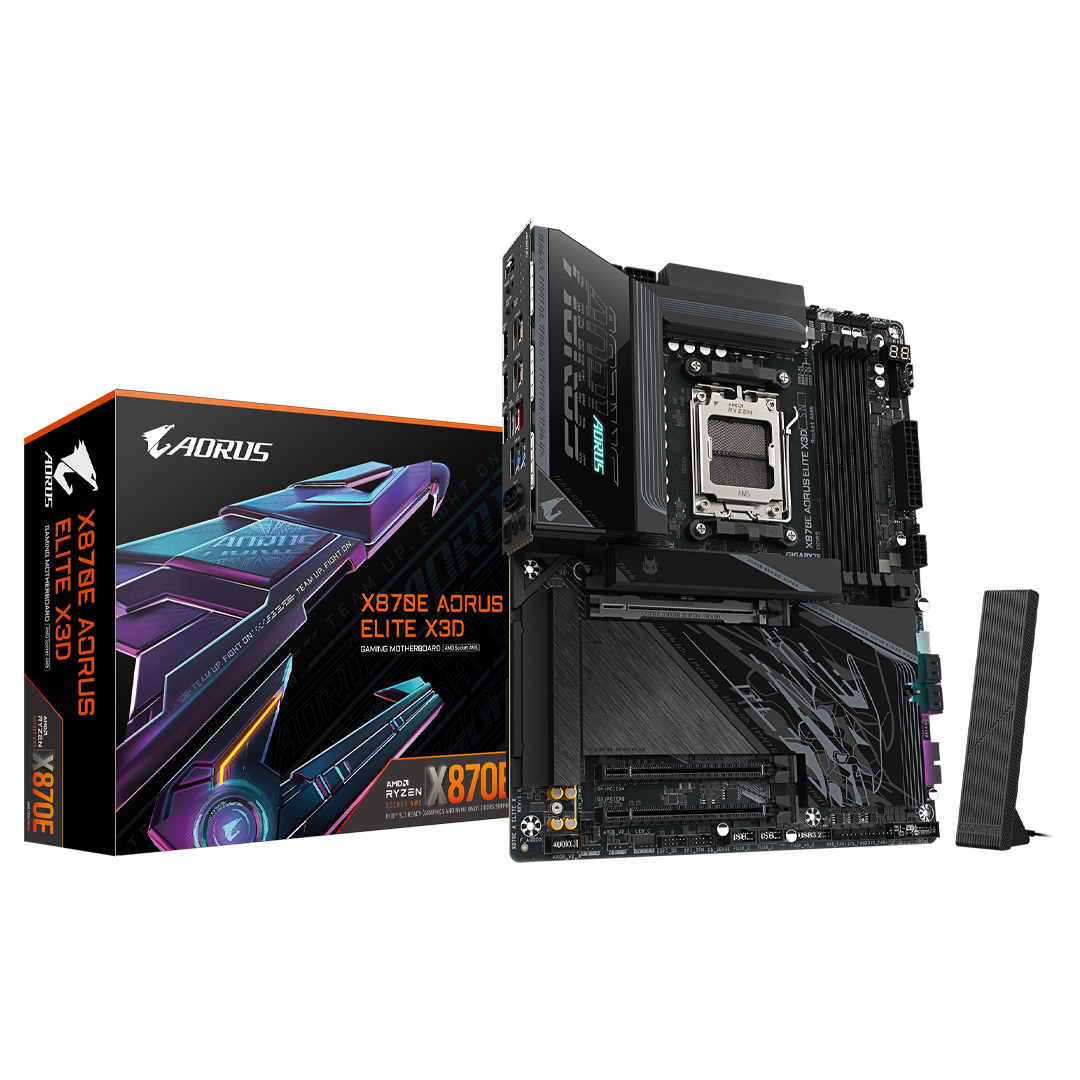

The X870E AORUS ELITE X3D motherboard features the AMD X870E chipset with Socket AM5 support for Ryzen 9000, 8000 and 7000 series processors and four DDR5 DIMM slots with AMD EXPO memory profiles and DDR5-9000 MT/s overclocking support. It includes GIGABYTE's AI-enhanced X3D Turbo Mode 2.0 for one-click performance optimisation, a robust digital 16 + 2 + 2 VRM design and four M.2 slots with PCIe 5.0 support for ultra-fast storage. Networking and connectivity include Wi-Fi 7 with high-gain antennas, 5 GbE LAN, dual USB4 Type-C with DisplayPort-Alt, HDMI, SATA and multiple USB ports for modern peripherals. The board also offers thermal solutions, M.2 EZ-Latch features and DIY-friendly design for easy builds.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
X870E Aorus Elite X3D
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
- PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal : VRM Thermal Armour Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Brand New Gaming Experience
X3D Turbo Mode 2.0
Incredible X3D Performance Unleashed by AI
Unleash New Era Gaming Performance with One-Click Activation.
X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimise X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance.
Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience.
One-Click Acceleration
Faster, fiercer, more precise with a single click.
- Enhance Up to 25% (Differences in performance enhancement depending on the game.)
True AI Overclocking Revolution
Specialised Hardware Processing
Dedicated hardware block for real-time performance tuning.
Dynamic OC Engine Model
Trained on vast X3D processor datasets.
X3D Turbo Mode 2.0 offers two distinct modes — Extreme Gaming Mode & Max Performance Mode — allowing users to freely switch between them based on their usage scenario to achieve optimal performance.
D5 Bionic Corsa
Advanced AI-enhanced overclocking tech for DDR5.
AI Overclocking for Peak Performance
Aorus AI Snatch
Unleash Ultimate Performance with One-Click Activation.
Auto CPU & DDR5 Memory Boost
With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.
- Fast AI Performance
- Enhanced Computing Power
- EZ to Peak
- Safe OC
- Less Power Usage
One-Click Acceleration
Enhance CPU & DDR5 speeds with a single click.
- Real time Analysis
- OC accuracy UP
- EZ to Pro
Fast AI Performance
Accelerate AI processing for greater performance.
- Up to 8% AI Performance (GeekBench AI PRO test conducted with High Bandwidth option manually enabled.)
- Accelerated AI decision-making
- Boosted reinforcement learning
- Streamlined language processing
Boost CPU & Memory Performance
Raise system speed and performance. (Tested by AIDA64 Memory) (Tested by R23 Multi Core)
- Up to 9% Memory Performance Boost
- Tailored-overclocking for your CPU and memory
- Faster data transfer and application loading
- Improved multitasking performance
- Optimised overall system performance
Maximise Performance in a Snap
Enable users to easily become overclocking experts through a simple interface.
Smart & Safe Overclocking
Protect your motherboard through multiple over-temperature and over-current safeguards.
- OTP - Over Temperature Protection
- OCP - Over Current Protection
- OVP - Over Voltage Protection
- OPP - Over Power Protection
- UVP - Under Voltage Protection
- SCP - Short Circuit Protection
Less Power Usage Optimal Power-Efficiency
- Enhance Up to 9% CP/Per Watt
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.
AIDA64 Extreme 7 test conducted with High Bandwidth option manually enabled.
AI Design for MB Signal Enhancement
AI-Driven PCB Design
Redefining PCB Design with AI.
AI-Driven PCB Technology - Redefining PCB Design with Artificial Intelligence
AI-Driven PCB Technology employs AI algorithms to optimise vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
AI-ViaFusion Technology
Optimised vias & pads for signal integrity.
AI-Trace Technology
Smart routing for peak performance.
AI-Layer Technology
- Tailored stackups for enhanced functionality.
Key Features
- AI-Generated Design Recipes
- AI-Driven Simulation
- AI-Powered Signal Verification
- Single and cross-layer signal optimisation
AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity
- Reduction in Signal Reflection Up to 28.2%
AI-ViaFusion, an AI-assisted via optimisation technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.
Best-in-Class Signal Quality
- Superior signal transmission efficiency
- Dramatically reduced signal reflection
- Elevated signal quality and reliability
- Enhanced cross-layer PCB signal performance
AI-ViaFusion Technology - AI-Engineered Via Design Formula
AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.
Optimised Via Design
Varied via sizes for optimised signal and power paths
Driven Pad Optimisation
Custom pad sizes for performance and production balance
Precision Impedance Matching
Via & pad sizes selected for optimal signal impedance
Unlock AI-Powered Performance with AI-ViaFusion Technology
Minimised Insertion Loss
Optimised vias reduce signal loss
Enhanced Return Loss
Precision impedance matching reduces reflections
Optimised Eye Diagram
Wider eye opening improves signal integrity (Eye Diagram: Signal quality assessment tool in digital communications. Overlays bit cycle waveforms, forming eye-like pattern. Larger, clearer opening indicates better signal quality and transmission reliability.)
AI-ViaFusion Technology - AI-Driven Revolution in PCB Design
Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.
AI-ViaFusion Technology Optimises PCB Performance Through
Strategic Via Sizing
Optimised for varied signals across PCB.
Enhanced Impedance Matching
Precise control via machine learning.
Space Optimisation
Maximised layout efficiency with signal integrity.
AI-Trace Technology - Revolutionising PCB Routing with AI
AI-Trace Technology transforms PCB design by leveraging AI to optimise trace routing, resulting in enhanced performance and signal integrity.
Fibre Weave Effect Mitigation
Optimised signal synchronisation.
Shielded Memory Routing
Optimised signal shielding and precision.
Impedance-Optimised Topology
Refined traces with minimal resistance.
Isolated Memory Routing
Optimised trace layout and layer separation.
Daisy-Chained Routing
Innovative design eliminates signal bottlenecks.
Experience next-gen PCB routing with GIGABYTE's AI-Trace Technology.
Mitigating Fibre Weave Effect with AI-Trace Technology
Fibre Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibres, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.
Benefits of Mitigation
- Reduces signal distortion
- Improves transmission reliability
- Supports higher data rates
- Enhances overall system stability
AI-Layer Technology - Next-Generation Multi-Layer PCB Design
AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.
Core Innovation
AI-Optimised Layer Customised Design.
- AI-optimised layer design
- Unique material for each layer
- AI-verified signal integrity
- Tailored PCB for peak performance
Key Features
- AI-optimised PCB layer and design material
- Server-Grade Low Loss PCB (Low Loss for 8-layer PCB model only)
- Enhanced 2X Copper Technology
HyperTune BIOS - AI-Driven Advanced BIOS Optimisation Technology
- BIOS Efficiency Boost Up to 95%+
HyperTune BIOS uses AI to optimise signals. The 800 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.
AI-Enhanced Performance Optimisation
- Adaptive signal strength tuning
- AI tuning accuracy exceeds 95%
- Continuous learning advances performance limits
Experience GIGABYTE's AI-Enhanced HyperTune – Unleashing next-gen BIOS performance.
Memory
Zenith Infinite Memory Performance
Advanced AI-enhanced overclocking tech for DDR5.
X3D series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
- DDR5 Overclocking Up to 9000 MT/s (Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.)
Revolutionary DDR5 Technology
Shielded Memory Routing
Advanced shielding inside the PCB keeps your memory signals clean and interference-free.
Daisy-Chained Routing
Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup.
8-Layer Server-Grade PCB
Top-of-the-line server-grade PCB material minimises signal loss, providing ultra-fast DDR5 data transmission.
PCB Mastery
Enhanced PCB Design for Superior Gameplay
Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.
PCB Back Drilling Technology
Enhances signal integrity in high-speed PCB designs and Reduces signal reflections.
- Enhances signal integrity in high-speed PCB designs
- Reduces signal reflections
- Minimises timing issues
- Improves overall system performance
- Increases system reliability
8L Server-grade PCB
Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.
2X Copper Enhancement
Optimises system efficiency through enhanced thermal management, improved power delivery, and comprehensive overclocking capabilities.
56% Lower Dissipation Factor
Our cutting-edge technology enhances signal integrity in high-frequency circuits, establishing new level in high-speed electronic engineering.
Sturdy VRM Design
Steady Power
X3D Series with steady power keeps your operation smooth.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
* Images for reference only, and may vary by model.
16 VCORE Phases - SPS 80A
Unlock the full power of your multi-core CPU for unmatched performance.
* 8+8 phases parallel power design
2 SOC Phases - SPS 80A
Optimised for integrated GPU performance and memory management within the CPU.
2 MISC Phases - Dr.MOS 60A
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Cooling
Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
M.2 EZ-Flex (Exclusive Patented Design)
- Cools SSD by up to 12°C lower temperature (Test results are for reference only and may vary depending on actual conditions.)
Engineered for Maximum Cooling Performance — High-Efficiency Heat Dissipation & a Flexible Baseplate for M.2 SSD
To prevent overheating, high thermal conductivity pads are typically added. The M.2 EZ Flex was introduced to solve this issue by improving the contact between the SSD and the heatsink.
M.2 EZ-Flex offers a flexible base that improves contact between the heatsink & SSD, enhancing thermal performance.
M.2 Thermal Guard L with M.2 Thermal Guard Backplate
- 9X optimised heat dissipation (Test results are for reference only and may vary in different circumstances.)
Level Up Epic VRM Heatsinks for Non-Stop Gaming
- 10X Massive cooling surface - Exceptional heat dissipation
- Superior Direct-touch Heatpipe
- 7 W/mK thermal pad
Premium VRM Thermal Armour for Superior Cooling
"Stay Cool, Game On"
High-coverage MOSFETs with integrated moulded heatsinks.
10X Larger Surface Area for Enhanced Heat Dissipation
With up to 10 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
Superior Direct-Touch Heatpipe for Optimal Heat Transfer
- Features direct-touch heatpipes with a thickened design & advanced manufacturing process
- Minimised gap between the heatpipe & heatsink for enhanced thermal transfer to the MOSFETs
- Designed for optimal thermal conductivity
- Ensures efficient heat transfer and maintains system stability
True One-Piece Heatsink Design
- Outperforms competitors multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance
7 W/mK Thermal Pad for Efficient Thermal Conductivity
- High-performance thermal pad
- Keeps your system cool and running at peak efficiency
Multi-Cut Design with Channels for Improved Airflow
- More grooves, more airflow.
- Better airflow, cooler system.
M.2 Thermal Guard Ext.

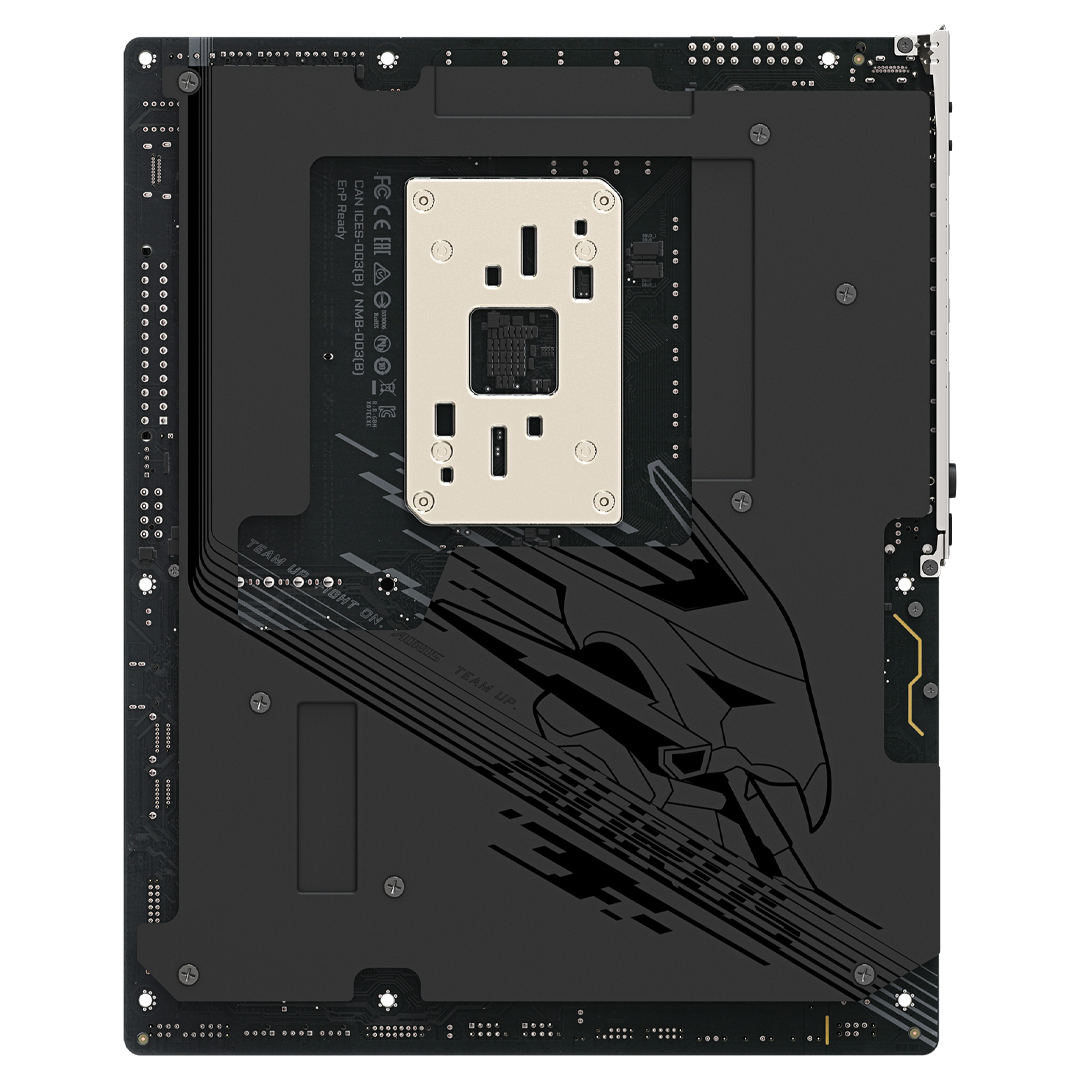

PCB Thermal Plate
Exclusive full-coverage metal backplate design.
- 14% up thermal performance - Enhanced stability Protect your Motherboard
Small Vents, Big Cooling Power
- Up to 7°C lower temperature (Test results are for reference only and may vary in different circumstances.)
Smart Fan 6
Cool. Quiet. Customised.
Superior cooling performance and whisper-quiet operation for your gaming rig.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customisable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Smart Fan 6 BIOS UI
Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments
Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimisation of fan curve
Fan Curve Profile
- Save personalised settings to BIOS ROM
- Maintain custom settings through BIOS updates
Easy & Friendly
Hassle-Free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience.
DriverBIOS
No need to download Wi-Fi Driver, Power-On & EZ to Launch the Network.
There is no need to download or install additional drivers to enable wireless networking after Windows installation is complete. Moreover, the capacity is 2 times larger than 32MB BIOS.
Fast-Access Controls
Handy, Revert, Refresh
More Quick Control Elements
Rear EZ-Button
Enjoy premium ease of use through the thoughtful relocation of Power/Reset/Clear CMOS/Q-Flash+ buttons to the rear panel.
Multi-Key
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
RGB Switch
Disable all light displays on the motherboard.
Direct-to-BIOS
Access the BIOS settings directly without keyboard inputs.
Safe Mode
Access BIOS safe mode to modify select settings while preserving other configurations.
Optimal DRAM Installation Indicator
Debug LEDs (with DRAM Indicator)
The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.
Q-Flash Auto Scan
The new Auto Scan function features when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Q-Flash Plus
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.
- Step 1: Connect the 24-pin and 8-pin power cables directly to the motherboard.
- Step 2: Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.
- Step 3: Press the Q-FLASH PLUS button to trigger automatic BIOS updating.
M.2 EZ-Match
Revolutionary magnetic design for effortless M.2 SSD installation and maintenance.
- Magnetic attachment system
- Allows for easy heat sink reattachment
- Enhances overall system maintenance efficiency
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adaptor, EZ to install.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
PCIe EZ-Latch Plus
Easy ejection with single click for two graphics cards.
M.2 EZ-Latch Click
Screwless installation for M.2 heatsink.
M.2 EZ-Latch Plus
Screwless installation for M.2 SSD's.
Sensor Panel Link
The built-in video port streamlines Sensor Panel setup without management concerns. Official themes are ready for user to download. (The demo system uses 7-inch 1024*600 monitor to demo sensor panel link feature.)
Future Connectivity
All-Round Connectivity
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Front QC-USB 65W
Featuring a front USB 3.2 Gen 2x2 Type-C® port with 65W Power Delivery (PD) capability, this design enables fast charging through the front USB-C connection when using a 10 or 20 Gbps-compatible chassis. The power status of the front USB port is displayed in the HWinfo, allowing users to easily monitor power delivery conditions.
Dual 40Gbps USB4 with DP-Alt
The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive compatability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.
5G LAN
The 5G LAN design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Wi-Fi 7 Brings You the Ultimate VR Experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.
320 MHz Channels
Wi-Fi 7 introduces support for expansive 320 MHz channels, dramatically increasing bandwidth for unprecedented data transfer speeds.
4K-QAM
Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling lightning-fast file transfers and buffer-free streaming.
Multi-Link Operation
Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4GHz for streaming and 5/6GHz for gaming, resulting in a superior and interruption-free network experience.
Deterministic Low Latency
With its deterministic low latency, Wi-Fi 7 minimises delays, making it the best choice for time-sensitive applications such as video conferencing and competitive online gaming.
Directional Ultra-High Gain Antenna
Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimised Wi-Fi signal transmission.
- Direction signal up to 5dBi
- Omnidirectional signal up to 4dBi
- Magnetic Base
Immerse Audio
Audiophile Grade Capacitors
Premium Grade Audio capacitors ensure consistent power delivery, recreating a professional studio-quality sound experience.
True High-Fidelity Music
Dive into enveloping surround sound and enjoy DSD audio playback with the Realtek Codec.
Ultra Durable™
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. Elite series motherboards are engineered to endure and excel.
PCIe UD Slot X
The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card.
- 10X Load-Bearing Capacity - Integrated, single-piece design anchored to a exclusive backplate
- Inner Lining Rubber Strip - Safeguards your graphics card's PCB against potential damage
- Zinc Alloy - Provides effective EMI shielding for high-frequency signals
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
Tailored Computing
Collaborative Excellence in Computing
More superb, user-friendly, customised BIOS & software.
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratise next-level computing power.
UC BIOS 2.0
Restructured with user-centred and intuitive performance adjustment mechanisms.
Refined BIOS Interface
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimised experience through an easy-to-navigate layout and attractive design for optimal usability.
Multi-Theme
Now users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Greyscale.
One Click to Screenshot
Just one click to take a screenshot directly.
Quick Access Function
GIGABYTE UC BIOS Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.
Click to Go BIOS Path
Return to the main page with one click, no need to press arrow keys or ESC anymore.
BIOS Quick Search Feature
No more getting lost in BIOS! Intelligent search capabilities with intuitive interface design, eliminating complex BIOS navigation and delivering a revolutionised user experience.
Smart 80 Port
POST Diagnostics meets Real-Time Thermal Monitoring. Monitor critical CPU/SYS/VRM temperatures instantly during boot sequence, advanced thermal insights before Windows even loads.
AIO Fan Control
Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS. (Supports for AORUS WATERFORCE X II series AIO only)
Gigabyte Control Center
A unified software platform encompassing multiple GIGABYTE product.
RGB Fusion
Personalise the RGB illumination on your motherboard and connected peripherals.
Spotlight Your Flair
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Varnish Your Shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC. (The information provided is for reference; please prioritise your specific setup and specifications.)
- 1x RGB LED header
- 3x ARGB LED headers
AORUS & HWiNFO Exclusive Partnership
Front QC-USB 65W in HWiNFO
The power status of the front USB 3.2 Gen 2x2 Type-C® port with 65W Power Delivery (PD) port is displayed in the HWinfo, allowing users to easily monitor power delivery conditions.
AORUS & HWiNFO Co-Branded OSD
AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.
Default AORUS Skin
When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.
Memory Timings Monitor
Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.
Detailed BIOS Information
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.
Backed by a 3 year Gigabyte warranty.
