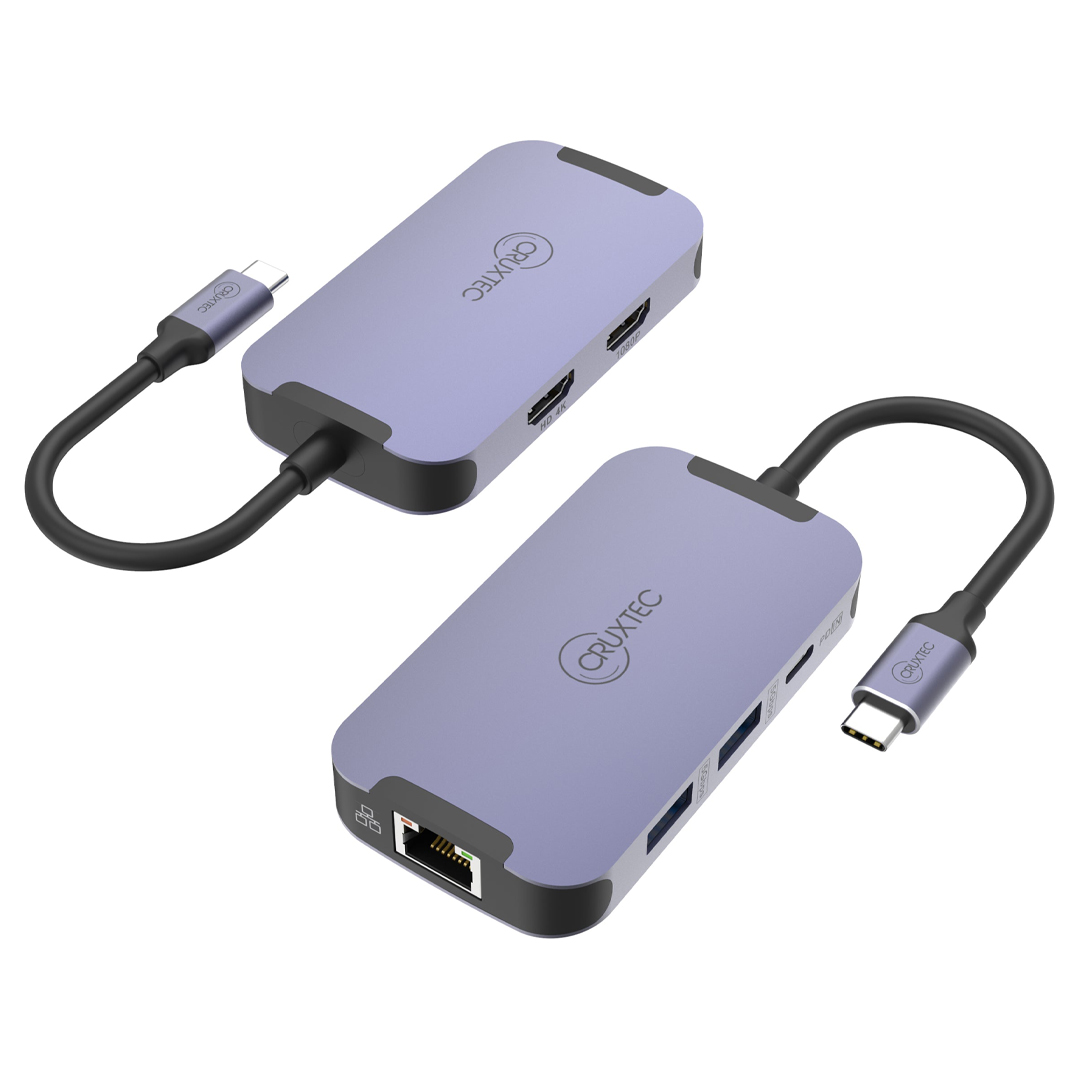

The Cruxtec CDK06-SG Dual HDMI Mini Dock features a USB-C connection with 100W USB power delivery and dual HDMI outputs supporting up to 4K at 30Hz on one port and 1080p at 60Hz on the other, making it ideal for extending display setups. It also includes a Gigabit RJ45 ethernet port and two USB 3.0 5Gbps Type-A ports, offering both network and high-speed data connectivity.
Features
Cruxtec 6-in-1 USB-C to Dual HDMI Mini Dock
Cruxtec compact mini dock connects various peripherals to devices, supporting up to 100W power delivery, Dual HDMI output, Ethernet, and high-speed USB data transfer.
Compatible with M1/M2/M3 MacBooks and Mac Minis.

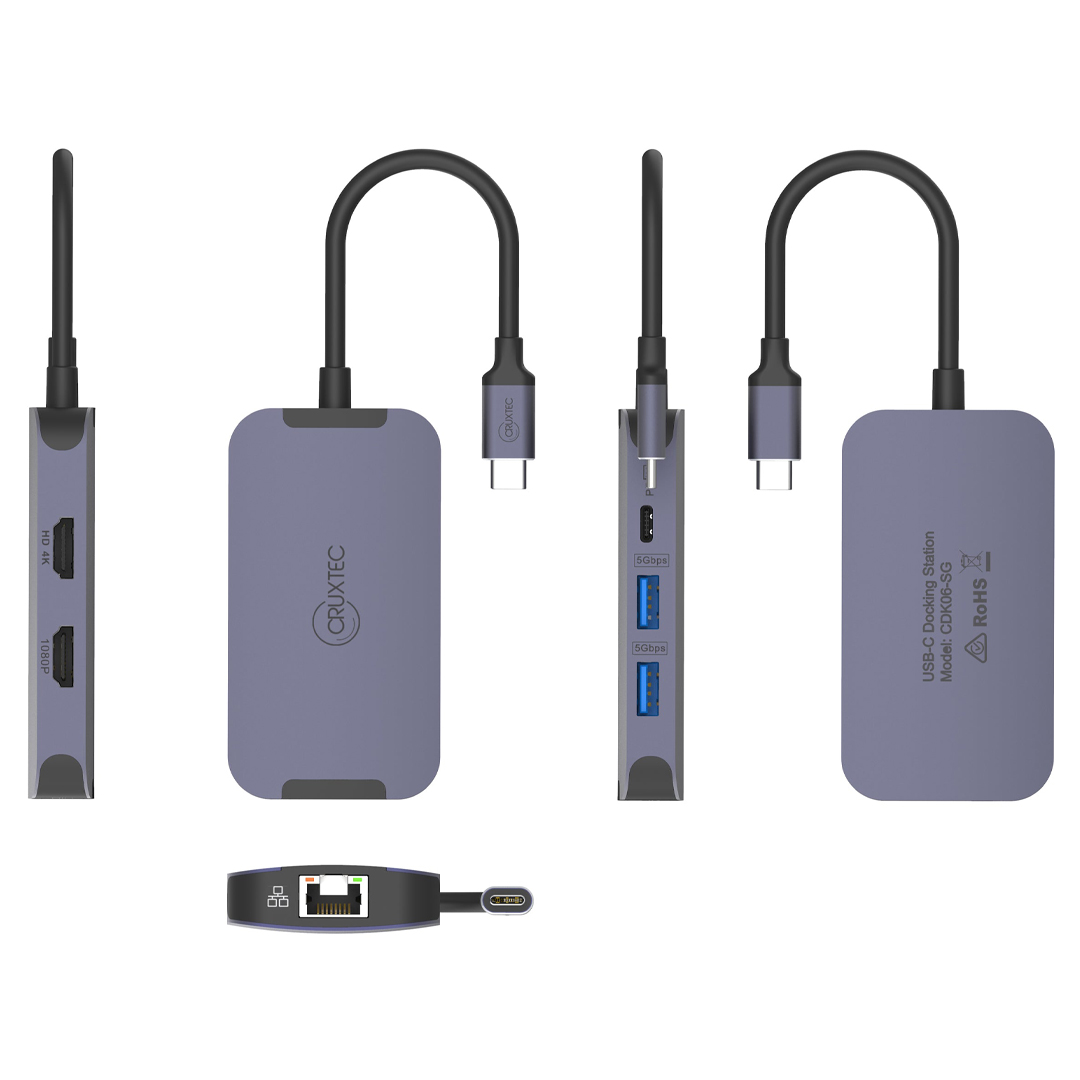

6-in-1 Solution
- 1 x HDMI Output Port Supports up to 4K@30Hz.
- 1 x HDMI Output Port Supports up to 1080@60Hz.
- 1 x 100W Power Delivery 3.0 Port.
- 1 x USB-C Port for Host Connection.
- 1 x Gigabit Ethernet Port.
- 2 x USB3.0 5Gbps Type-A Ports.
Built-In Gigabit RJ45 Network Interface
Compatible with 10M/100M/1000Mbps.
100W Power Delivery 3.0 Port
Up to 85W power delivery to laptop for faster charging.

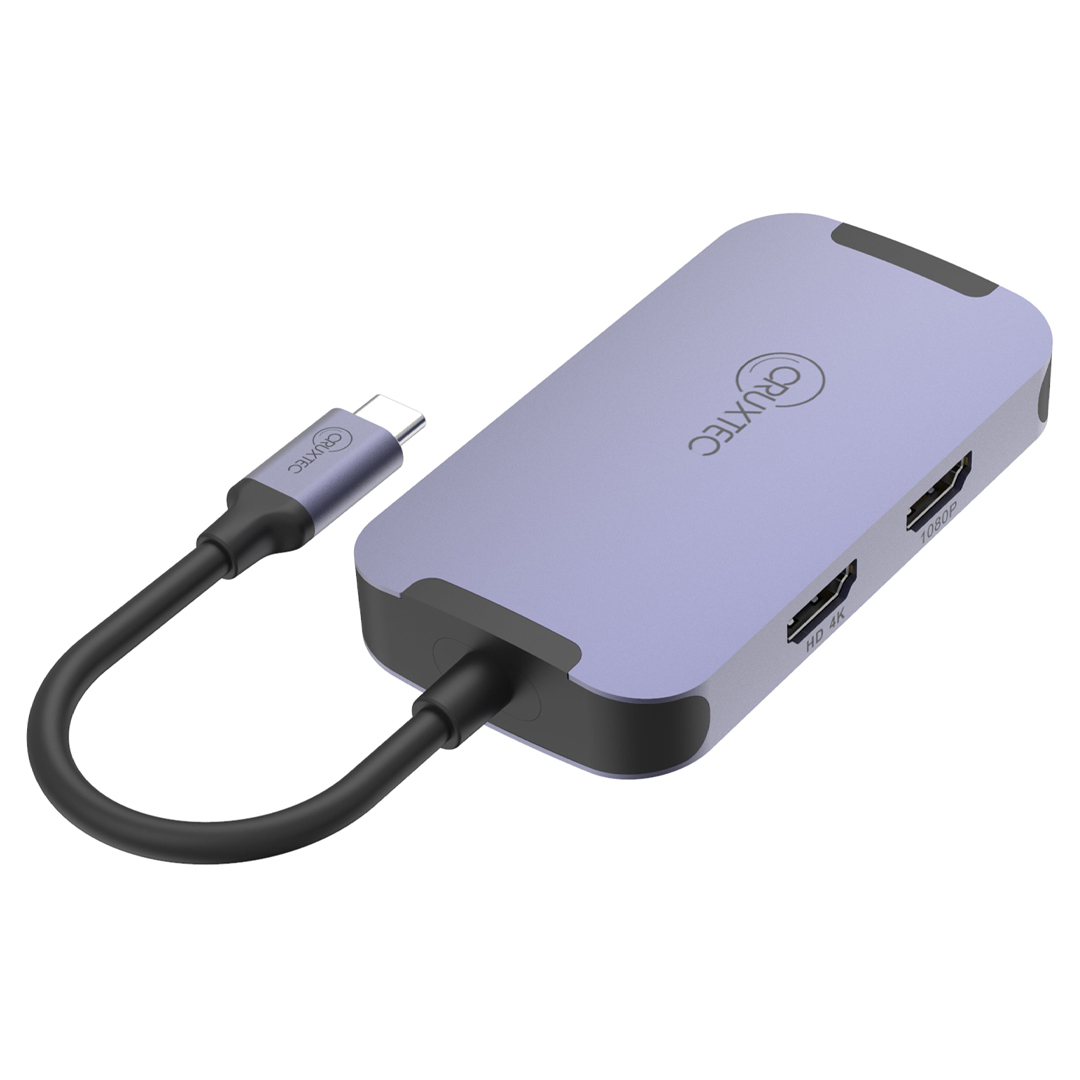

Dual HDMI Output
- Supports MST/SST on Windows.
- Supports on Mac operating systems equipped with M1 / M2 / M3 CPU.
- Built-in drivers for Windows and macOS.
* In Windows 10/MacOS systems, it supports mirroring and extending the screen, and supports three-screen display with different content.
Supports a Single HDMI Output Up to 4K@30Hz
Multi-Screen Extension
Supports mirroring and screen extension on Windows 10/MacOS systems, and supports triple-screen independent display; only supports mirroring on Android systems.
Supports Windows and Mac OS Systems
Supports on Mac operating systems equipped with M1/M2/M3 CPU, When two ports output simultaneously they support mirroring, extension, and different displays, the maximum support for two simultaneous outputs is 4K@30Hz+1080P@60Hz.
01. Extended Mode
Laptop screen + two monitors Triple Screen Different Display.
02. Extended Mode
The laptop screen and two external monitors show different content.
03. Mirror Mode
The laptop screen and two external monitors mirror the same content.
Download Drivers
The product already has built-in drivers for Windows, macOS, and Android systems.
Backed by a 1 year Cruxtec warranty.
