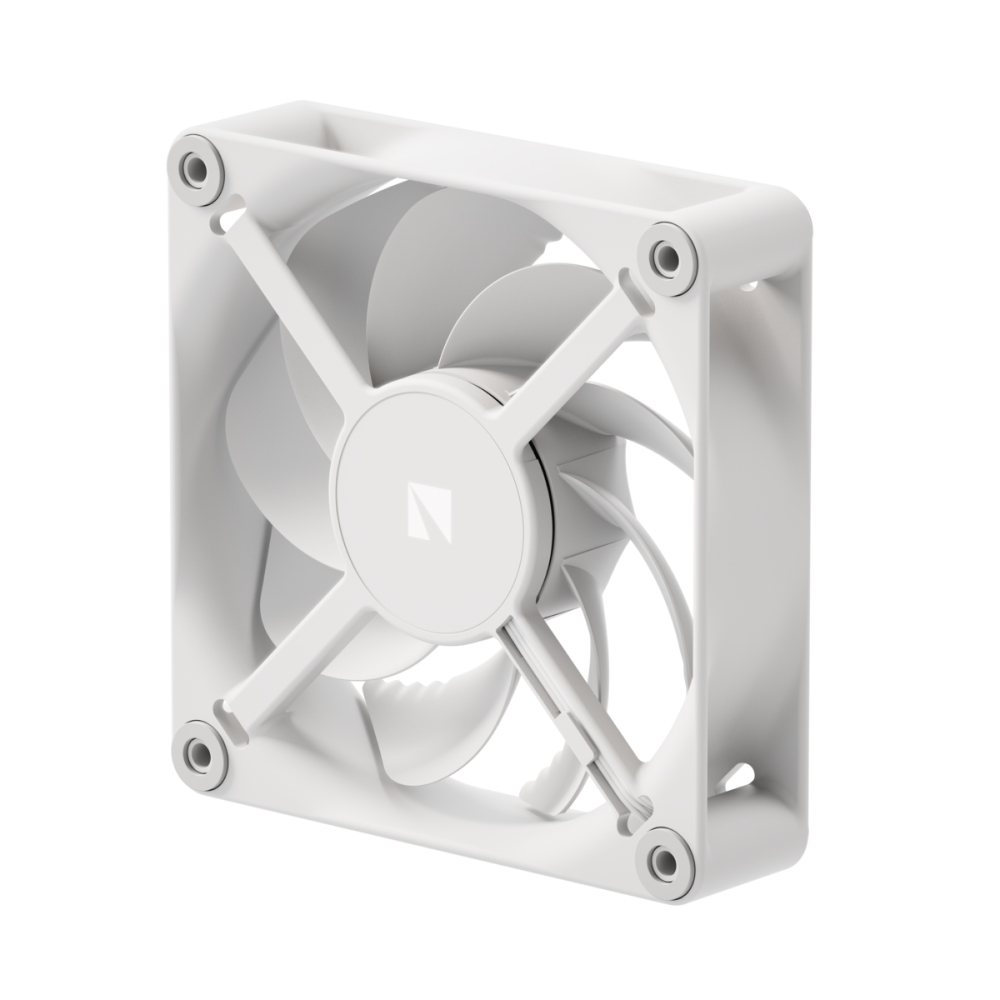

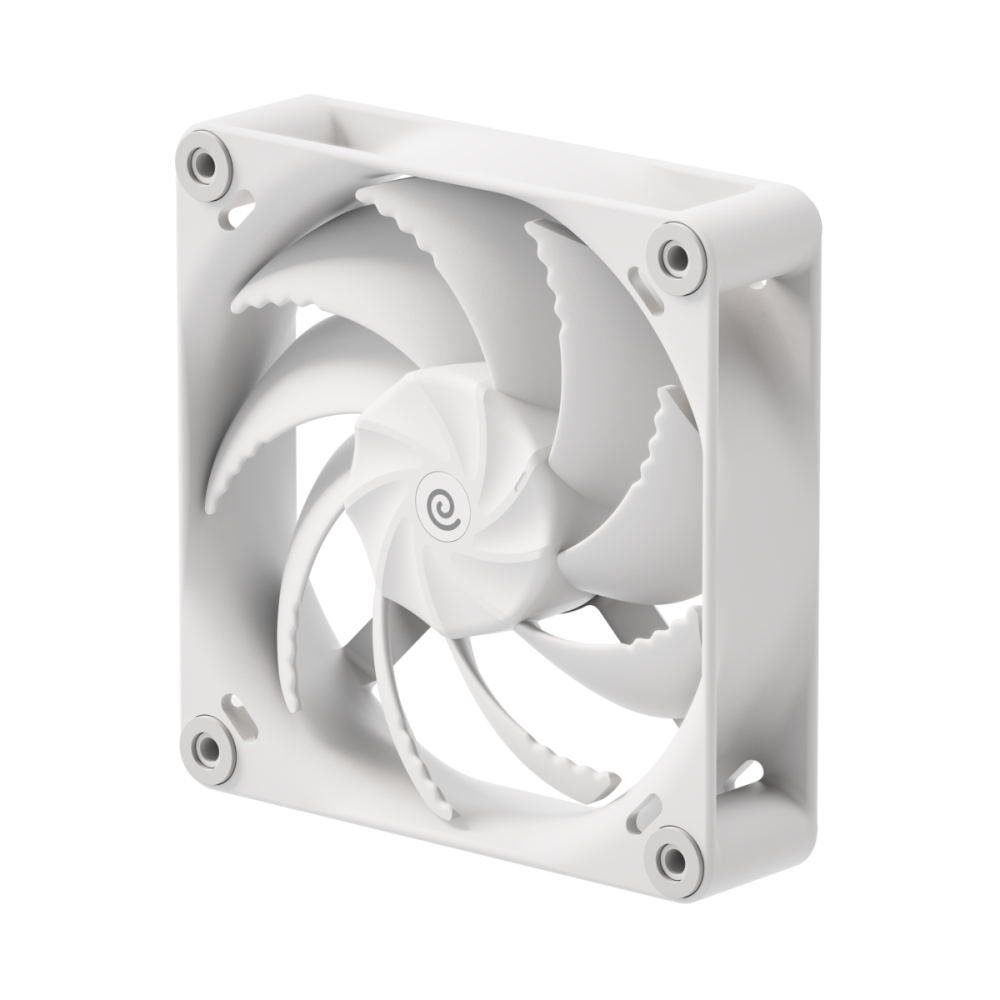

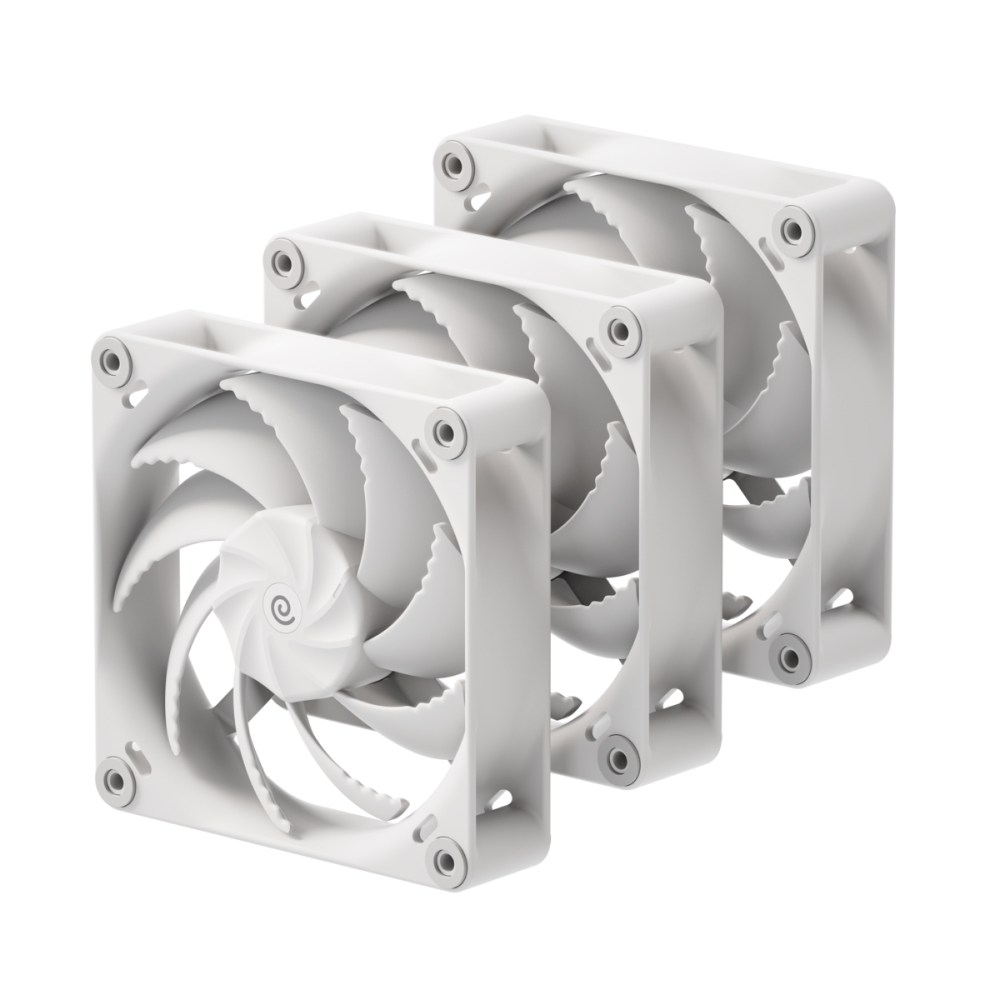

Engineered for superior performance and acoustic efficiency, the HAVN H12 is a premium 120mm triple fan pack designed to elevate your PC's cooling. Its innovative harmonised flow design utilises a precisely shaped hub and wavy blade edges to smooth airflow and reduce high-pressure zones, delivering an impressive 72.44 CFM of airflow and a class-leading 3.01 mmH2O of static pressure with minimal noise. Built for exceptional longevity, the H12 features an advanced triple-groove fluid dynamic bearing that balances internal pressure to prevent oil leakage, ensuring smooth and stable performance for years to come. The fan's frame and blades are constructed from a rigid composite reinforced with 30% glass fiber for durability under high stress, while vibration-absorbing rubber pads minimise unwanted resonance. Installation is cleaner than ever thanks to the Loopin Cable System, which uses built-in passthrough connectors that allow for daisy-chaining multiple fans together, reducing cable clutter and motherboard header usage.
Features
HAVN H12 120mm Fan
Chart-Topping 120mm Performance
The HAVN H12 is engineered for exceptional aerodynamic efficiency. In noise-normalised performance tests at 40 dBA, the H12 is ranked #1 against key competitors including the Noctua NF-F12 and NZXT H7 Flow Stock Fan. It delivers between 5% and 35% more airflow and between 6% and 73% more static pressure than the competition under these conditions.
Harmonised Flow Design
The H12 fan features a precisely shaped hub and blade edges that work together to smooth airflow and reduce high-pressure zones. This advanced aerodynamic design, which includes a wavy blade edge and a novel hub feature, minimises noise while enhancing cooling efficiency.
Durable Triple-Groove FDB Design
The fan's fluid dynamic bearing (FDB) features a custom triple-groove structure on its exterior. This design balances bearing pressure to prevent oil leakage under heavy loads or high temperatures, ensuring smooth, stable high-RPM performance and a long lifespan.

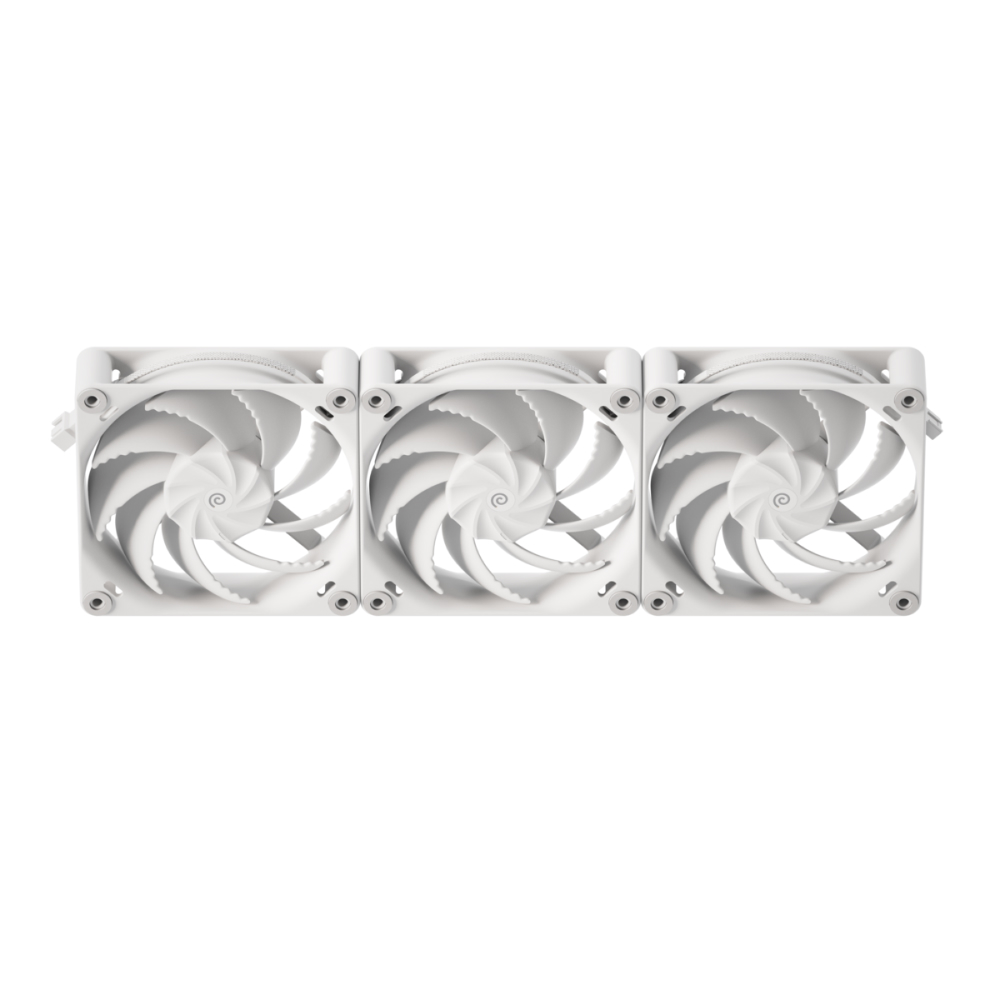

Loopin™ Cable System for Clean Builds
Each fan features built-in male and female pass-through connectors seamlessly embedded into the frame. This allows for clean daisy-chaining of multiple fans, which minimises cable clutter and conserves motherboard headers. The side-by-side alignment makes routing cables along radiator edges or chassis frames exceptionally easy and tidy.
High-Performance Specifications
The 120x120x30mm H12 fan is capable of speeds up to 2100 RPM, delivering a powerful maximum airflow of 72.44 CFM and a strong static pressure of 3.01 mmH₂O to effectively cool your components. The maximum noise level is 32.2 dBA.
Robust and Quiet Operation
The fan is constructed from a composite material reinforced with 30% glass fiber, delivering exceptional rigidity and strength under high-stress conditions. To complement its sturdy build, the fan is equipped with vibration-absorbing rubber pads that minimise structural vibration and reduce unwanted acoustic resonance.
Specifications
| Model Number |
HVN-FS-H1230-01-TRI |
| Model |
HAVN H12 |
| Colour |
White |
| Pack Size |
3x H12 120mm Fan |
| Dimensions |
120x120x30(mm) |
| Bearing |
FDB |
| Speed |
0(0-20%)-2100(100%)RPM |
| Airflow |
72.44(CFM) |
| Static Pressure |
3.01(mmH2O) |
| Noise Level |
32.2(dBA) |
| Rated Voltage |
DC 12V |
| Rated Current |
0.35A |
| Frame & Blade Material |
PBT + 30% Glass Fiber |
| Wire Material |
Sleeved PVC-insulated copper wire |
| PCB Material |
Fiberglass |
| Label Material |
PET |
| Net Weight (Fan) |
200g |
Backed by a 2 year HAVN warranty.
